1994–2013 Suzuki DR200SE DR125SE DF125 DF200 18-Coil 5-Wire Stator 32101-42A40
1994–2013 Suzuki DR200SE DR125SE DF125 DF200 18-Coil 5-Wire Stator 32101-42A40
Couldn't load pickup availability
Product Overview

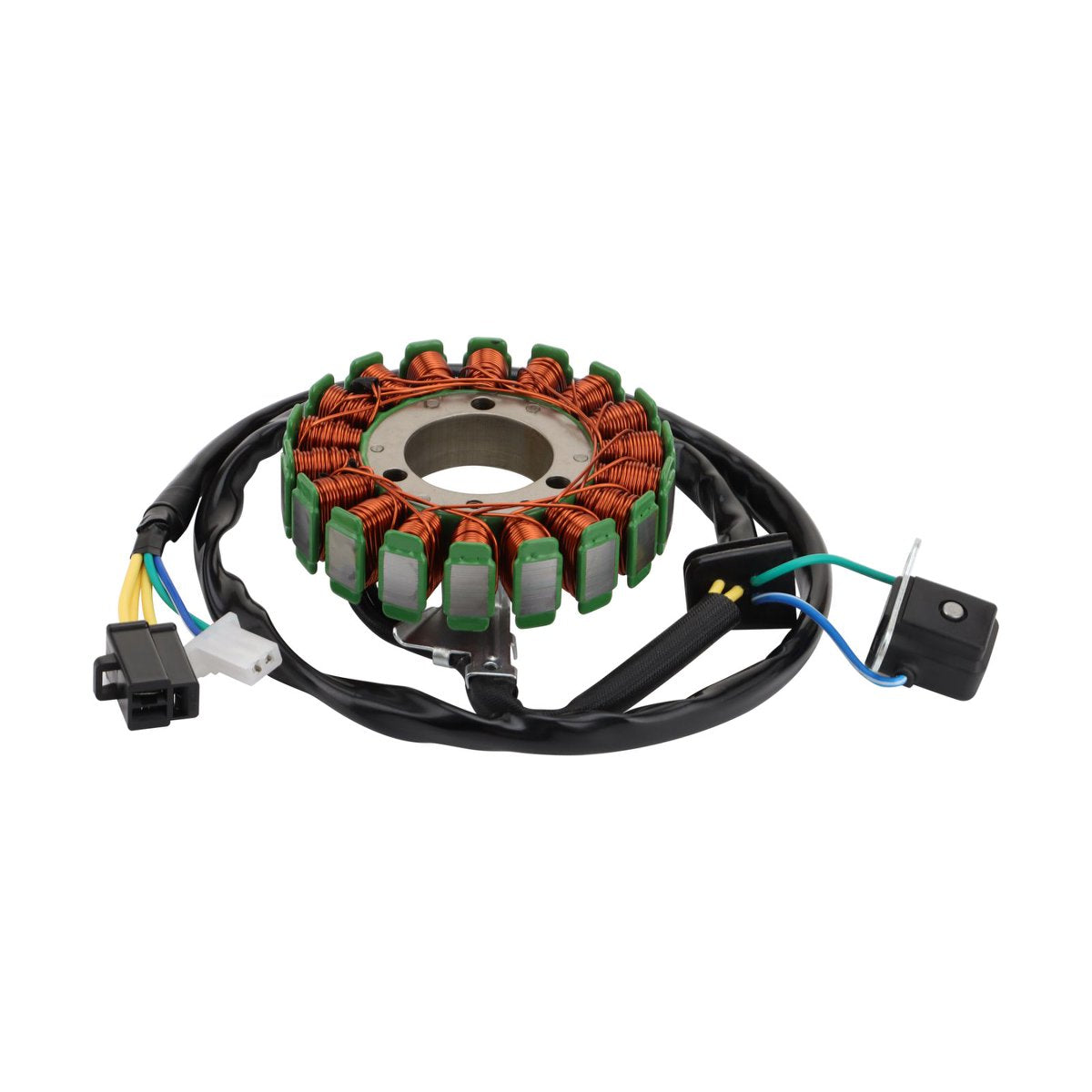

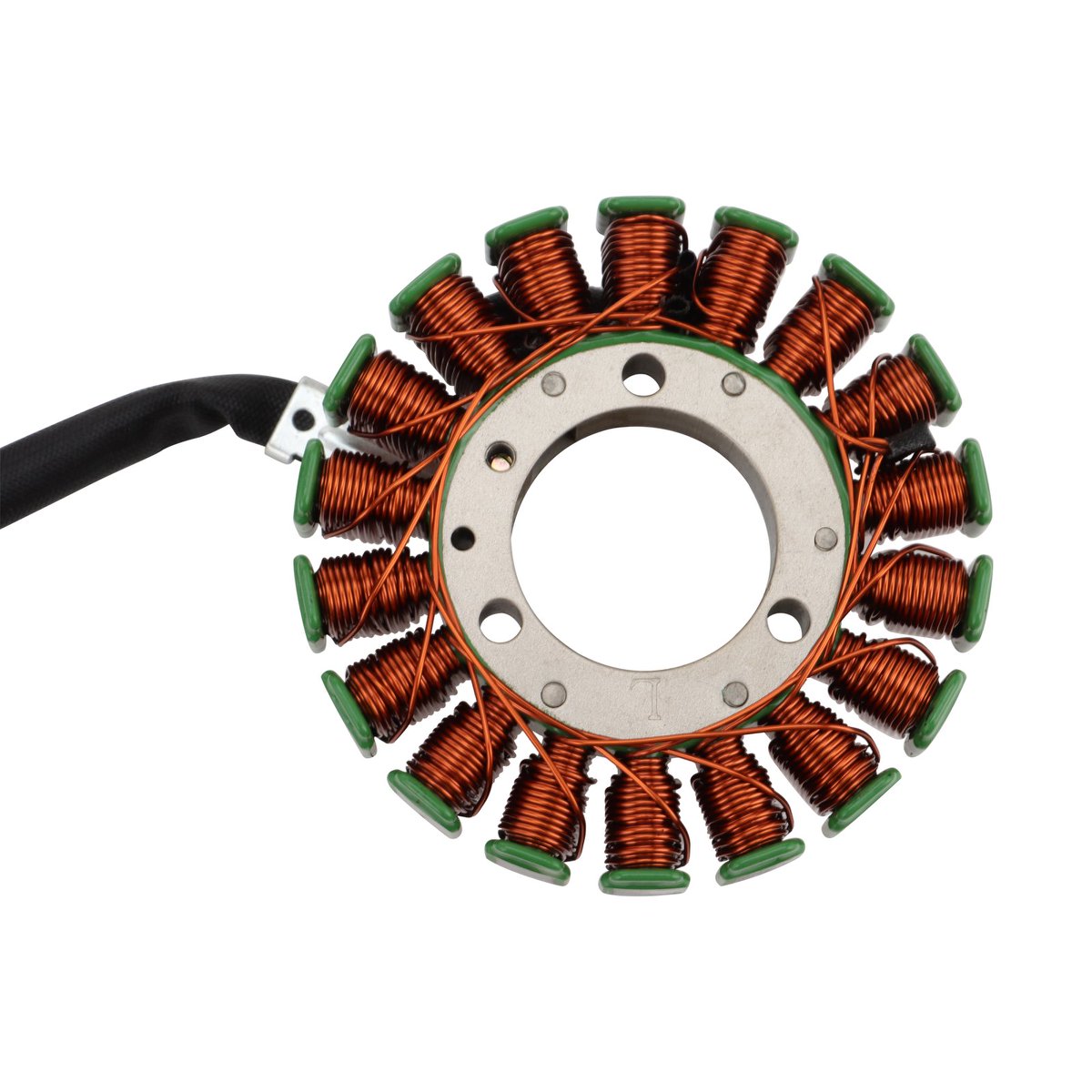

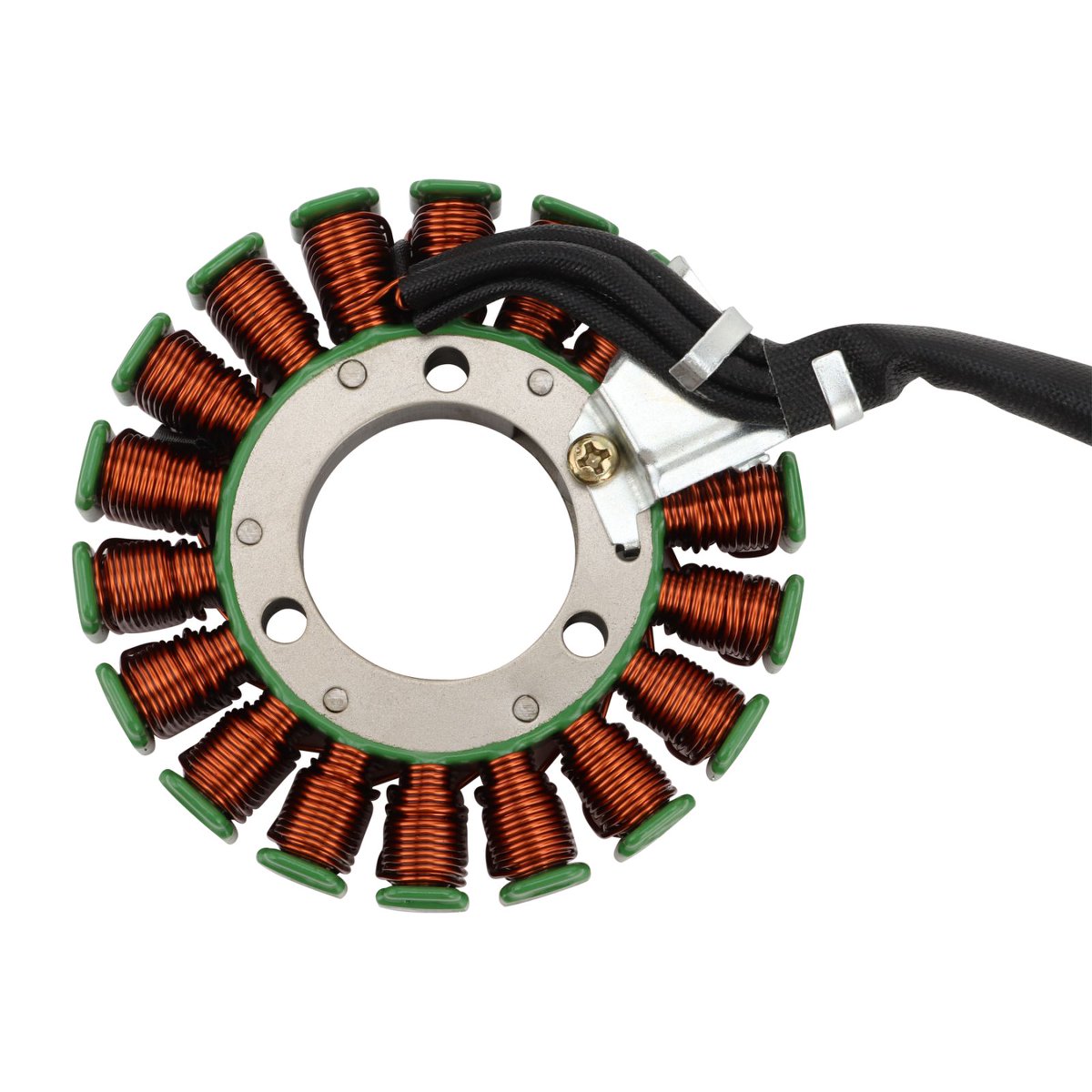

Replace a weak, burned, or failed stator with this 18-coil 5-wire magneto stator, designed for select Suzuki DR200SE, DR125SE, DF125, and DF200 models using OEM reference numbers 32101-42A40 and 32101-42A30.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, lights, and other electrical components. If your Suzuki DR200SE, DR125SE, DF125, or DF200 has weak charging, no spark, dim lights, unstable voltage, or stator-related electrical failure, replacing the stator may help restore normal electrical performance.
Built for stable electrical output and reliable performance, this replacement stator is suitable for matching Suzuki models with the correct 18-coil / 5-wire configuration, outer diameter, center hole size, mounting hole spacing, trigger coil position, and connector layout. Please compare your original stator before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | DR200SE | 1996–2013 | 32101-42A40 / 32101-42A30 | Main fitment; confirm original stator size and plug layout |
| Suzuki | DR125SE | 1994–2002 | 32101-42A40 / 32101-42A30 | Fits matching 18-coil 5-wire stator version only |
| Suzuki | DF125 / DF125EX | 1999 | 32101-42A40 / 32101-42A30 | Compare OEM number, wire count, and connector before purchase |
| Suzuki | DF125 / DF125EY | 2000 | 32101-42A40 / 32101-42A30 | Confirm original stator dimensions before ordering |
| Suzuki | DF200 / DF200ET | 1996 | 32101-42A40 / 32101-42A30 | Fits only models using the same stator design |
| Suzuki | DF200 / DF200EW | 1998 | 32101-42A40 / 32101-42A30 | Check plug layout and mounting holes before ordering |
| Suzuki | DF200EX | 1999 | 32101-42A40 / 32101-42A30 | Verify original stator and connector style |
Important Fitment Note:
This part is not selected by engine size alone. Suzuki DR, DF125, and DF200 models may use different stator versions depending on year, market, and wiring system. Please confirm your original stator matches the OEM reference, 18-coil / 5-wire layout, DC type, connector style, trigger coil position, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |

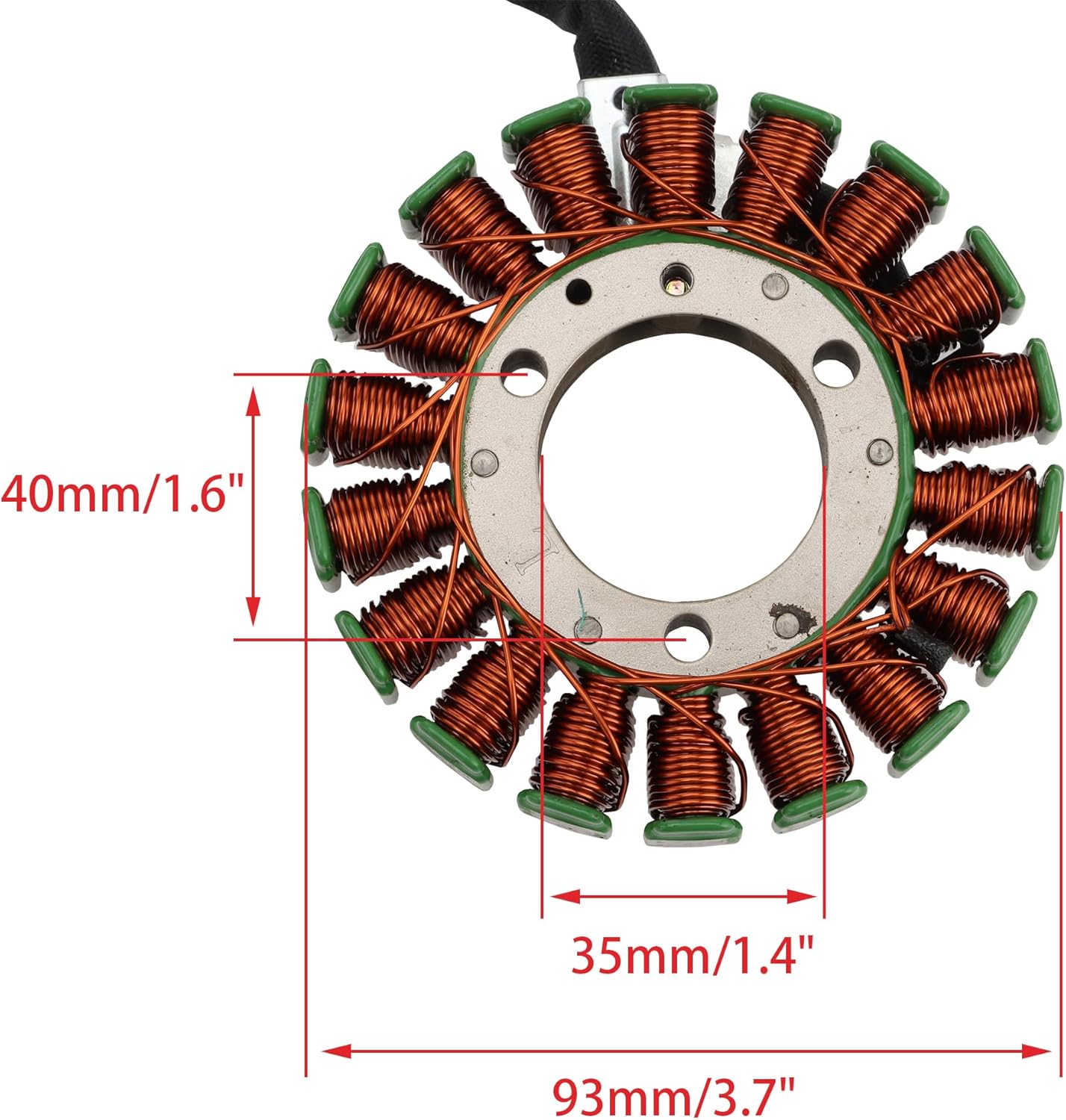

| Inner Diameter | 35mm / 1.4" |
| Outer Diameter | 93mm / 3.7" |
| Mounting Hole Distance | 40mm / 1.6" |
| Trigger Mounting Hole Distance | 32mm / 1.3" |
| Trigger Mounting Hole Diameter | 6mm / 0.24" and 5mm / 0.20" |
| OEM Reference | 32101-42A40 / 32101-42A30 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki DR200SE, DR125SE, DF125, and DF200 models
- Replaces common OEM references 32101-42A40 and 32101-42A30
- 18-coil 5-wire stator helps support charging and ignition system output
- Helps address weak charging, no spark, dim lights, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance

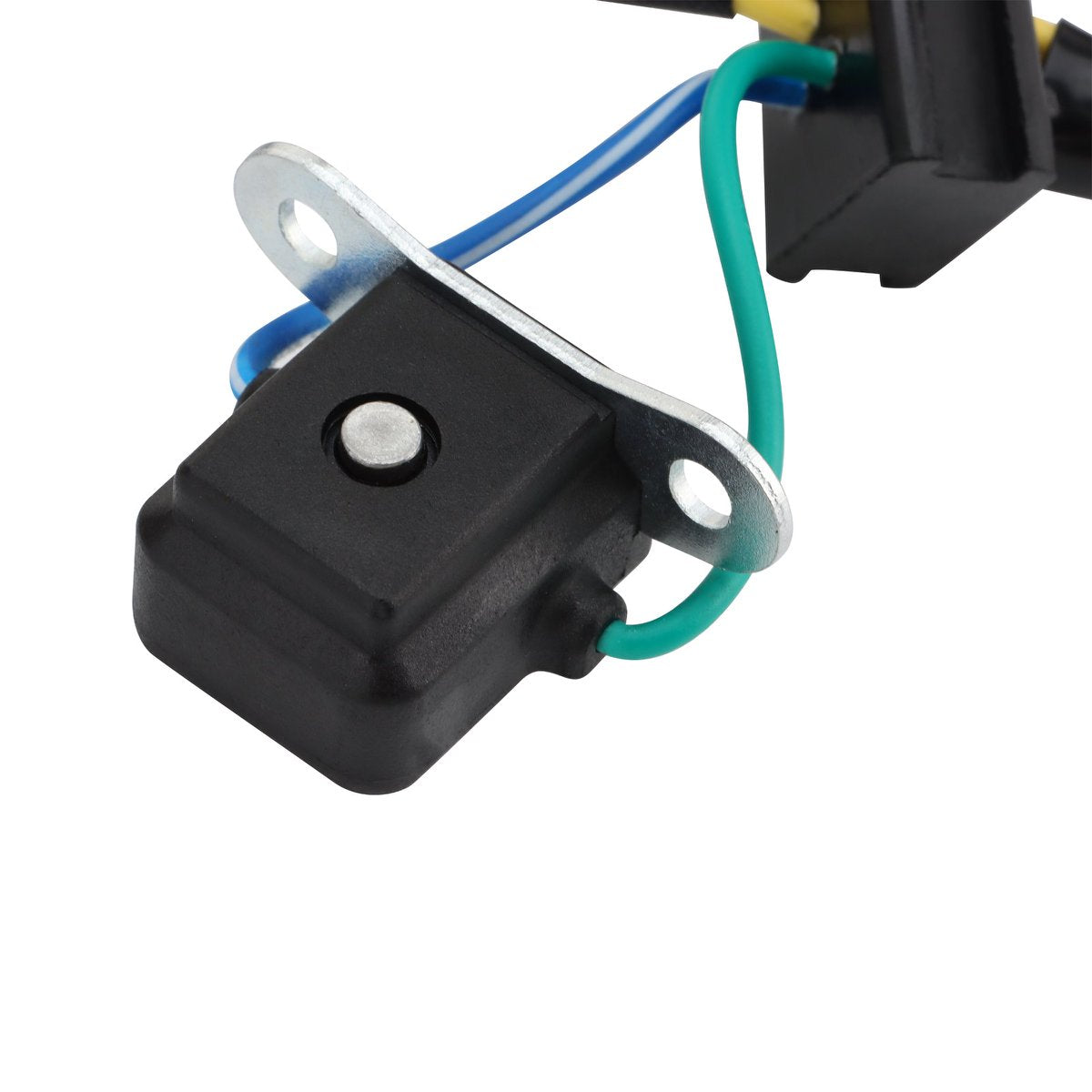

- Includes trigger coil position; original plug layout and dimensions must be checked before installation
- Direct replacement style for matching stator applications
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-42A40 | Common OEM reference for Suzuki DR200SE / DR125SE / DF125 / DF200 stator applications |
| 32101-42A30 | Common cross-reference for compatible Suzuki DR125 and DR200 stator listings |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, trigger coil position, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki DR200SE 1996–2013, DR125SE 1994–2002, DF125 1999–2000, and DF200 1996 / 1998 / 1999 models using OEM reference numbers 32101-42A40 or 32101-42A30. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator commonly replaces 32101-42A40 and 32101-42A30. However, OEM number alone is not enough. Please also confirm the 18-coil 5-wire layout, plug style, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, and trigger mounting hole diameter.
What models or situations does this part not fit?
This part does not fit Suzuki models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, or different mounting hole spacing. It is also not suitable if your issue is caused only by a bad regulator rectifier, weak battery, faulty CDI, damaged ignition coil, burned wiring, or poor ground connection.
What should I check before ordering?

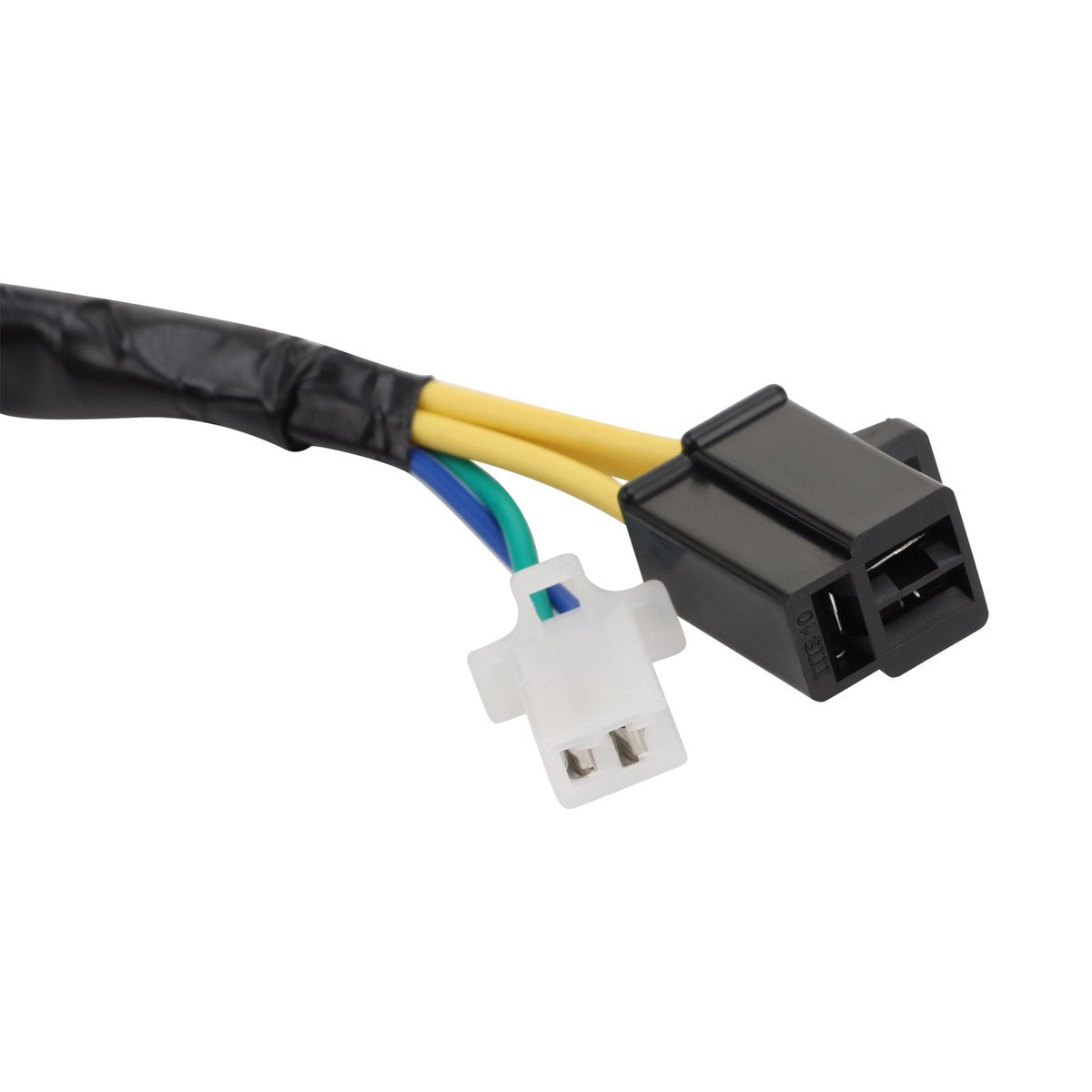

Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
