1996–2016 Suzuki DR650SE XF650 Freewind 18-Coil 7-Wire Stator 32101-32E00
1996–2016 Suzuki DR650SE XF650 Freewind 18-Coil 7-Wire Stator 32101-32E00
Couldn't load pickup availability
Product Overview

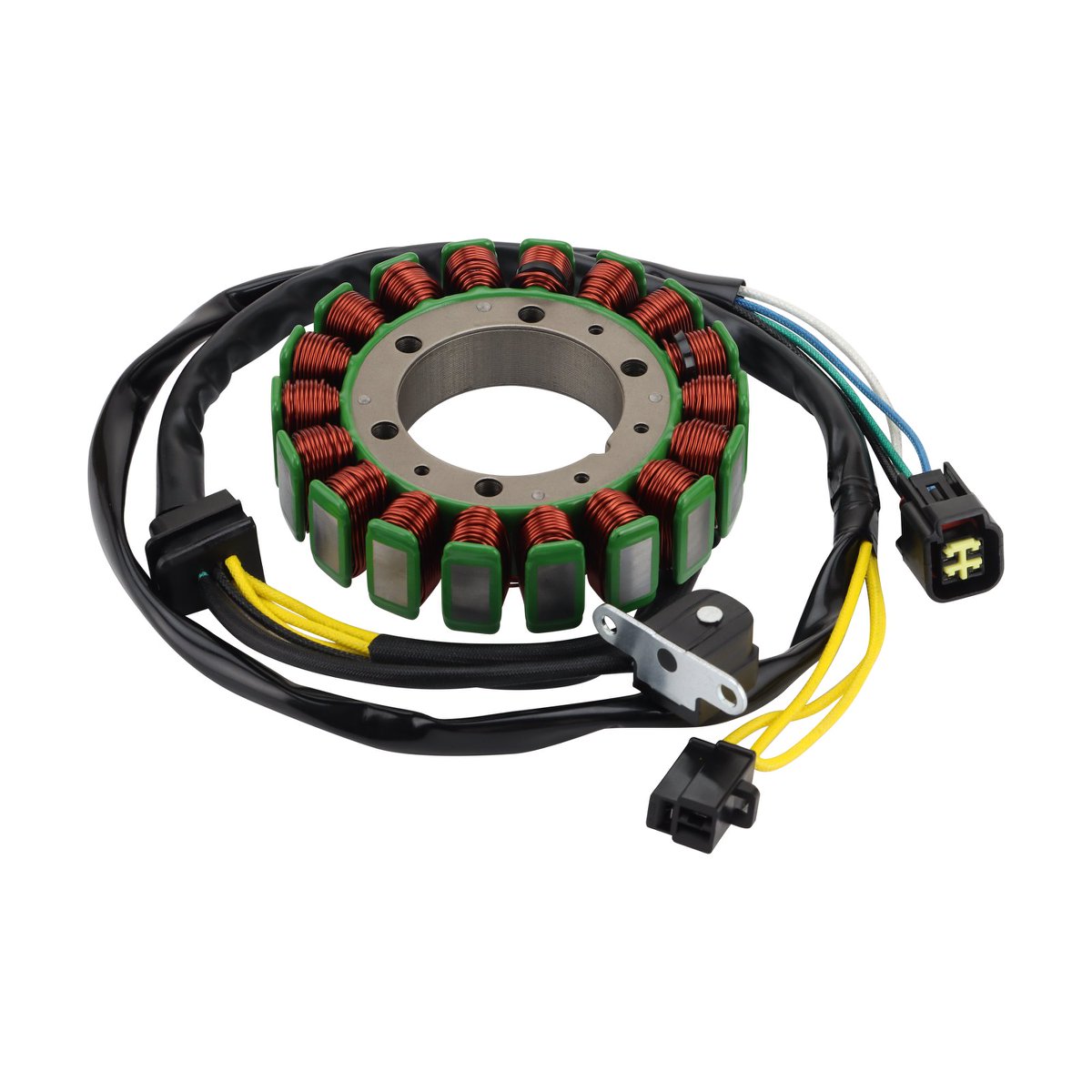

Replace a weak, burned, or failed stator with this 18-coil 7-wire magneto stator, designed for select Suzuki DR650 / DR650SE motorcycles from 1996–2016 and Suzuki XF650 Freewind models from 1997–2001.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Suzuki DR650 or XF650 Freewind has weak charging, no spark, dim lights, unstable voltage, or repeated electrical failure, replacing the stator may help restore normal electrical performance.

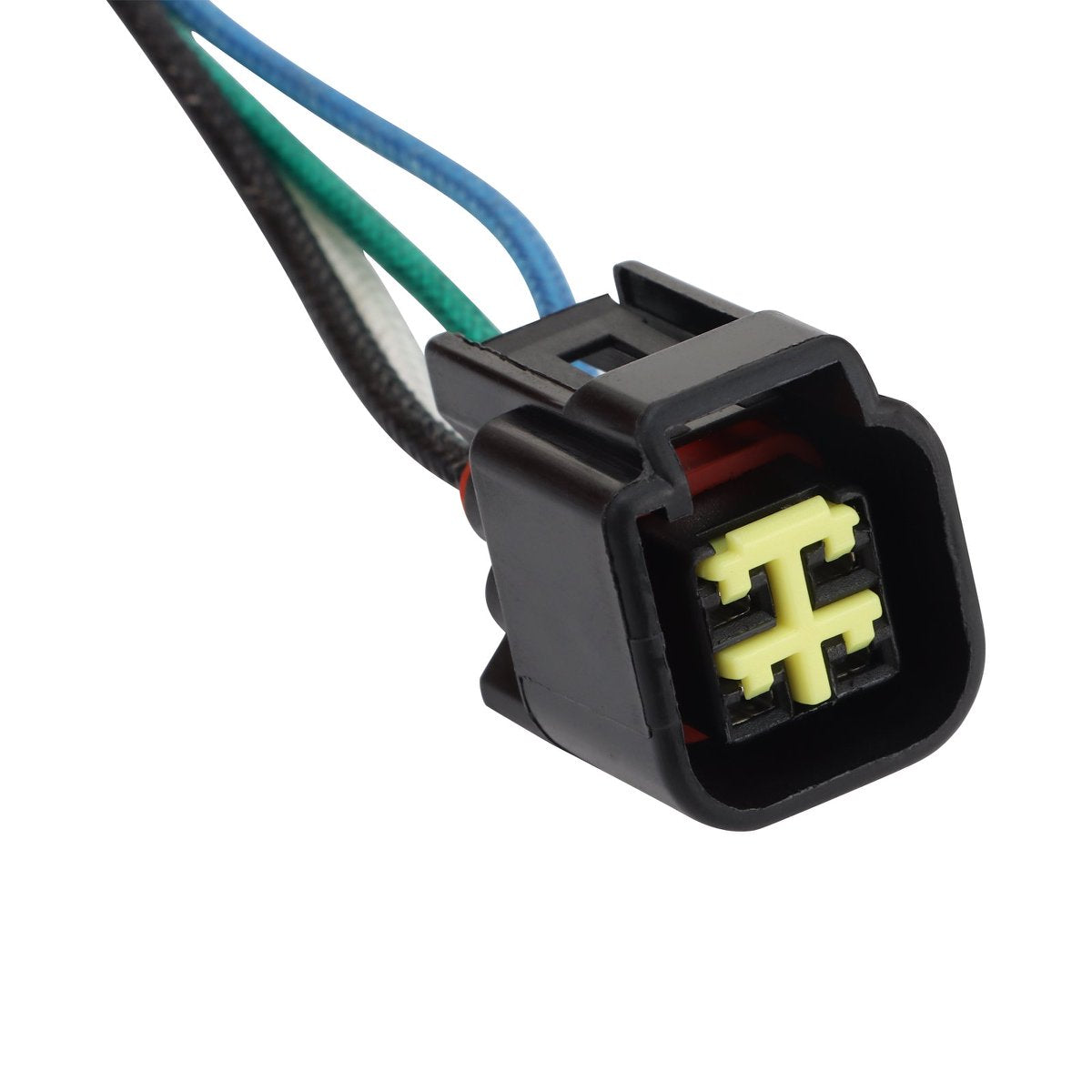

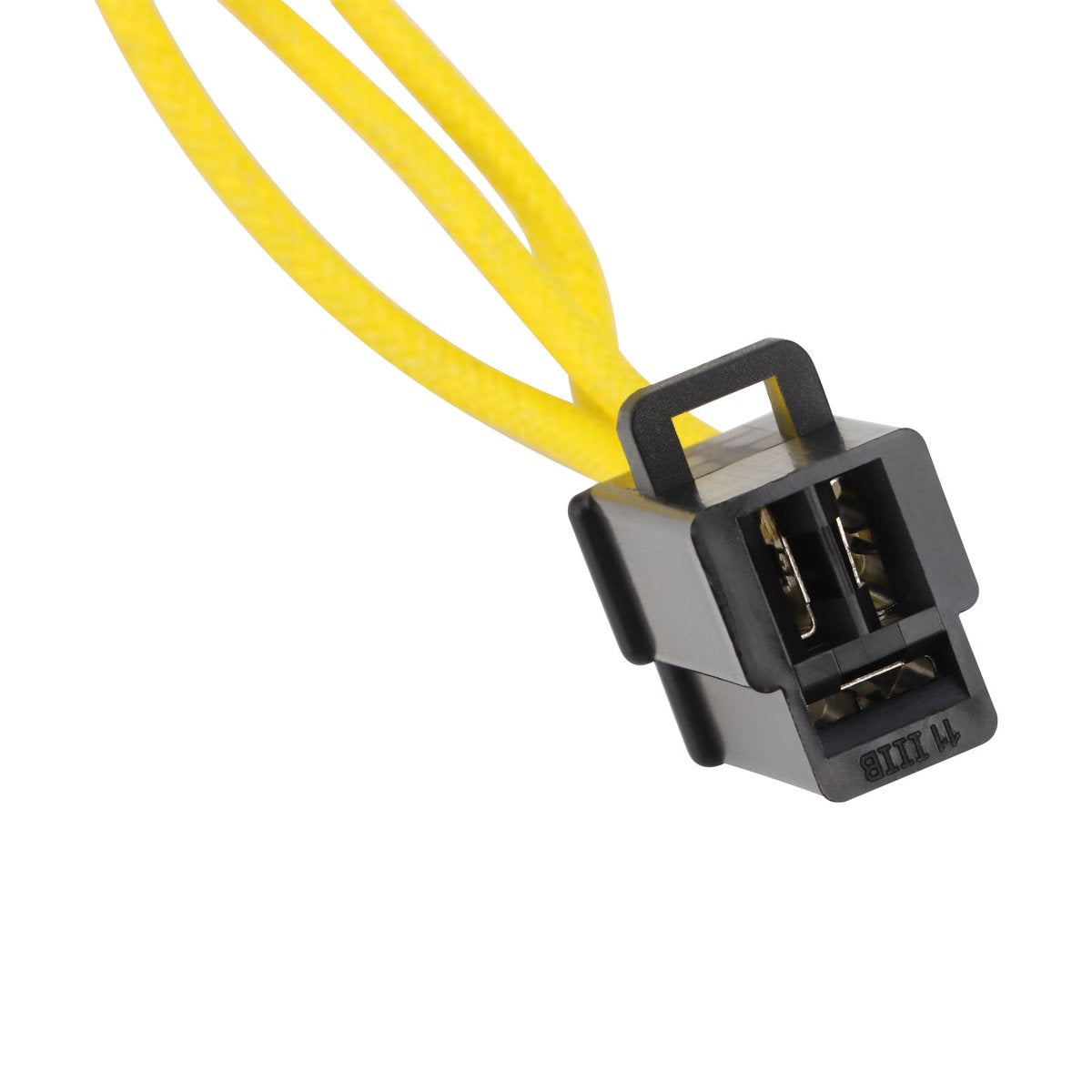

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | DR650 / DR650SE | 1996–2016 | 32101-32E00 / 32101-32E01 | Main fitment; confirm original stator size and plug layout |
| Suzuki | DR650SE | 1996–2024 | 32101-32E00 / 32101-32E01 | Possible extended fitment if OEM number and dimensions match |
| Suzuki | XF650 Freewind | 1997–2001 | 32101-32E00 / 32101-32E01 | Fits matching 18-coil 7-wire stator version only |
Important Fitment Note:
This part is not selected by engine size alone. Suzuki DR650 models before 1996 may use a different stator design and different OEM number. Please confirm your original stator matches the 18-coil / 7-wire layout, 54mm inner diameter, 115mm outer diameter, trigger coil position, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |

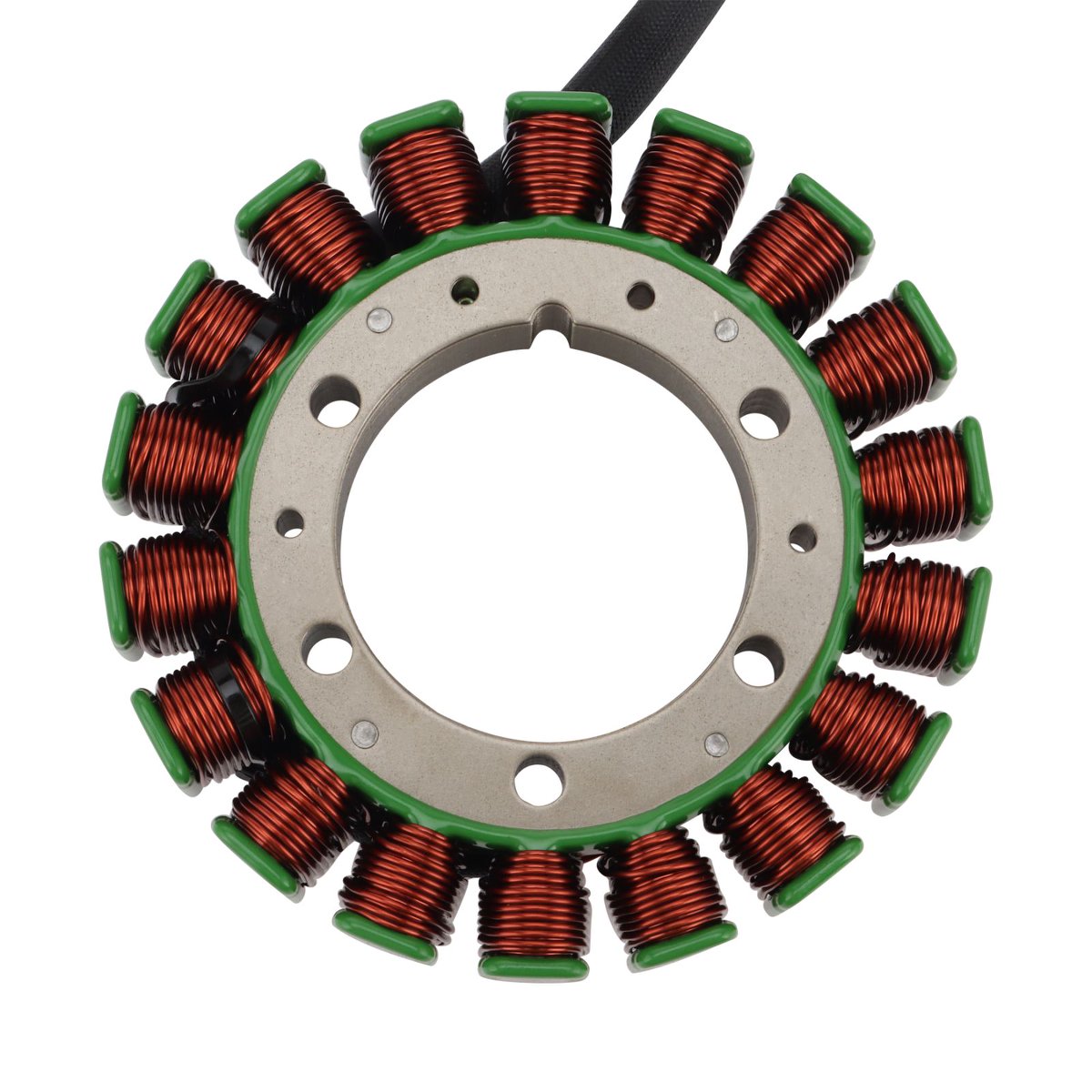

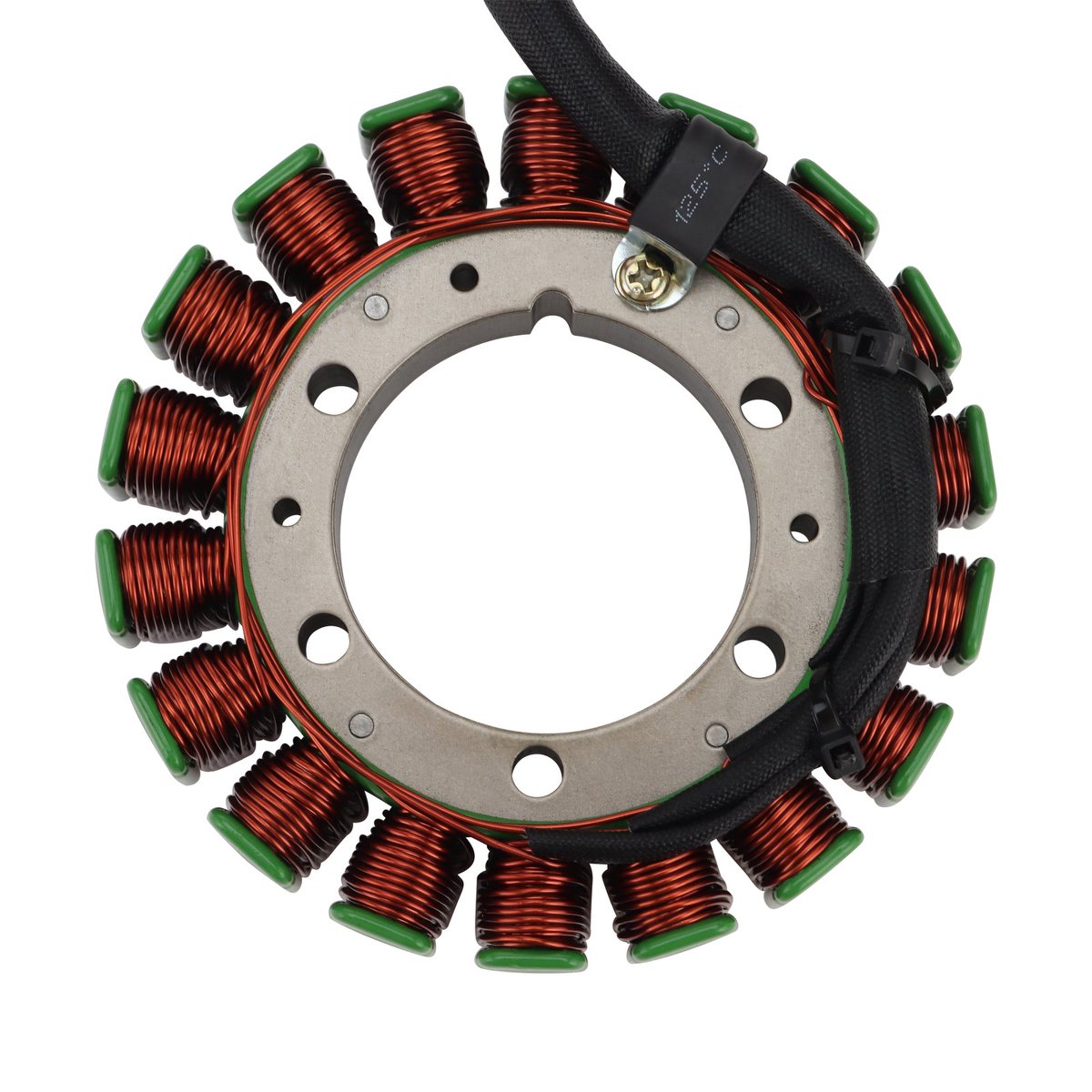

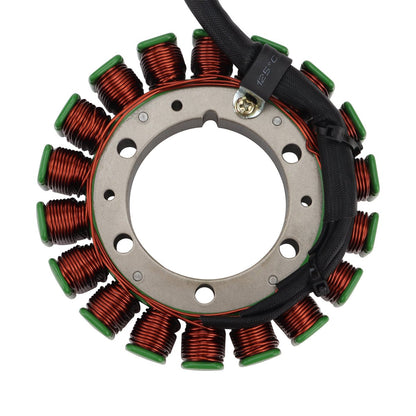

| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 7 Wire |

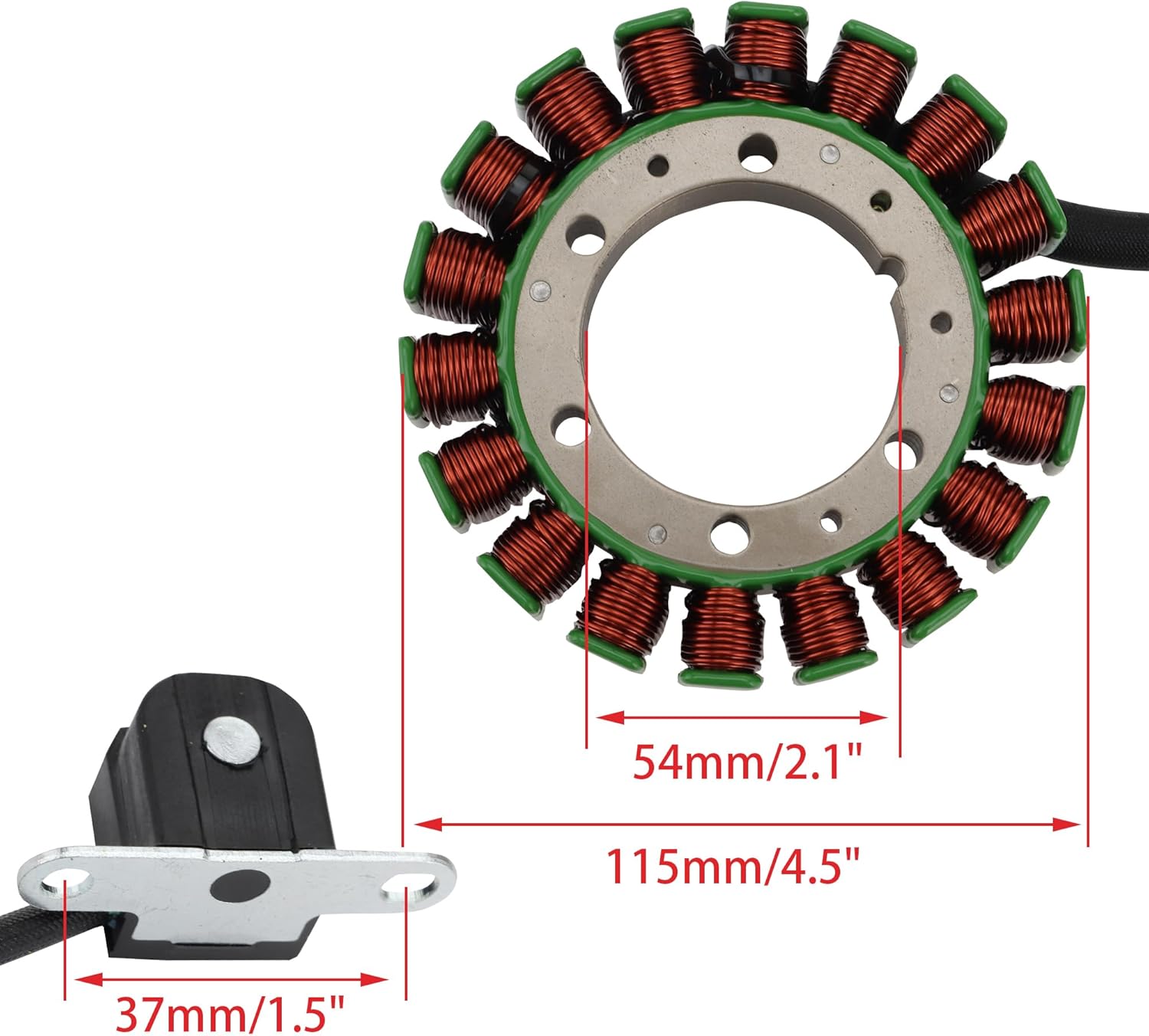

| Inner Diameter | 54mm / 2.1" |
| Outer Diameter | 115mm / 4.5" |
| Iron Core Height | 18mm / 0.71" |
| Thickness | 28mm / 1.1" |

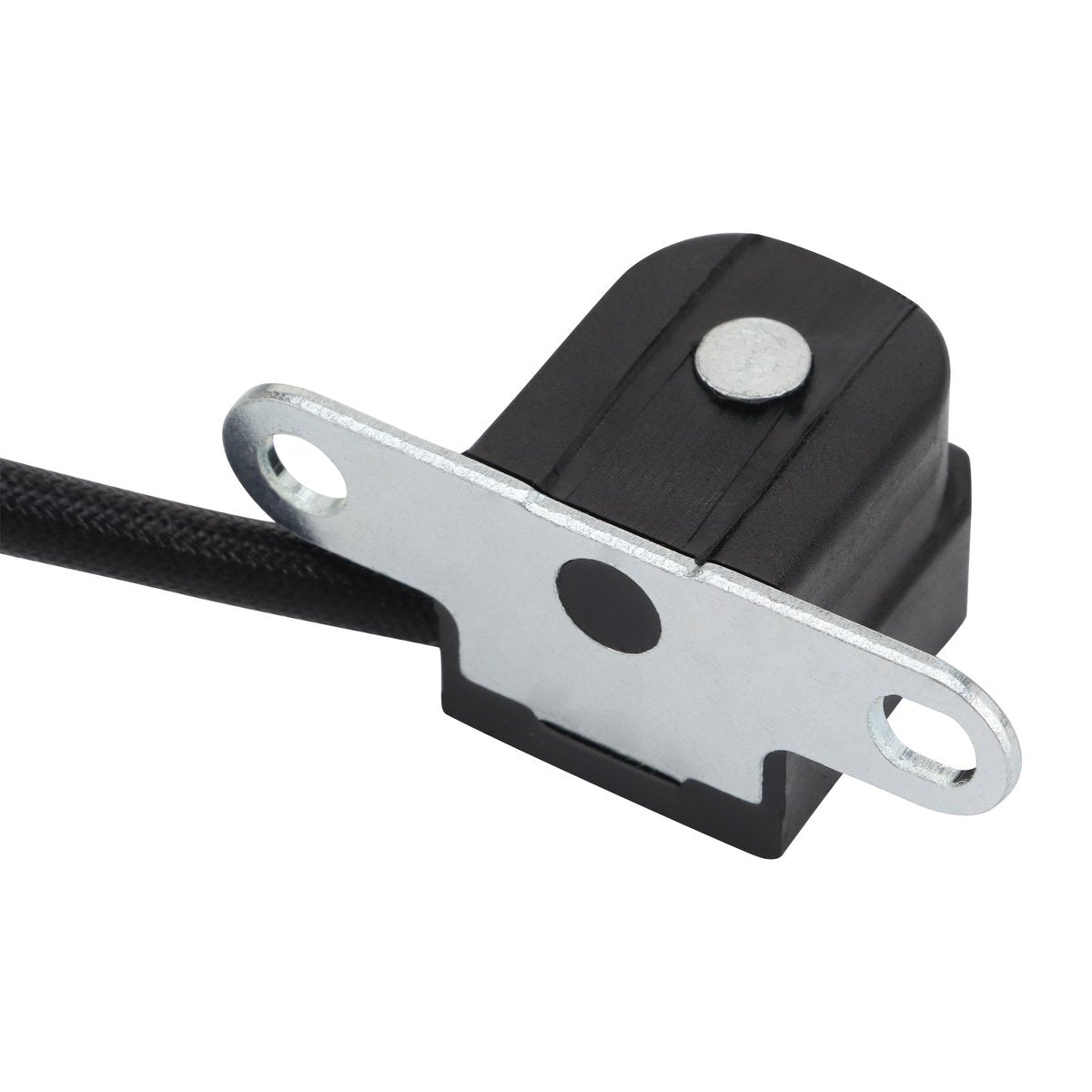

| Trigger Mounting Hole Distance | 37mm / 1.5" |
| Trigger Mounting Hole Diameter | 5mm / 0.20" |
| OEM Reference | 32101-32E00 / 32101-32E01 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki DR650 / DR650SE and XF650 Freewind motorcycles
- Replaces common OEM references 32101-32E00 and 32101-32E01
- 18-coil 7-wire stator helps support charging and ignition system output
- Helps address weak charging, no spark, dim lights, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Includes trigger coil position; original plug layout and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-32E00 | Common OEM reference for Suzuki DR650SE / XF650 Freewind stator applications |
| 32101-32E01 | Common replacement reference for compatible DR650SE and XF650 stator listings |
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki DR650 / DR650SE models from 1996–2016 and Suzuki XF650 Freewind models from 1997–2001. It may also match some later DR650SE models if the original stator uses OEM 32101-32E00 or 32101-32E01 and has the same 18-coil 7-wire layout, connector style, trigger coil position, and dimensions. Please compare your original stator before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. Common OEM references for this stator type include 32101-32E00 and 32101-32E01. However, OEM number alone is not enough. Please also confirm the wire count, plug layout, inner diameter, outer diameter, trigger mounting hole distance, trigger mounting hole diameter, and stator thickness.
What models or situations does this part not fit?
This part does not fit Suzuki DR650 models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, or a different OEM design. It is especially important to verify early DR650 models before 1996, as they may use a different stator assembly. It is also not suitable if your issue is caused only by a bad regulator rectifier, weak battery, faulty CDI, damaged ignition coil, burned wiring, or poor ground connection.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, trigger mounting hole distance, trigger mounting hole diameter, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
