Ignition Coil for Suzuki DT25 DT30 Outboard | 33410-91L10
Ignition Coil for Suzuki DT25 DT30 Outboard | 33410-91L10
Couldn't load pickup availability
Product Overview

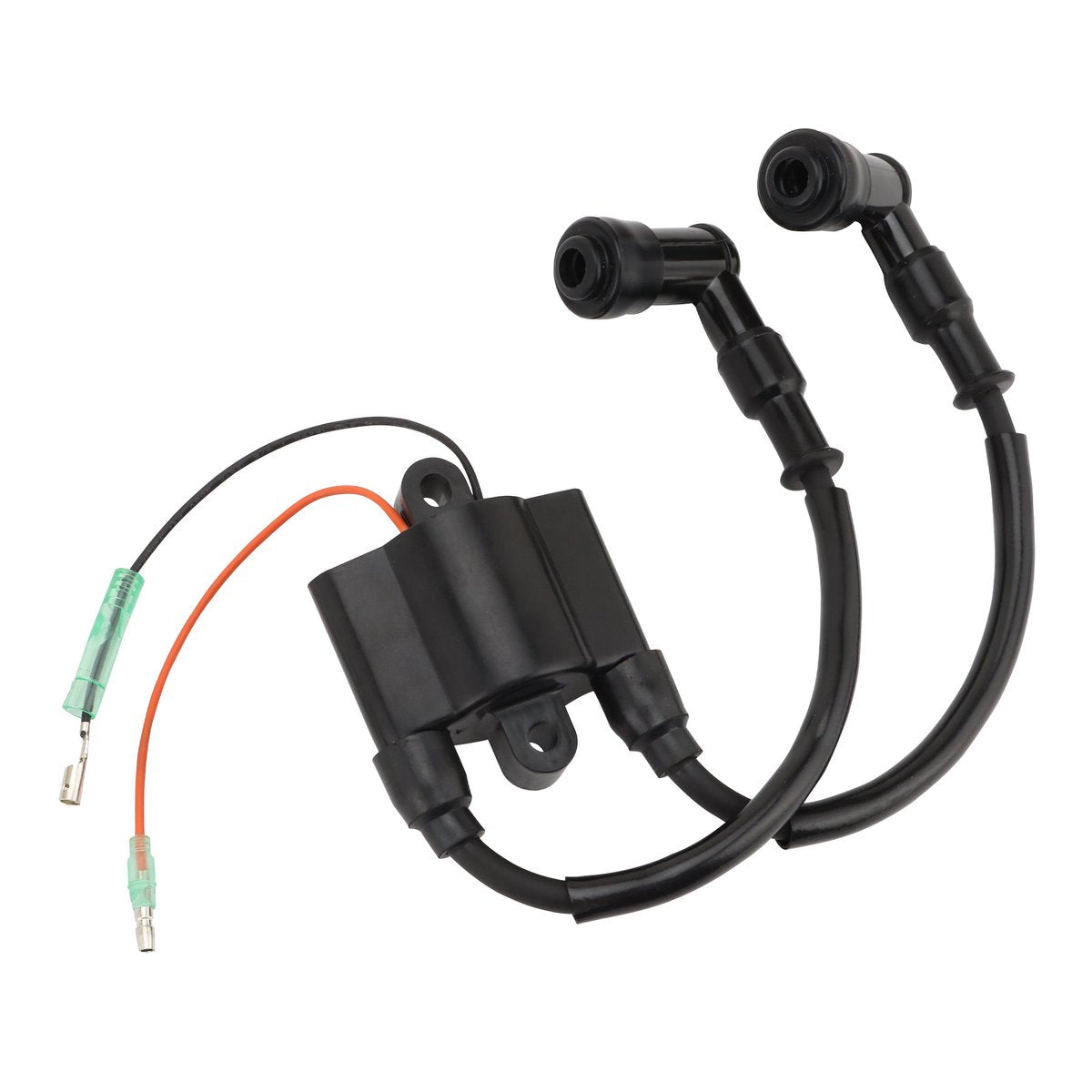

Replacement ignition coil assembly for selected Suzuki DT25 and DT30 outboard engines using OEM ignition coil 33410-91L10.
This ignition coil is part of the outboard ignition system and is separate from the CDI unit. It features approximately 59mm / 2.32 in mounting-hole spacing, with listed 6mm and 8mm mounting-hole diameters for physical fitment verification.
For the most reliable fitment confirmation, match 33410-91L10 with the original ignition coil and compare the mounting points, electrical connections, spark plug leads, and physical dimensions before ordering.
Product Compatibility
| Make | Model / Series | Application | Fitment Notes |
|---|---|---|---|
| Suzuki | DT25 | Outboard Engine | Selected applications using 33410-91L10 |
| Suzuki | DT30 | Outboard Engine | Selected applications using 33410-91L10 |
Suzuki used different ignition components depending on model, year, and production configuration. Match the OEM number rather than ordering by horsepower alone.
OEM Cross-Reference Numbers
Suzuki
- 33410-91L10
Suzuki identifies this part as an Ignition Coil Assembly.
Do not confuse it with 32900-91L10, which is a separate CDI unit used in the ignition system.
Specifications
| Specification | Details |
|---|---|
| Product Type | Ignition Coil Assembly |
| Application | Marine Outboard |
| Make | Suzuki |
| Compatible Series | DT25 / DT30 |
| OEM Reference | 33410-91L10 |

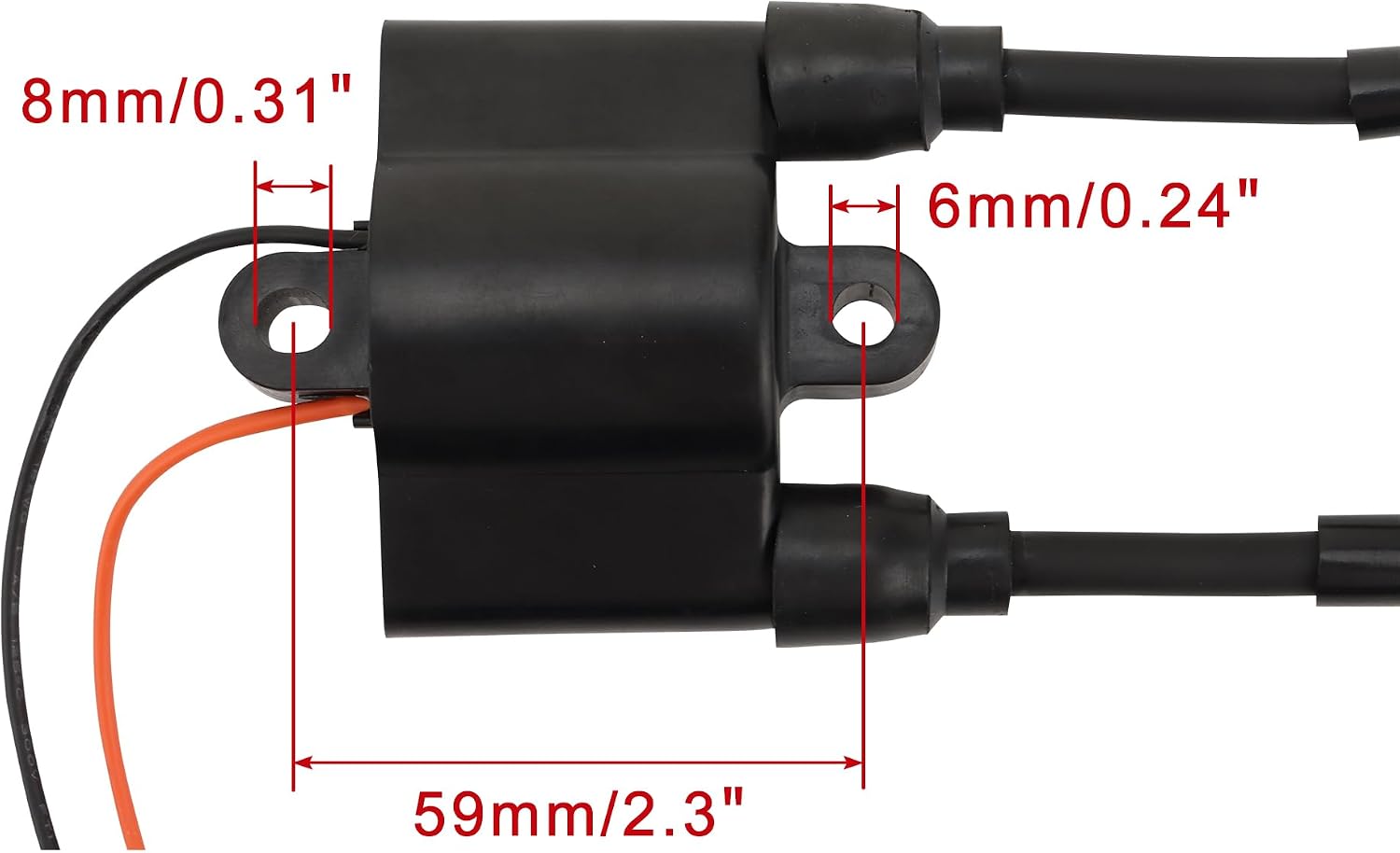

| Mounting Hole Spacing | Approx. 59 mm / 2.32 in |
| Mounting Hole Diameter | Approx. 6 mm / 0.24 in & 8 mm / 0.31 in |
| Listed Spark Plug Mounting Diameter | Approx. 10 mm / 0.39 in |
| Housing Material | ABS / Plastic |
| Condition | New |
| Package Quantity | 1 Ignition Coil |
Key Features
- Suzuki Outboard Application: Designed for selected DT25 and DT30 outboard ignition systems.
- OEM-Based Fitment: Replaces compatible ignition coils using Suzuki OEM 33410-91L10.
- 59mm Mounting Reference: Mounting-hole spacing provides an additional physical fitment check.
- Ignition Coil Replacement: Designed to replace a compatible worn, damaged, or failed original coil.
- Marine Engine Component: Intended for compatible Suzuki outboard ignition-system applications.
Share
Fitment FAQ
Will this part fit my specific model and year?
This ignition coil is intended for selected Suzuki DT25 and DT30 outboard engines using ignition coil 33410-91L10.
Model or horsepower alone does not guarantee compatibility. Check the OEM number and original coil configuration before ordering.
Do I need to match the OEM part number?
Yes. Matching the OEM number is strongly recommended.
This product is designed to replace:
Suzuki 33410-91L10
Do not confuse this number with 32900-91L10. The latter identifies a separate CDI unit, not this ignition coil.
What models or situations does this part not fit?
Do not assume this ignition coil fits:
Every Suzuki 25HP outboard
Every Suzuki 30HP outboard
Suzuki engines using a different ignition-coil number
Applications with different mounting dimensions
Coils with different electrical or spark plug lead connections
Applications requiring CDI unit 32900-91L10
The OEM number provides the most reliable starting point for fitment verification.
What should I check before ordering?
Confirm:
Suzuki outboard model
Engine year / serial information where available
OEM 33410-91L10
Approx. 59mm mounting-hole spacing
6mm / 8mm mounting-hole configuration

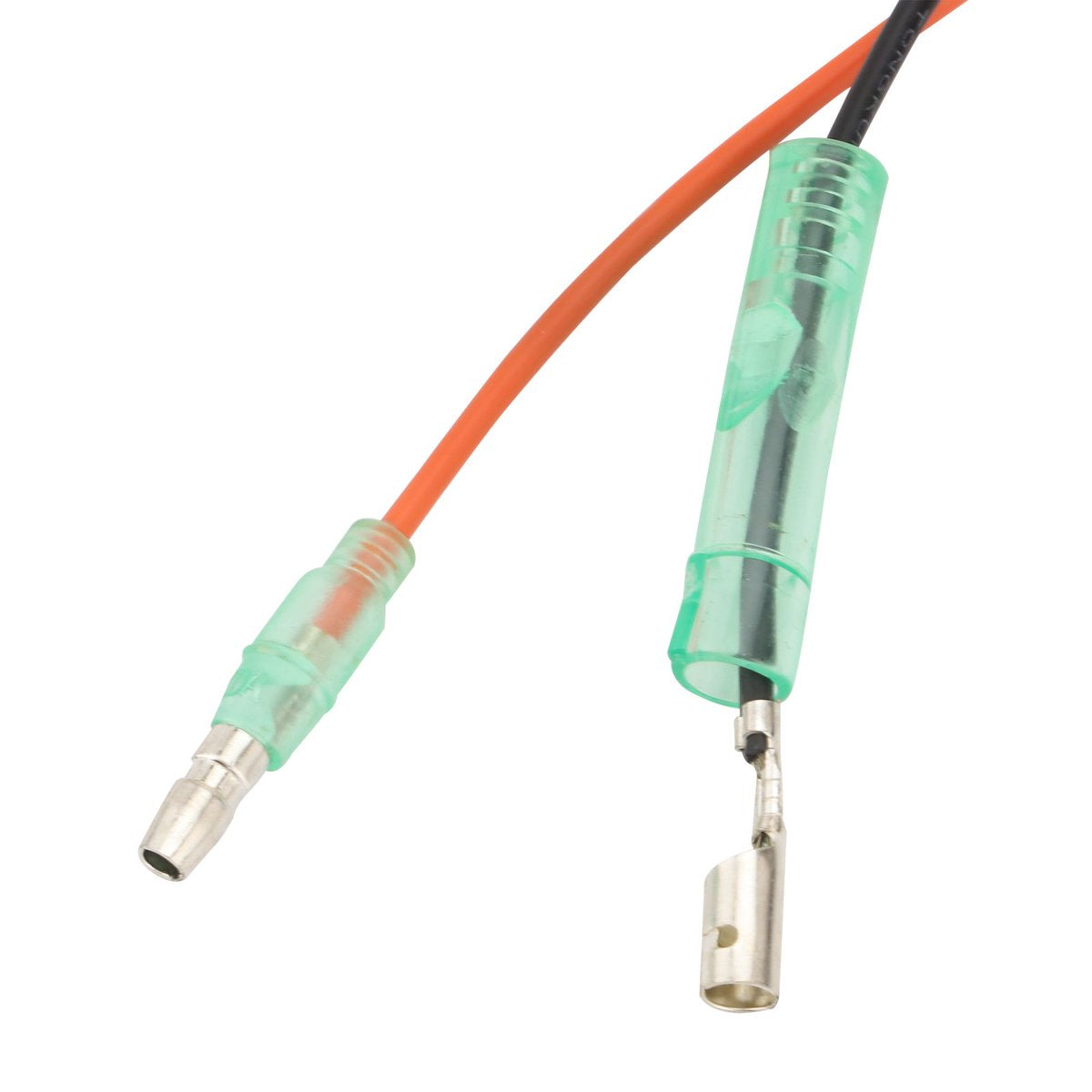

Electrical connections
Spark plug lead configuration
Original ignition coil shape and dimensions
Compare the replacement with the original part and product photos before purchase.
