Product Overview

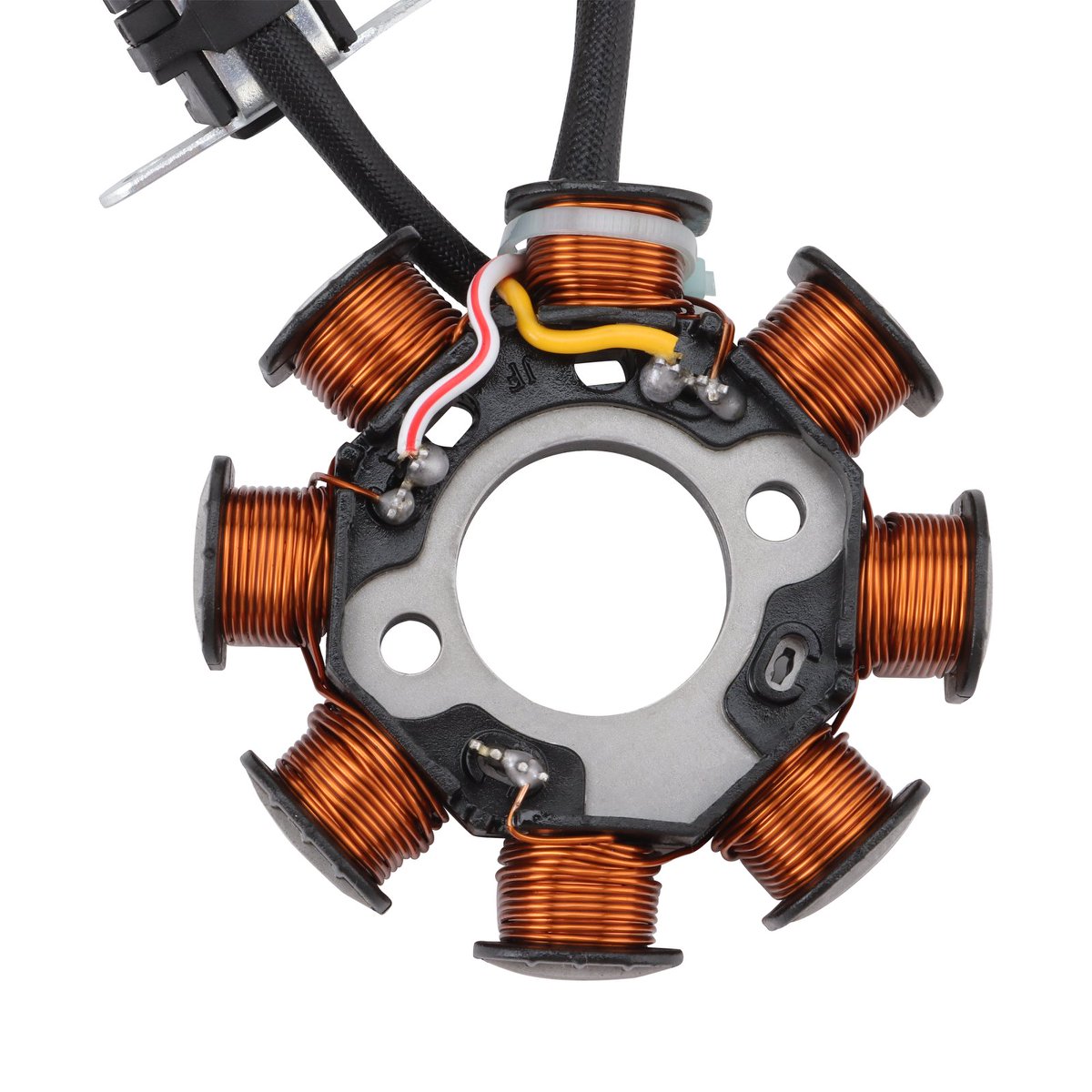

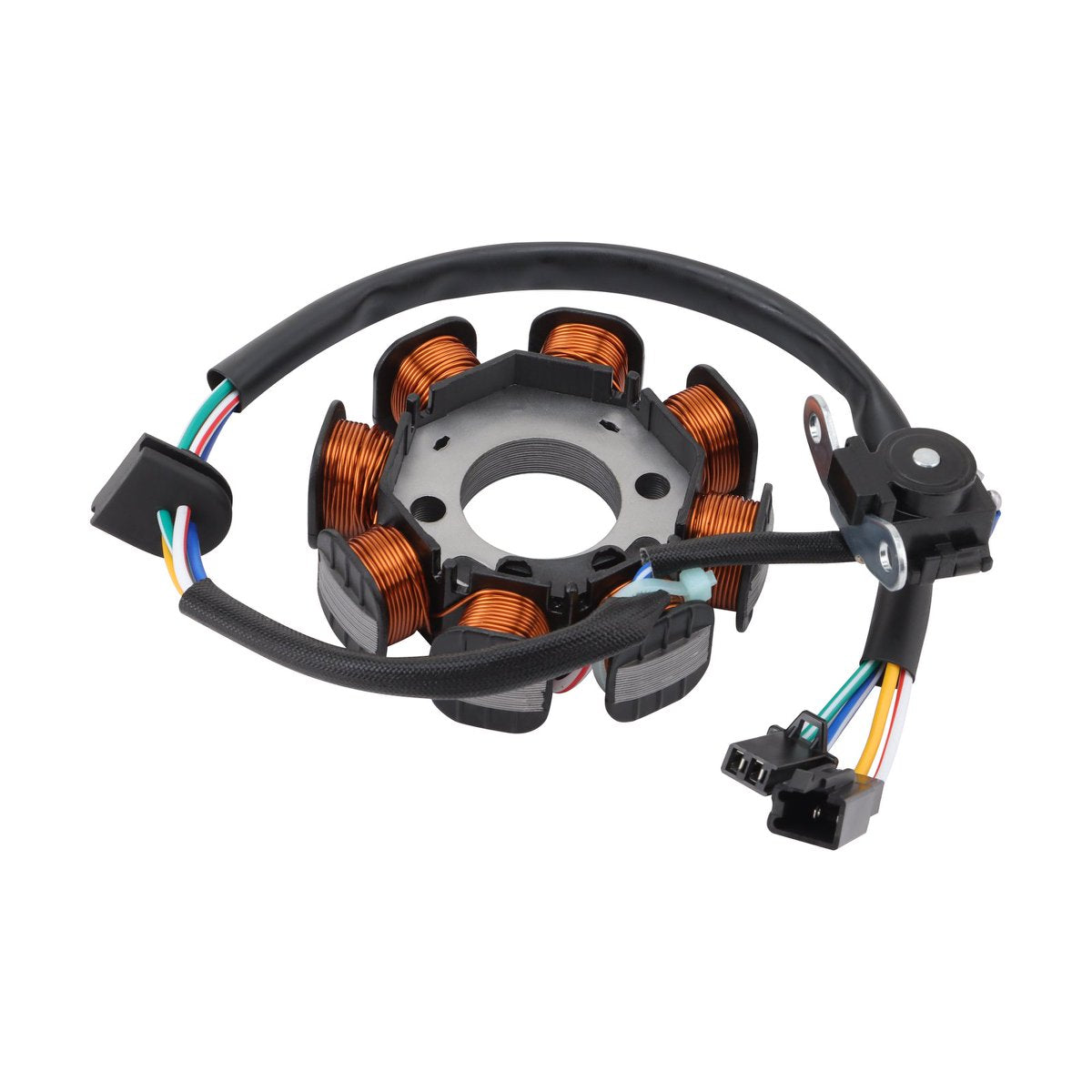

Replace a weak, burned, or failed stator with this 8-coil 4-wire magneto stator, designed for select Suzuki FU125 Raider 125, FU150 Raider 150, Smash 110, Revo FK110, and related small-displacement motorcycle applications.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, lights, and related electrical components. If your Suzuki Raider 125, Raider 150, Smash 110, or Revo FK110 has weak charging, poor spark, dim lights, hard starting, unstable electrical output, or stator-related failure, replacing the stator may help restore normal performance.

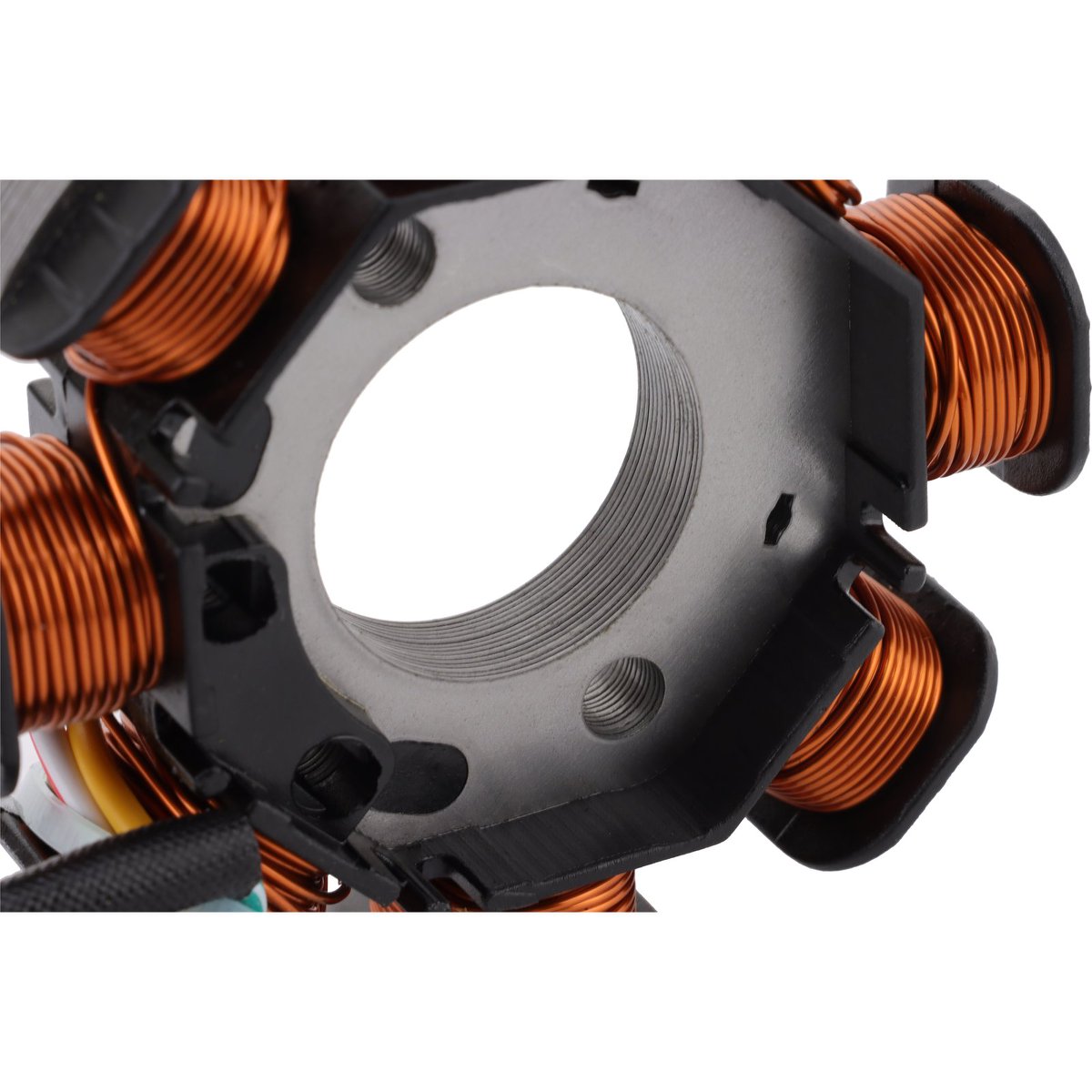

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, corrosion resistance, and long service life. Please compare your original stator’s OEM number, coil count, wire count, connector layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | OEM / Reference Number | Fitment Notes |
|---|---|---|---|
| Suzuki | FU125 Raider 125 | 32101-47E00 / 32101-47E10 | Main FU125 fitment; confirm original stator and plug layout |
| Suzuki | FU150 Raider 150 | 32101-25G00 / 32101-23F00 | Main FU150 fitment; compare OEM number and dimensions |
| Suzuki | Raider 125 | 32101-47E00 / 32101-47E10 | Model-name variation; verify original part before ordering |
| Suzuki | Raider 150 / Raider R150 | 32101-25G00 / 32101-23F00 | Fits matching 8-coil 4-wire stator version only |
| Suzuki | Smash 110 / Smash Revo | 32101-47E00 / related references | Possible related fitment; check original stator size and connector |
| Suzuki | FK110 / FK110B | Related references | Possible related fitment only if the original stator matches |
| Suzuki | Belang R150 / R150 | 32101-25G00 / related references | Possible market-name variation; verify OEM number and plug layout |
Important Fitment Note:

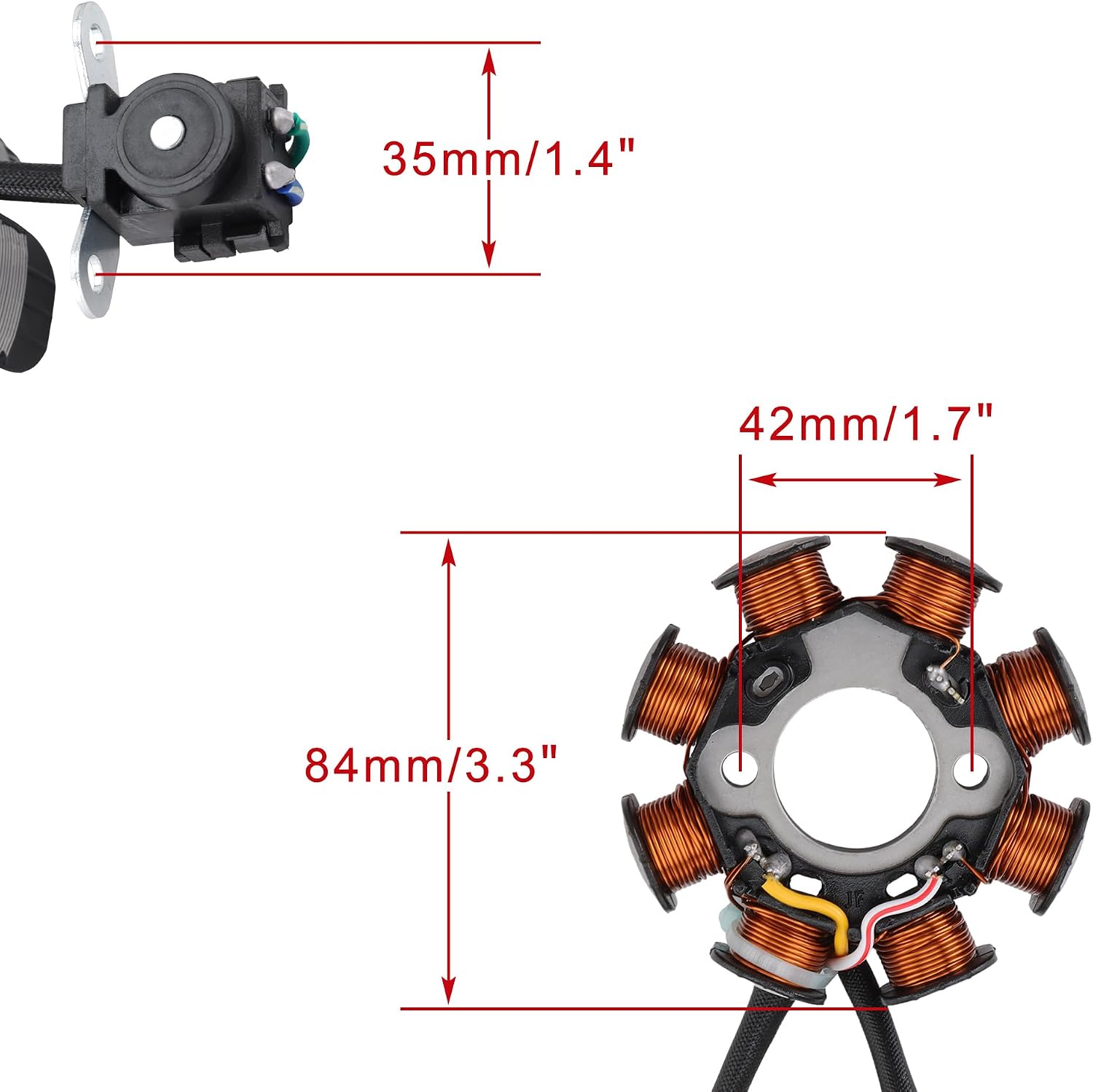

This part is not selected by model name alone. Suzuki FU125, FU150, Raider 125, Raider 150, Smash 110, Revo FK110, and related small motorcycle models may use different stator versions depending on market, engine version, wiring system, and production year. Please confirm your original stator matches the 8-coil / 4-wire layout, DC type, 29mm inner diameter, 84mm outer diameter, 42mm mounting hole distance, 35mm trigger mounting hole distance, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 8 Coils / 8 Poles |
| Wire Count | 4 Wire |
| Electrical Type | DC |

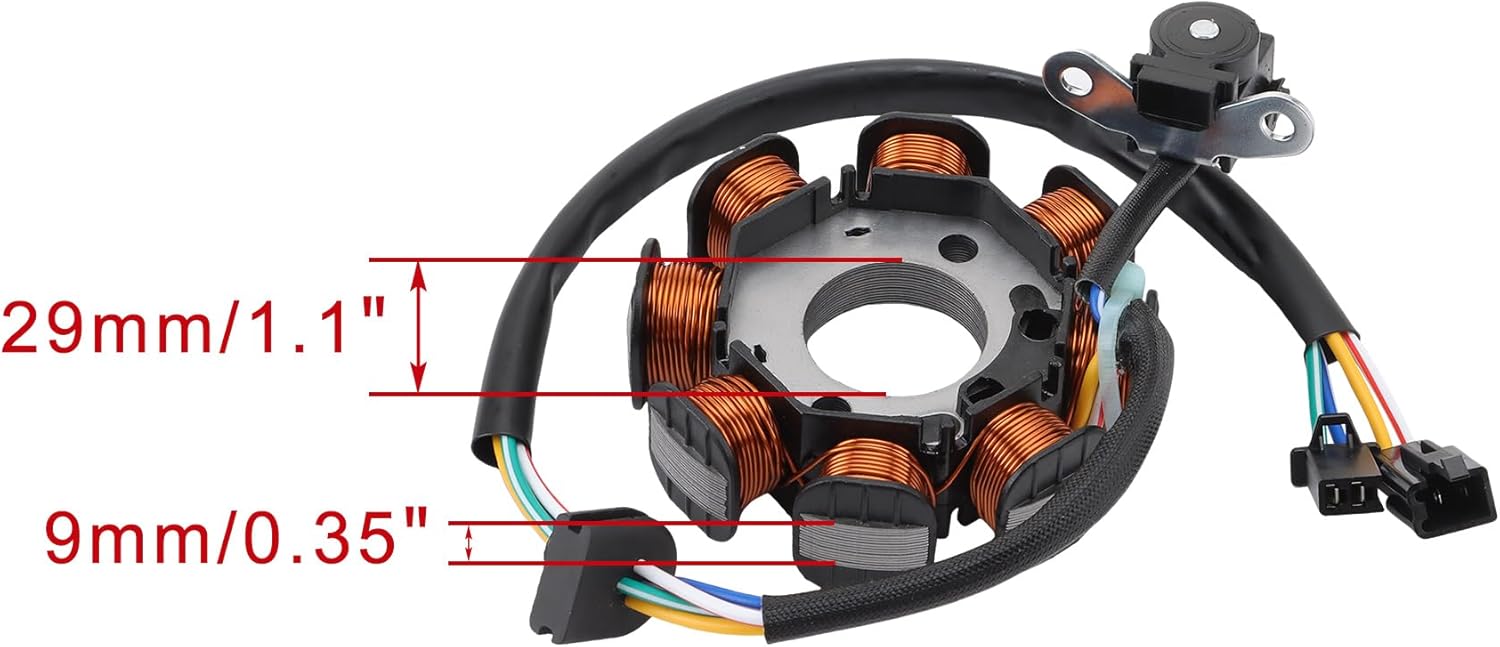

| Inner Diameter | 29mm / 1.1" |
| Outer Diameter | 84mm / 3.3" |
| Iron Core Height | 9mm / 0.35" |
| Mounting Hole Distance | 42mm / 1.7" |
| Stator Trigger Mounting Hole Distance | 35mm / 1.4" |
| OEM Reference | 32101-47E00 / 32101-25G00 |
| Possible Cross References | 32101-47E10 / 32101-23F00 / 32101-07H00 |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Suzuki |
| Material | Metal Lamination Core + Copper Winding |
Key Features
- Designed for select Suzuki FU125 Raider 125 and FU150 Raider 150 motorcycles
- Also fits matching Smash 110, Revo FK110, FK110B, and R150 applications when the original stator matches
- Replaces common references 32101-47E00 and 32101-25G00
- 8-coil 4-wire DC stator helps support charging and ignition system output

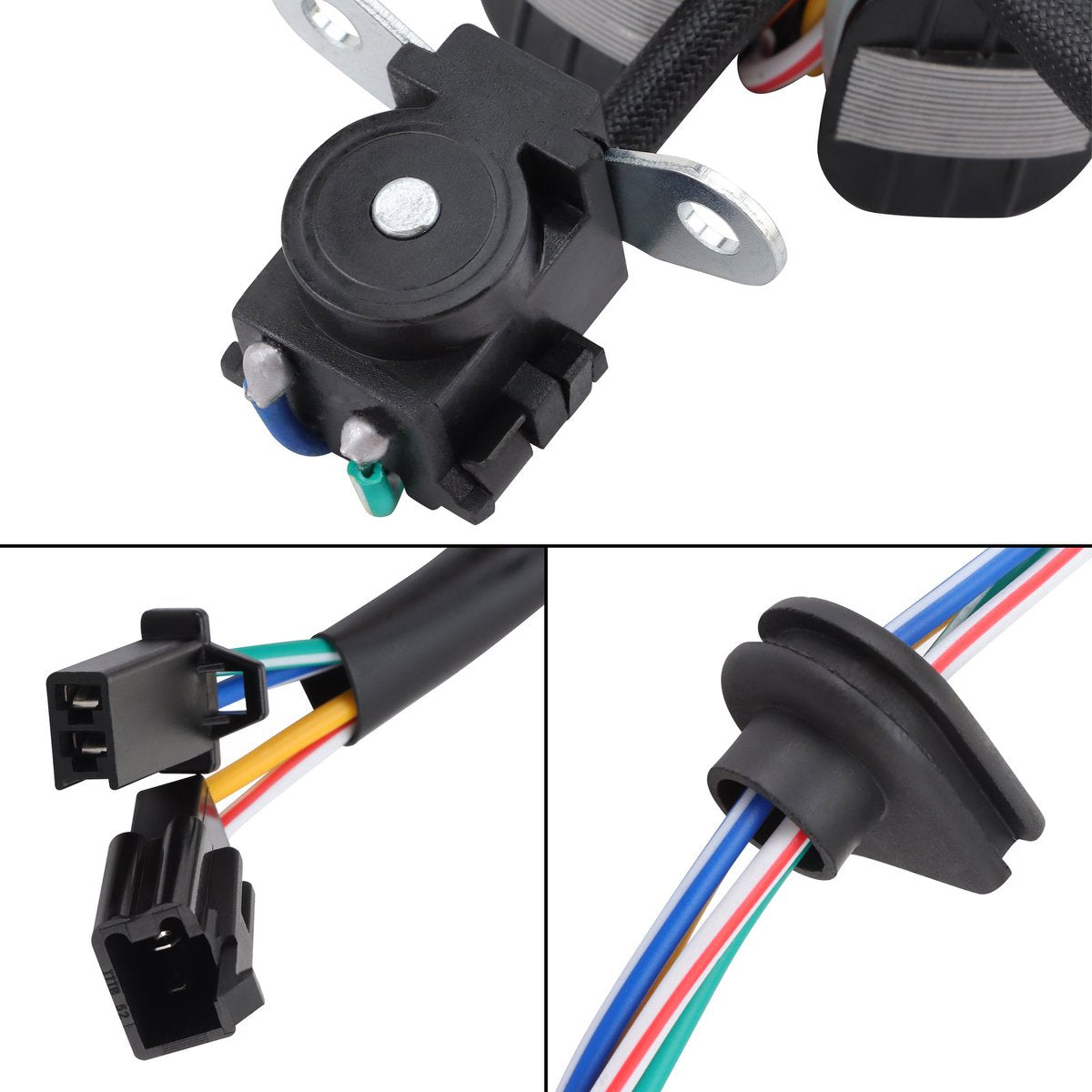

- Includes pickup / trigger coil position for matching applications
- Helps address weak charging, poor spark, hard starting, dim lights, unstable output, or stator failure
- Direct replacement style, but original OEM number, plug layout, wire count, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-47E00 | Common Suzuki FU125 Raider 125 stator reference |
| 3210147E00 | Compact format of 32101-47E00 |
| 32101-47E10 | Common related FU125 / Raider 125 stator reference |
| 3210147E10 | Compact format of 32101-47E10 |
| 32101-25G00 | Common Suzuki FU150 / Raider 150 stator reference |
| 3210125G00 | Compact format of 32101-25G00 |
| 32101-23F00 | Possible related Raider 150 / FU150 stator reference on some aftermarket listings |
| 32101-07H00 | Possible related Suzuki small motorcycle stator reference on some aftermarket listings |
Please use the OEM/reference number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, trigger coil position, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki FU125 Raider 125, FU150 Raider 150, Smash 110, Revo FK110, FK110B, and related R150 applications when the original stator matches the listed OEM references and dimensions. Because market names and wiring versions may vary, please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM or reference number is strongly recommended. This stator replaces 32101-47E00 and 32101-25G00. Some related listings may also reference 32101-47E10, 32101-23F00, or 32101-07H00. However, OEM number alone is not enough. Please also confirm the 8-coil 4-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, and trigger mounting position.
What models or situations does this part not fit?
This part does not fit Suzuki FU125, FU150, Raider, Smash, Revo, or other Suzuki motorcycle models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, or different charging system design. It is also not a replacement for the regulator rectifier, CDI, ignition coil, battery, flywheel, starter motor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, engine version, OEM/reference number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger coil position, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
