Suzuki GN250 GN250E TU250 Stator 1982–2016 | 32101-38302
Suzuki GN250 GN250E TU250 Stator 1982–2016 | 32101-38302
Couldn't load pickup availability
Product Overview
Restore reliable charging and electrical performance to your Suzuki GN250 or TU250 with this replacement magneto stator coil.
Designed to replace Suzuki OEM stator numbers 32101-38302 and 32101-38300, this stator helps provide stable electrical output for the motorcycle charging system. It is a practical replacement for common stator-related problems such as weak battery charging, low voltage output, intermittent electrical failure, hard starting, or charging system instability.
Built with quality copper windings and heat-resistant insulation, this generator stator coil is designed for dependable performance in daily street riding conditions.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range | OEM Reference |
|---|---|---|---|---|
| Suzuki | GN250 | Standard GN250 model | 1982–2001 | 32101-38302, 32101-38300 |
| Suzuki | GN250E | GN250E / market-specific model listing | 1996–2001 | 32101-38302, 32101-38300 |
| Suzuki | TU250 | Standard TU250 model | 1997–2016 | 32101-38302, 32101-38300 |
OEM Cross Reference
| OEM Part Number | Brand | Notes |
|---|---|---|
| 32101-38302 | Suzuki | Generator stator / magneto stator coil |
| 32101-38300 | Suzuki | Interchange / earlier stator reference |
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil / Generator Stator |
| Replacement OEM Numbers | 32101-38302, 32101-38300 |

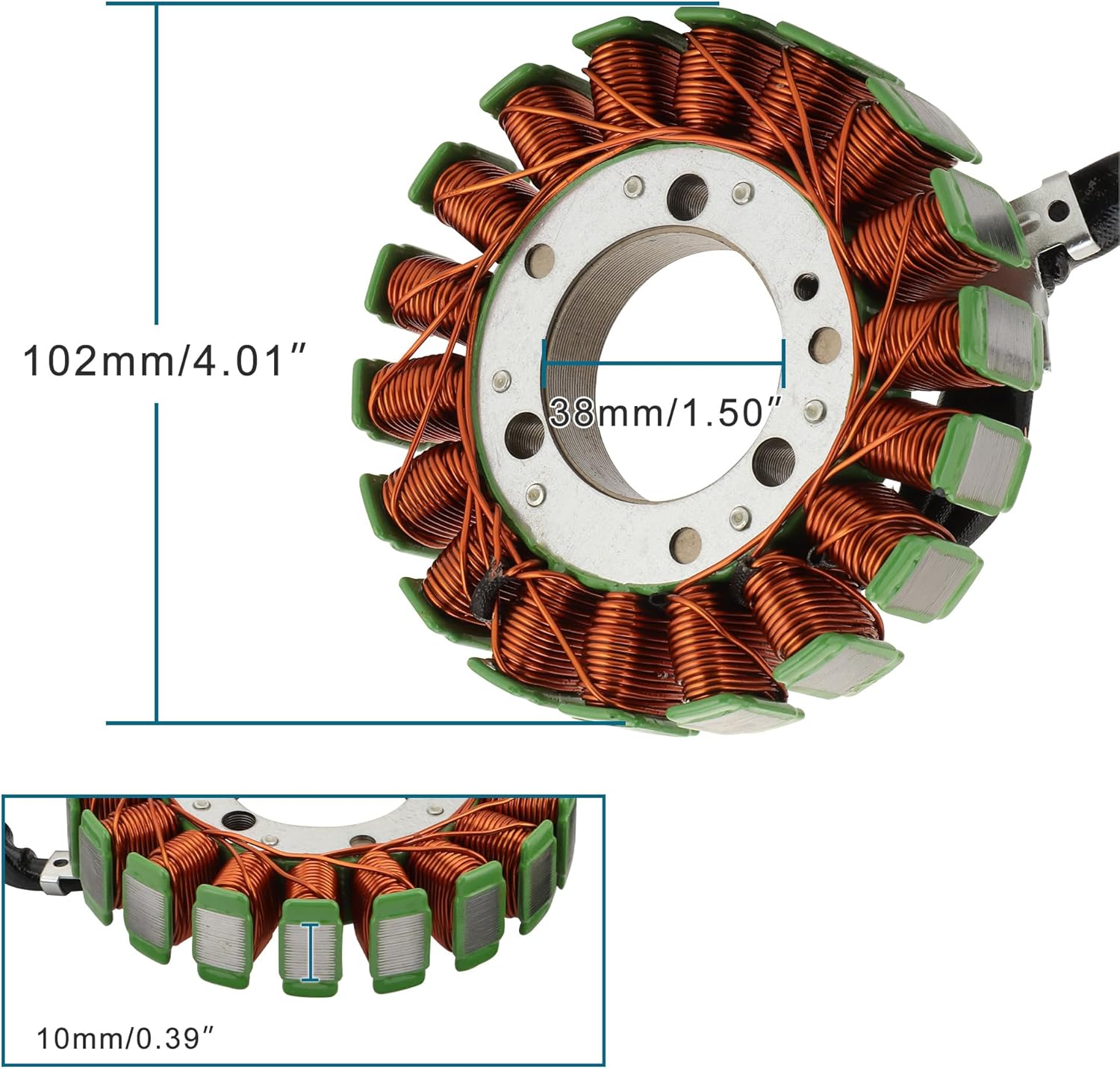

| Outer Diameter | 102 mm / 4.01 in |
| Inner Diameter | 38 mm / 1.50 in |
| Iron Core Height | 10 mm / 0.39 in |
| Application | Suzuki GN250 / GN250E / TU250 charging system |
| Material | Copper windings with heat-resistant insulation |
| Installation | Direct replacement; professional installation recommended |
Key Features
- Replaces Suzuki OEM stator numbers 32101-38302 and 32101-38300
- Designed for Suzuki GN250, GN250E, and TU250 motorcycle applications
- Helps restore stable charging output and electrical system performance
- Copper winding construction supports consistent generator output
- Heat-resistant insulation helps improve durability under engine operating temperatures
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for OEM Reference; Suzuki; GN250; Standard GN250 model; 1982–2001; 32101-38302, 32101-38300. It is best matched to original part number(s) 32101-38302, 32101-38300. Key physical/spec details from the product data include Outer Diameter: 102 mm / 4.01 in, Inner Diameter: 38 mm / 1.50 in, Iron Core Height: 10 mm / 0.39 in. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-38302, 32101-38300 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki GN250/GN250E/TU250 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-38302, 32101-38300, treat the fitment as unconfirmed. Model years outside 1982–2016, 1982–2001, 1996–2001, 1997–2016, 1982 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-38302, 32101-38300. Recheck listed specs such as Outer Diameter: 102 mm / 4.01 in, Inner Diameter: 38 mm / 1.50 in, Iron Core Height: 10 mm / 0.39 in. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
