2001–2011 Suzuki GS500 GS500F GS500H 18-Coil 3-Wire Stator 31401-01D10
2001–2011 Suzuki GS500 GS500F GS500H 18-Coil 3-Wire Stator 31401-01D10
Couldn't load pickup availability
Product Overview

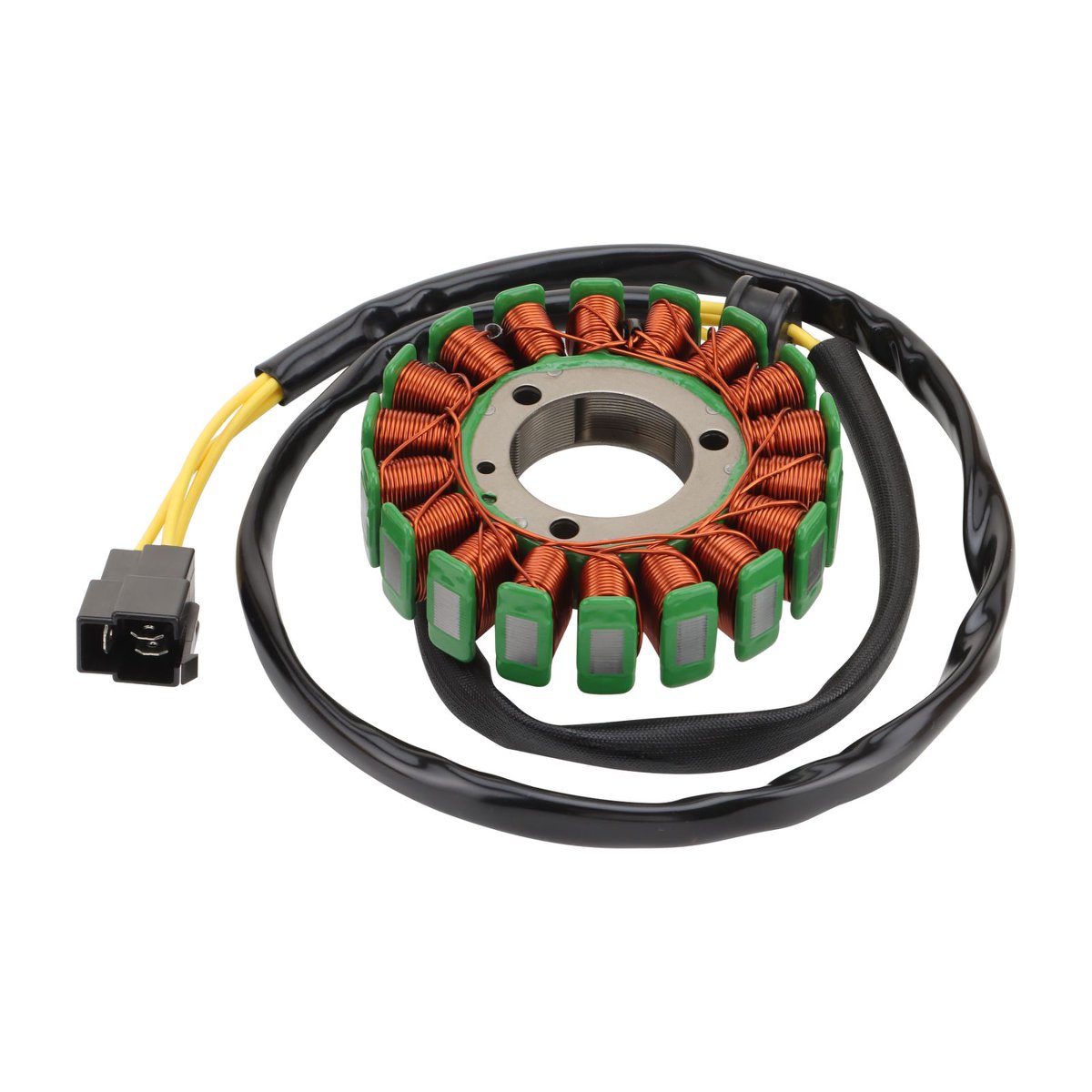

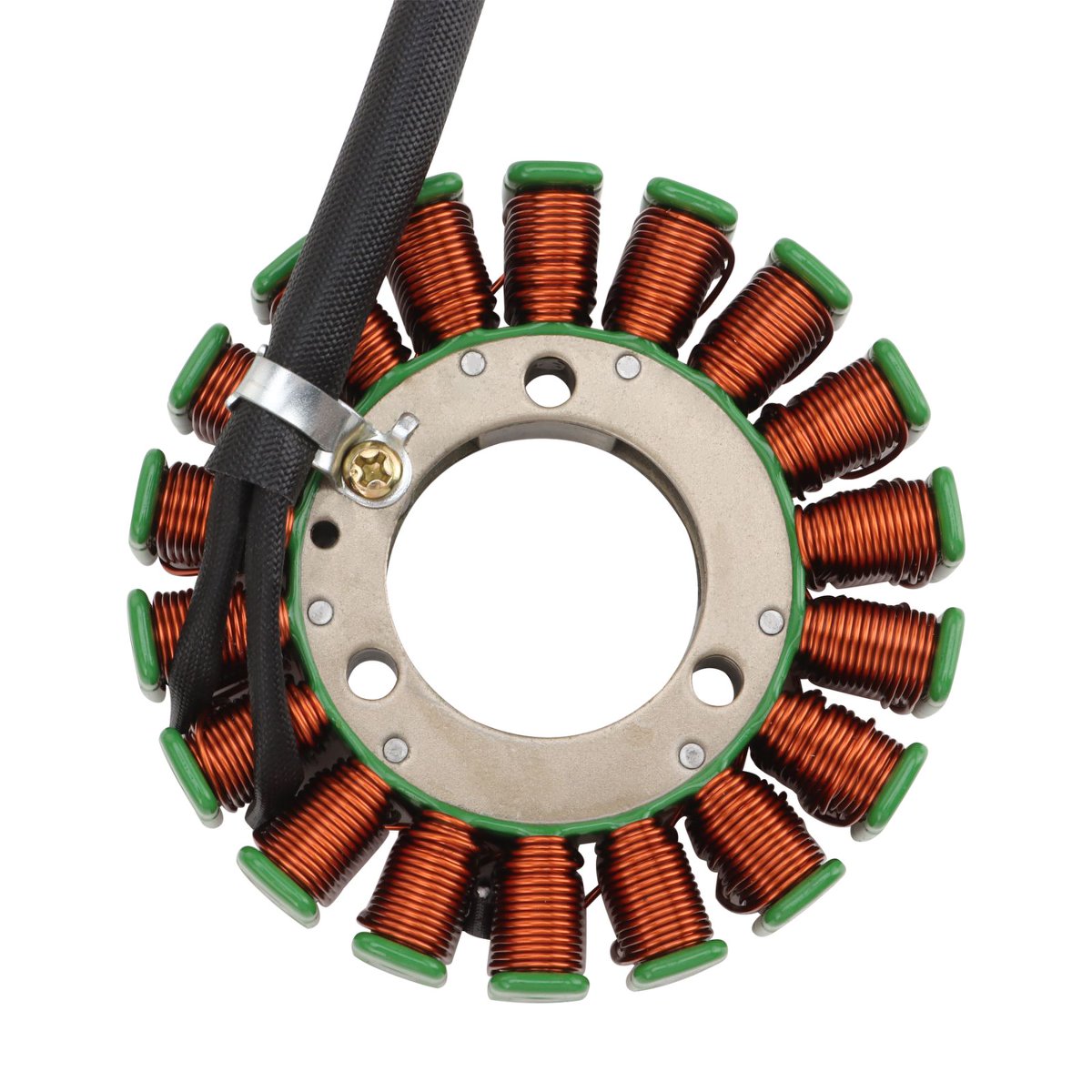

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select Suzuki GS500, GS500F, and GS500H motorcycles using OEM reference number 31401-01D10.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, and other electrical components. If your Suzuki GS500 has charging issues, a weak battery, dim lights, unstable voltage, or repeated electrical failure, replacing the stator may help restore normal charging performance.

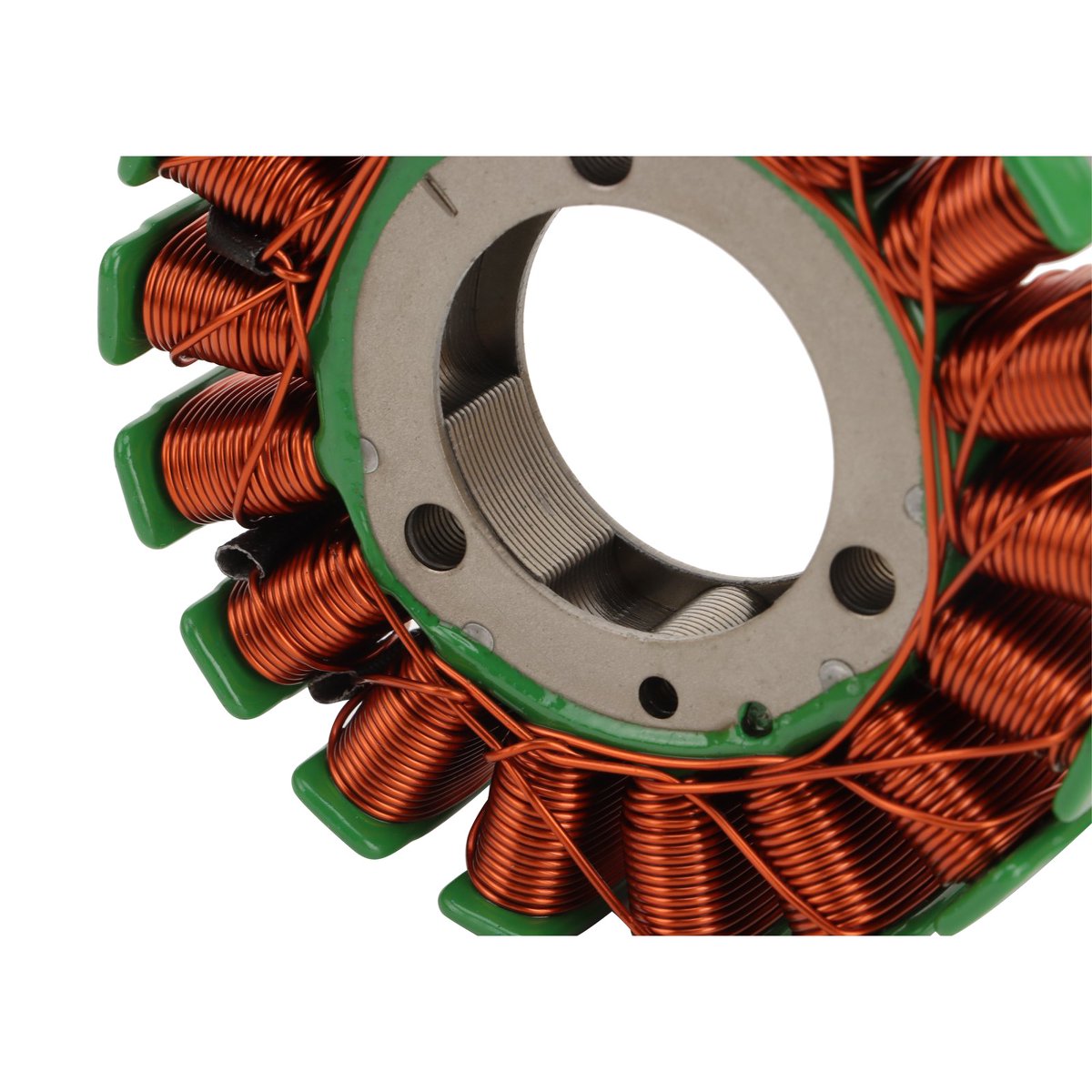

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug style, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | GS500 | 2001–2006 | 31401-01D10 | Fits models using the matching 18-coil 3-wire stator |
| Suzuki | GS500F | 2004–2011 | 31401-01D10 | Main fitment; compare original plug and mounting holes |
| Suzuki | GS500H | 2001–2003 | 31401-01D10 | Confirm original stator dimensions before purchase |
| Suzuki | GS500H | 2007–2011 | 31401-01D10 | Fits only models using the same 3-wire stator design |
Important Fitment Note:
This part is not selected by model name alone. Suzuki GS500-series motorcycles may use different charging components depending on year, market, and production version. Please confirm your original stator matches OEM 31401-01D10, the 18-coil / 3-wire layout, and the dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |

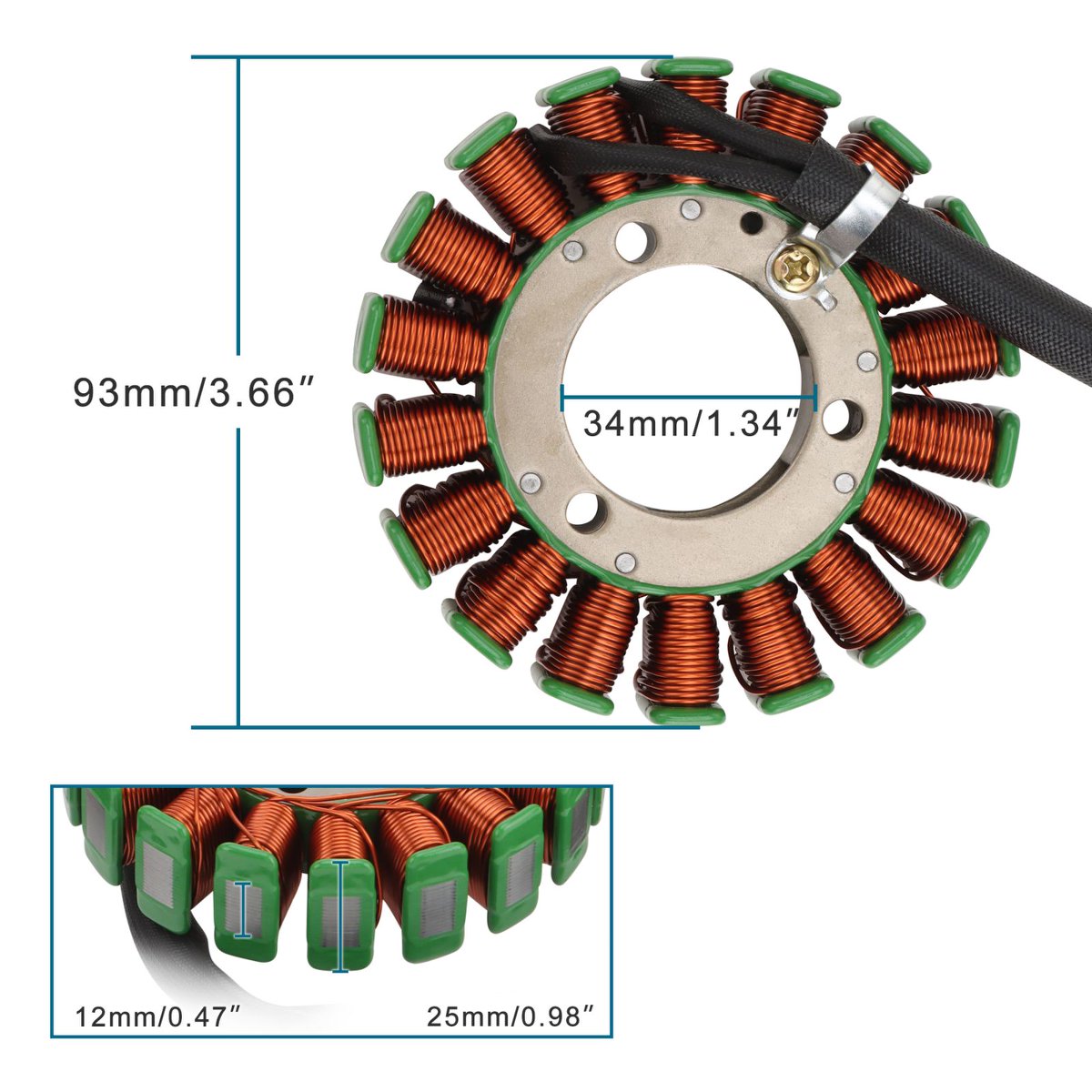

| Inner Diameter | 35mm / 1.4" |
| Outer Diameter | 93mm / 3.7" |
| Iron Core Height | 12mm / 0.47" |
| Mounting Hole Distance | 37mm / 1.5" |
| Thickness | 25mm / 0.98" |
| OEM Reference | 31401-01D10 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki GS500, GS500F, and GS500H motorcycles
- Replaces OEM reference number 31401-01D10
- 18-coil 3-wire stator helps support stable charging system output
- Helps address weak battery charging, dim lights, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Direct replacement style, but original OEM number, plug, and dimensions must be checked before installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for Suzuki GS500 2001–2006, Suzuki GS500F 2004–2011, and Suzuki GS500H 2001–2003 / 2007–2011 models that use OEM reference number 31401-01D10. Please compare your original stator’s wire count, plug style, mounting hole distance, inner diameter, and outer diameter before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces OEM 31401-01D10. However, the OEM number should not be the only check. Please also confirm that your original stator is an 18-coil 3-wire type with the same connector layout and mounting dimensions.
What models or situations does this part not fit?
This part does not fit Suzuki GS500-series motorcycles that use a different OEM number, different wire count, different plug style, different mounting hole spacing, or different stator diameter. It is also not suitable if your charging issue is caused only by a bad regulator rectifier, weak battery, damaged wiring, or poor ground connection.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, wire count, plug style, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best results, compare the product photos and specifications with your original stator before purchase.
