2001–2004 Suzuki GSX-R600 GSX-R750 GSX-R1000 18-Coil 3-Wire Stator 31401-35F00
2001–2004 Suzuki GSX-R600 GSX-R750 GSX-R1000 18-Coil 3-Wire Stator 31401-35F00
Couldn't load pickup availability
Product Overview

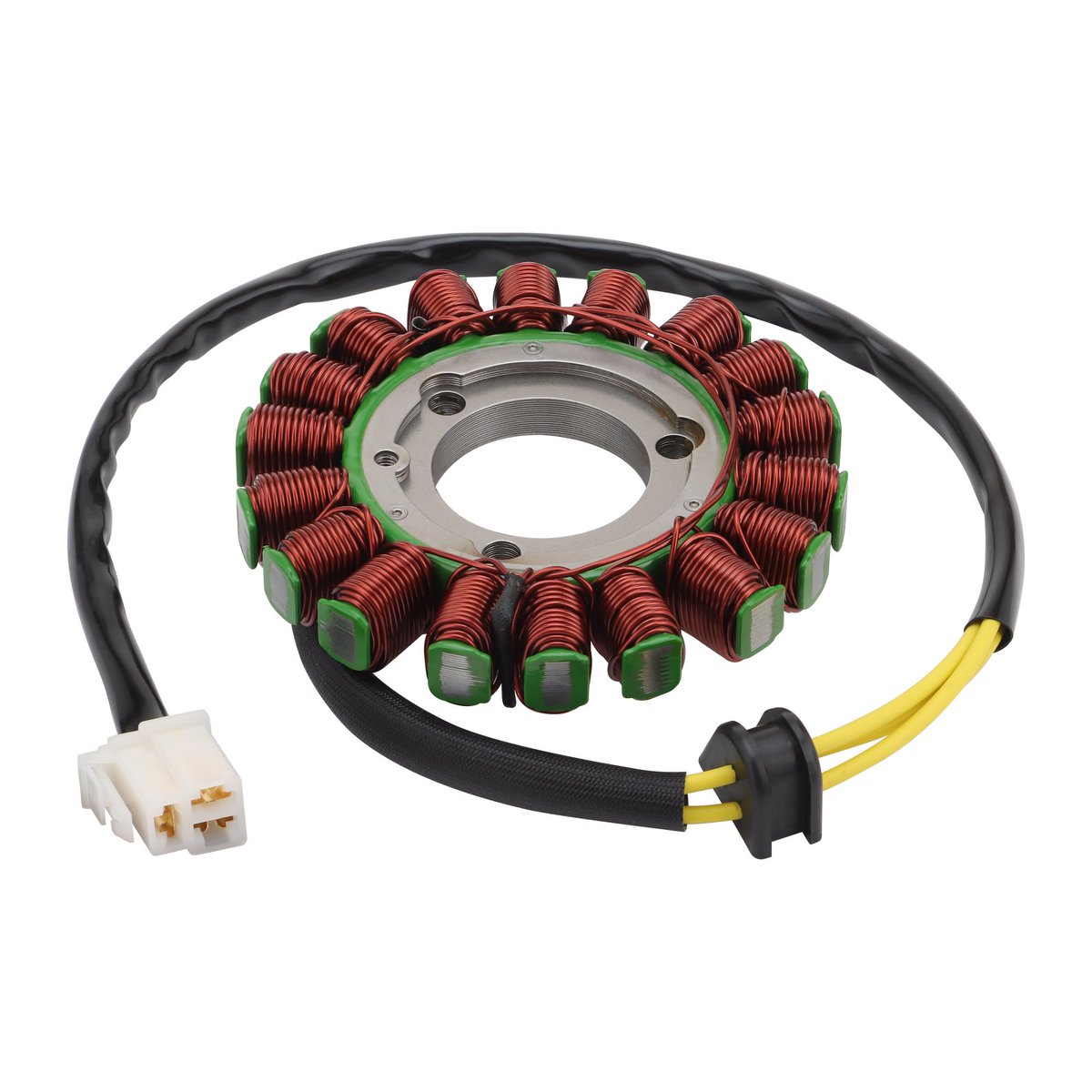

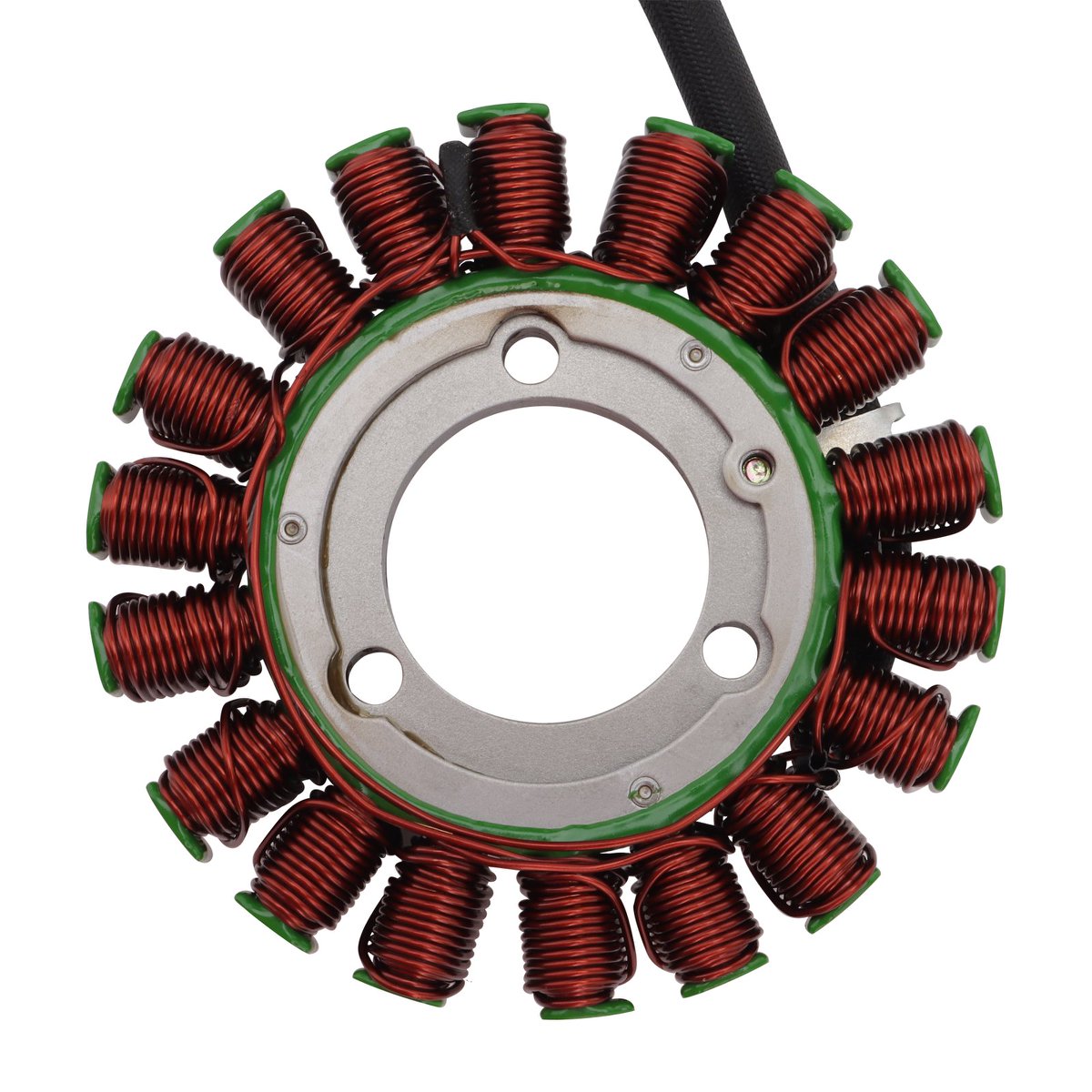

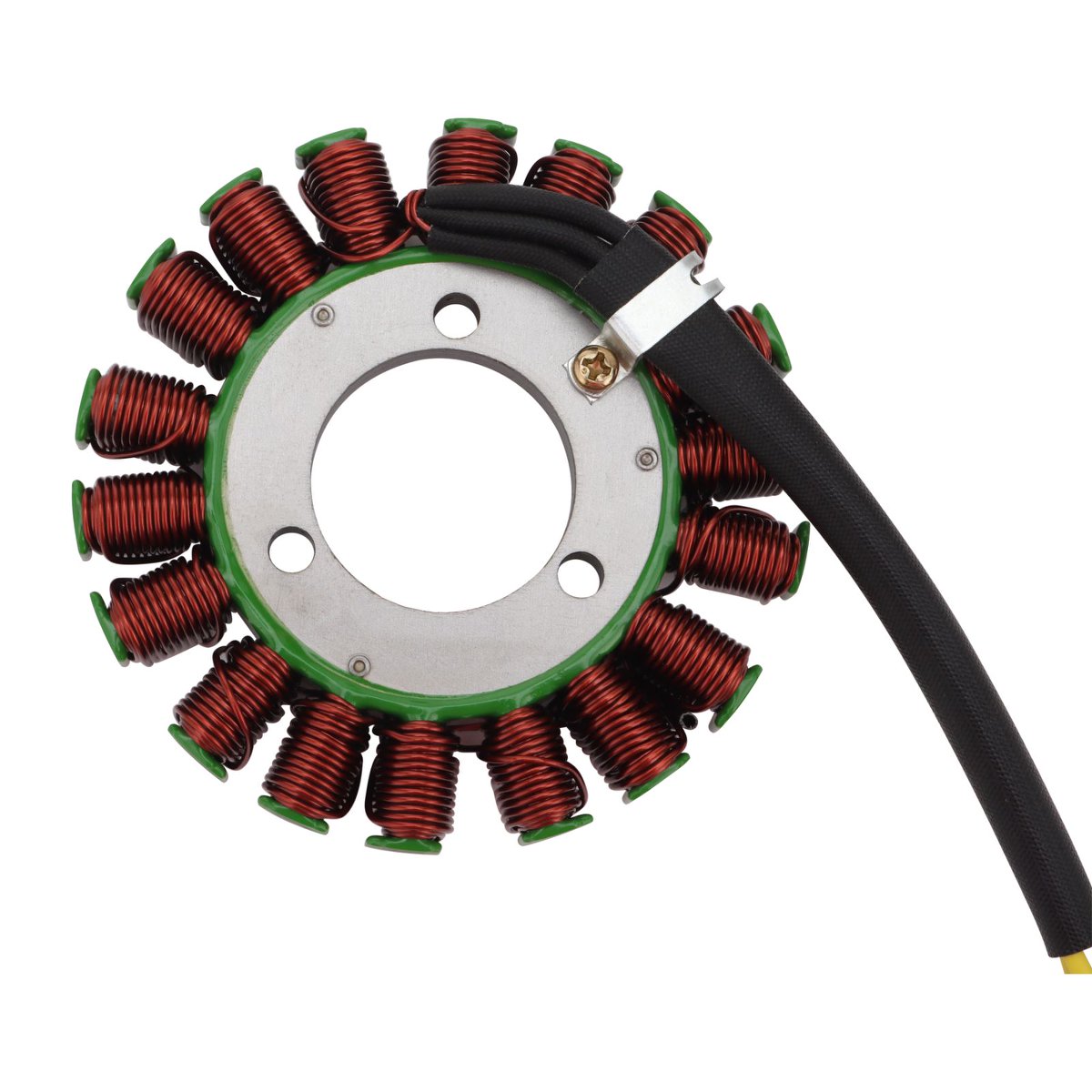

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select Suzuki GSX-R600, GSX-R600Z, GSX-R750, and GSX-R1000 motorcycles using OEM reference number 31401-35F00.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Suzuki GSX-R has battery charging issues, dim lights, unstable voltage, or repeated electrical failure, replacing the stator may help restore normal charging performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug style, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | GSX-R600 | 2001–2003 | 31401-35F00 | Main fitment; confirm original stator and plug layout |
| Suzuki | GSX-R600Z | 2001–2003 | 31401-35F00 | Fits models using the matching 18-coil 3-wire stator |
| Suzuki | GSX-R750 | 2001–2003 | 31401-35F00 | Main fitment; compare original stator dimensions before purchase |
| Suzuki | GSX-R1000 | 2001–2004 | 31401-35F00 | Confirm OEM number, wire count, and mounting holes |
| Suzuki | GSX-R750 | 2000 | 31401-35F00 / 31401-35F10 | Possible fitment only if the original stator matches this design |
| Suzuki | GSX-R600 | 2004–2005 | 31401-35F00 / 31401-35F10 | Possible fitment; verify OEM number, plug, and dimensions |
| Suzuki | GSX-R750 | 2004–2005 | 31401-35F00 / 31401-35F10 | Possible fitment; check original stator before ordering |
Important Fitment Note:
This part is not selected by model name alone. Suzuki GSX-R motorcycles may use different stator designs depending on year, market, and production version. Please confirm your original stator matches OEM 31401-35F00, the 18-coil / 3-wire layout, and the dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |

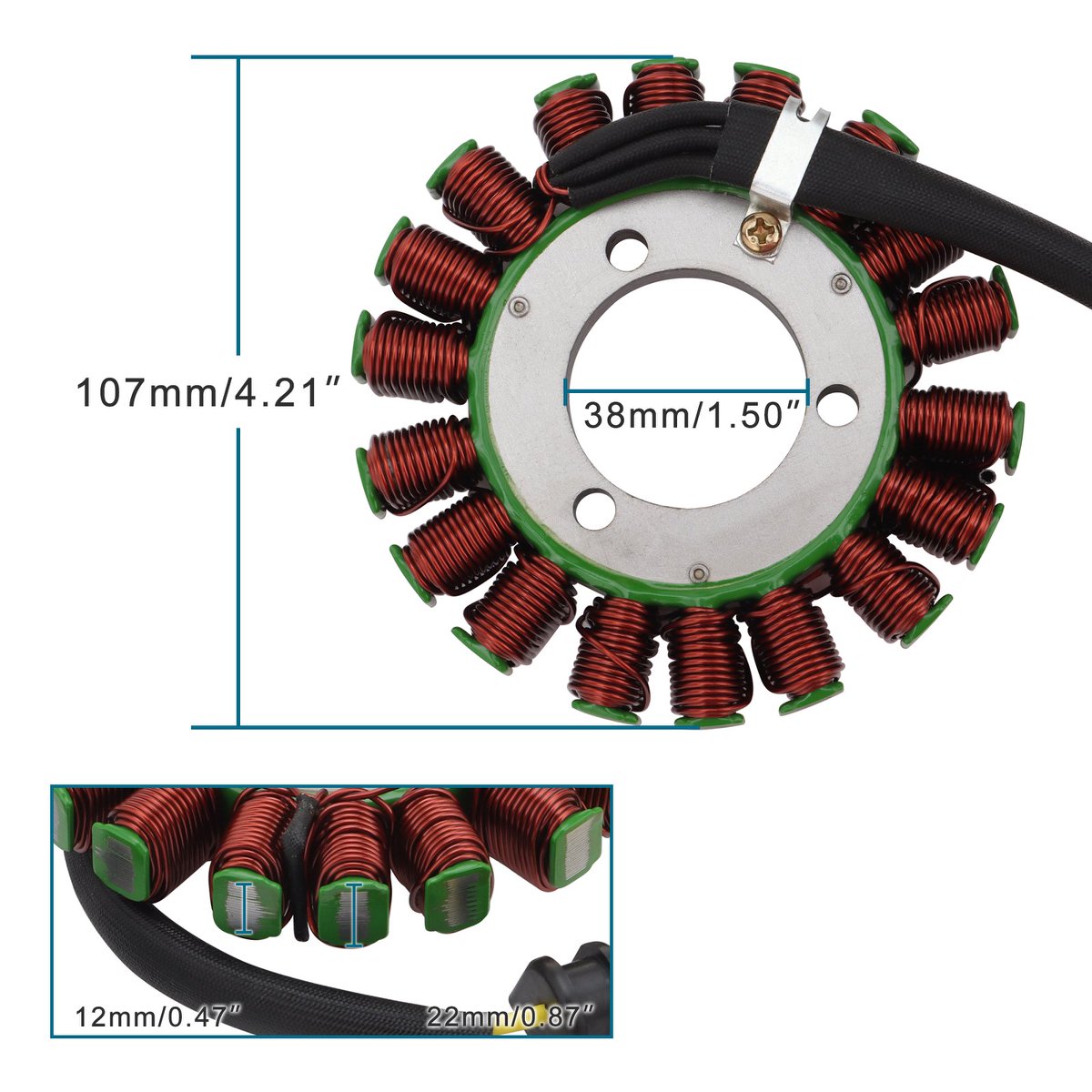

| Inner Diameter | 37mm / 1.5" |
| Outer Diameter | 107mm / 4.2" |
| Iron Core Height | 12mm / 0.47" |
| Mounting Hole Distance | 42mm / 1.7" |
| Thickness | 24mm / 0.94" |
| OEM Reference | 31401-35F00 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki GSX-R600, GSX-R600Z, GSX-R750, and GSX-R1000 motorcycles
- Replaces OEM reference number 31401-35F00
- 18-coil 3-wire stator helps support stable charging system output
- Helps address weak battery charging, dim lights, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Direct replacement style, but original OEM number, plug, and dimensions must be checked before installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki GSX-R600 and GSX-R600Z 2001–2003, Suzuki GSX-R750 2001–2003, and Suzuki GSX-R1000 2001–2004 models using OEM reference number 31401-35F00. It may also fit some related GSX-R600 / GSX-R750 model years if the original stator uses the same OEM reference, 18-coil 3-wire layout, plug style, and dimensions. Please compare your original part before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator is mainly listed as a replacement for OEM 31401-35F00. Some listings may also reference 31401-35F10, 31401-29G00, 31401-40F00, or 31401-18G00, but OEM number alone is not enough. Please also confirm the wire count, plug layout, inner diameter, outer diameter, mounting hole distance, and thickness.
What models or situations does this part not fit?
This part does not fit Suzuki GSX-R models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different OEM design. It is also not suitable if your charging issue is caused only by a bad regulator rectifier, weak battery, damaged wiring, burned connector, or poor ground connection.
What should I check before ordering?

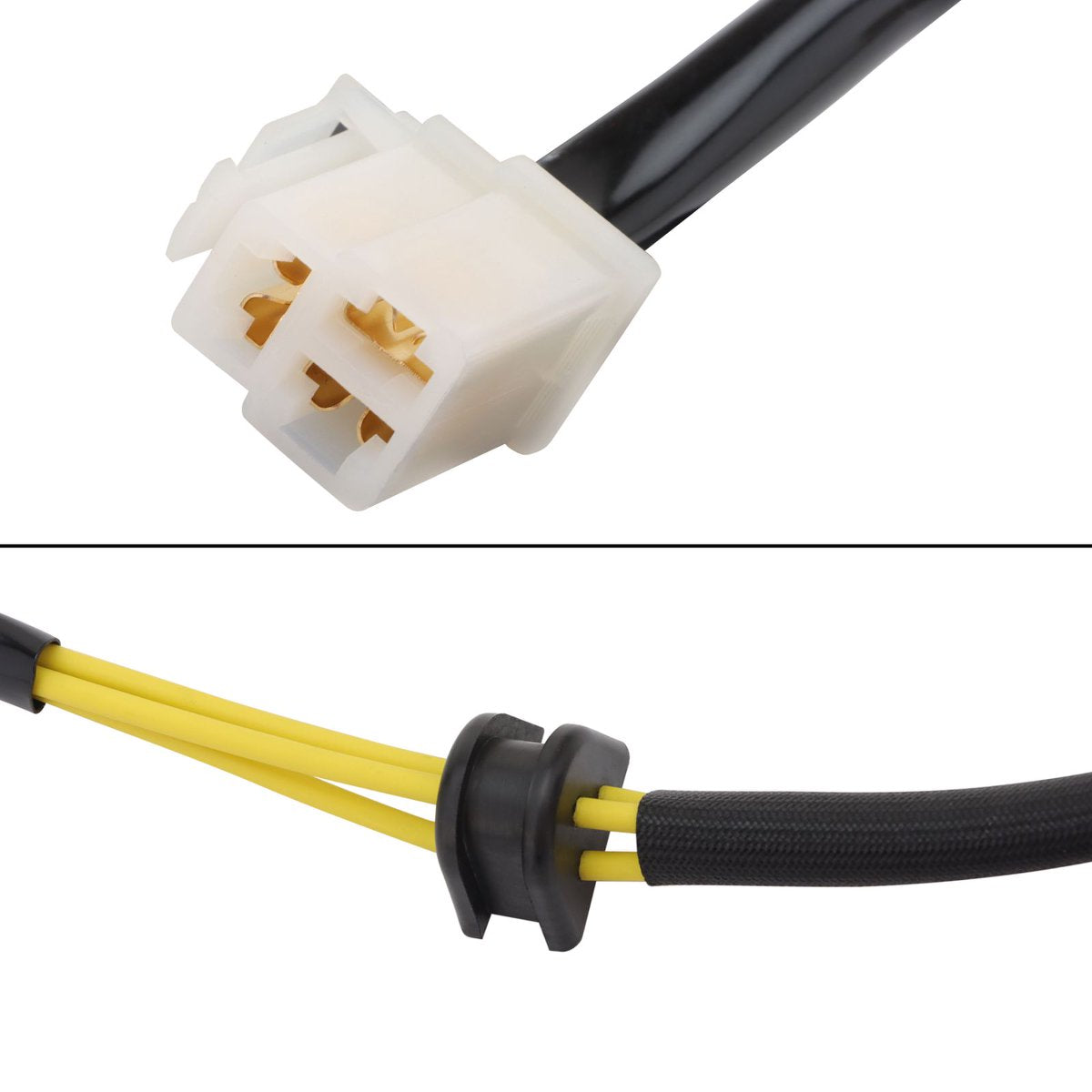

Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
