1985 Suzuki GSX1100EF 18-Coil 3-Wire Stator 31401-00A00
1985 Suzuki GSX1100EF 18-Coil 3-Wire Stator 31401-00A00
Couldn't load pickup availability
Product Overview

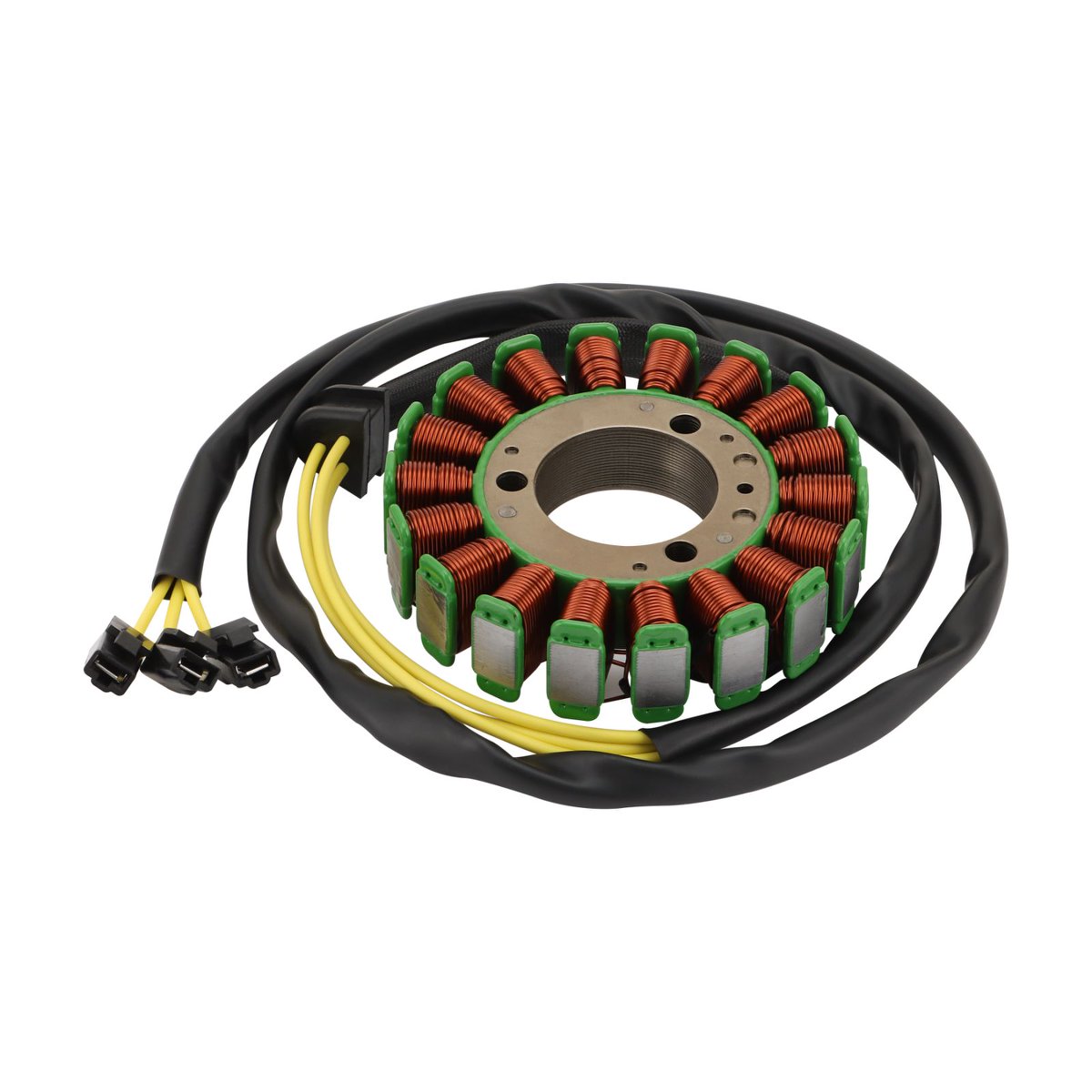

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for the 1985 Suzuki GSX1100EF and compatible GSX1100 charging system applications using reference number 31401-00A00.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Suzuki GSX1100EF has weak charging, low battery voltage, dim lights, repeated battery drain, or stator-related electrical failure, replacing the stator may help restore normal charging performance.

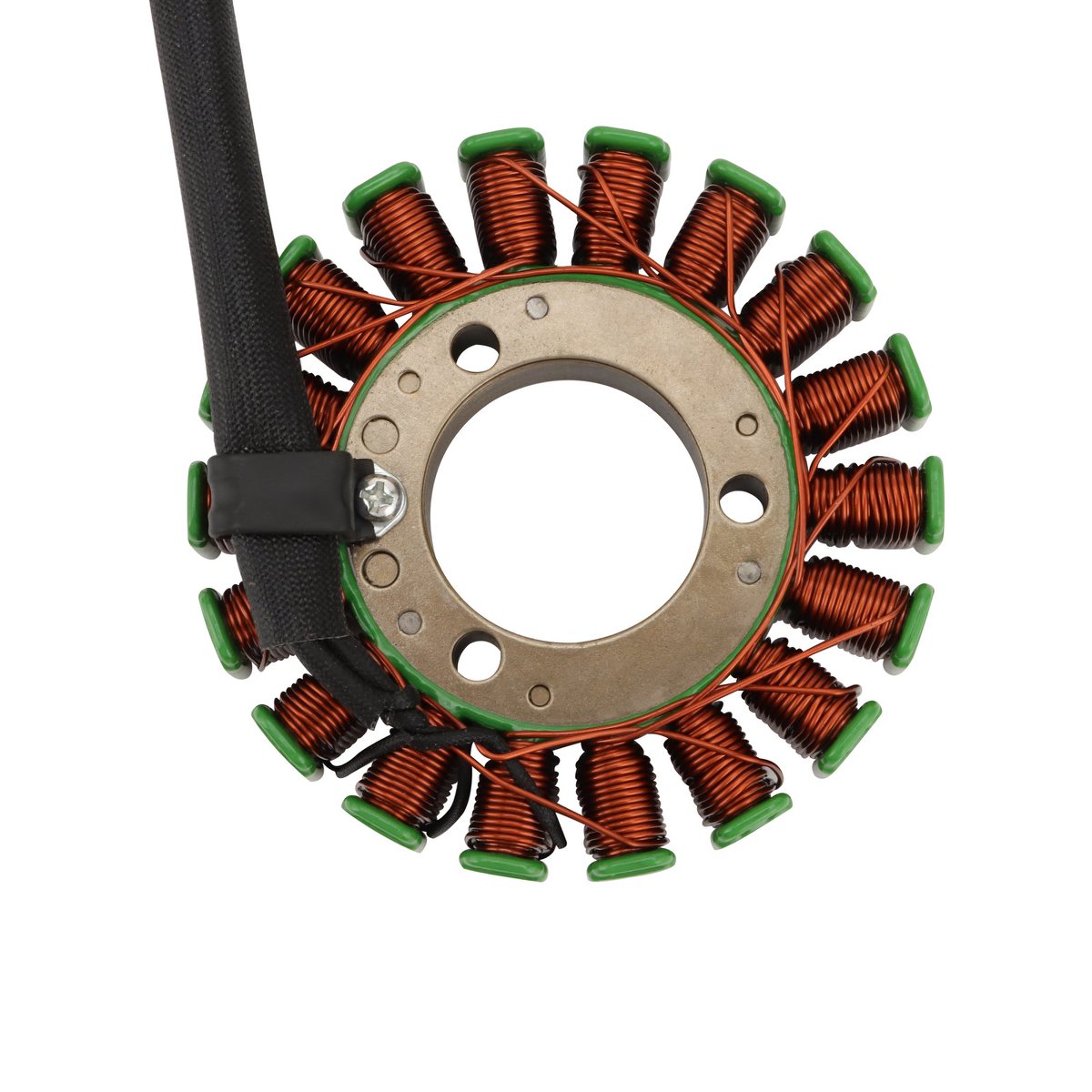

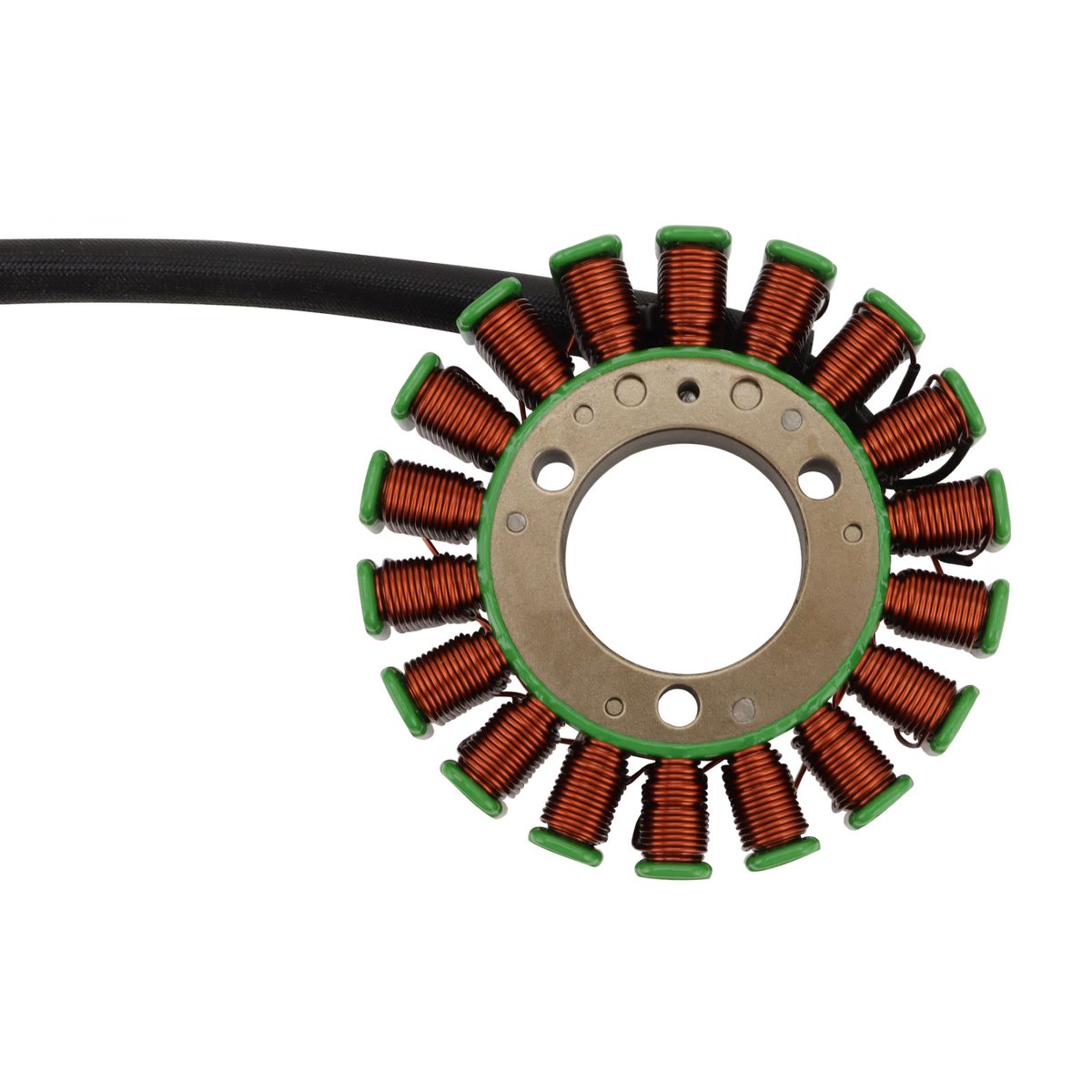

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, connector layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM / Reference Number | Fitment Notes |
|---|---|---|---|---|
| Suzuki | GSX1100EF | 1985 | 31401-00A00 / 31401-08A00 | Main fitment; confirm original stator size and 3-wire layout |
| Suzuki | GSX1100E / GSX1100EE | 1984 | 31401-00A00 / 31401-08A00 | Possible related fitment; verify original part before ordering |
| Suzuki | GSX1100EG | 1986 | 31401-00A00 / 31401-08A00 | Possible related fitment if original stator matches |
| Suzuki | GSX1100ES | Select 1984–1986 applications | 31401-00A00 / 31401-08A00 | Confirm OEM number, connector, and dimensions |
| Suzuki | GSX1150 / GS1150 | Select 1984–1986 applications | 31401-00A00 / 31401-08A00 | Possible cross-platform fitment; match by original stator |
Important Fitment Note:

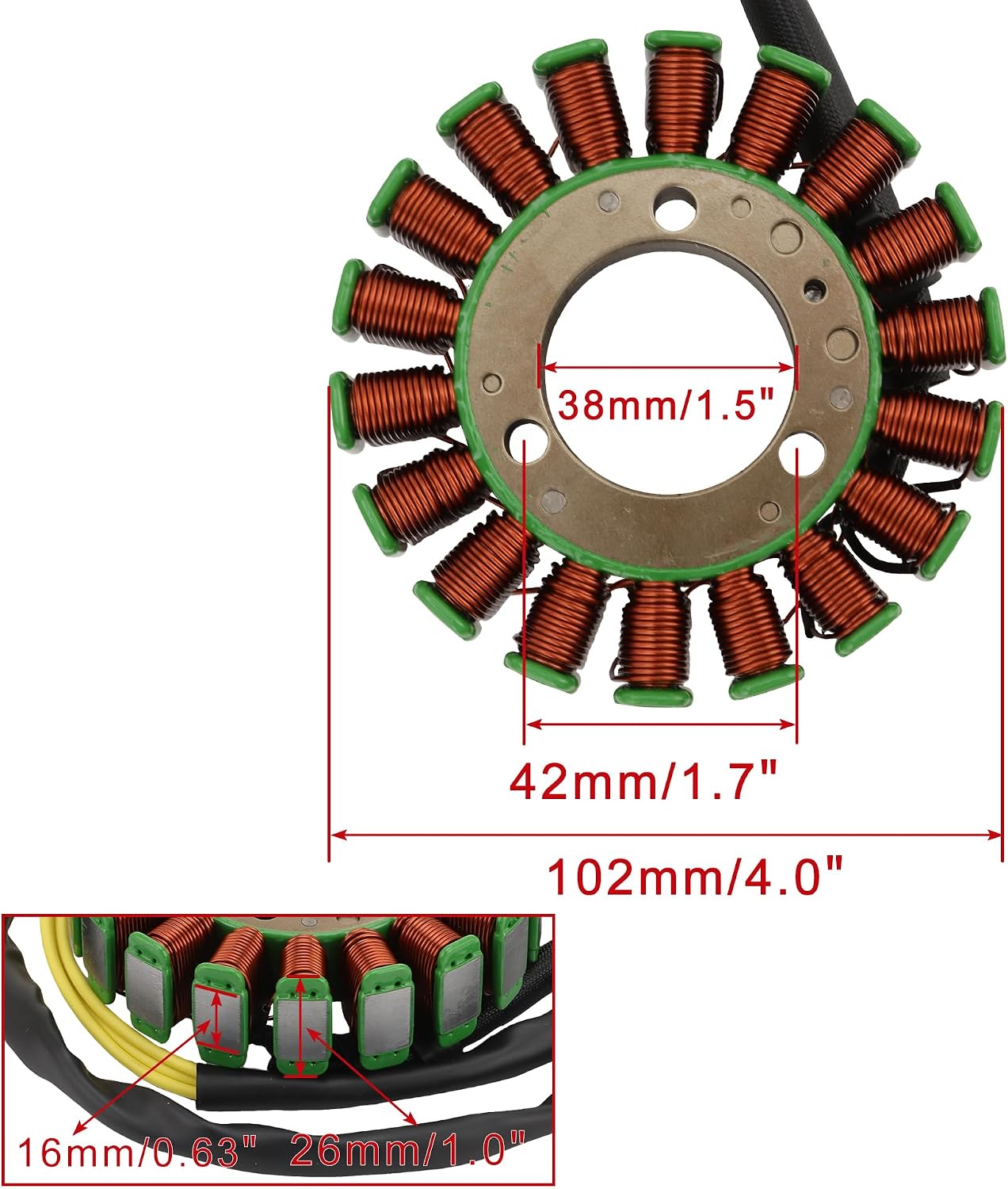

This part is not selected by model name alone. Older Suzuki GSX and GS series motorcycles may use different stator designs depending on year, market, and charging system version. Please confirm your original stator matches the 18-coil / 3-wire layout, DC type, 38mm inner diameter, 102mm outer diameter, 42mm mounting hole distance, and overall shape before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |
| Inner Diameter | 38mm / 1.5" |
| Outer Diameter | 102mm / 4.0" |
| Iron Core Height | 16mm / 0.63" |
| Mounting Hole Distance | 42mm / 1.7" |
| Thickness | 26mm / 1.0" |
| OEM / Reference Number | 31401-00A00 / 31401-08A00 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Suzuki |
Key Features
- Designed for 1985 Suzuki GSX1100EF charging system applications
- 18-coil 3-wire stator helps support stable charging system output
- Replaces common reference numbers 31401-00A00 and 31401-08A00
- Helps address weak charging, low battery voltage, dim lights, battery drain, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Metal lamination core helps resist rust, corrosion, and deformation

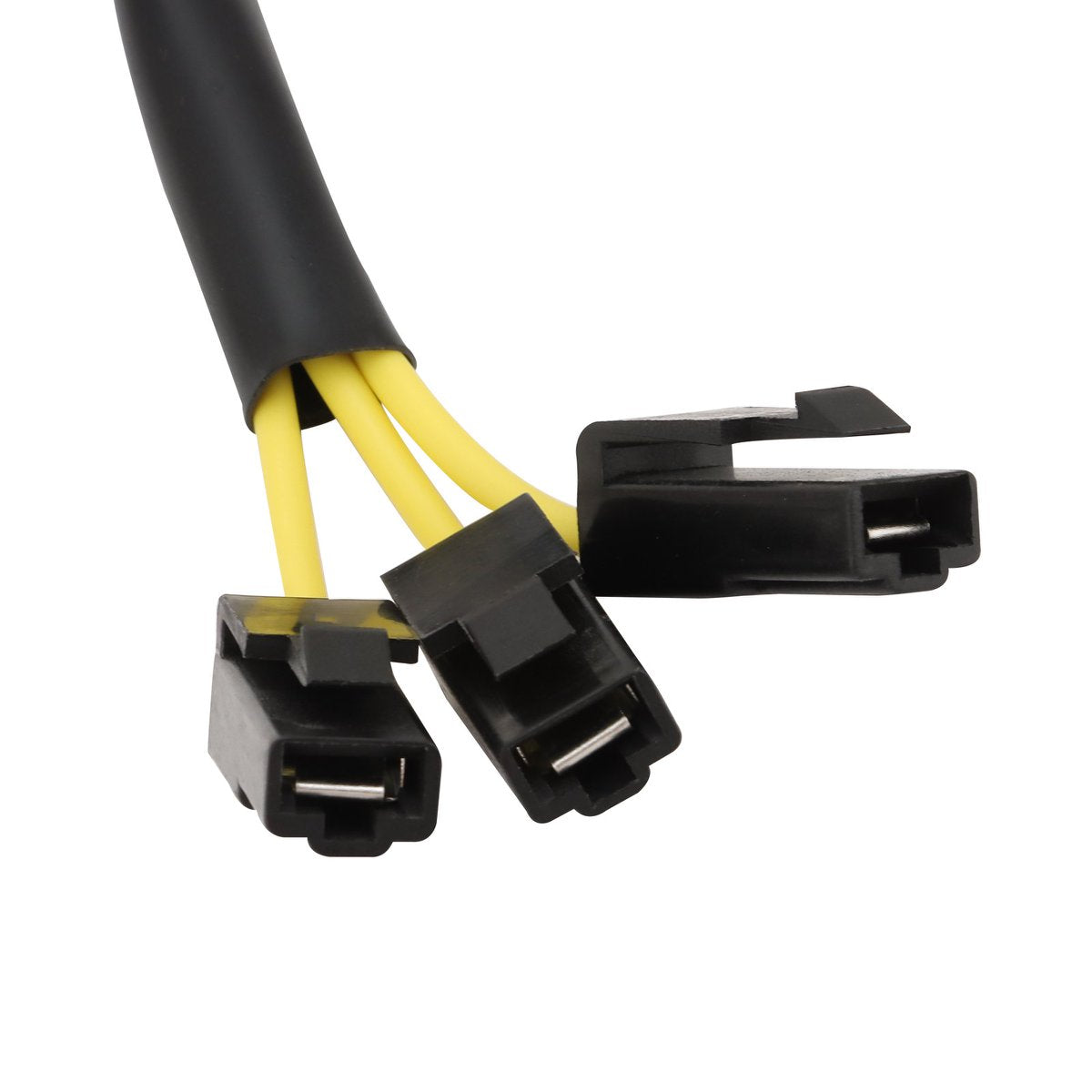

- Direct replacement style, but original reference number, connector layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31401-00A00 | Common Suzuki stator reference for GSX1100EF and related GSX1100 / GSX1150 applications |
| 31401-08A00 | Common aftermarket cross-reference for related Suzuki GSX / GS charging stator listings |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or connector style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for the 1985 Suzuki GSX1100EF and related Suzuki GSX1100 charging system applications using matching reference numbers and dimensions. Please compare your original stator’s wire count, connector layout, inner diameter, outer diameter, mounting hole distance, thickness, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM or reference number is strongly recommended. This stator is commonly associated with 31401-00A00 and 31401-08A00. However, OEM number alone is not enough. Please also confirm the 18-coil 3-wire layout, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Suzuki GSX1100, GSX750, GS1150, or other Suzuki models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different charging system design. It is also not a replacement for the regulator rectifier, battery, ignition coil, starter motor, rotor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM/reference number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
