2005–2008 Suzuki GSX-R1000 15-Coil 3-Wire Stator 31401-41G10
2005–2008 Suzuki GSX-R1000 15-Coil 3-Wire Stator 31401-41G10
Couldn't load pickup availability
Product Overview
Replace a weak, burned, or failed stator with this 15-coil 3-wire magneto stator, designed for select 2005–2008 Suzuki GSX-R1000 / GSXR1000 motorcycles using OEM reference number 31401-41G10.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, sensors, and other electrical components. If your Suzuki GSX-R1000 has weak charging, low battery voltage, dim lights, repeated battery drain, unstable voltage, or stator-related charging failure, replacing the stator may help restore normal electrical performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, corrosion resistance, and long service life. Please compare your original stator’s OEM number, coil count, wire count, connector layout, mounting hole distance, thickness, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | GSX-R1000 | 2005 | 31401-41G10 / 31401-41G10-000 | Main fitment; confirm original stator and connector layout |
| Suzuki | GSX-R1000 | 2006 | 31401-41G10 / 31401-41G10-000 | Fits matching 15-coil 3-wire stator version |
| Suzuki | GSX-R1000 | 2007 | 31401-41G10 / 31401-41G10-000 | Compare OEM number, wire count, and dimensions |
| Suzuki | GSX-R1000 | 2008 | 31401-41G10 / 31401-41G10-000 | Verify original stator size and plug layout before ordering |
| Suzuki | GSXR1000 / GSXR 1000 | 2005–2008 | 31401-41G10 / 31401-41G10-000 | Search-name variation; match by original part |
Important Fitment Note:
This part is not selected by model name alone. Suzuki GSX-R1000 models may use different charging components depending on year, market, and production version. Please confirm your original stator matches OEM 31401-41G10, the 15-coil / 3-wire layout, DC type, 39mm inner diameter, 105mm outer diameter, 42mm mounting hole distance, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 15 Coils |
| Wire Count | 3 Wire |
| Electrical Type | DC |

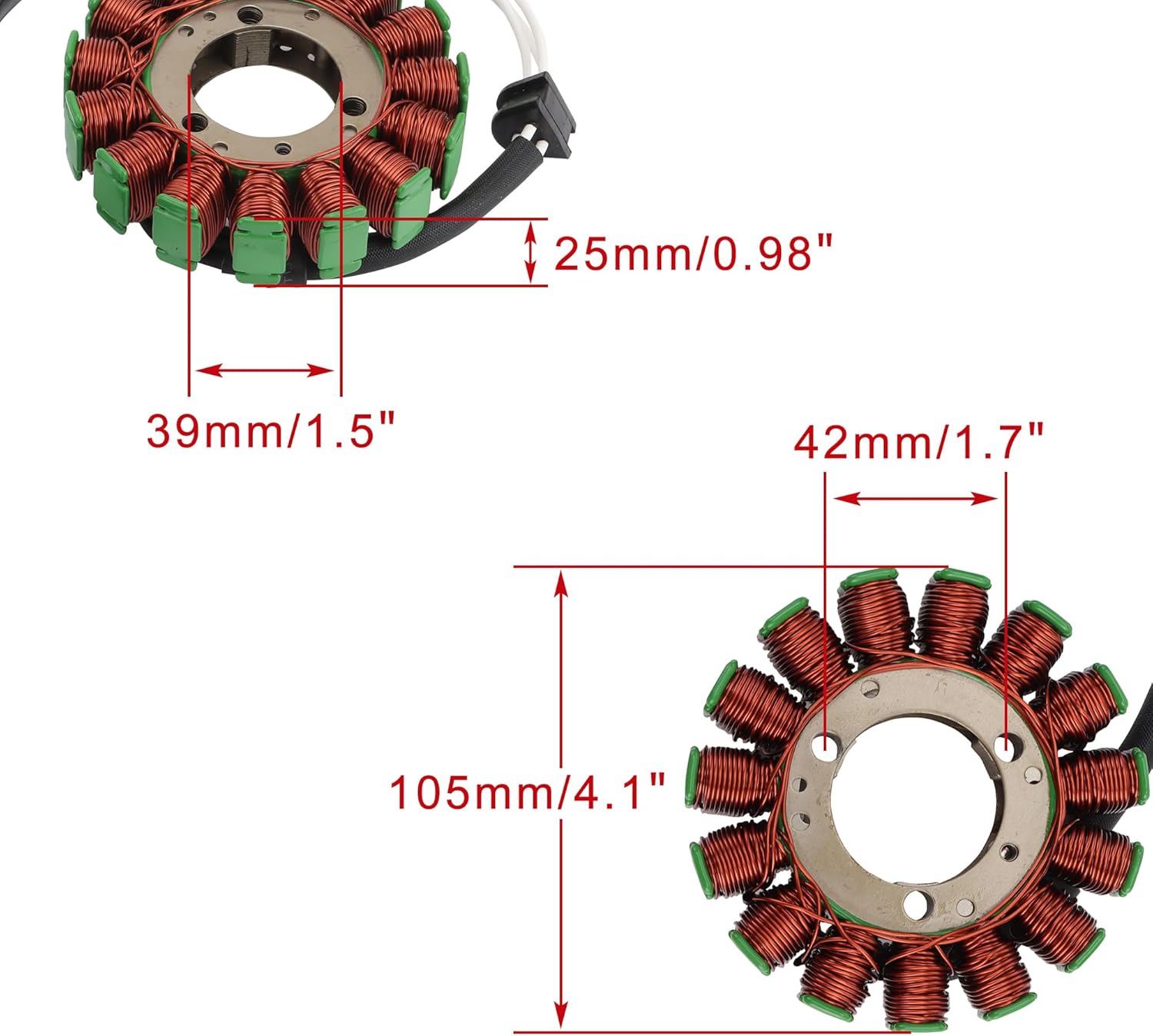

| Inner Diameter | 39mm / 1.5" |
| Outer Diameter | 105mm / 4.1" |
| Mounting Hole Distance | 42mm / 1.7" |
| Thickness | 25mm / 0.98" |
| OEM Reference | 31401-41G10 / 31401-41G10-000 |
| Application | Motorcycle Charging System |
| Compatible Brand | Suzuki |

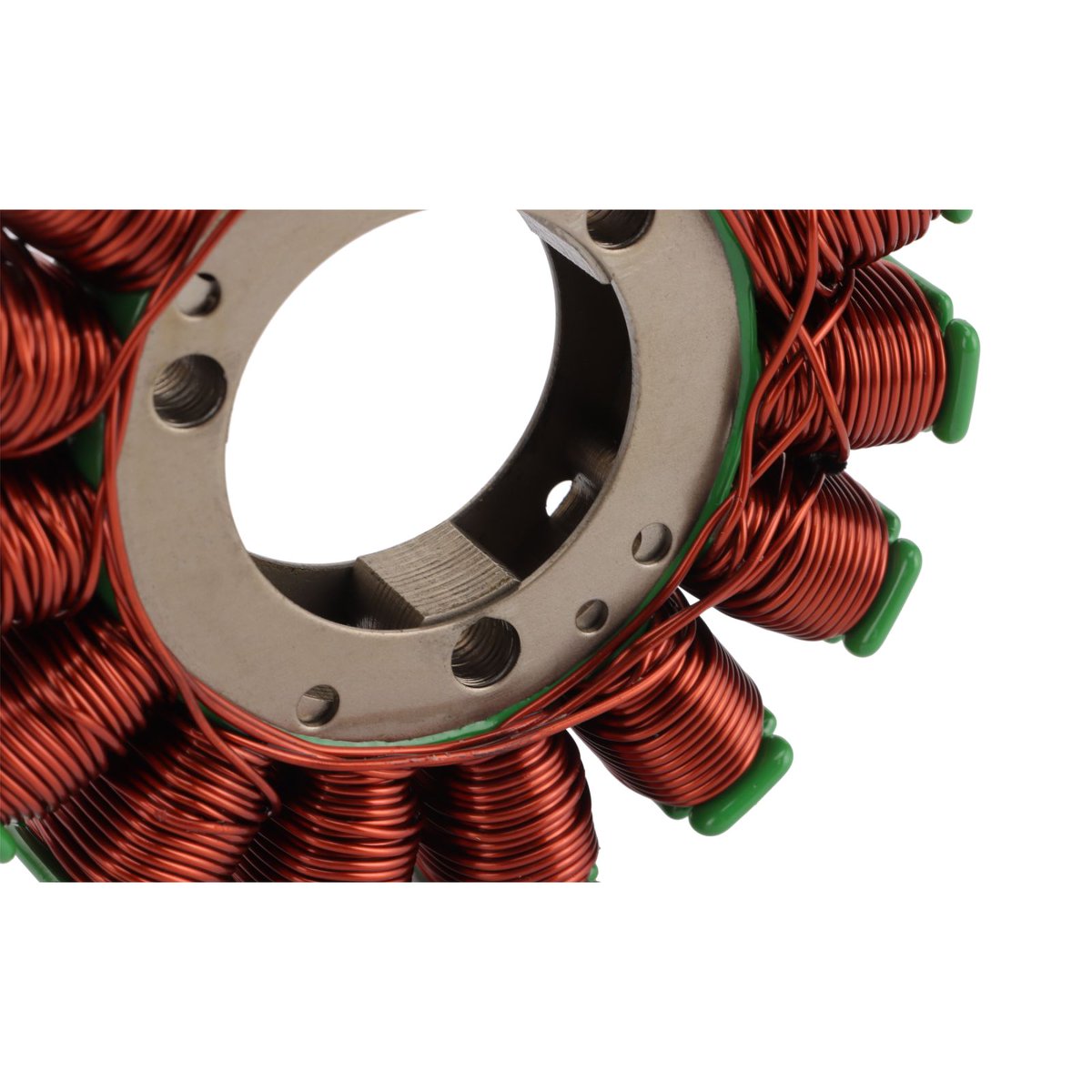

| Material | Metal Lamination Core + Copper Winding |
Key Features
- Designed for select 2005–2008 Suzuki GSX-R1000 motorcycles
- Replaces Suzuki OEM reference number 31401-41G10 / 31401-41G10-000
- 15-coil 3-wire DC stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, repeated battery drain, or stator failure
- Suitable for matching GSX-R1000 / GSXR1000 charging systems using the same 3-wire stator design
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, connector layout, thickness, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31401-41G10 | Main Suzuki GSX-R1000 stator reference for compatible 2005–2008 applications |
| 31401-41G10-000 | Full Suzuki-style reference format |
| 3140141G10 | Compact format of 31401-41G10 |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, plug style, or pin count, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select 2005–2008 Suzuki GSX-R1000 / GSXR1000 motorcycles using OEM reference number 31401-41G10. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, thickness, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces Suzuki OEM 31401-41G10 and 31401-41G10-000. However, OEM number alone is not enough. Please also confirm the 15-coil 3-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, stator thickness, and connector layout.
What models or situations does this part not fit?
This part does not fit Suzuki GSX-R1000, GSX-R750, GSX-R600, Hayabusa, or other Suzuki sport bike models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different charging system design. It is also not a replacement for the regulator rectifier, battery, CDI, ignition coil, flywheel, starter motor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
