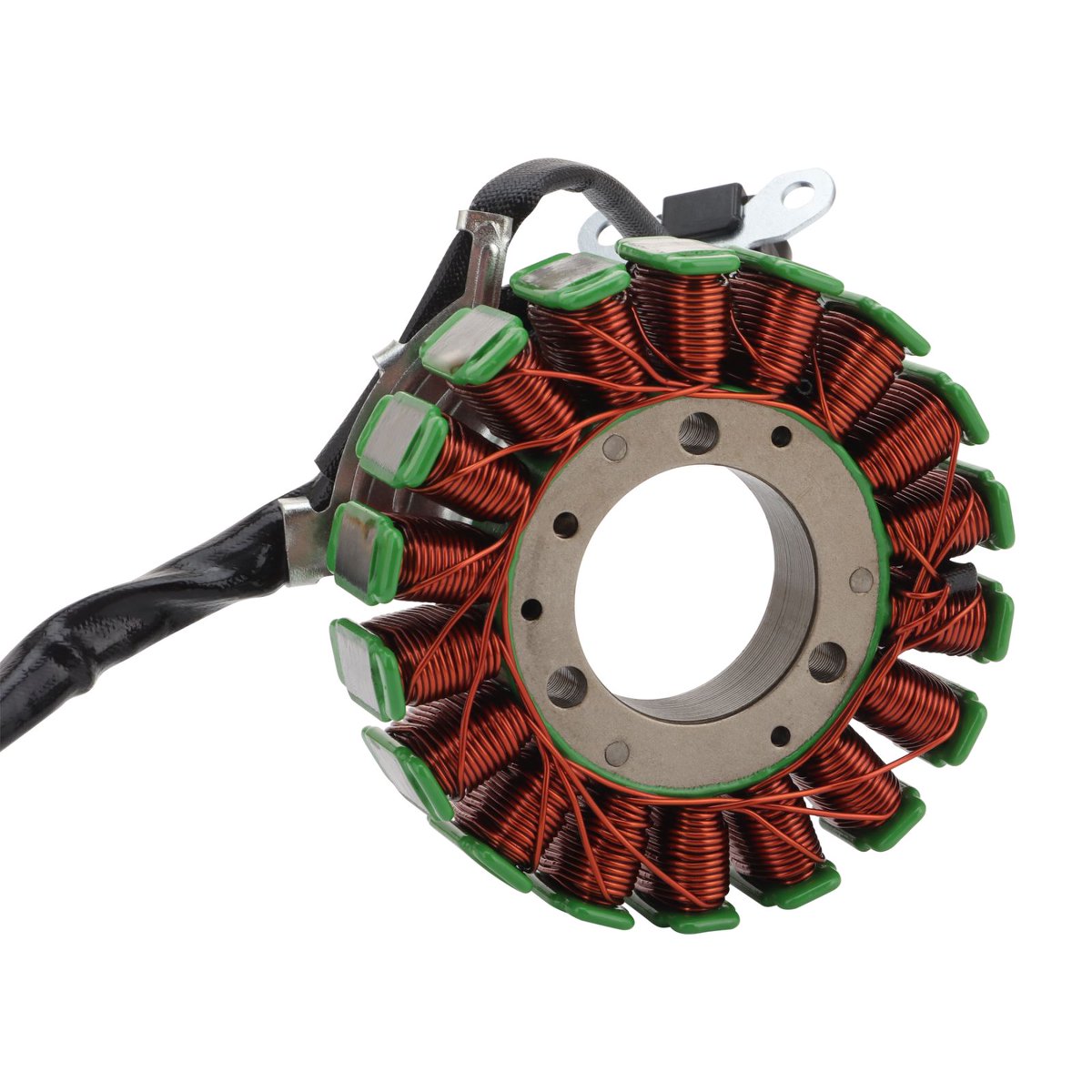

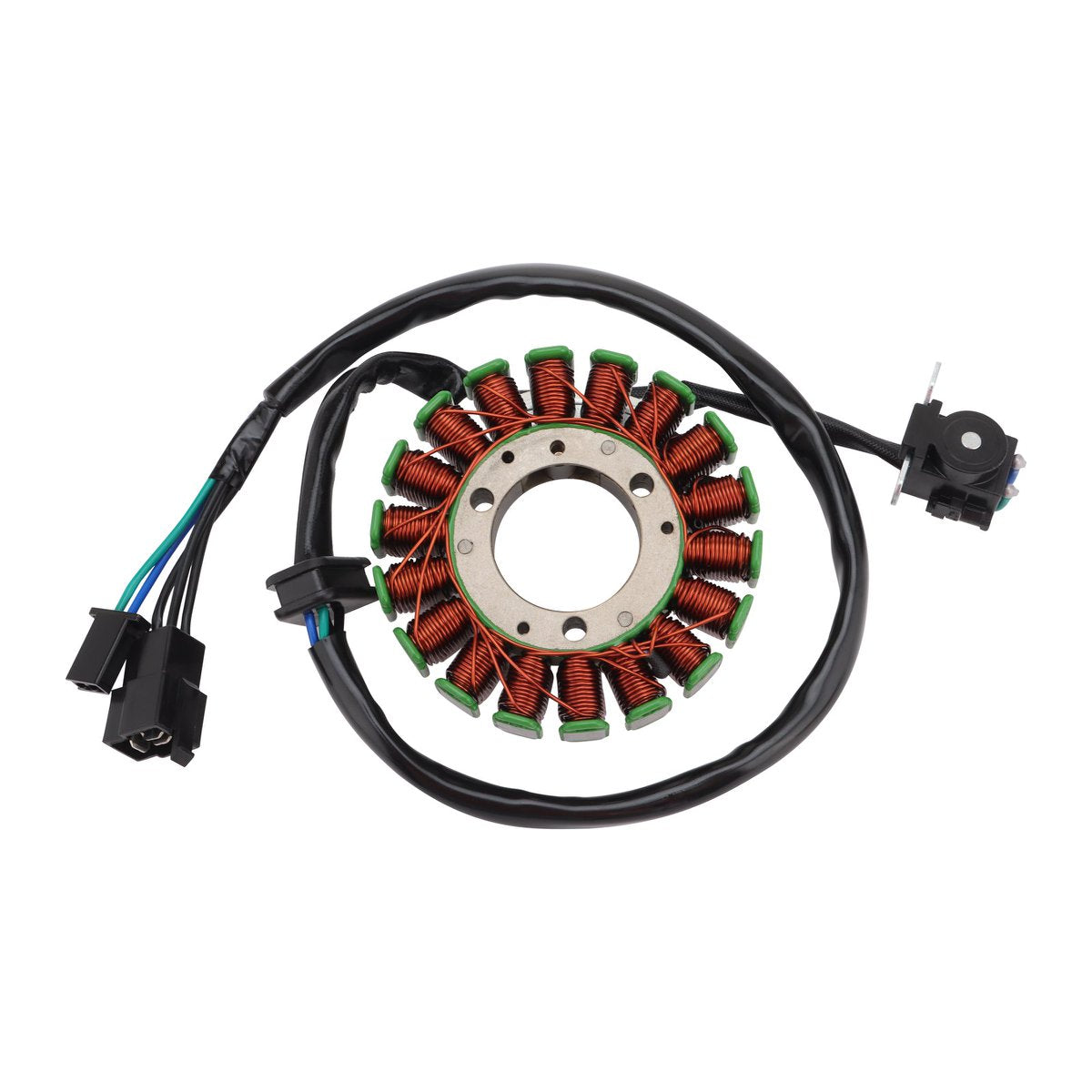

2012–2020 Suzuki GZ150 GZ150-A EN150 GSR150i 18-Coil 5-Wire Stator Magneto
2012–2020 Suzuki GZ150 GZ150-A EN150 GSR150i 18-Coil 5-Wire Stator Magneto
Couldn't load pickup availability
Product Overview
Replace a weak, burned, or failed stator with this 18-coil 5-wire magneto stator, designed for select Suzuki 150cc motorcycles that use the same DC stator configuration.
This stator helps generate electrical power for the motorcycle’s charging and ignition system. If your Suzuki GZ150 or compatible 150cc model has battery charging problems, dim lights, unstable electrical output, or weak power generation, replacing the stator may help restore normal electrical performance.
Built with a metal lamination core and copper windings, this replacement stator is made for stable conductivity, heat resistance, and long service life. Please compare your original stator’s wire count, plug style, mounting hole distance, and overall dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | Fitment Notes |
|---|---|---|---|
| Suzuki | GZ150 | 2012–2020 | Main fitment; must match 18-coil 5-wire DC stator |
| Suzuki | GZ150-A | 2012–2020 | Main fitment; compare original stator size and plug |
| Suzuki | EN150 | Year varies by market | Fits only models using the same 18-pole 5-wire stator |
| Suzuki | EN150-A | Year varies by market | Check wire count, connector type, and mounting holes |
| Suzuki | EN150J | Year varies by market | Confirm original stator dimensions before purchase |
| Suzuki | GSR150i | 2011–2017 | Compatible only if the original stator matches this 5-wire 18-coil design |
Important Fitment Note:
This part is not selected by engine displacement alone. Suzuki 150cc motorcycles may use different stator designs depending on market, year, and wiring system. Please confirm your original stator matches the 18-coil / 5-wire layout and listed dimensions before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |

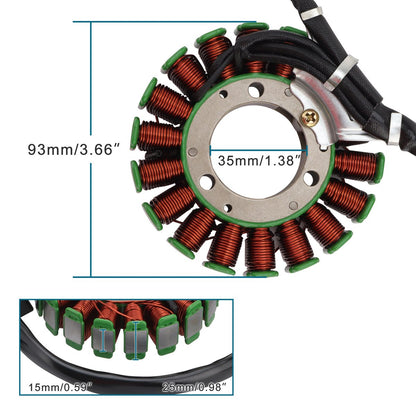

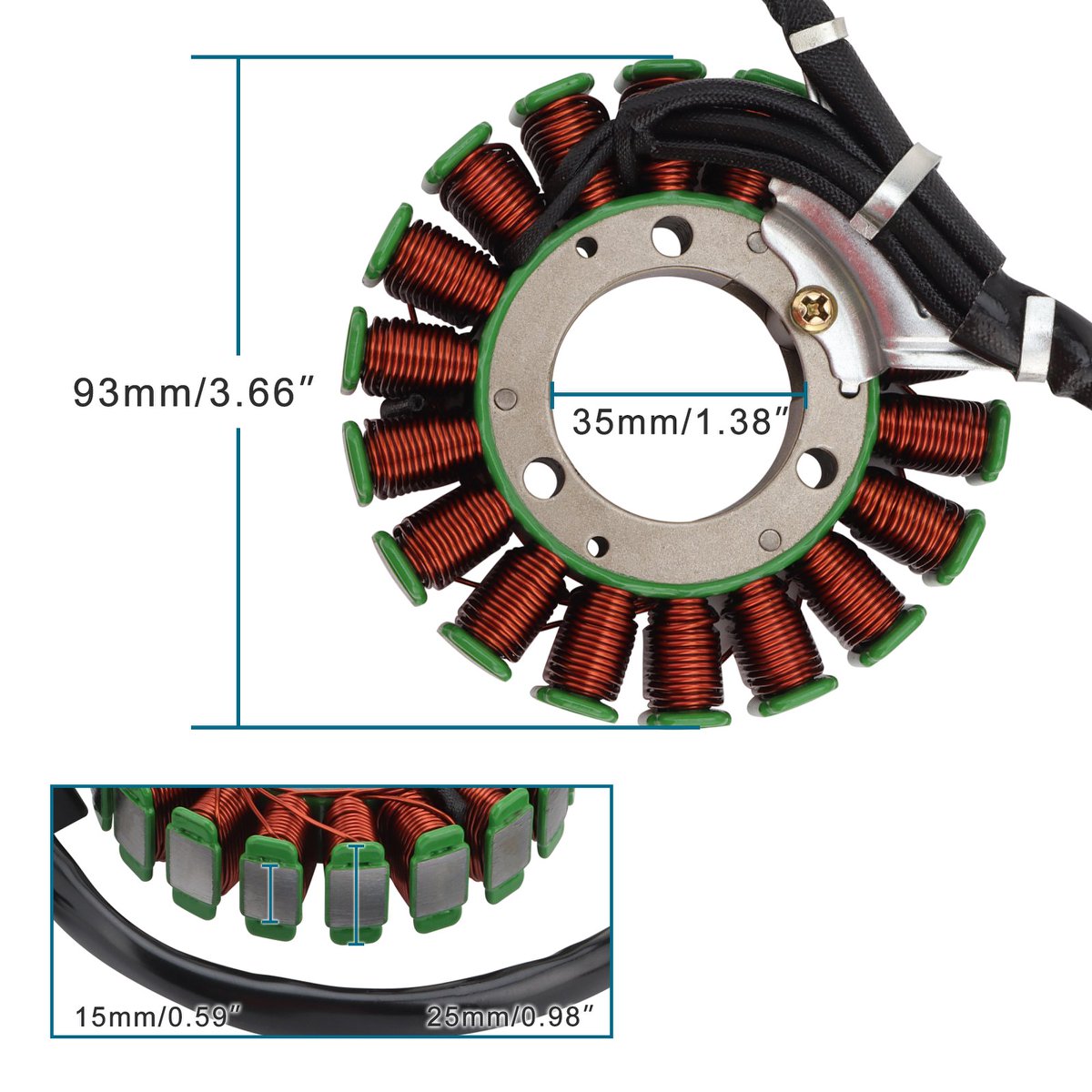

| Outer Diameter | 93mm / 3.7" |
| Iron Core Height | 14mm / 0.55" |
| Mounting Hole Distance | 32mm / 1.3" |
| Thickness | 24mm / 0.94" |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki GZ150, GZ150-A, EN150, EN150-A, EN150J, and GSR150i motorcycles
- 18-coil 5-wire DC stator replacement for stable electrical output
- Helps solve common charging-related issues such as weak battery output, dim lights, or unstable voltage
- Copper winding supports stable conductivity and improved heat resistance
- Built with a durable metal lamination core for long-term use
- Direct replacement style, but original size and connector must be checked before installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki GZ150 and GZ150-A motorcycles from 2012–2020, and may also fit some Suzuki EN150, EN150-A, EN150J, and GSR150i models if they use the same 18-coil 5-wire DC stator setup. Because fitment can vary by market and production year, please compare your original stator’s size, wire count, plug style, and mounting hole distance before ordering.
Do I need to match the OEM part number?
Matching the OEM part number is helpful, but it is not the only way to confirm fitment. If you do not have the OEM number, please check that your original stator has 18 coils, 5 wires, a 93mm outer diameter, 32mm mounting hole distance, and the same connector layout. If the OEM number, dimensions, or plug style are different, this part may not fit.
What models or situations does this part not fit?
This part does not fit Suzuki motorcycles that use a different stator design, different wire count, different mounting hole spacing, or a different connector. It is also not recommended for GZ150, EN150, or GSR150i models if the original stator is not an 18-coil 5-wire DC type. This part should not be selected based only on 150cc engine size.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, original stator wire count, coil count, connector shape, outer diameter, mounting hole distance, and stator thickness. Also inspect the regulator rectifier and battery condition, because charging system problems can be caused by more than one component.
