1997–2007 Suzuki LT160 LT-F160 QuadRunner 18-Coil 5-Wire Stator 32101-02C10
1997–2007 Suzuki LT160 LT-F160 QuadRunner 18-Coil 5-Wire Stator 32101-02C10
Couldn't load pickup availability
Product Overview

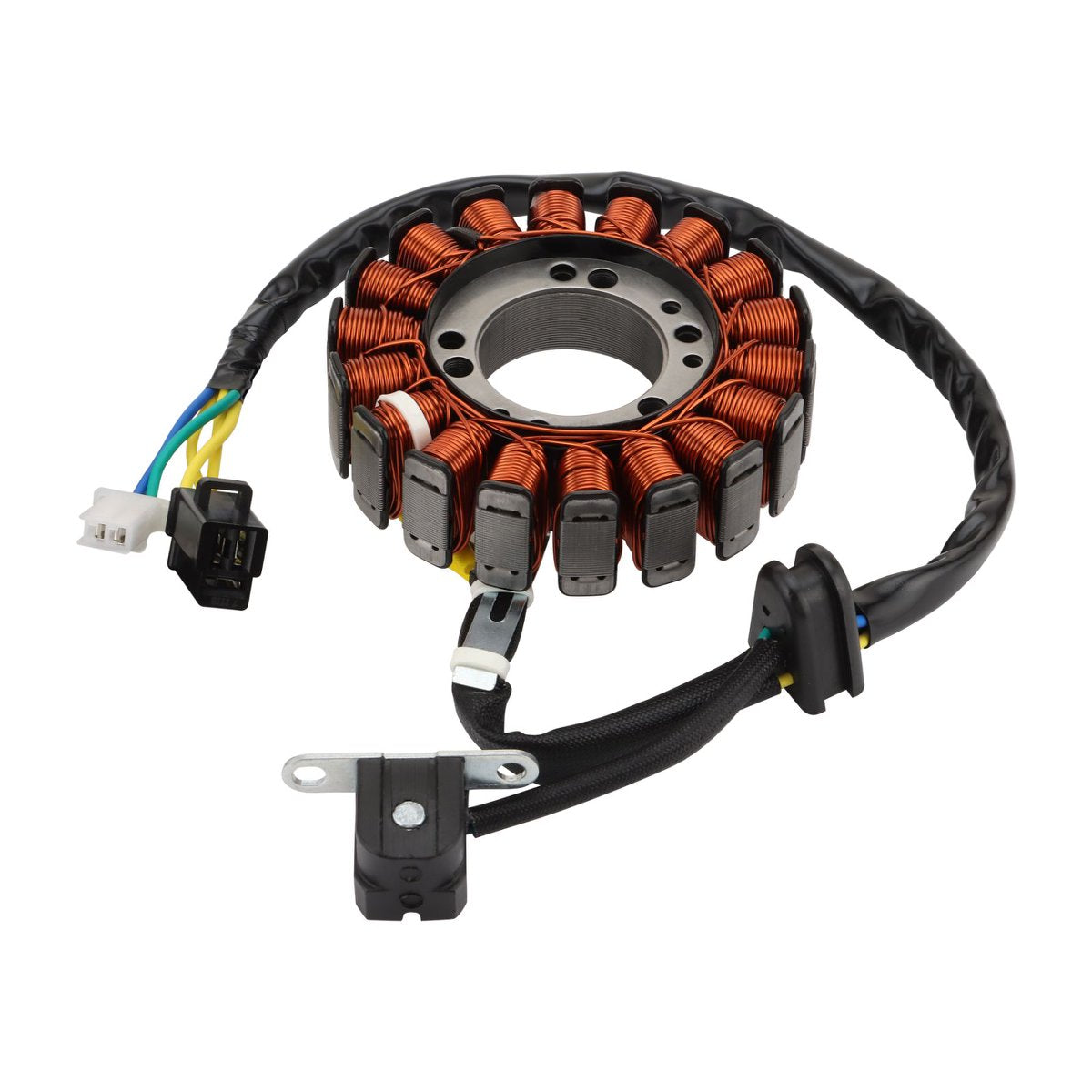

Replace a weak, burned, or failed stator with this 18-coil 5-wire magneto stator, designed for select Suzuki LT160 / LT-F160 QuadRunner 160 ATV models using OEM reference numbers 32101-02C10 and 32101-02C11.
The stator is an important part of the ATV charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, lights, and other electrical components. If your Suzuki QuadRunner 160 has weak charging, low battery voltage, dim lights, unstable output, or stator-related failure, replacing the stator may help restore normal electrical performance.

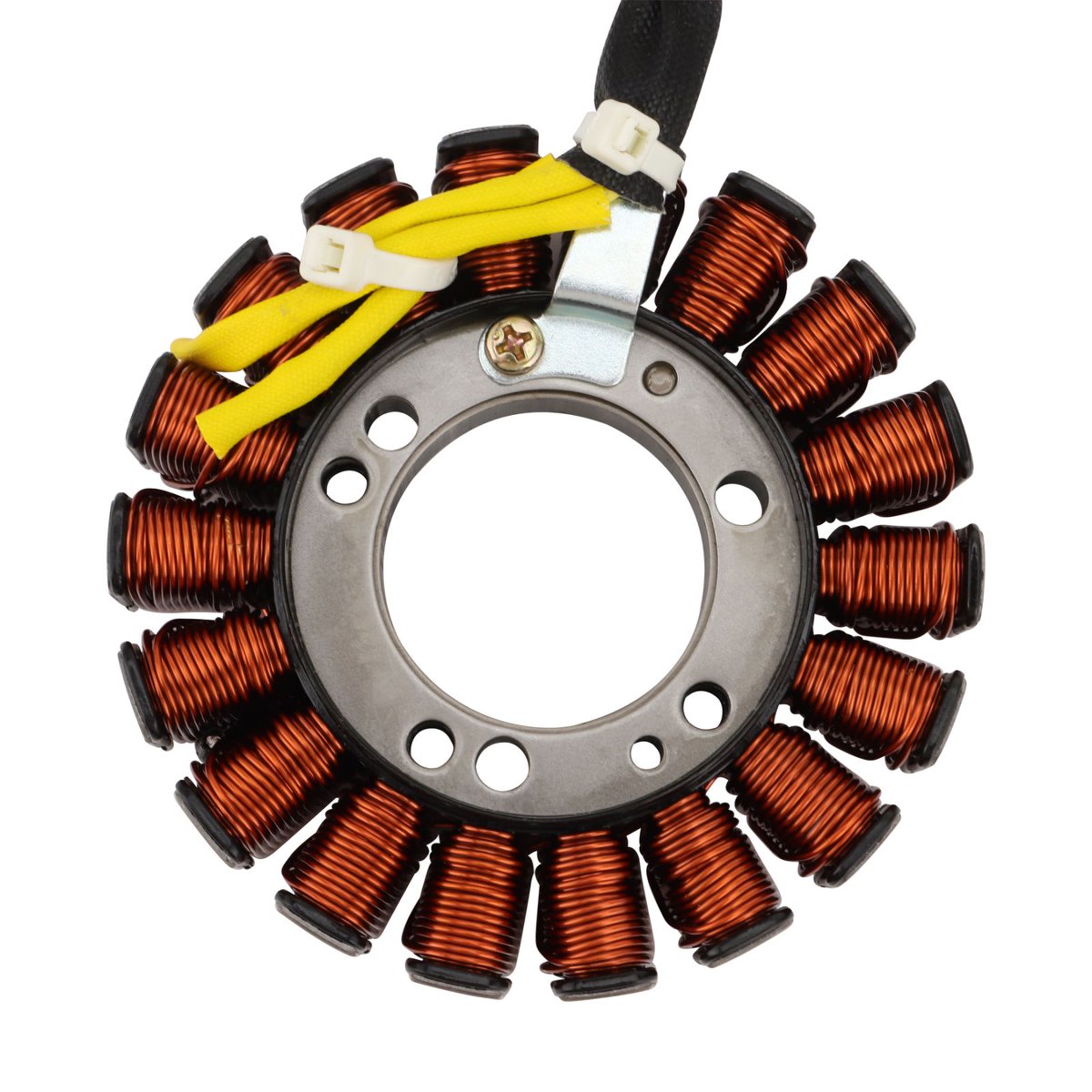

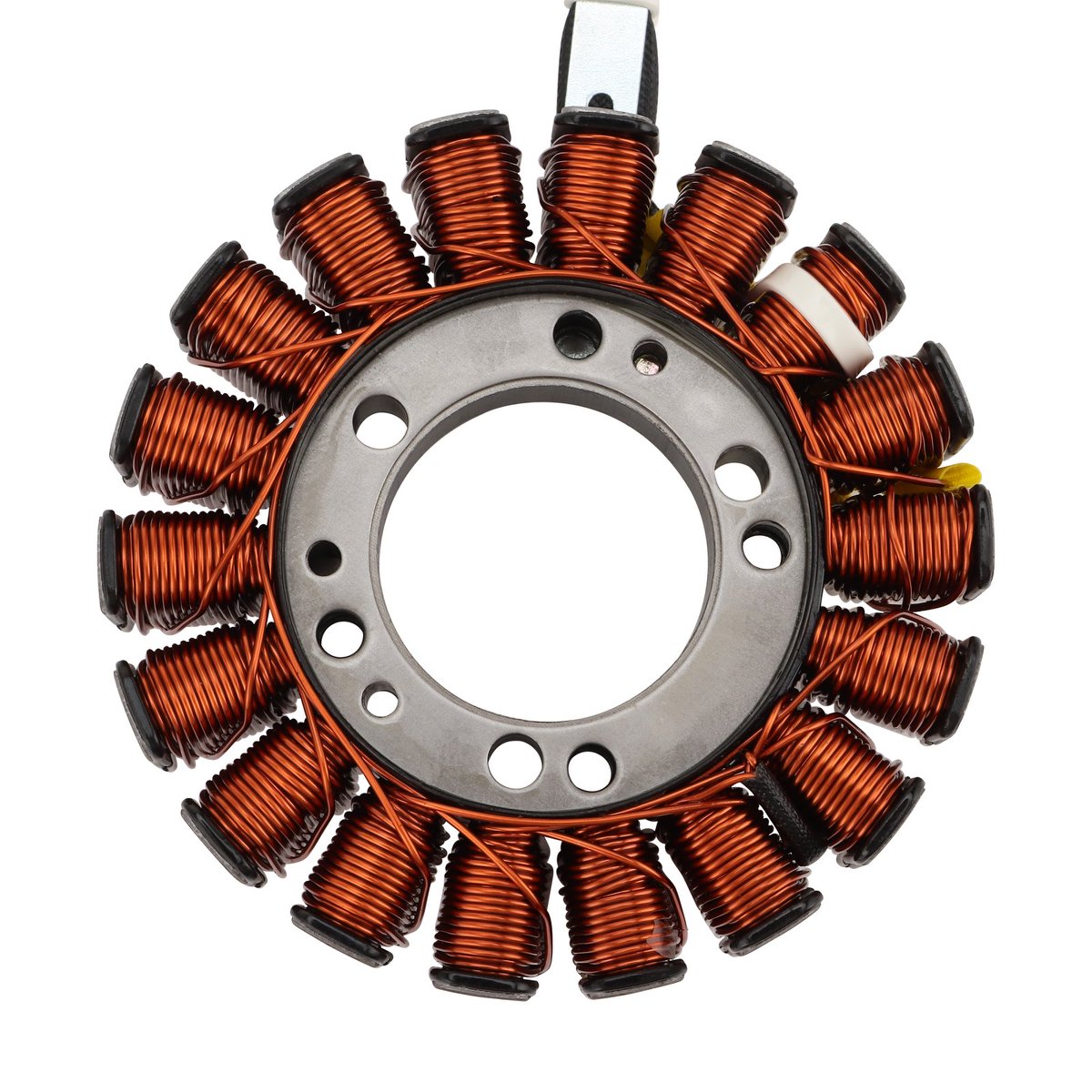

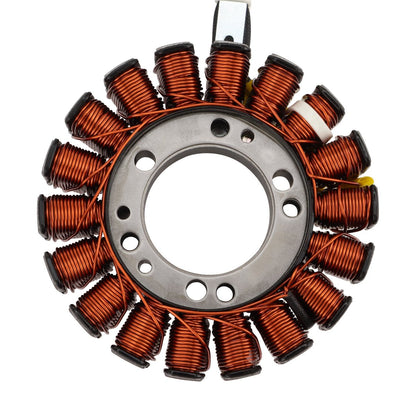

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | LT160 / LT-F160 | 1997–2007 | 32101-02C10 / 32101-02C11 | Main fitment; confirm original stator size and plug layout |
| Suzuki | LTF160 QuadRunner 160 2x4 | 1997–2007 | 32101-02C10 / 32101-02C11 | Fits matching 18-coil 5-wire stator version |
| Suzuki | LT-F160 QuadRunner 160 | 1997–2007 | 32101-02C10 / 32101-02C11 | Compare OEM number, wire count, and connector before purchase |
| Suzuki | QuadRunner 160 | 1997–2007 | 32101-02C10 / 32101-02C11 | Model-name variation; verify exact LT-F160 application |
| Suzuki | LT160 QuadSport 160 | 2003–2004 | 32101-02C10 / 32101-02C11 | Fits only if original stator matches this 18-pole 5-wire design |
Important Fitment Note:
This part is not selected by ATV engine size alone. Suzuki LT160 / LT-F160 models may use different charging components depending on year, market, and wiring system. Please confirm your original stator matches OEM 32101-02C10 or 32101-02C11, the 18-coil / 5-wire layout, connector style, trigger coil position, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |

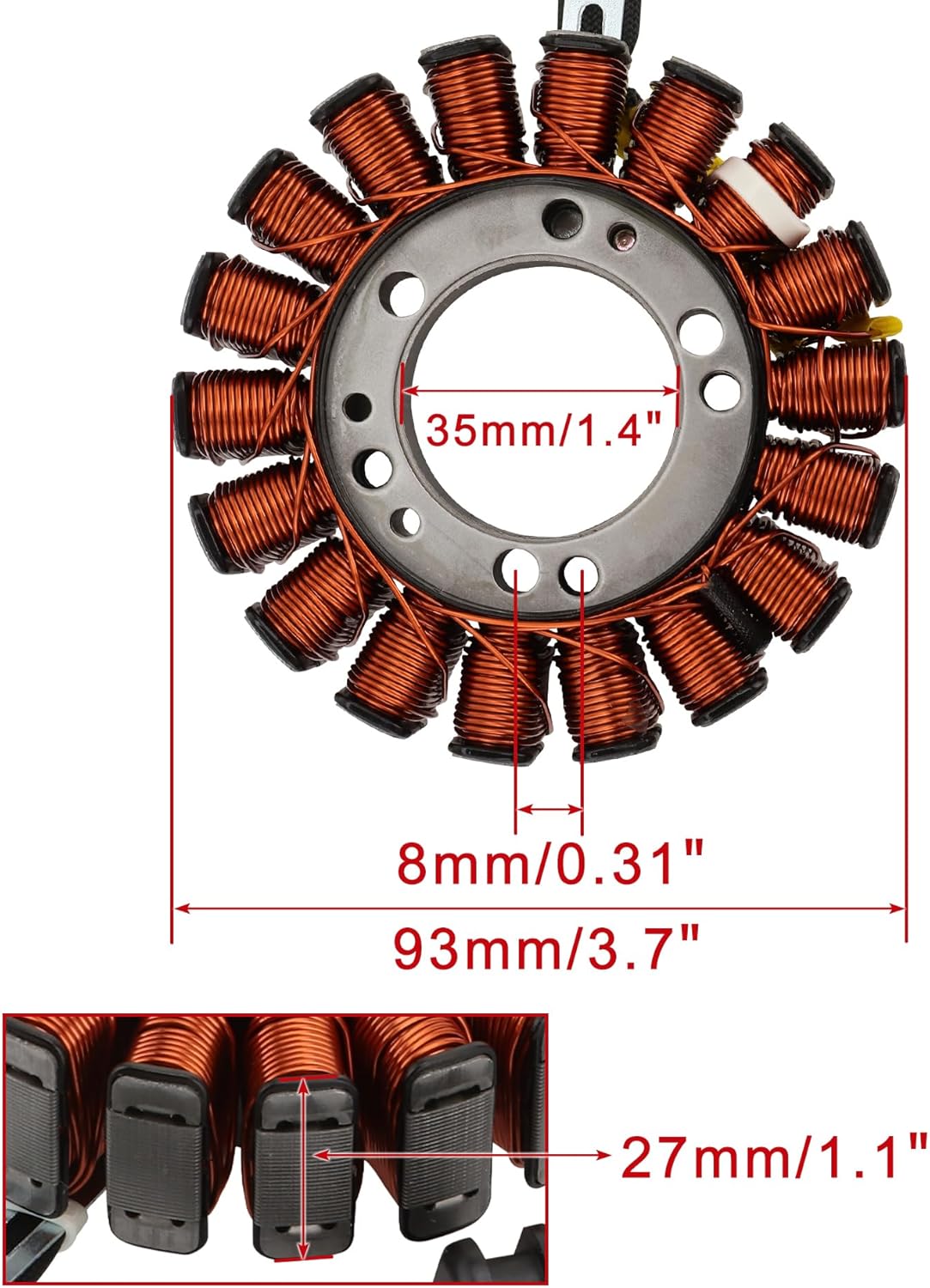

| Inner Diameter | 35mm / 1.4" |
| Outer Diameter | 93mm / 3.7" |

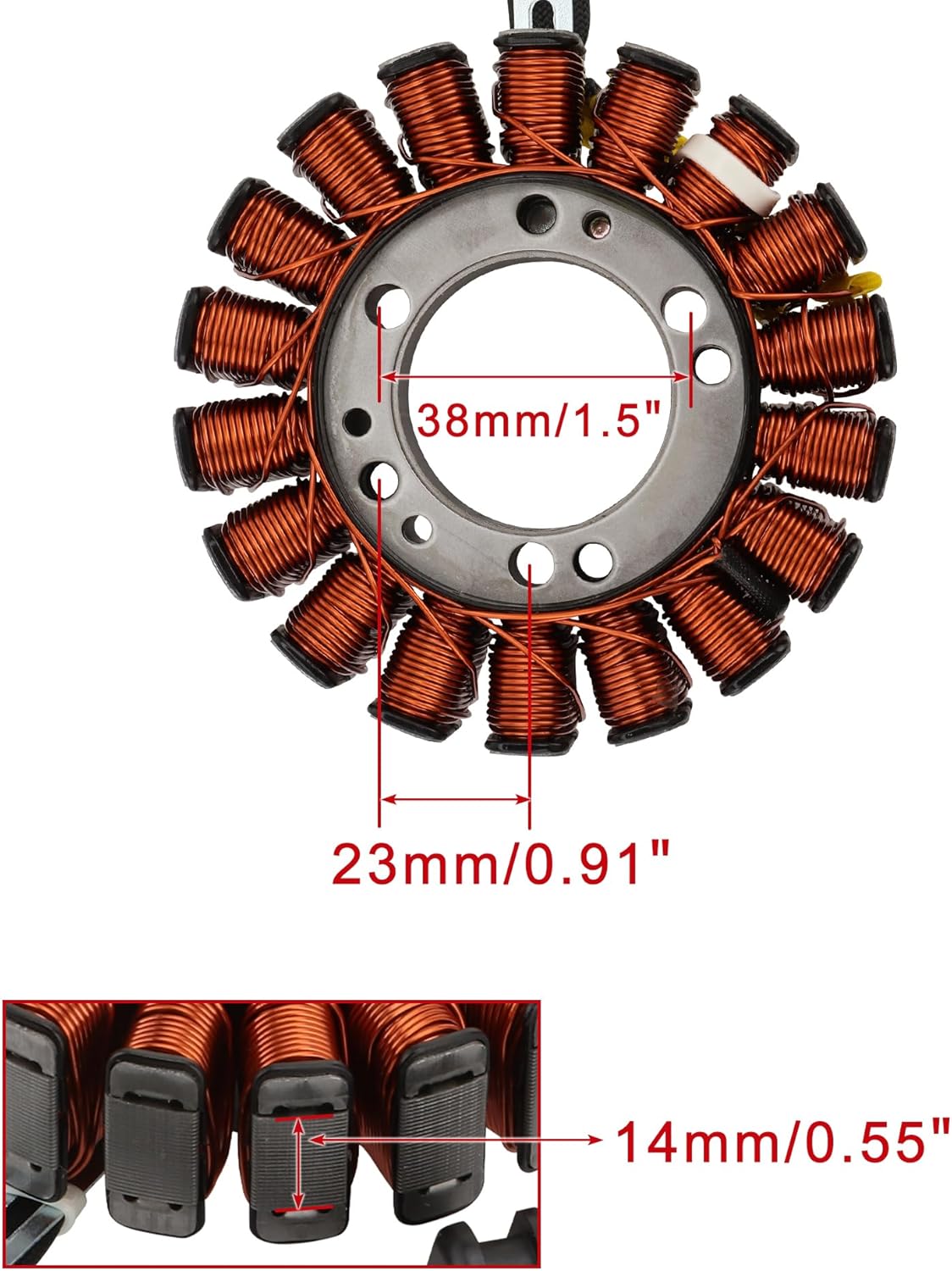

| Iron Core Height | 14mm / 0.55" |
| Mounting Hole Distance | 8mm / 0.31", 23mm / 0.91", and 38mm / 1.5" |
| Thickness | 27mm / 1.1" |

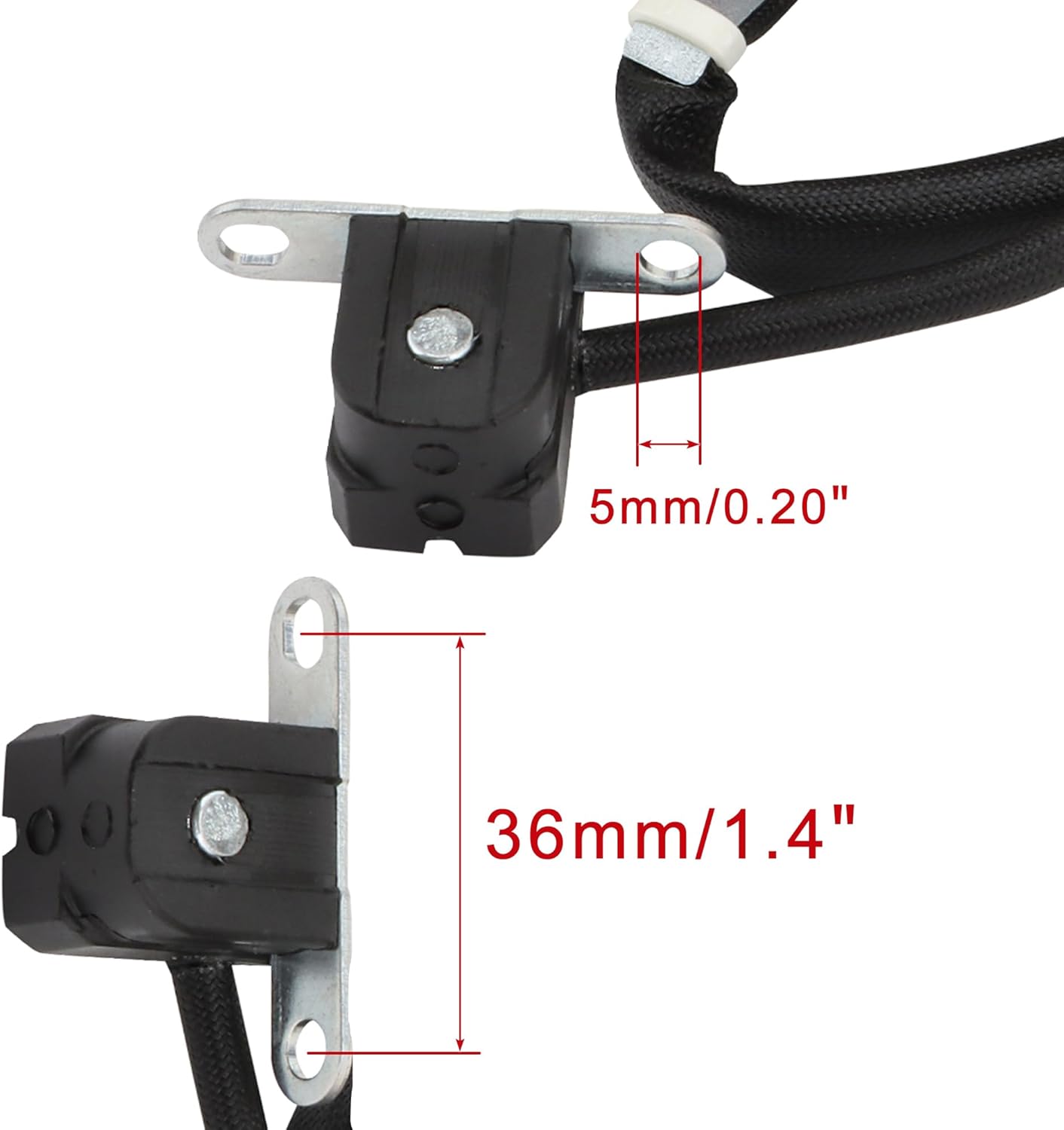

| Trigger Mounting Hole Distance | 36mm / 1.4" |
| Trigger Mounting Hole Diameter | 5mm / 0.20" and 6mm / 0.24" |
| OEM Reference | 32101-02C10 / 32101-02C11 |
| Material | Metal Lamination Core + Copper Winding |
| Application | ATV Charging / Ignition System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki LT160 / LT-F160 QuadRunner 160 ATV models
- Also fits 2003–2004 Suzuki LT160 QuadSport 160 when the original stator matches
- Replaces OEM reference numbers 32101-02C10 and 32101-02C11
- 18-coil 5-wire stator helps support charging and ignition system output
- Helps address weak charging, low battery voltage, dim lights, unstable output, or stator failure
- Includes pickup / trigger coil position for matching applications
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-02C10 | Common OEM reference for Suzuki LT160 / LT-F160 QuadRunner 160 stator applications |
| 32101-02C11 | Common replacement reference for compatible Suzuki LT160 / LT-F160 stator listings |

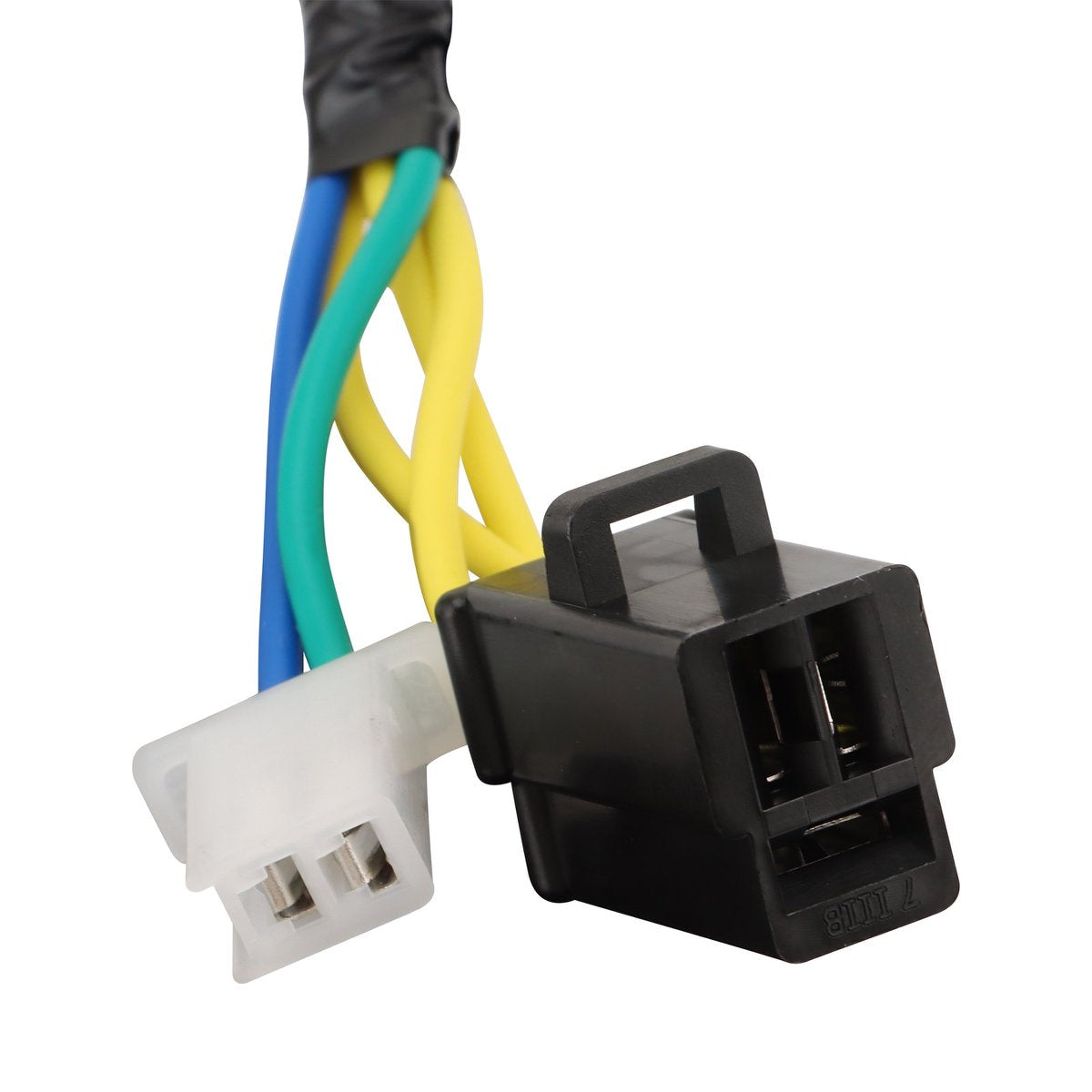

Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, trigger coil position, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki LT160 / LT-F160 QuadRunner 160 models from 1997–2007 and Suzuki LT160 QuadSport 160 models from 2003–2004 using OEM reference numbers 32101-02C10 or 32101-02C11. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces 32101-02C10 and 32101-02C11. However, OEM number alone is not enough. Please also confirm the 18-coil 5-wire layout, plug style, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, and stator thickness.
What models or situations does this part not fit?
This part does not fit Suzuki LT160, LT-F160, QuadRunner, QuadSport, or other Suzuki ATV models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, or different mounting hole spacing. It is also not suitable if your issue is caused only by a bad regulator rectifier, weak battery, faulty CDI, damaged ignition coil, burned wiring, or poor ground connection.
What should I check before ordering?
Before ordering, please check your ATV’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
