Product Overview
Replace a weak, burned, or failed stator with this 18-coil 5-wire magneto stator, designed for select Suzuki LT-F250, LT-F300F, LT-F4WD, King Quad, QuadRunner, and Arctic Cat 250 / 300 ATV models using reference numbers 3430-021, 3430-069, 32101-19B00, and 32101-19B10.
The stator is an important part of the ATV charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, lights, and other electrical components. If your Suzuki or Arctic Cat ATV has weak charging, low battery voltage, dim lights, hard starting, unstable electrical output, or stator-related failure, replacing the stator may help restore normal electrical performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and reliable off-road use. Please compare your original stator’s OEM/reference number, coil count, wire count, connector layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM / Reference Number | Fitment Notes |
|---|---|---|---|---|
| Suzuki | LT-F250 QuadRunner 250 2WD | 1988–2001 | 32101-19B00 / 32101-19B10 | Main fitment; confirm original stator size and plug layout |
| Suzuki | LTF250 / LT-F250 QuadRunner 250 | 1988–2001 | 32101-19B00 / 32101-19B10 / 32101-19B30 | Model-name variation; verify original part before ordering |
| Suzuki | LT-F250F QuadRunner 250 4WD | 1999–2001 | 32101-19B00 / 32101-19B10 | Fits matching 18-coil 5-wire stator version |
| Suzuki | LT-F300F King Quad 300 | 1999–2004 | 32101-19B00 / 32101-19B10 / 32101-19B30 | Compare OEM number, connector, and dimensions |
| Suzuki | LT-F4 King Quad 300 | 1991–1998 | 32101-19B00 / 32101-19B10 | Common listed application; verify exact LT-F4 / LT-4WD model |
| Suzuki | LT-4WD / LT4WD King Quad 300 | Select applications | 32101-19B00 / 32101-19B10 | Match by original stator and reference number |
| Arctic Cat | ATV 250 2x4 | 1998–2005 | 3430-021 / 3430-069 | Main Arctic Cat fitment; confirm original connector layout |
| Arctic Cat | ATV 300 / 300 4x4 | 1998–2005 | 3430-021 / 3430-069 | Fits only if original stator matches this design |
Important Fitment Note:
This part is not selected by ATV engine size alone. Suzuki QuadRunner, King Quad, LT-F250, LT-F300, LT-F4WD, and Arctic Cat 250 / 300 models may use different stator designs depending on year, drivetrain, market, and wiring system. Please confirm your original stator matches the 18-coil / 5-wire layout, DC type, connector style, trigger coil position, 42mm inner diameter, 103mm outer diameter, and mounting hole layout before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |

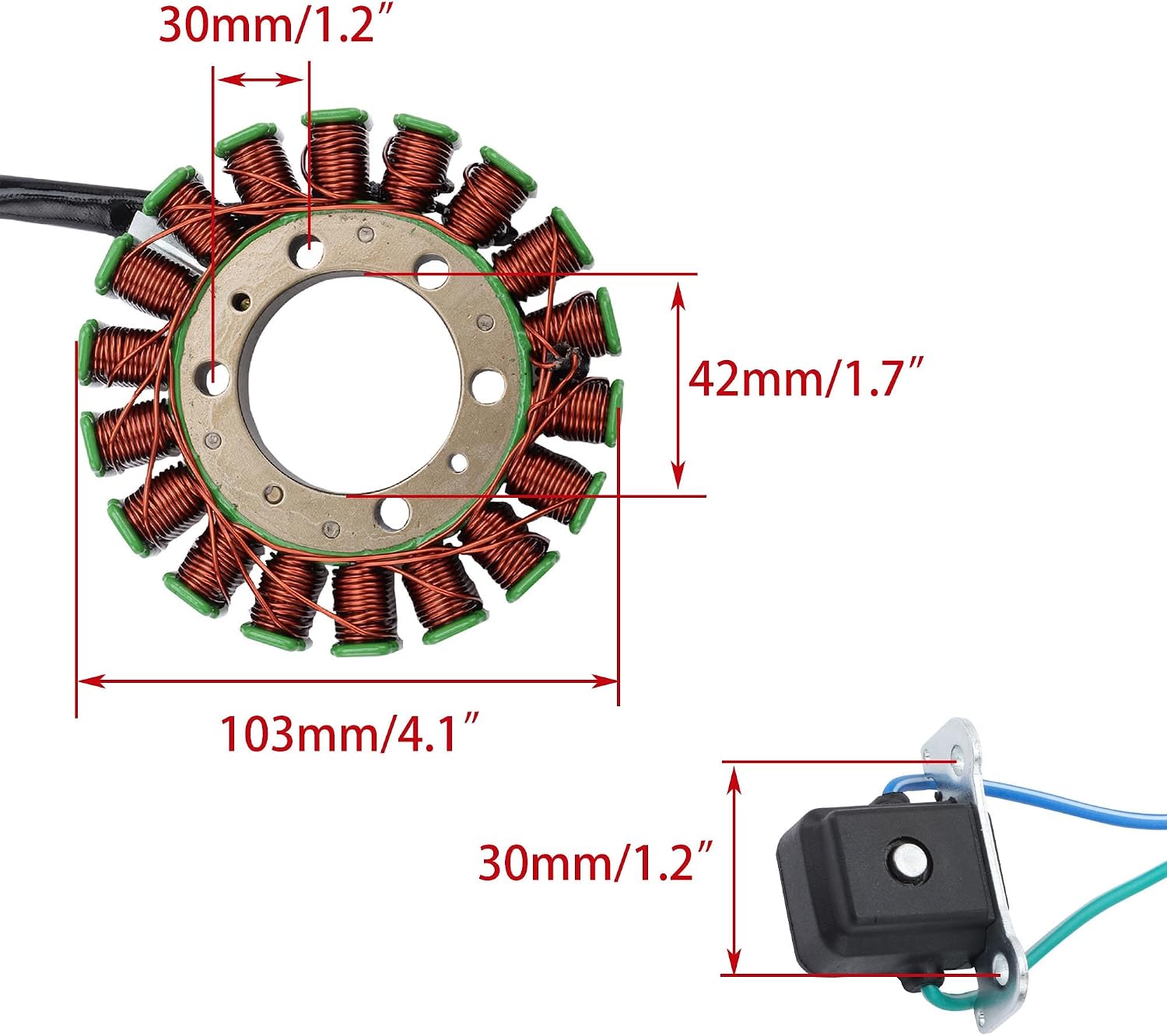

| Outer Diameter | 103mm / 4.1" |
| Inner Diameter | 42mm / 1.7" |

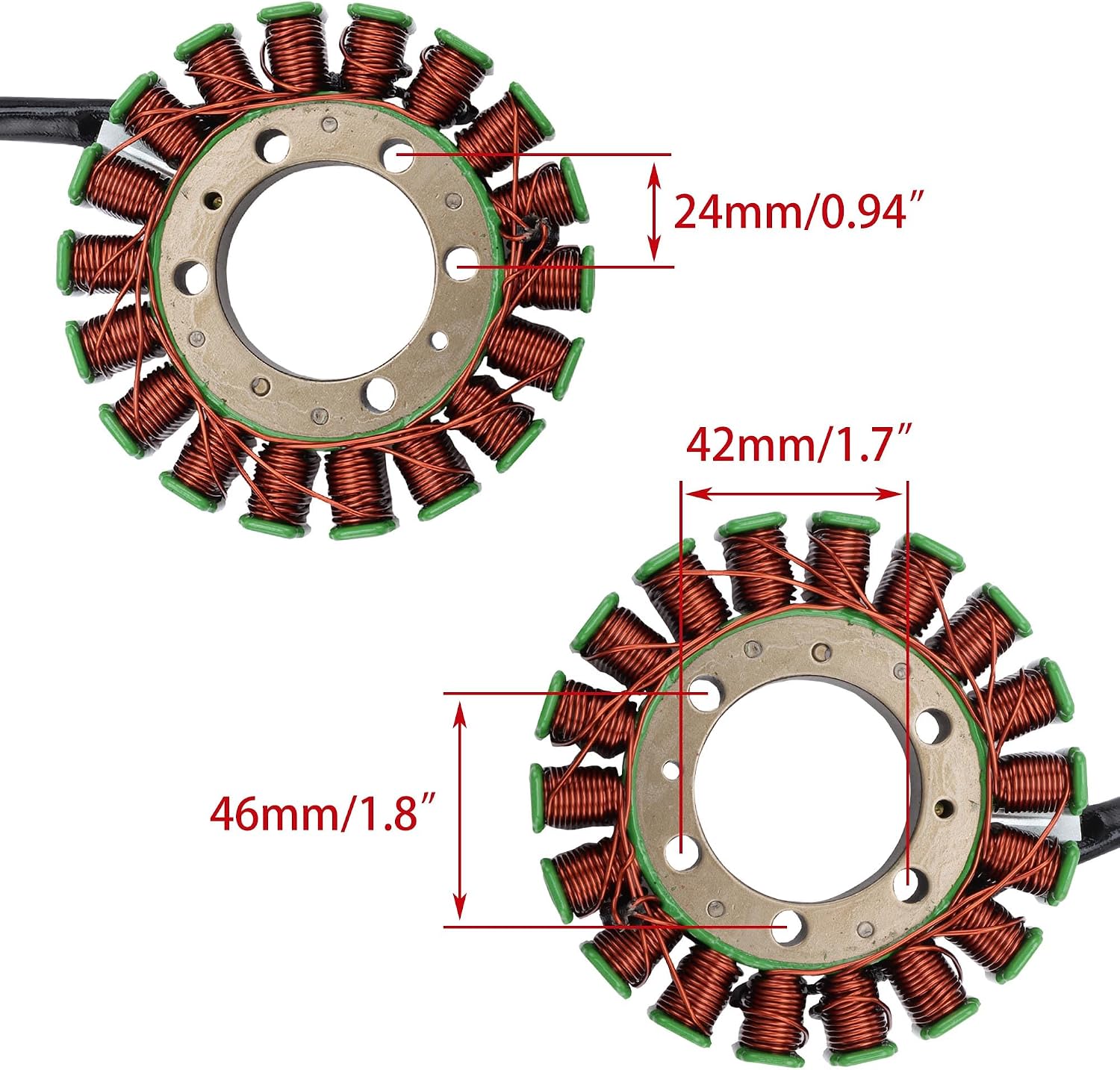

| Mounting Hole Distance | 30mm / 1.2", 24mm / 0.94", 46mm / 1.8", and 42mm / 1.7" |
| Trigger Mounting Hole Distance | 30mm / 1.2" |
| Suzuki OEM Reference | 32101-19B00 / 32101-19B10 / 32101-19B30 |
| Arctic Cat Reference | 3430-021 / 3430-069 |
| Application | ATV / Quad Charging & Ignition System |
| Compatible Brands | Suzuki, Arctic Cat |
| Material | Metal Lamination Core + Copper Winding |
Key Features
- Designed for select Suzuki QuadRunner, King Quad, LT-F250, LT-F300F, and LT-F4WD ATV models
- Fits compatible Arctic Cat 250 / 300 ATV applications when the original stator matches
- Replaces common references 3430-021, 3430-069, 32101-19B00, and 32101-19B10
- 18-coil 5-wire DC stator helps support charging and ignition system output
- Includes pickup / trigger coil position for matching applications
- Helps address weak charging, low battery voltage, hard starting, dim lights, unstable output, or stator failure
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-19B00 | Common Suzuki LT-F250 / LT-F300 / King Quad / QuadRunner stator reference |
| 32101-19B10 | Common Suzuki replacement reference for compatible ATV stator applications |
| 32101-19B30 | Additional Suzuki reference used on some aftermarket listings |
| 3430-021 | Common Arctic Cat 250 / 300 ATV stator reference |
| 3430-069 | Common Arctic Cat 250 / 300 ATV stator reference |
Please use the OEM/reference number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, trigger coil position, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki LT-F250 QuadRunner 250 2WD 1988–2001, LT-F250F QuadRunner 250 4WD 1999–2001, LT-F300F King Quad 300 1999–2004, LT-F4 King Quad 300 1991–1998, and Arctic Cat ATV 250 / 300 models from 1998–2005. Please compare your original stator’s OEM/reference number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM or reference number is strongly recommended. This stator replaces Suzuki references 32101-19B00 and 32101-19B10, and Arctic Cat references 3430-021 and 3430-069. Some listings may also reference 32101-19B30. However, OEM number alone is not enough. Please also confirm the 18-coil 5-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, and trigger mounting position.
What models or situations does this part not fit?
This part does not fit Suzuki, Arctic Cat, King Quad, QuadRunner, or other ATV models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, different mounting hole spacing, or a different charging system design. It is also not a replacement for the CDI, ignition coil, regulator rectifier, battery, flywheel, starter motor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your ATV’s make, model, year, drivetrain type, OEM/reference number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger coil position, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
