2006–2018 Suzuki LTZ50 QuadSport Z50 3-Coil 2-Wire Stator 32101-43G00
2006–2018 Suzuki LTZ50 QuadSport Z50 3-Coil 2-Wire Stator 32101-43G00
Couldn't load pickup availability
Product Overview

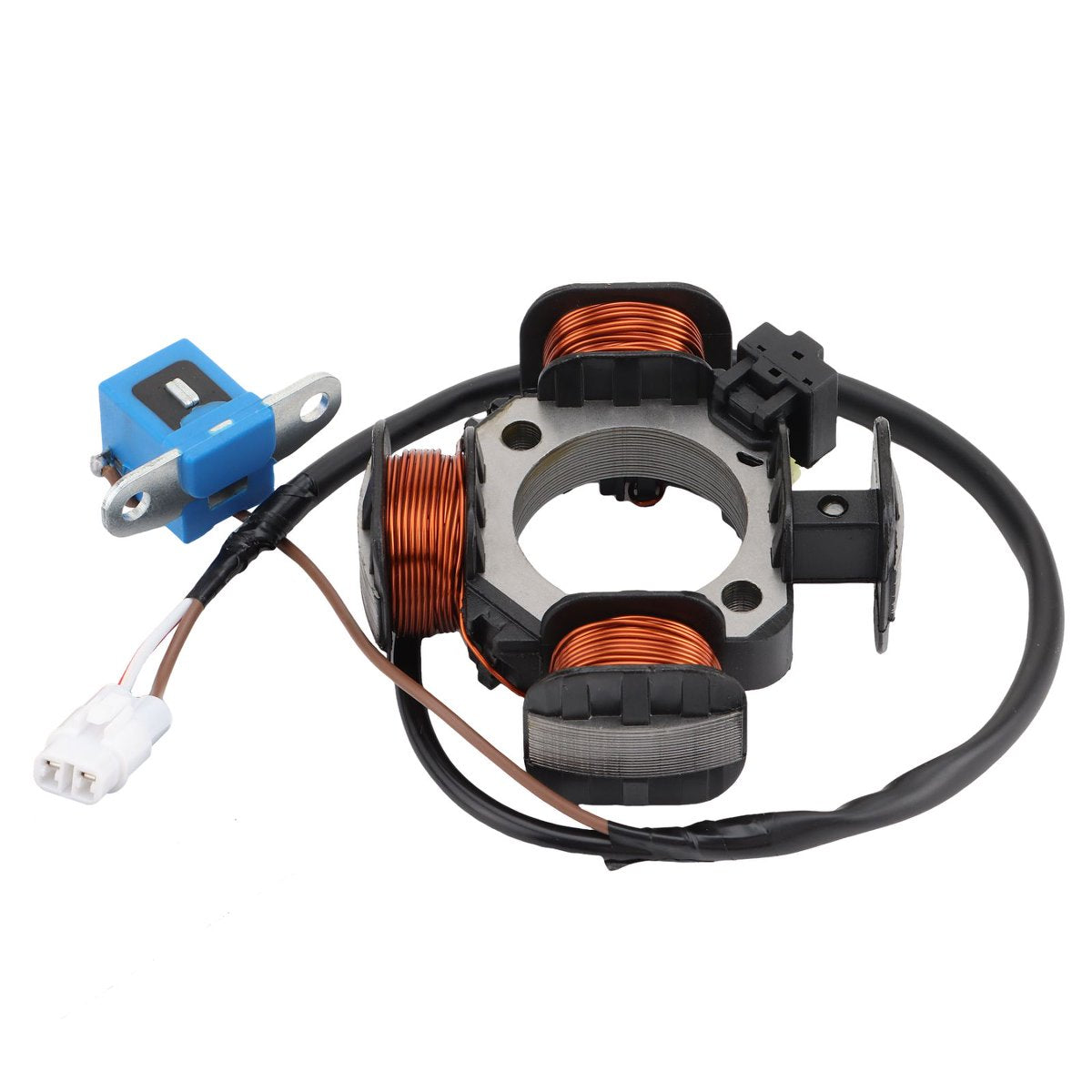

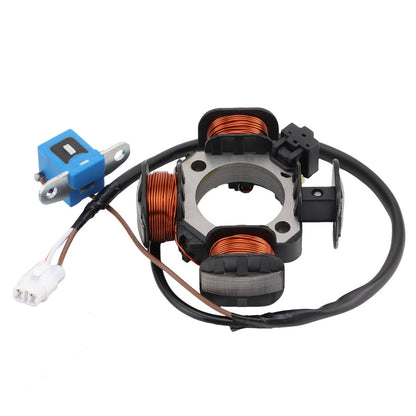

Replace a weak, burned, or failed stator with this 3-coil 2-wire magneto stator, designed for select Suzuki LTZ50 / QuadSport Z50 ATVs using OEM reference number 32101-43G00.
The stator is an important part of the ATV charging and ignition system. It helps generate electrical power while the engine is running, supporting the ignition circuit and electrical components. If your Suzuki LTZ50 has weak spark, poor electrical output, starting issues, or stator-related failure, replacing the stator may help restore normal electrical performance.
Built for stable output and reliable operation, this replacement stator is suitable for matching Suzuki LTZ50 models with the correct outer diameter, center hole diameter, mounting hole spacing, and connector layout. Please compare your original stator’s OEM number, wire count, plug style, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | LTZ50 QuadSport Z50 2x4 | 2006–2010 | 32101-43G00 | Main fitment; confirm original stator size and plug layout |
| Suzuki | LTZ50 QuadSport Z50 2x4 | 2017–2018 | 32101-43G00 | Fits matching 2-wire stator version only |
| Suzuki | LTZ50Z QuadSport Z50 2x4 Special Edition | 2009 | 32101-43G00 | Compare OEM number and connector before purchase |
| Suzuki | LT-Z50 / Quadsport Z50 | Select years | 32101-43G00 | Fitment must be confirmed by OEM number and dimensions |
Important Fitment Note:
This part is not selected by engine size alone. Suzuki LTZ50 models may use different charging or ignition components depending on year, market, and production version. Please confirm your original stator matches OEM 32101-43G00, the 3-coil / 2-wire layout, outer diameter, center hole diameter, mounting hole distance, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 3 Coils |
| Wire Count | 2 Wire |
| Electrical Type | DC |
| Outer Diameter | 84mm / 3.3" |
| Center Hole Diameter | 36mm / 1.4" |
| Mounting Hole Distance | 42mm / 1.7" |

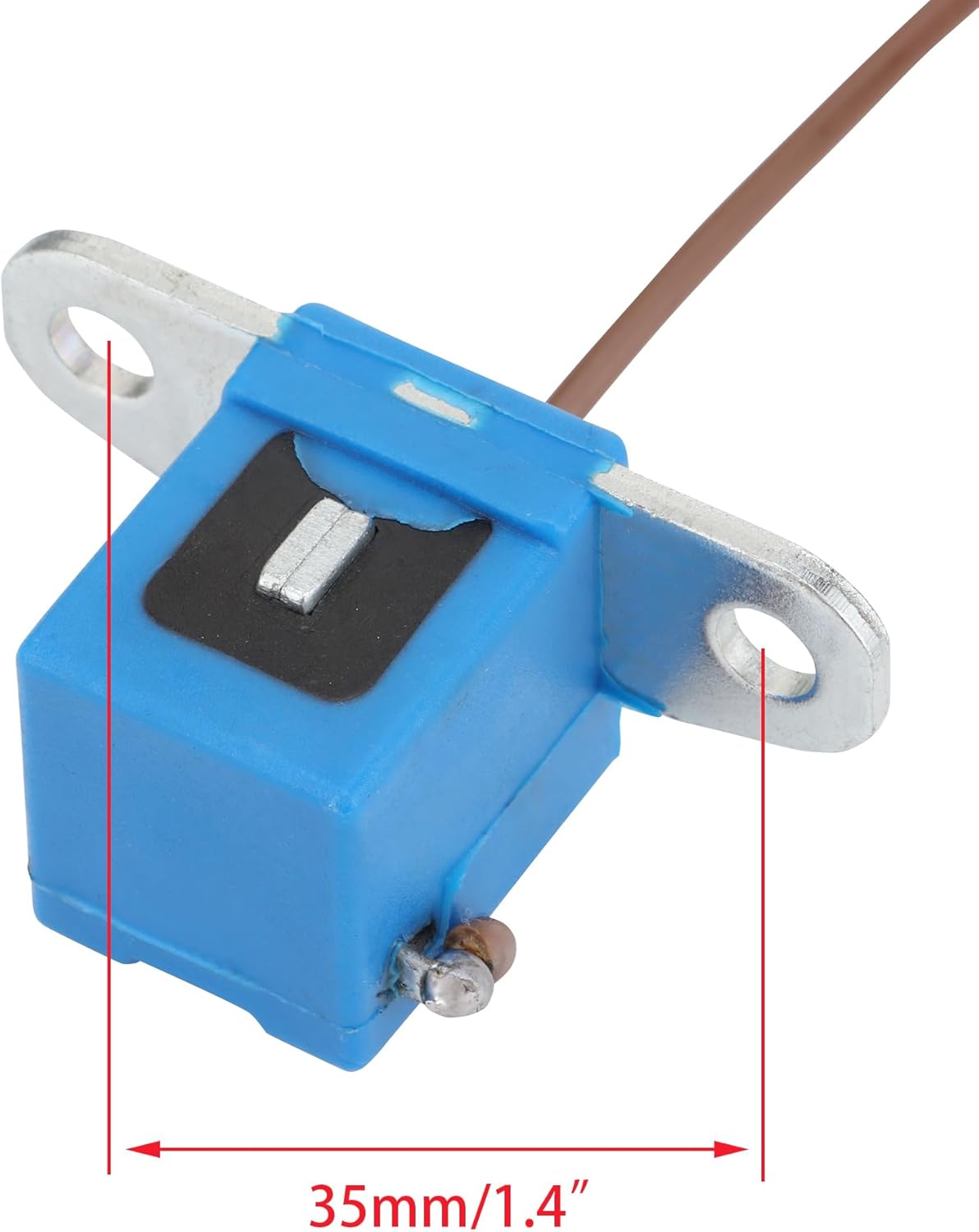

| Installation Hole Spacing | 35mm / 1.4" |
| OEM Reference | 32101-43G00 |
| Possible Cross Reference | 32101-08H00 |
| Material | Metal Lamination Core + Copper Winding |
| Application | ATV Charging / Ignition System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki LTZ50 / QuadSport Z50 ATV models
- Replaces OEM reference number 32101-43G00
- 3-coil 2-wire stator helps support ignition and electrical system output
- Helps address weak spark, poor electrical output, starting issues, or stator failure
- Built for reliable performance in small ATV charging and ignition systems
- Compact stator design with 84mm outer diameter and 36mm center hole diameter
- Direct replacement style, but original OEM number, plug, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-43G00 | Main OEM reference for Suzuki LTZ50 / QuadSport Z50 stator applications |
| 32101-08H00 | Possible related reference on some aftermarket stator listings; verify before purchase |
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for Suzuki LTZ50 / QuadSport Z50 2x4 models from 2006–2010 and 2017–2018 using OEM reference number 32101-43G00. It also fits the 2009 Suzuki LTZ50Z QuadSport Z50 2x4 Special Edition if the original stator uses the same OEM number, 2-wire layout, connector style, and dimensions. Please compare your original part before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces OEM 32101-43G00. Some related listings may also reference 32101-08H00, but OEM number alone is not enough. Please also confirm the wire count, plug layout, outer diameter, center hole diameter, mounting hole distance, and installation hole spacing.
What models or situations does this part not fit?
This part does not fit Suzuki LTZ50, LTZ90, or other ATV models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different OEM design. It is also not suitable if your issue is caused only by a bad CDI, ignition coil, weak battery, damaged wiring, burned connector, or poor ground connection.
What should I check before ordering?

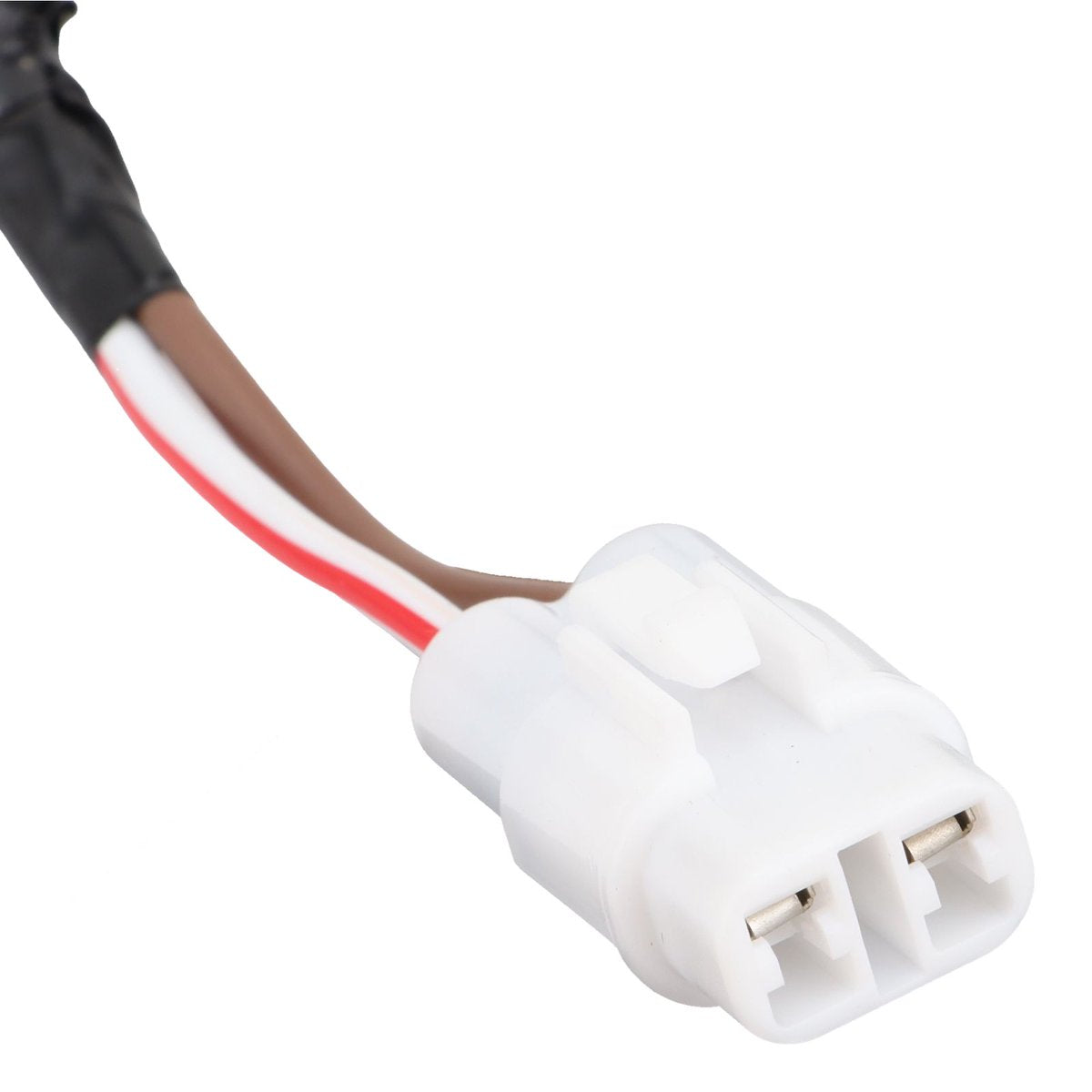

Before ordering, please check your ATV’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, outer diameter, center hole diameter, mounting hole distance, installation hole spacing, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
