Suzuki GSR400 GSR600 GSR750 Magneto Stator | 31401-29G00
Suzuki GSR400 GSR600 GSR750 Magneto Stator | 31401-29G00
Couldn't load pickup availability
Product Overview

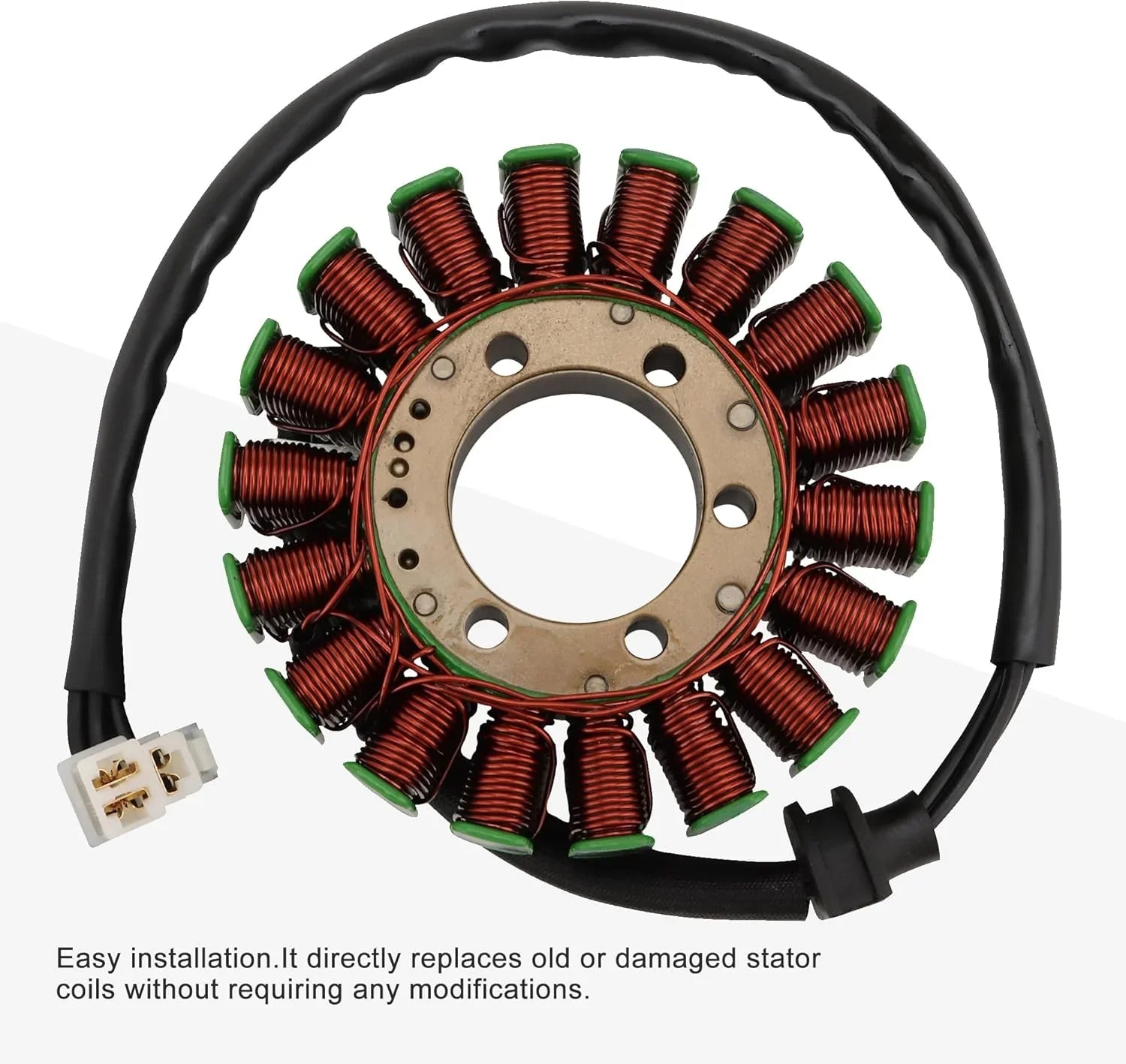

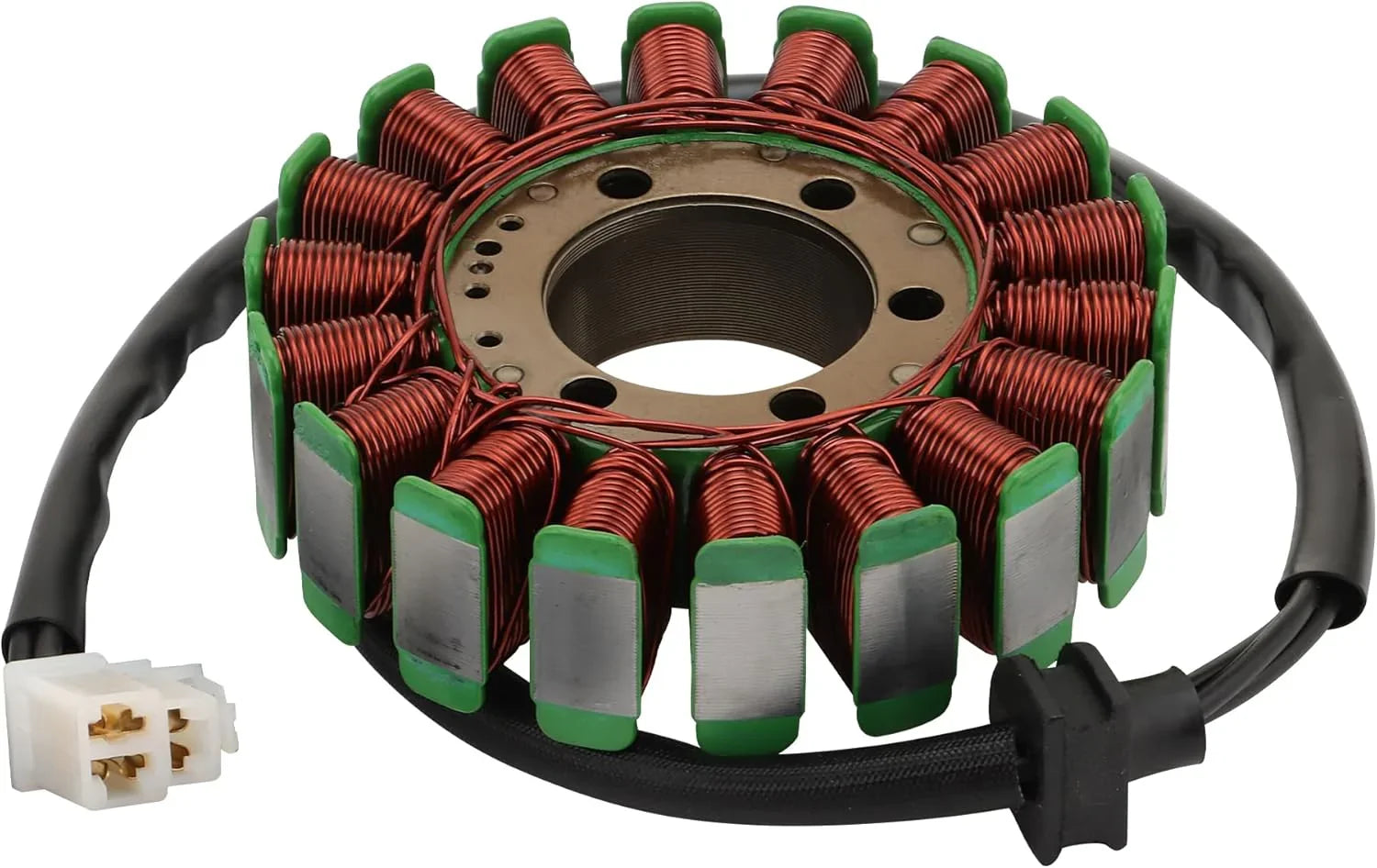

Restore reliable charging and ignition performance with this engine generator magneto stator coil, designed for selected Suzuki GSR400, GSR600, and GSR750 motorcycle applications.
Built to replace 31401-29G00 / 31401-29G20, this stator helps solve common electrical issues such as battery not charging, weak or no spark, hard starting, unstable voltage, and intermittent charging failure.

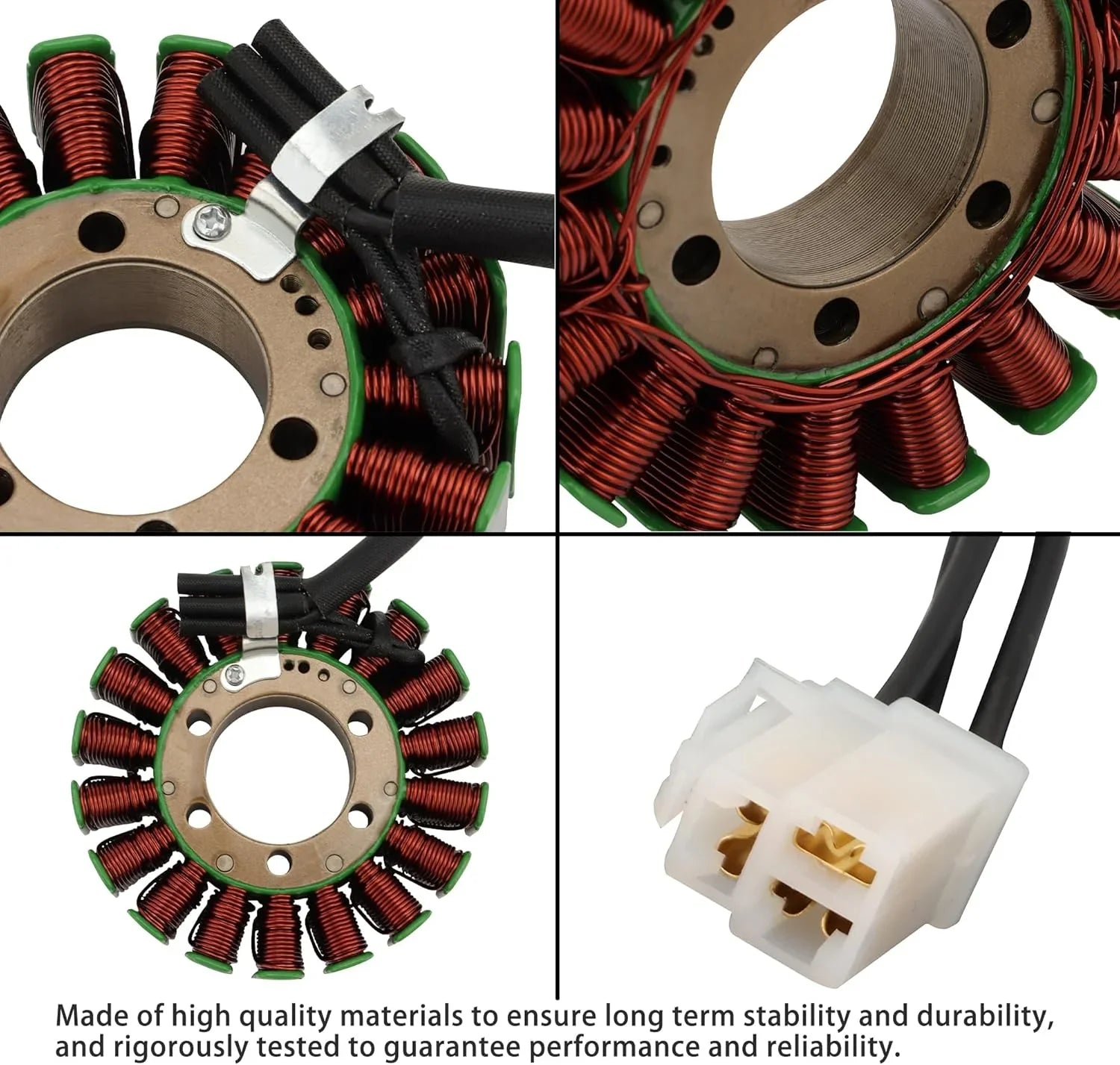

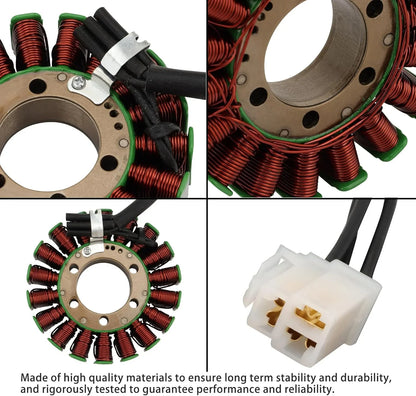

Made with high-quality heat-resistant materials, this stator is designed to provide stable electrical output, reliable ignition performance, and long service life under motorcycle riding conditions.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Suzuki | GSR400 | 400cc | 2006–2010 | Verify OEM number, connector style, and stator dimensions before purchase |
| Suzuki | GSR600 | 600cc | 2006–2010 | Verify OEM number, connector style, and stator dimensions before purchase |
| Suzuki | GSR750 | 750cc | 2011–2014 | Verify OEM number, connector style, and stator dimensions before purchase |
OEM Cross Reference:
31401-29G00, 31401-29G20
Specifications
| Specification | Details |
|---|---|
| Part Type | Engine Generator Magneto Stator Coil |

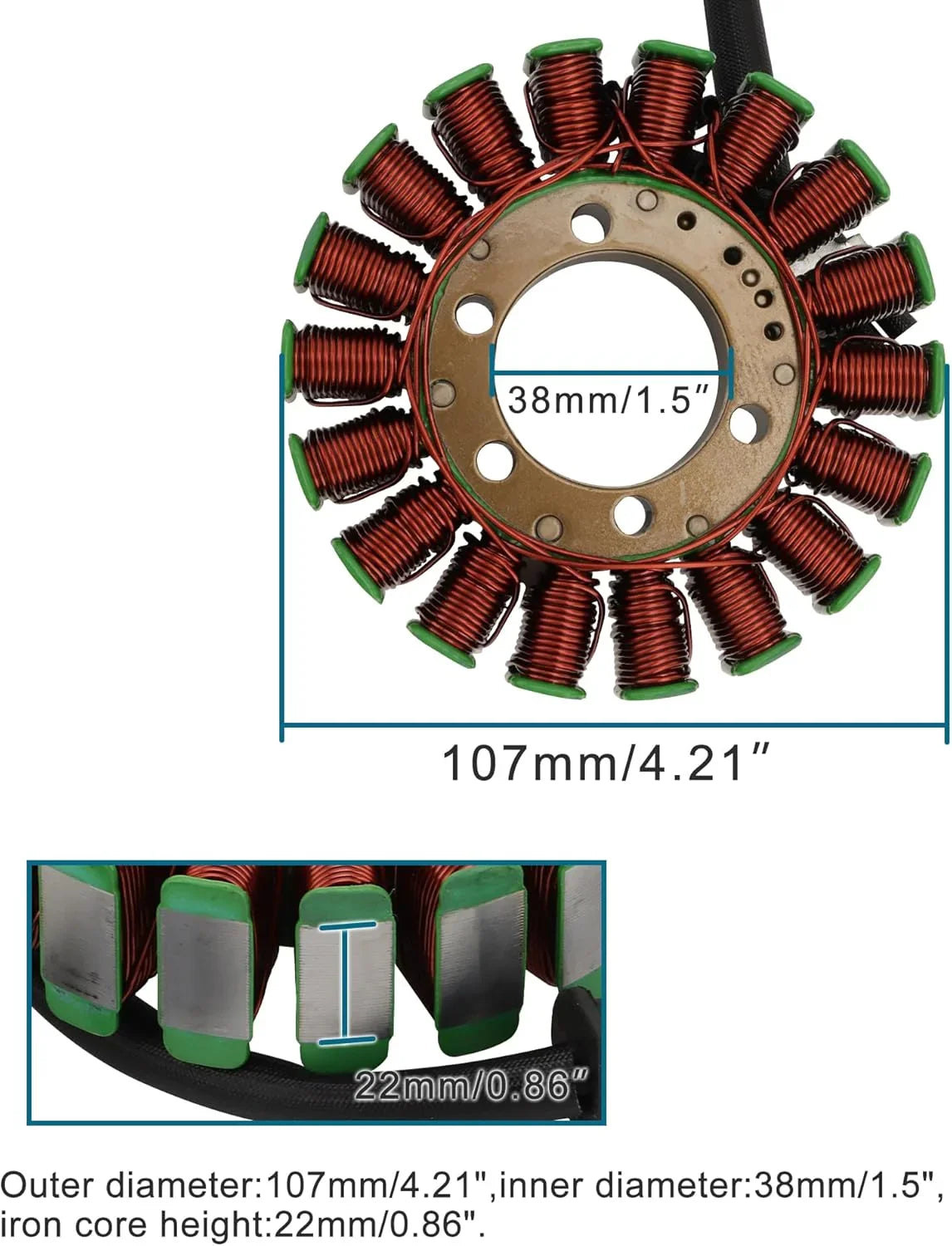

| Outer Diameter | 107 mm / 4.21" |
| Inner Diameter | 38 mm / 1.5" |
| Iron Core Height | 22 mm / 0.86" |
| OEM Replacement | 31401-29G00 / 31401-29G20 |
| Material | High-quality heat-resistant replacement construction |
| Function | Charging and ignition system support |
| Installation | Direct replacement on correctly matched applications |
| Fitment Method | Match by OEM number, connector style, stator size, and original part layout |
| Condition | 100% New Aftermarket |
Key Features
- Suzuki GSR Fitment – Designed for selected GSR400, GSR600, and GSR750 applications
- OEM-Style Replacement – Built to replace Suzuki stator numbers 31401-29G00 / 31401-29G20
- Stable Power Output – Helps support battery charging and ignition-system performance
- Heat-Resistant Construction – Built for durability under normal motorcycle operating temperatures
- Direct Replacement Style – Designed for easy installation when dimensions and connector match
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 2006–2010, 2011–2014, 2006, 2010, 2011. It is best matched to original part number(s) 31401-29G00, 31401-29G20. Key physical/spec details from the product data include Outer Diameter: 107 mm / 4.21", Inner Diameter: 38 mm / 1.5", Iron Core Height: 22 mm / 0.86". Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31401-29G00, 31401-29G20 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki GSR400/GSR600/GSR750 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31401-29G00, 31401-29G20, treat the fitment as unconfirmed. Model years outside 2006–2010, 2011–2014, 2006, 2010, 2011 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31401-29G00, 31401-29G20. Recheck listed specs such as Outer Diameter: 107 mm / 4.21", Inner Diameter: 38 mm / 1.5", Iron Core Height: 22 mm / 0.86". If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
