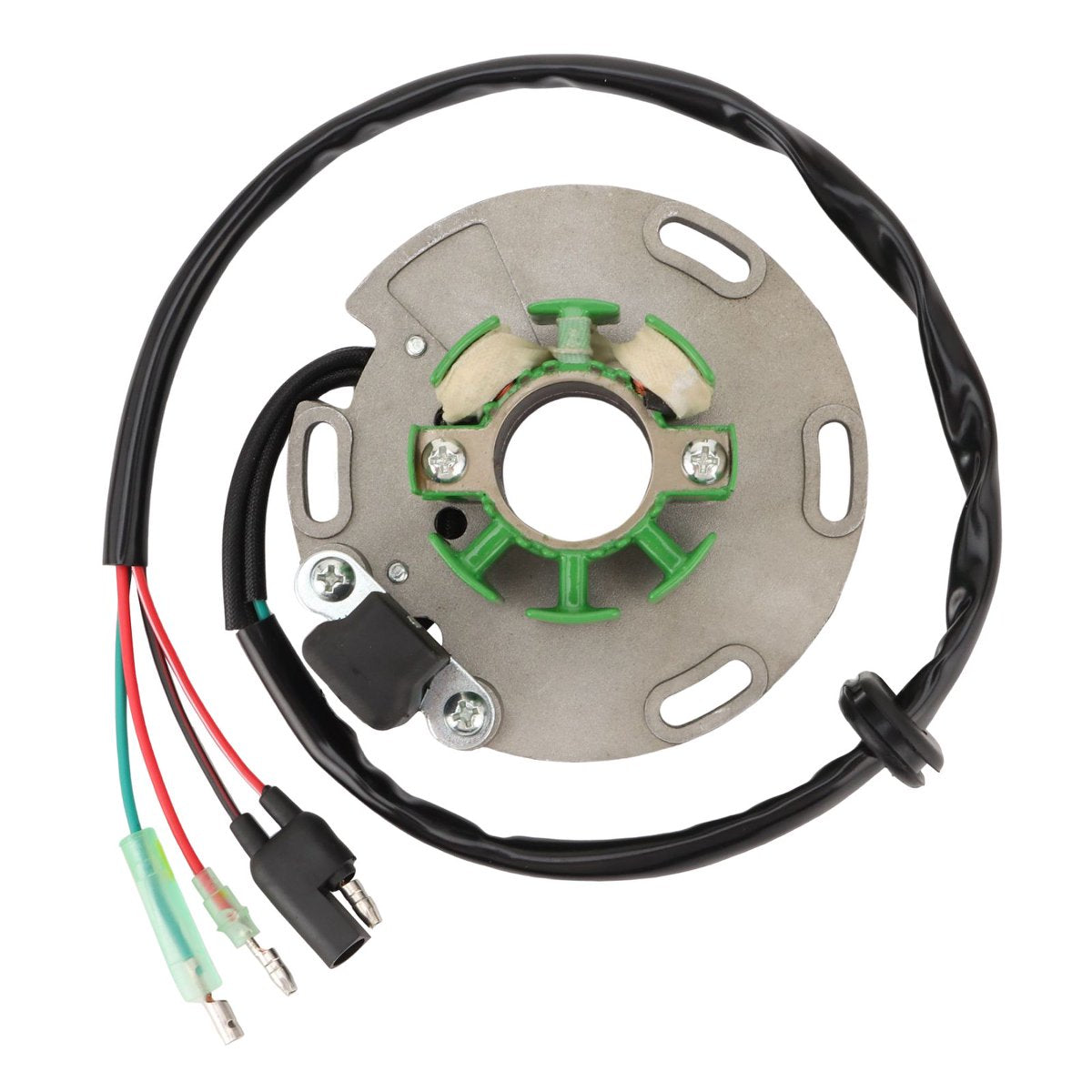

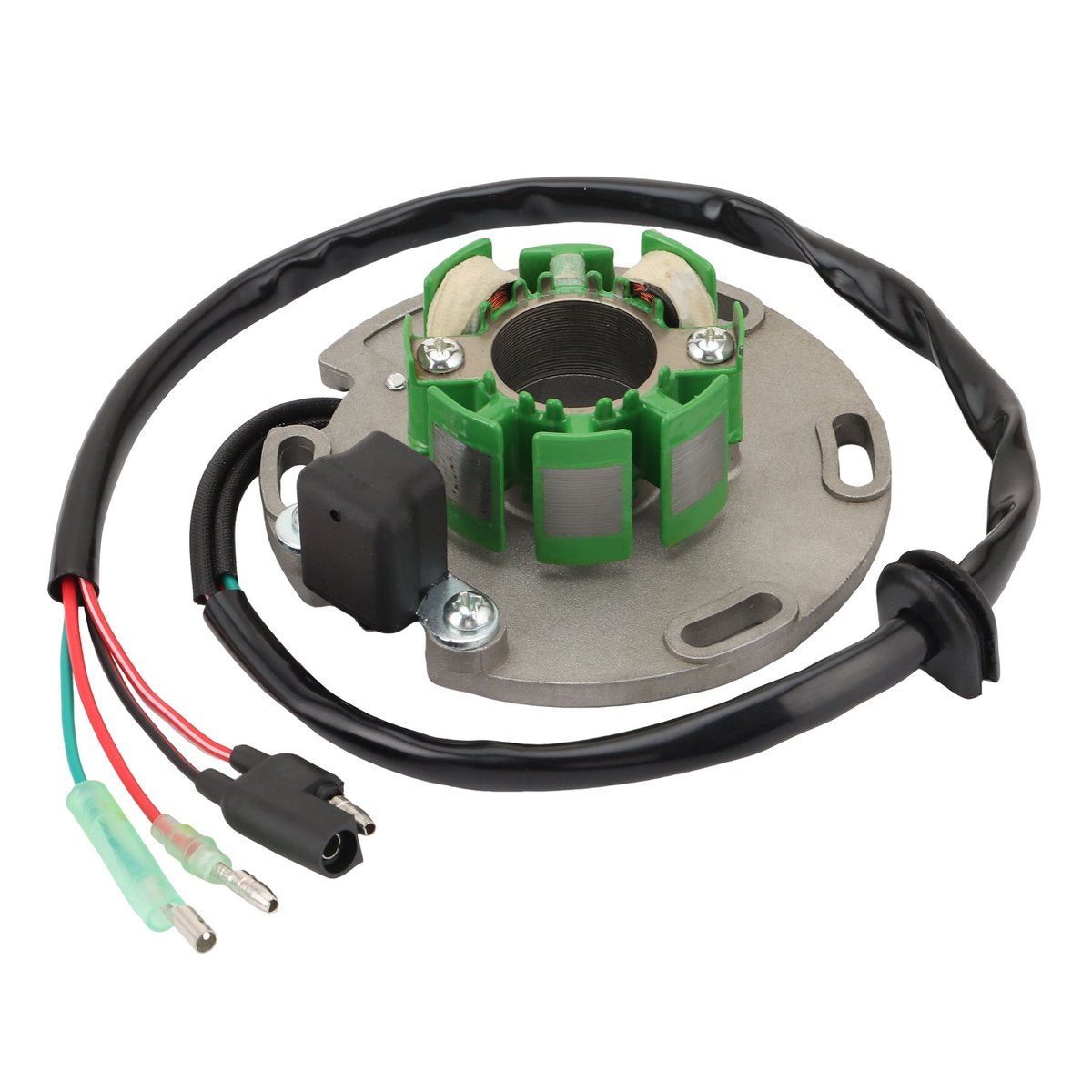

1989–1995 Suzuki RM125 RM250 6-Coil 4-Wire Stator 32101-27C00
1989–1995 Suzuki RM125 RM250 6-Coil 4-Wire Stator 32101-27C00
Couldn't load pickup availability
Product Overview
Replace a weak, burned, or failed stator with this 6-coil 4-wire magneto stator, designed for select Suzuki RM125 and RM250 two-stroke dirt bikes using OEM reference numbers 32101-27C00, 32101-27C01, 32101-27C10, 32101-43D00, 32101-43D10, and 32101-28E00.
The stator is an important part of the dirt bike ignition system. It helps generate electrical output while the engine is running, supporting ignition performance and related electrical components. If your Suzuki RM125 or RM250 has weak spark, no spark, hard starting, unstable ignition output, or stator-related failure, replacing the stator may help restore normal performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | RM125 | 1989–1995 | 32101-27C00 / 32101-27C01 / 32101-27C10 / 32101-43D00 / 32101-43D10 / 32101-28E00 | Main fitment; confirm original stator size and plug layout |
| Suzuki | RM250 | 1994–1995 | 32101-43D00 / 32101-43D10 / 32101-28E00 / related references | Main RM250 fitment; compare OEM number and dimensions before purchase |
| Suzuki | RM 125 / RM 250 | Select years | Listed OEM references | Fits only models using the matching 6-coil 4-wire AC stator design |
Important Fitment Note:
This part is not selected by engine size or model name alone. Suzuki RM125 and RM250 models may use different stator designs depending on year, market, and ignition system version. Please confirm your original stator matches the OEM reference, 6-coil / 4-wire layout, AC type, connector style, mounting hole distance, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 6 Coils |
| Wire Count | 4 Wire |
| Electrical Type | AC |

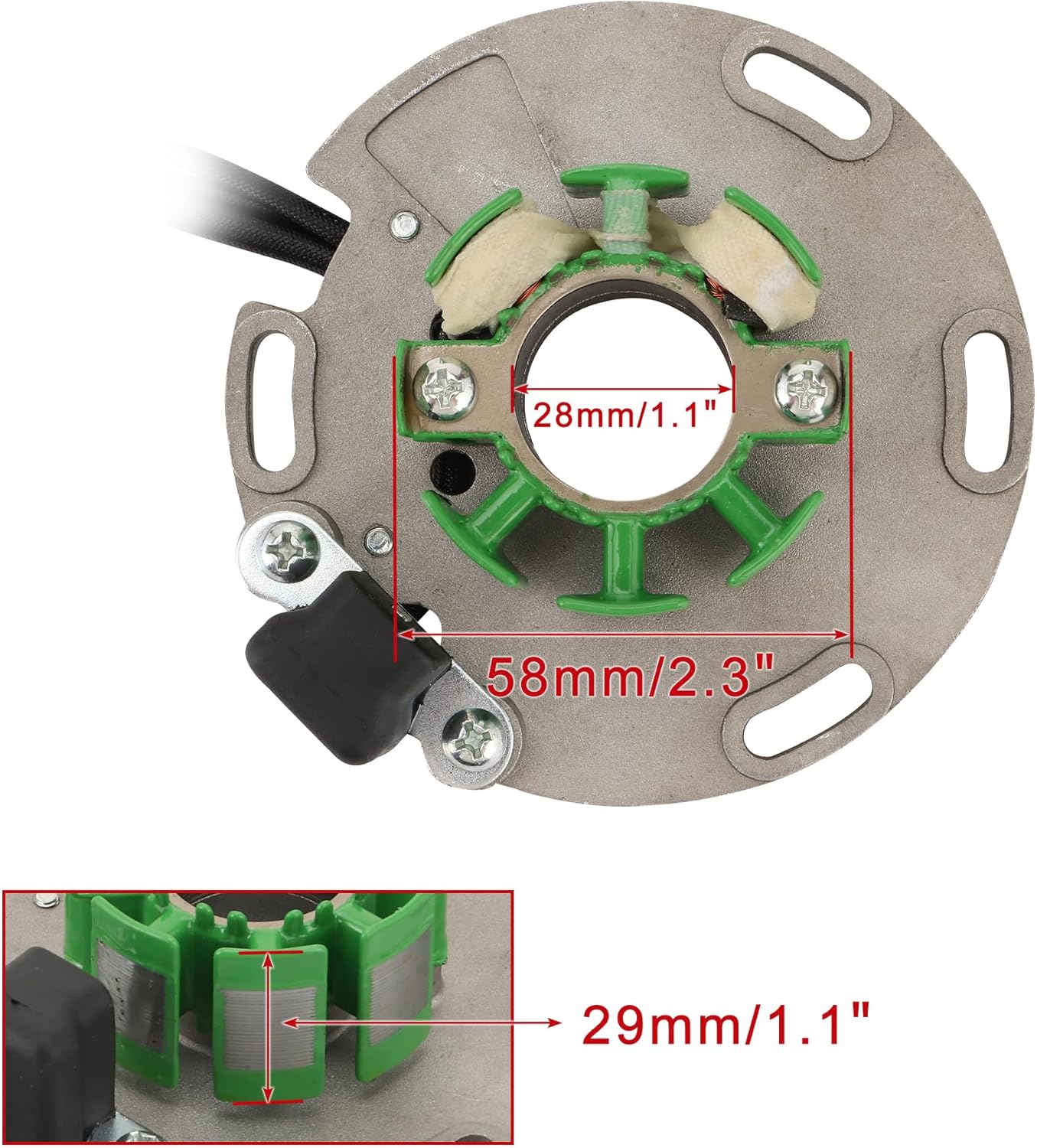

| Inner Diameter | 28mm / 1.1" |
| Outer Diameter | 58mm / 2.3" |

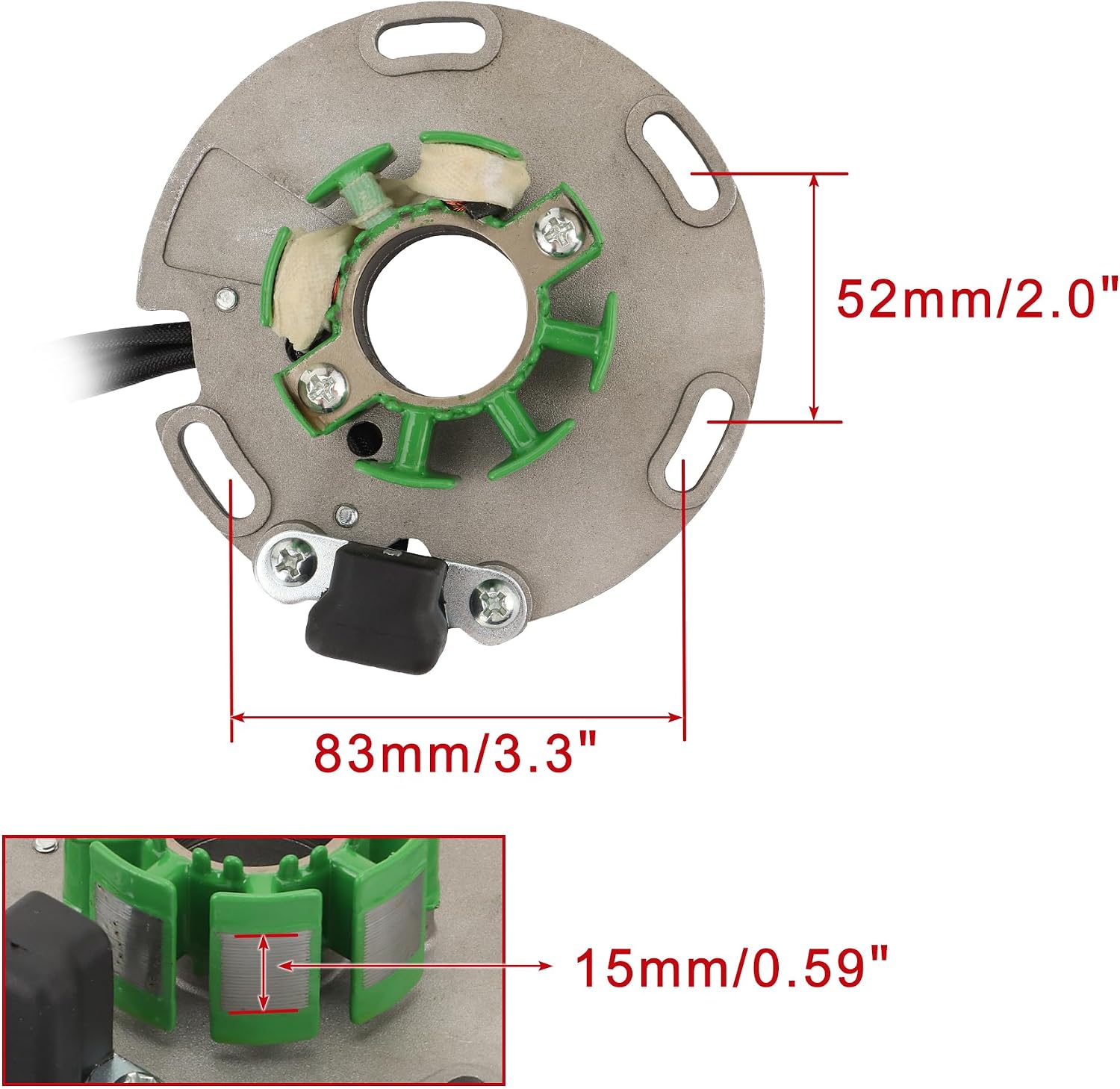

| Iron Core Height | 15mm / 0.59" |
| Mounting Hole Distance | 52mm / 2.0" and 83mm / 3.3" |
| Thickness | 29mm / 1.1" |
| OEM Reference | 32101-27C00 / 32101-27C01 / 32101-27C10 / 32101-43D00 / 32101-43D10 / 32101-28E00 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Dirt Bike Ignition / Electrical System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki RM125 and RM250 two-stroke dirt bikes
- Replaces common OEM references including 32101-27C00, 32101-43D00, and 32101-28E00
- 6-coil 4-wire AC stator helps support stable ignition system output
- Helps address weak spark, no spark, hard starting, unstable ignition, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-27C00 | Common OEM reference for Suzuki RM125 stator applications |
| 32101-27C01 | Common Suzuki RM125 stator reference |
| 32101-27C10 | Common Suzuki RM125 stator reference |
| 32101-43D00 | Common Suzuki RM125 / RM250 stator reference |
| 32101-43D10 | Common Suzuki RM125 / RM250 stator reference |
| 32101-28E00 | Common Suzuki RM250 stator reference |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki RM125 models from 1989–1995 and Suzuki RM250 models from 1994–1995 using the listed OEM references. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces 32101-27C00, 32101-27C01, 32101-27C10, 32101-43D00, 32101-43D10, and 32101-28E00. However, OEM number alone is not enough. Please also confirm the 6-coil 4-wire layout, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Suzuki RM125, RM250, or other RM-series models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different ignition system design. It is also not suitable if your issue is caused only by a bad CDI, ignition coil, spark plug, damaged wiring, burned connector, or poor ground connection.
What should I check before ordering?
Before ordering, please check your dirt bike’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
