2001–2006 Suzuki RM250 RM250Z 4-Coil 6-Wire Stator 32101-37F00
2001–2006 Suzuki RM250 RM250Z 4-Coil 6-Wire Stator 32101-37F00
Couldn't load pickup availability
Product Overview

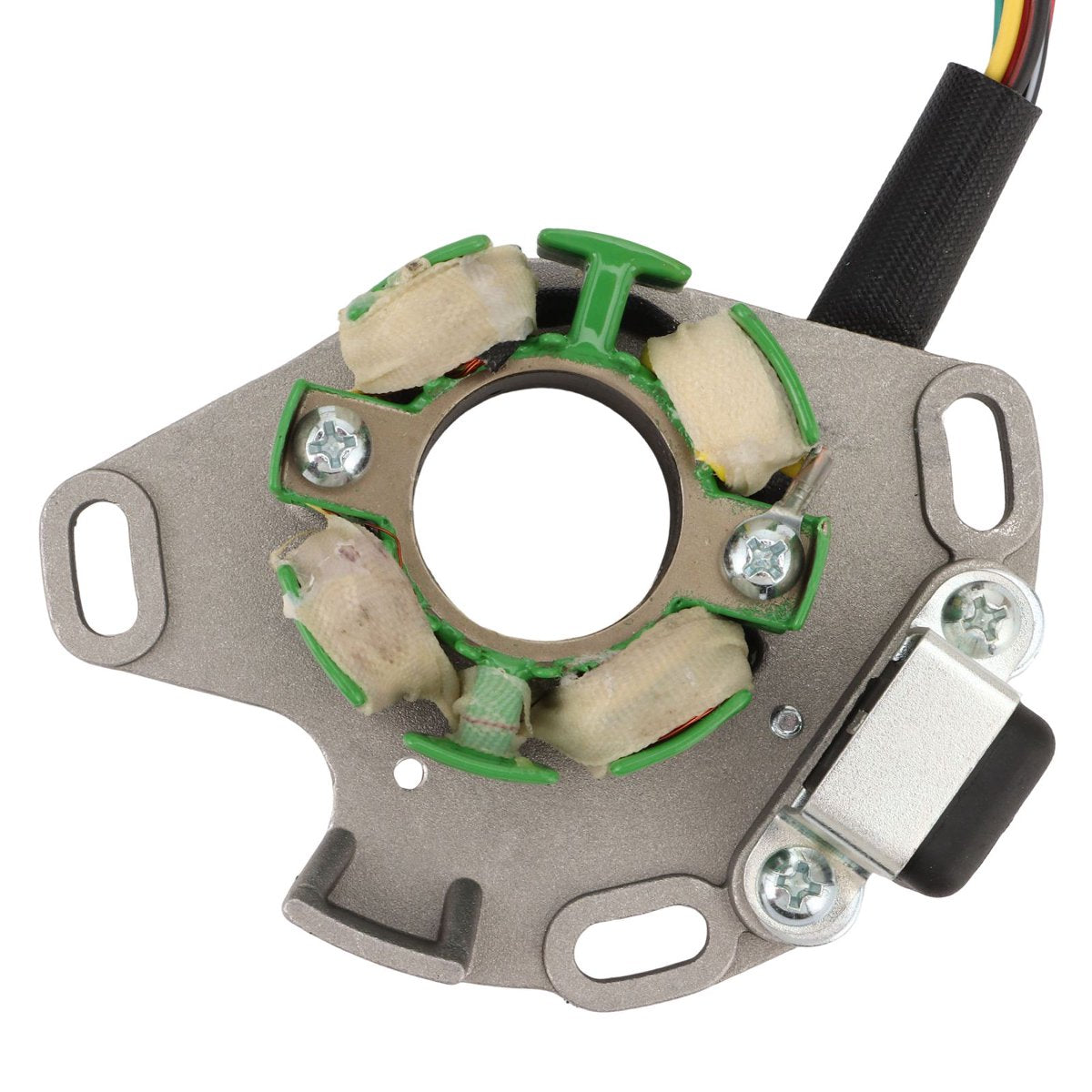

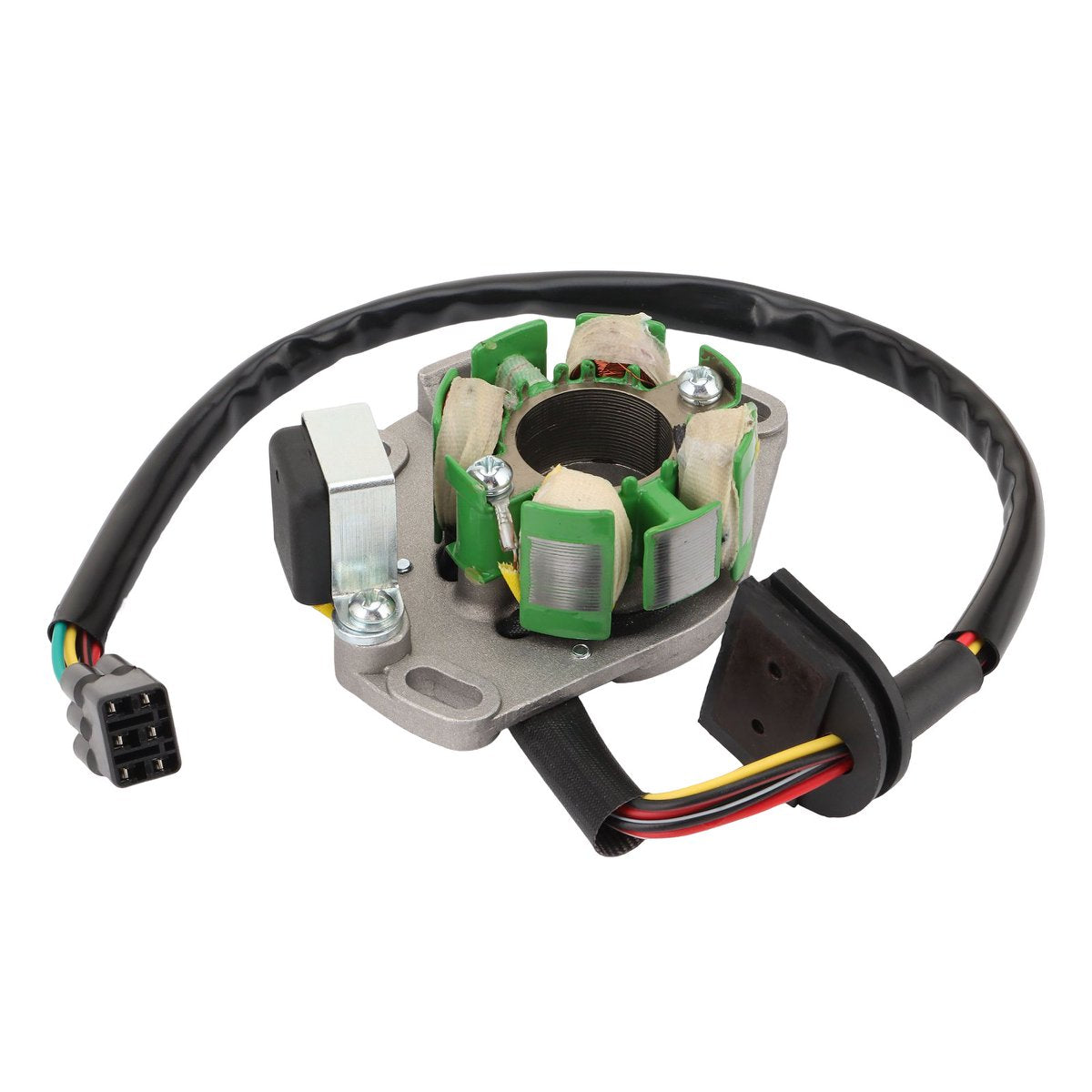

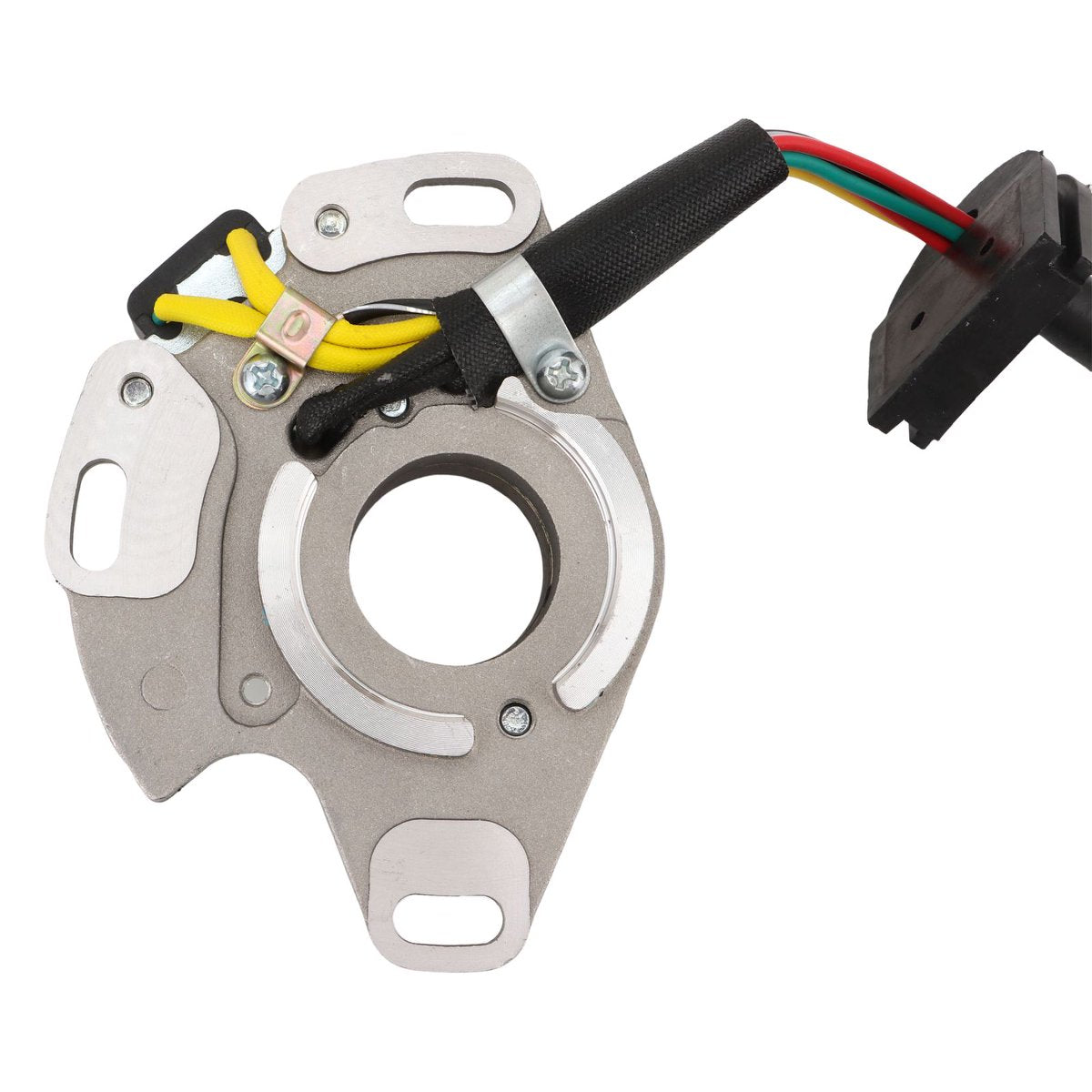

Replace a weak, burned, or failed stator with this 4-coil 6-wire magneto stator, designed for select Suzuki RM250 dirt bikes from 2001–2006 and 2006 RM250Z applications using OEM reference numbers 32101-37F00 and 32101-37F10.
The stator is an important part of the motorcycle ignition and electrical system. It helps generate electrical output while the engine is running, supporting ignition performance and related electrical components. If your Suzuki RM250 has weak spark, no spark, hard starting, unstable ignition output, or stator-related failure, replacing the stator may help restore normal performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | RM250 | 2001–2006 | 32101-37F00 / 32101-37F10 | Main fitment; confirm original stator size and plug layout |
| Suzuki | RM250Z | 2006 | 32101-37F00 / 32101-37F10 | Fits only if the original stator matches this 4-coil 6-wire design |
| Suzuki | RM 250 | 2001–2006 | 32101-37F00 / 32101-37F10 | Same model naming variation; verify OEM number and dimensions |
Important Fitment Note:
This part is not selected by model name alone. Suzuki RM-series dirt bikes may use different stator designs depending on year, production version, and ignition system. Please confirm your original stator matches OEM 32101-37F00 or 32101-37F10, the 4-coil / 6-wire layout, AC type, connector style, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 4 Coils |
| Wire Count | 6 Wire |
| Electrical Type | AC |

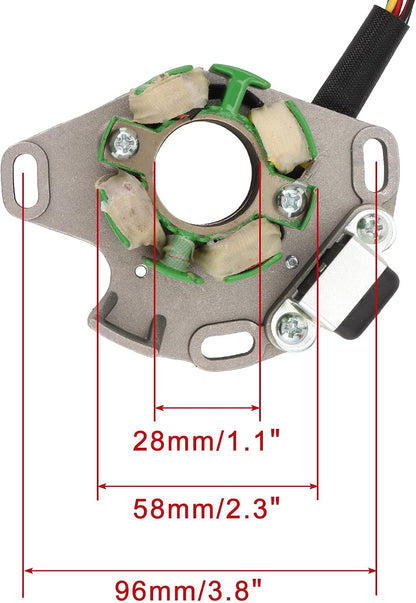

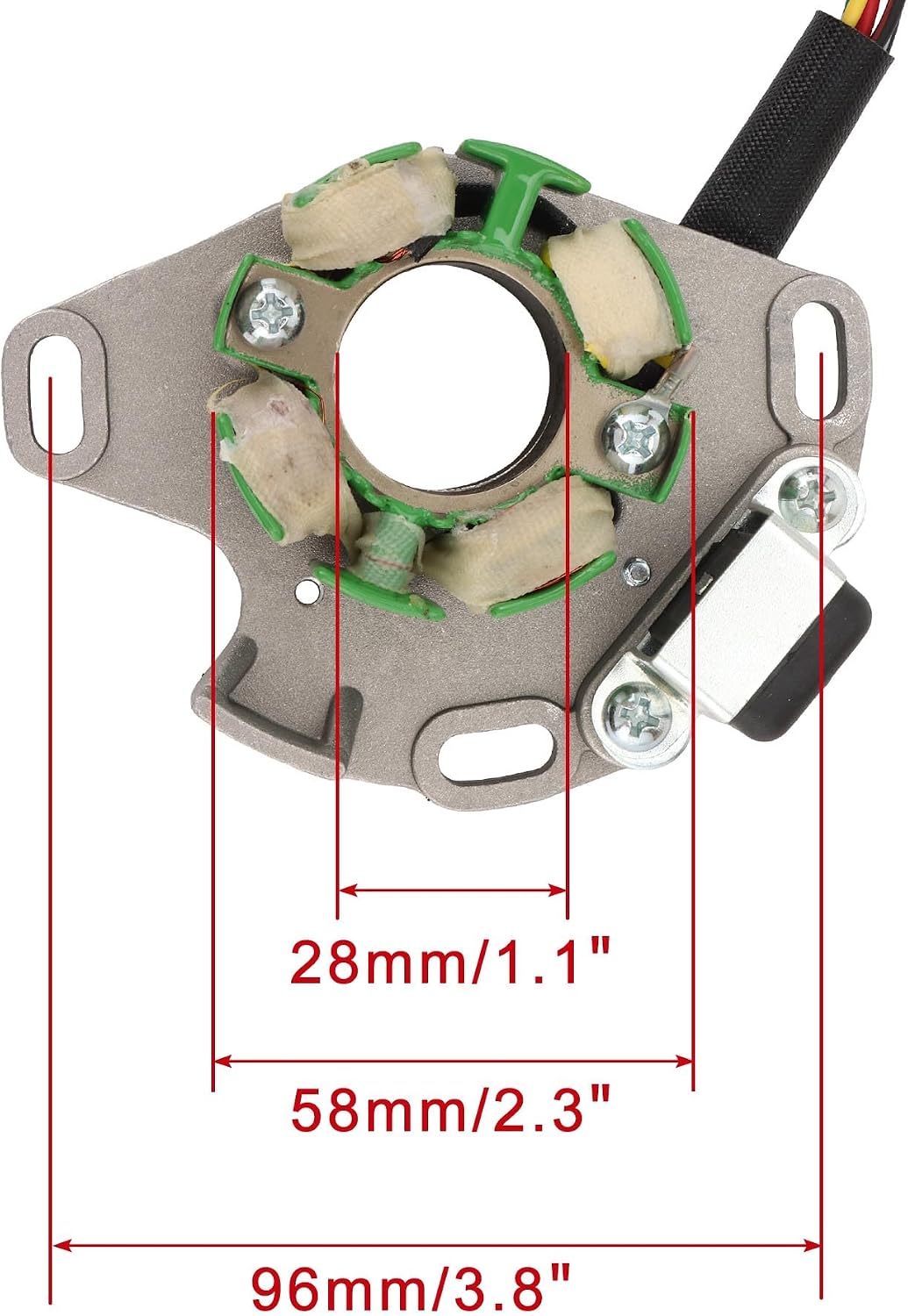

| Inner Diameter | 28mm / 1.1" |
| Outer Diameter | 58mm / 2.3" |

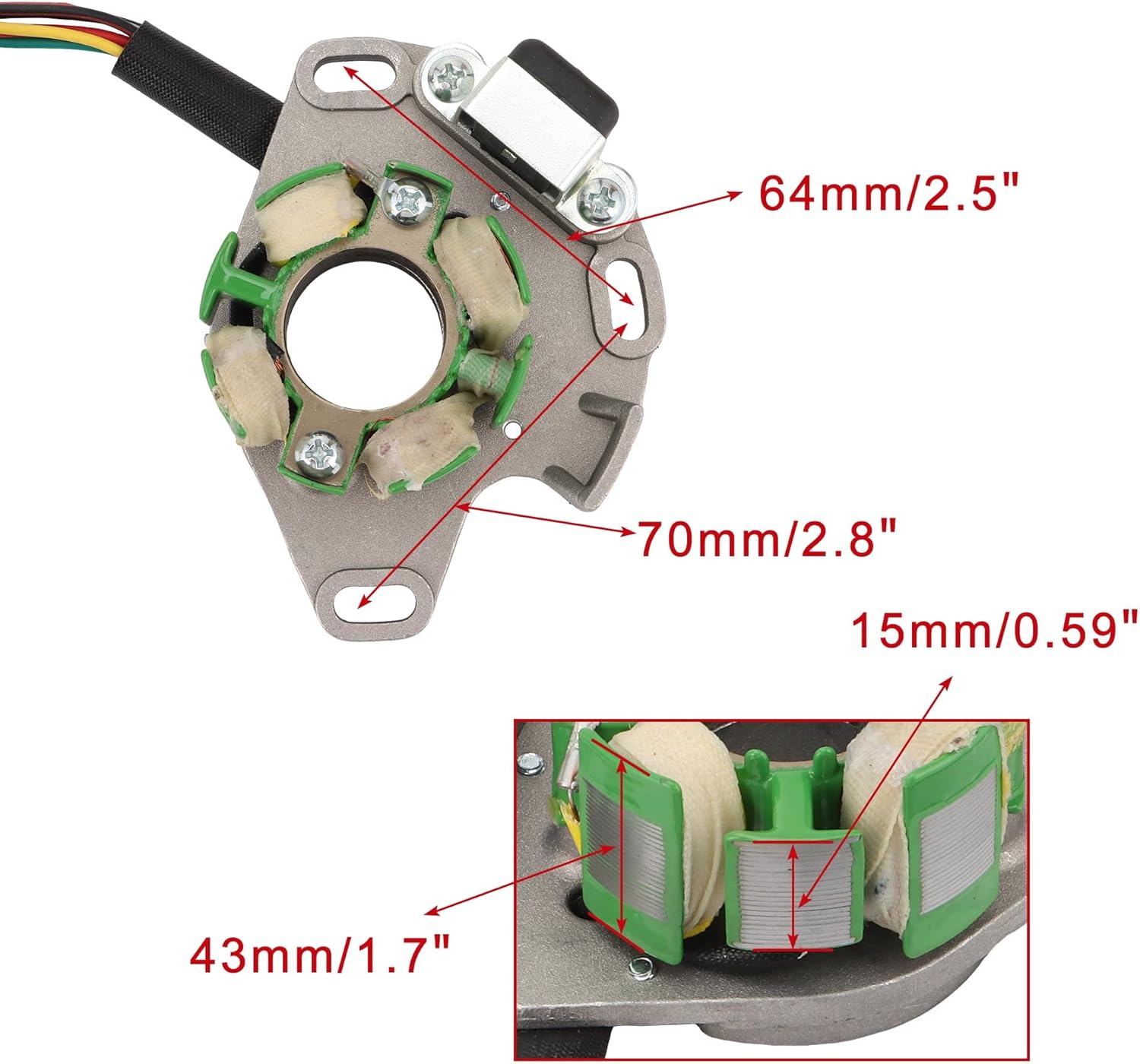

| Iron Core Height | 15mm / 0.59" |
| Mounting Hole Distance | 64mm / 2.5", 70mm / 2.8", and 96mm / 3.8" |
| Thickness | 43mm / 1.7" |
| OEM Reference | 32101-37F00 / 32101-37F10 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Dirt Bike Ignition / Electrical System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select 2001–2006 Suzuki RM250 dirt bikes
- Also listed for 2006 Suzuki RM250Z applications using the same stator design
- Replaces OEM reference numbers 32101-37F00 and 32101-37F10
- 4-coil 6-wire AC stator helps support stable ignition system output
- Helps address weak spark, no spark, hard starting, unstable ignition, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-37F00 | Common OEM reference for Suzuki RM250 2001–2006 stator applications |
| 32101-37F10 | Common replacement reference for compatible Suzuki RM250 / RM250Z stator listings |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki RM250 models from 2001–2006 and 2006 Suzuki RM250Z applications using OEM reference numbers 32101-37F00 or 32101-37F10. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces 32101-37F00 and 32101-37F10. However, OEM number alone is not enough. Please also confirm the 4-coil 6-wire layout, AC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Suzuki RM250, RM-Z250, RM125, or other RM-series models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different ignition system design. Do not confuse RM250Z with RM-Z250 unless your original stator, OEM number, and dimensions match exactly. It is also not suitable if your issue is caused only by a bad CDI, ignition coil, spark plug, damaged wiring, burned connector, or poor ground connection.
What should I check before ordering?

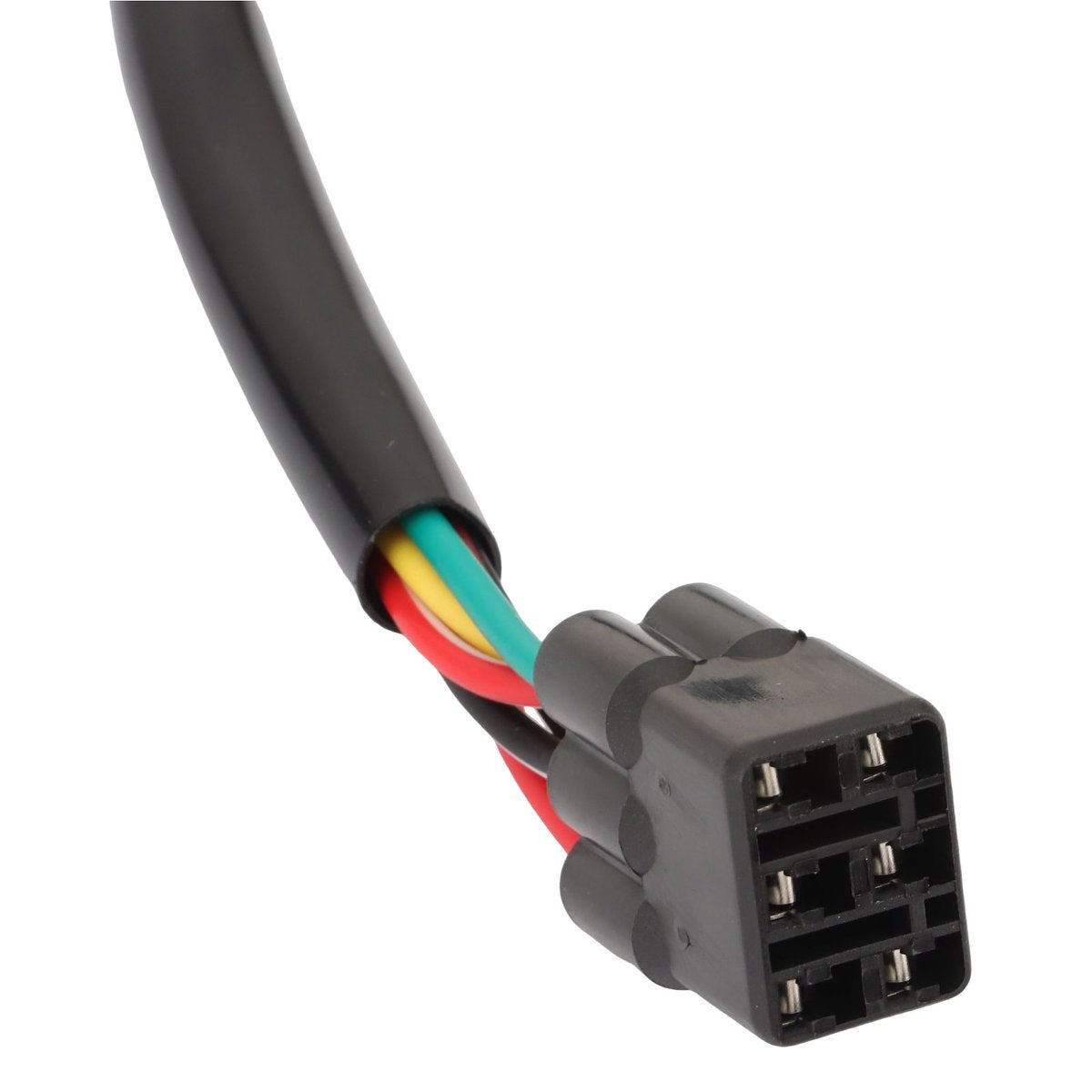

Before ordering, please check your dirt bike’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
