Ignition Coil for Suzuki VS1400 Intruder 1400 1987–2004
Ignition Coil for Suzuki VS1400 Intruder 1400 1987–2004
Couldn't load pickup availability
Product Overview

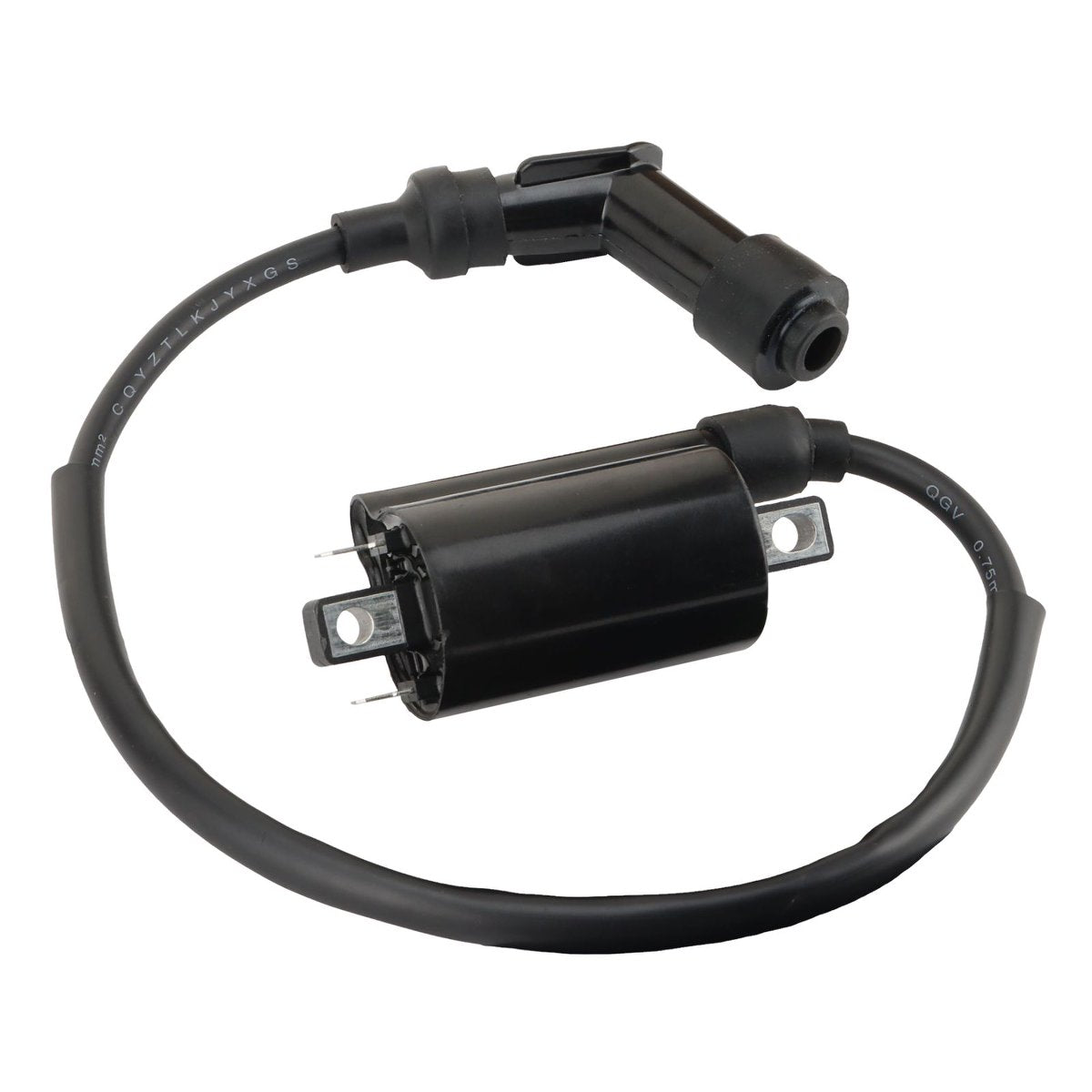

Replacement ignition coil for compatible 1987–2004 Suzuki VS1400 Intruder 1400 motorcycles.
Designed to replace a matching original ignition coil, this unit features approximately 78mm / 3.07 in mounting-hole spacing and a 415mm / 16.34 in high-tension lead for fitment comparison.
The VS1400 uses different front and rear ignition-coil configurations, so compare the original coil, wire length, mounting dimensions, electrical terminals, and product images carefully before ordering.
Product Compatibility
| Make | Model | Year Range | Fitment Notes |
|---|---|---|---|
| Suzuki | VS1400 Intruder 1400 | 1987–2004 | Verify front/rear coil configuration |
| Suzuki | VS1400GL Intruder 1400 | 1987–2004 | Compare original coil and dimensions |
Related OEM Ignition Coil Numbers
Suzuki VS1400 Intruder applications use front and rear ignition coils with OEM references including:
- 33410-38B00 — Rear ignition coil reference
- 33410-38B01 — Later replacement for 33410-38B00
- 33420-38B00 — Front ignition coil reference
- 33420-38B01 — Later replacement for 33420-38B00
Note: These are VS1400 ignition-coil references. Confirm which front/rear configuration matches this replacement coil before using an OEM number as the final fitment reference.
Specifications
| Specification | Details |
|---|---|
| Product Type | Ignition Coil |
| Make | Suzuki |
| Model | VS1400 Intruder 1400 |
| Listed Years | 1987–2004 |

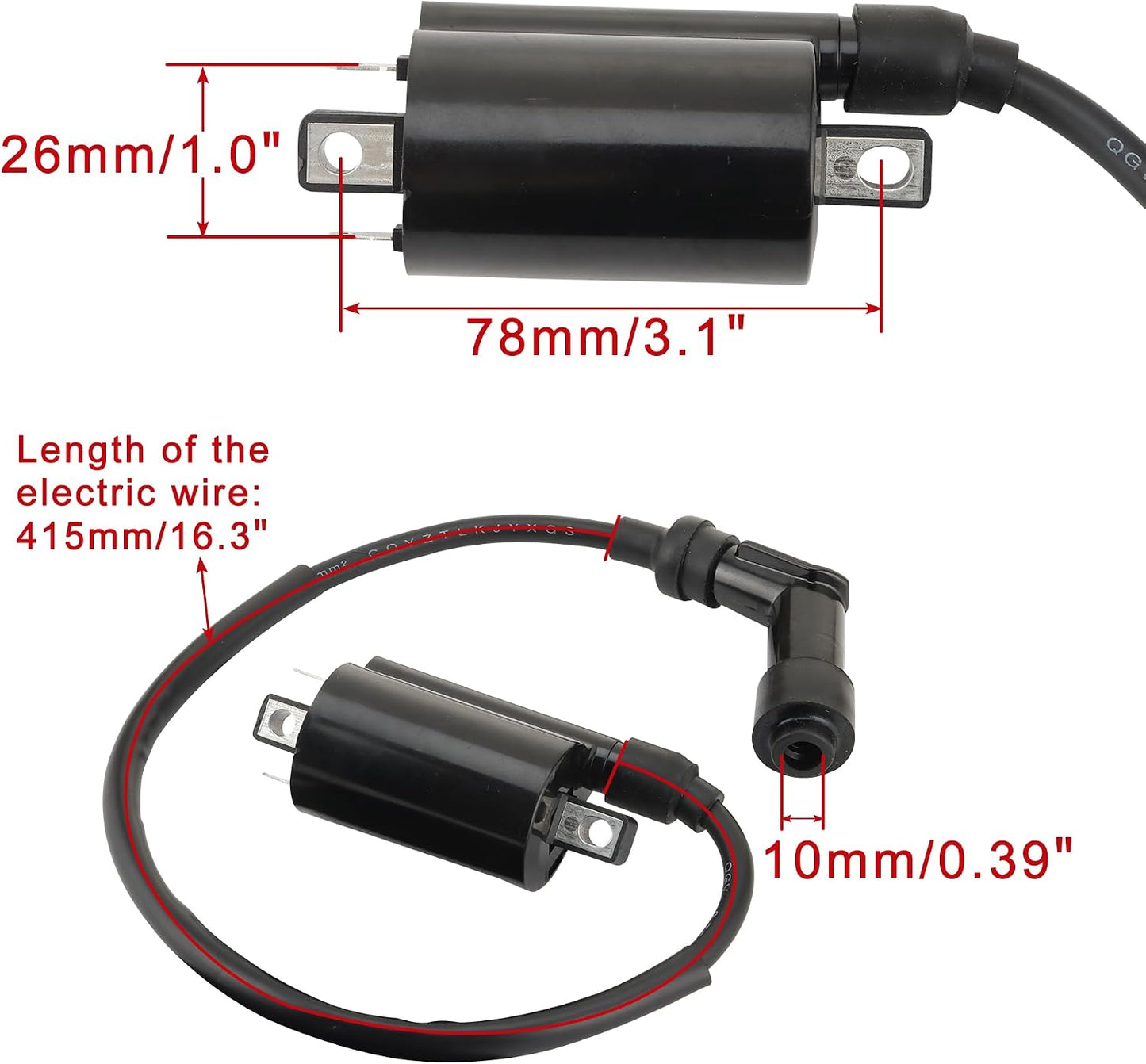

| Mounting Hole Spacing | Approx. 78 mm / 3.07 in |
| High-Tension Wire Length | Approx. 415 mm / 16.34 in |
| Listed Spark Plug Mounting Hole Diameter | Approx. 10 mm / 0.39 in |
| Listed Plug Distance | Approx. 26 mm / 1.02 in |
| Condition | New |
| Package Quantity | 1 Ignition Coil |
Key Features
- VS1400-Specific Application: Designed for compatible Suzuki VS1400 Intruder 1400 motorcycles.
- 1987–2004 Coverage: Listed for VS1400 applications across the 1987–2004 model-year range.
- 78mm Mounting Reference: Mounting-hole spacing provides an important physical fitment check.
- 415mm Ignition Lead: High-tension wire length can be compared with the original coil before installation.
- Durable Construction: Designed as a replacement ignition component for motorcycle operating conditions.
Share
Fitment FAQ
Will this part fit my specific model and year?
This ignition coil is listed for compatible 1987–2004 Suzuki VS1400 / VS1400GL Intruder 1400 motorcycles.
However, the VS1400 uses different front and rear ignition coils. Compare the original coil with this replacement before ordering.
Do I need to match the OEM part number?
Matching the OEM number is recommended when possible.
VS1400 ignition-coil references include 33410-38B00 / 33410-38B01 for the rear coil family and 33420-38B00 / 33420-38B01 for the front coil family.
Because the original listing does not identify whether this SKU is the front or rear version, also verify the physical dimensions, lead length, electrical terminals, and product images.
What models or situations does this part not fit?
Do not assume this ignition coil fits:
Every Suzuki Intruder model
VS700, VS750, VS800, or other Intruder models based only on appearance
A front or rear VS1400 coil with a different configuration
Coils with different mounting-hole spacing
Applications using a different high-tension lead length or electrical connection
This listing should be treated specifically as a VS1400 Intruder 1400 replacement application.
What should I check before ordering?
Confirm:
Suzuki VS1400 / VS1400GL
Model year
Front or rear ignition-coil position
Original OEM number where available
Approx. 78mm mounting-hole spacing
Approx. 415mm high-tension wire length
Electrical terminal configuration
Spark plug lead and cap configuration
Original ignition coil appearance
Compare the original part directly with the product photos and dimensions before purchase.
