1998–2009 Suzuki VS800 Intruder Boulevard S50 18-Coil 3-Wire Stator 32101-45C00
1998–2009 Suzuki VS800 Intruder Boulevard S50 18-Coil 3-Wire Stator 32101-45C00
Couldn't load pickup availability
Product Overview

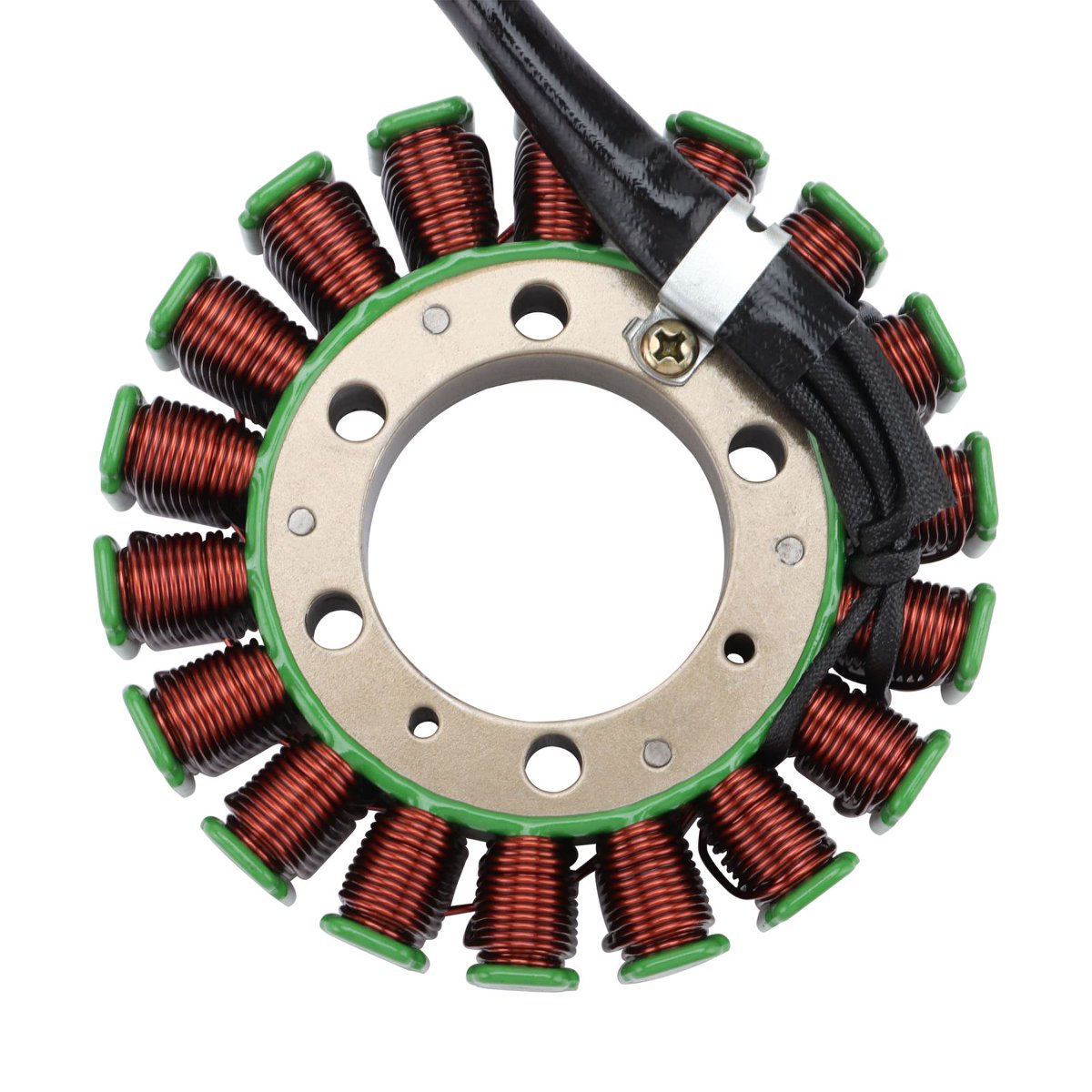

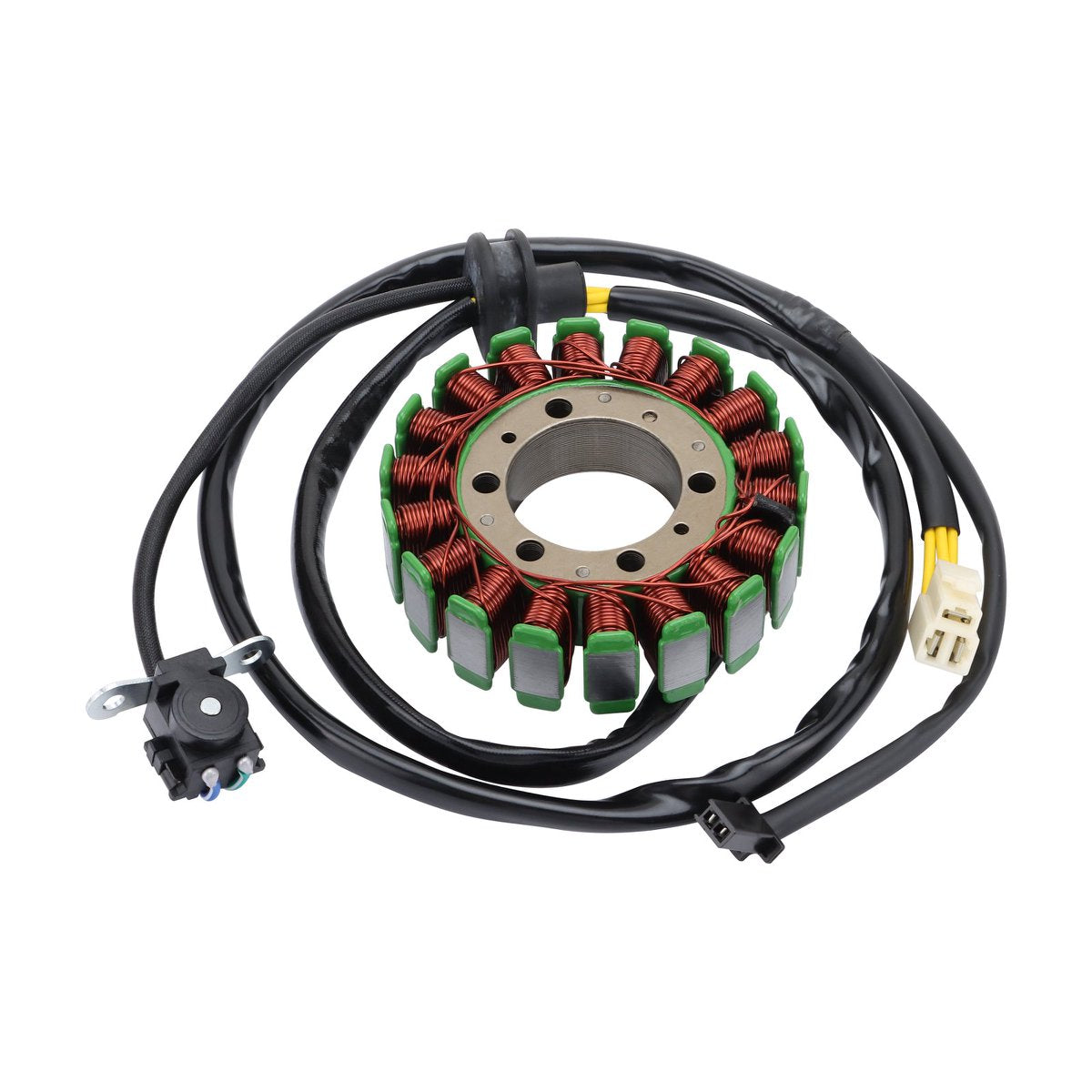

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select Suzuki VS800 / VS800GL Intruder 800 and Boulevard S50 motorcycles using OEM reference number 32101-45C00.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Suzuki VS800 Intruder or Boulevard S50 has weak charging, low battery voltage, dim lights, repeated battery drain, unstable output, or stator-related charging failure, replacing the stator may help restore normal electrical performance.

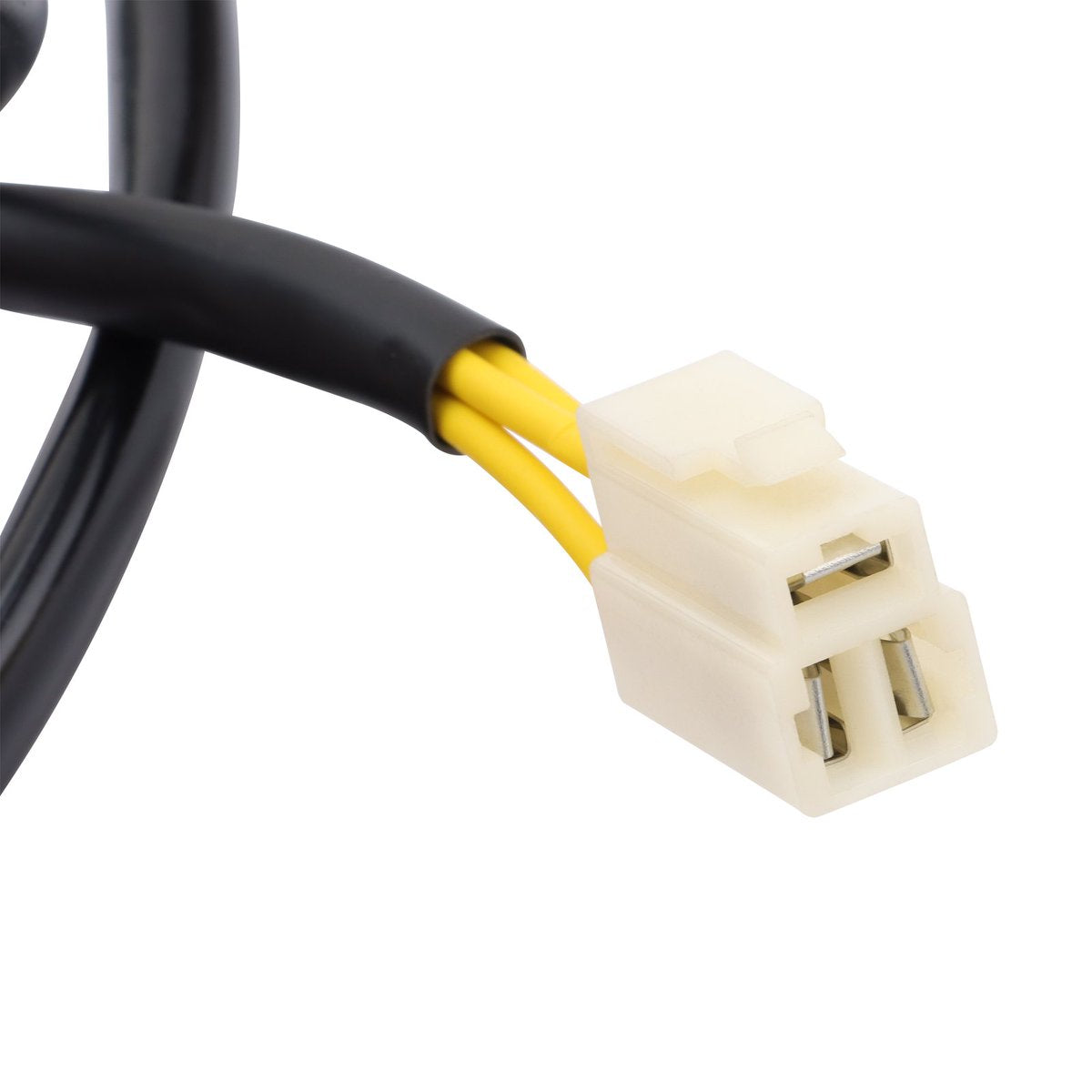

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, coil count, wire count, connector layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | VS800 Intruder 800 | 1998–2004 | 32101-45C00 | Main fitment; confirm original stator and connector layout |
| Suzuki | VS800GL Intruder 800 | 1998–2004 | 32101-45C00 | Model-name variation; compare original stator before ordering |
| Suzuki | Boulevard S50 VS800 | 2005–2009 | 32101-45C00 | Main Boulevard S50 fitment; verify OEM number and dimensions |
| Suzuki | VS800 / VS800GL Boulevard S50 | 2005–2009 | 32101-45C00 | Fits matching 18-coil 3-wire stator version only |
| Suzuki | Intruder 800 / Boulevard S50 Cruiser | Select 1998–2009 applications | 32101-45C00 | Match by original stator, plug layout, and physical size |
Important Fitment Note:
This part is not selected by model name alone. Suzuki VS800, VS800GL, Intruder 800, and Boulevard S50 models may use different charging components depending on year, market, and wiring system. Please confirm your original stator matches OEM 32101-45C00, the 18-coil / 3-wire layout, DC type, 42mm inner diameter, 103mm outer diameter, mounting hole layout, trigger coil position, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |

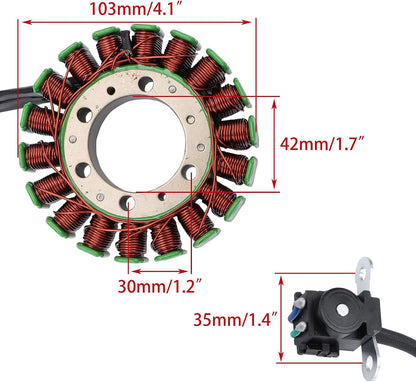

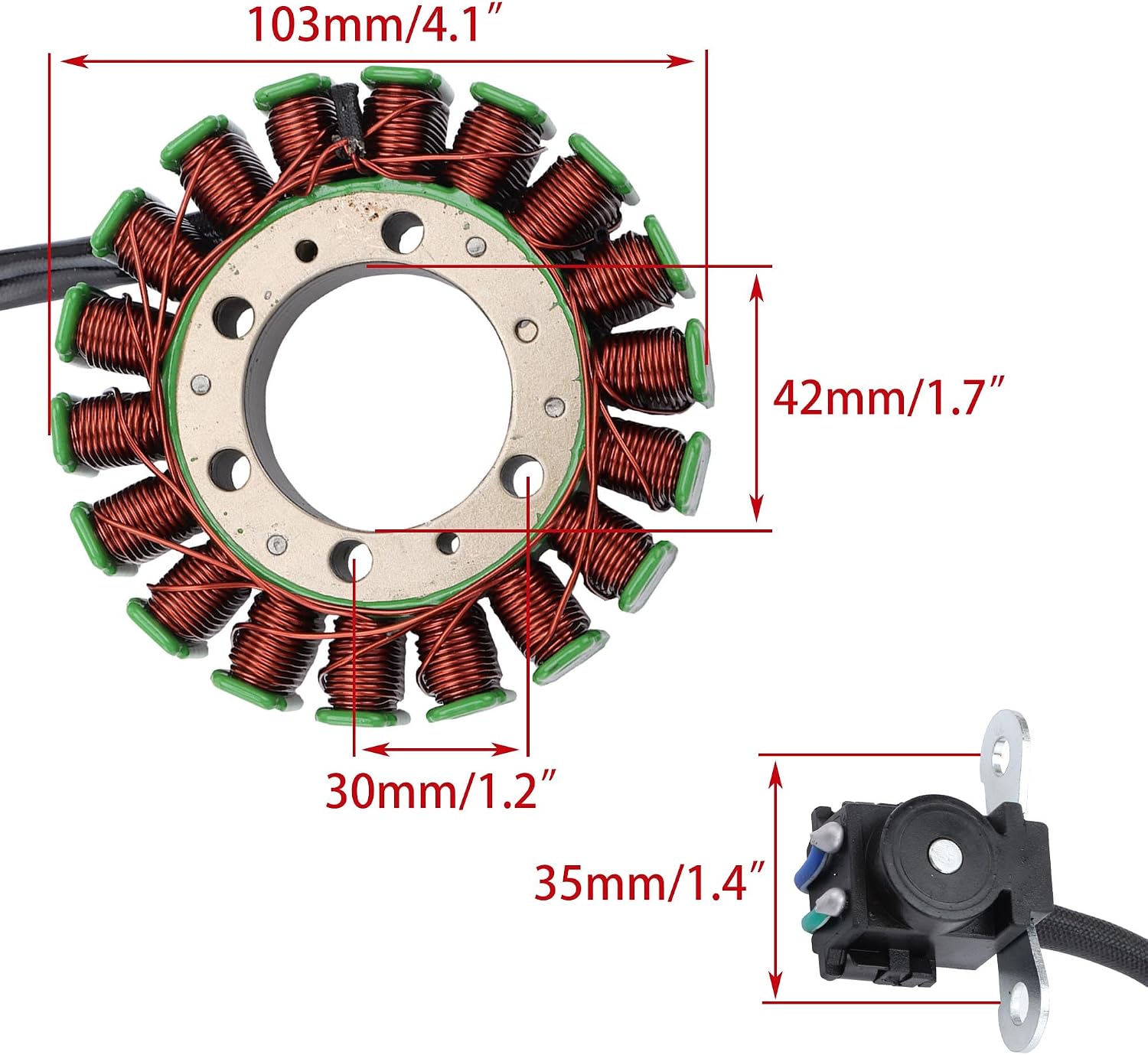

| Outer Diameter | 103mm / 4.1" |
| Inner Diameter | 42mm / 1.7" |

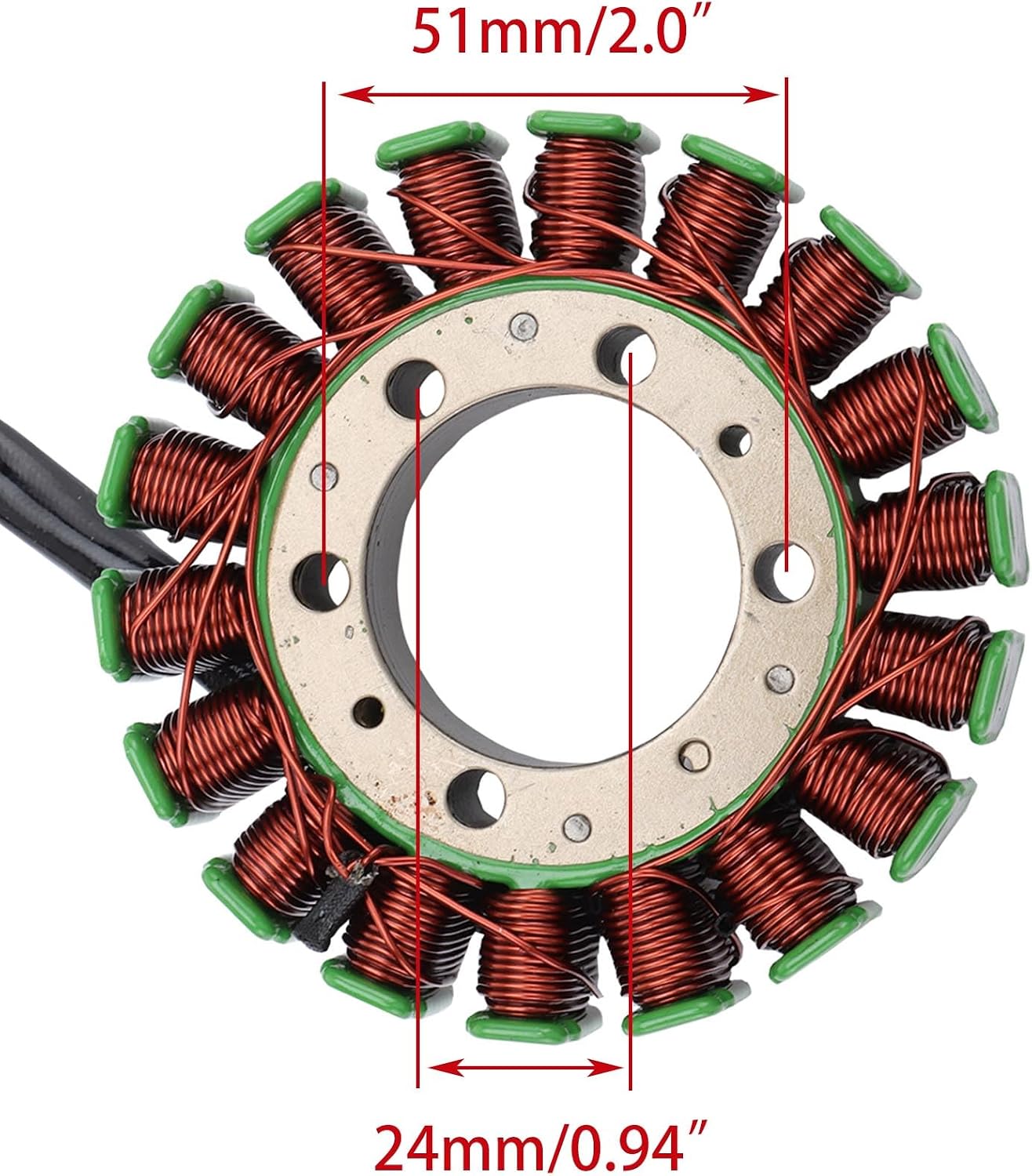

| Mounting Hole Distance | 24mm / 0.94", 30mm / 1.2", and 51mm / 2.0" |
| Trigger Mounting Hole Distance | 35mm / 1.4" |
| OEM Reference | 32101-45C00 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki VS800 / VS800GL Intruder 800 and Boulevard S50 motorcycles
- Fits Intruder 800 1998–2004 and Boulevard S50 2005–2009 applications
- Replaces Suzuki OEM reference number 32101-45C00
- 18-coil 3-wire DC stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, battery drain, or stator failure

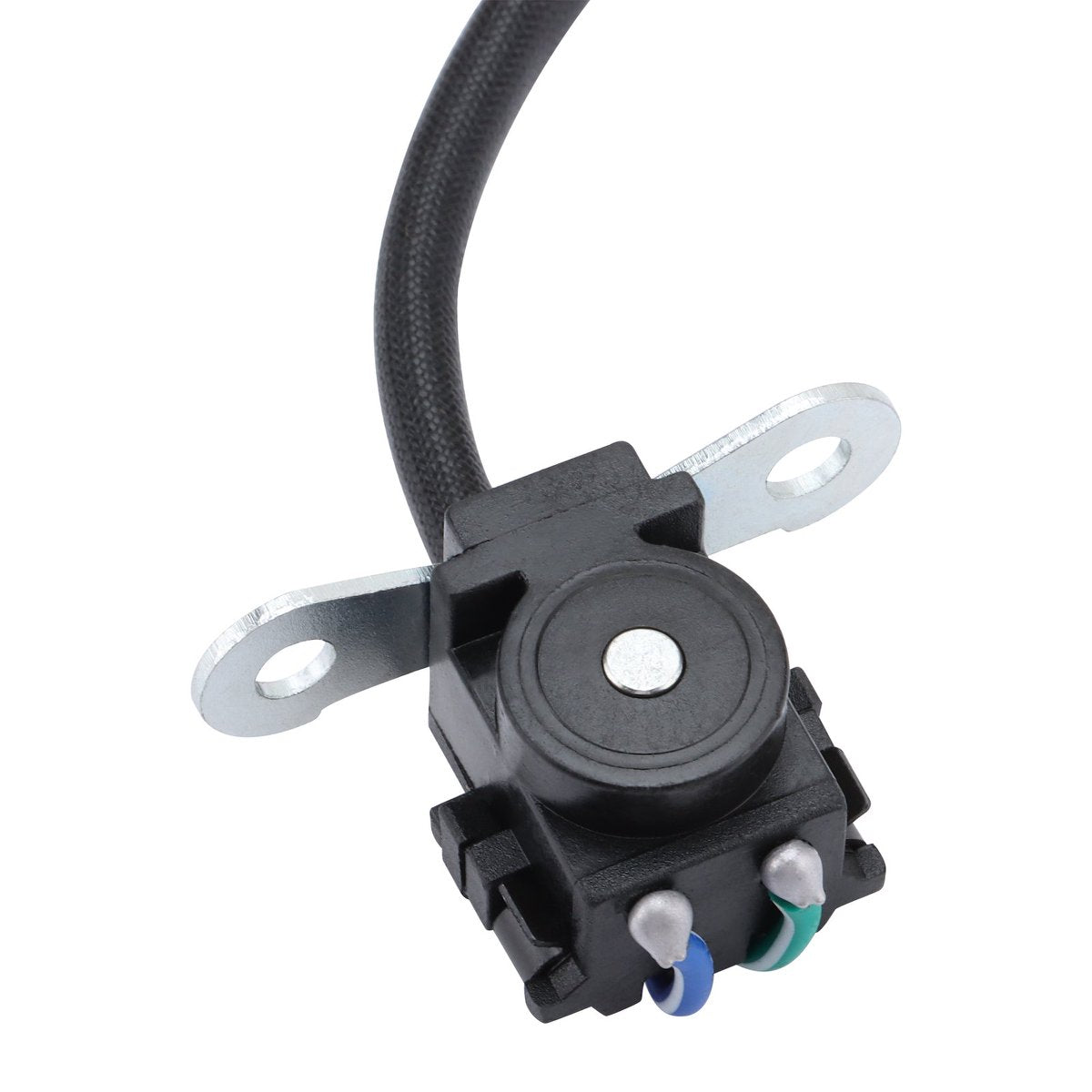

- Includes pickup / trigger coil position for matching applications
- Direct replacement style, but original OEM number, connector layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-45C00 | Main Suzuki VS800 / VS800GL Intruder 800 and Boulevard S50 stator reference |
| 3210145C00 | Compact format of 32101-45C00 |
| 32101-19B10 | Possible related Suzuki stator reference on some aftermarket listings; verify before purchase |
| 32101-19B30 | Possible related Suzuki stator reference on some aftermarket listings; verify before purchase |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, trigger coil position, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki VS800 / VS800GL Intruder 800 models from 1998–2004 and Suzuki Boulevard S50 VS800 models from 2005–2009 using OEM reference number 32101-45C00. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces Suzuki OEM 32101-45C00. However, OEM number alone is not enough. Please also confirm the 18-coil 3-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, trigger mounting position, and connector layout.
What models or situations does this part not fit?
This part does not fit Suzuki VS800, Intruder, Boulevard, Volusia, Marauder, or other Suzuki cruiser models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, different mounting hole spacing, or a different charging system design. It is also not a replacement for the regulator rectifier, battery, CDI, ignition coil, flywheel, starter motor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger coil position, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
