Triumph Tiger 800 800XC 800XCA 800XRT Stator | T1300043
Triumph Tiger 800 800XC 800XCA 800XRT Stator | T1300043
5.0 / 5.0
(3) 3 total reviews
Couldn't load pickup availability
Product Overview

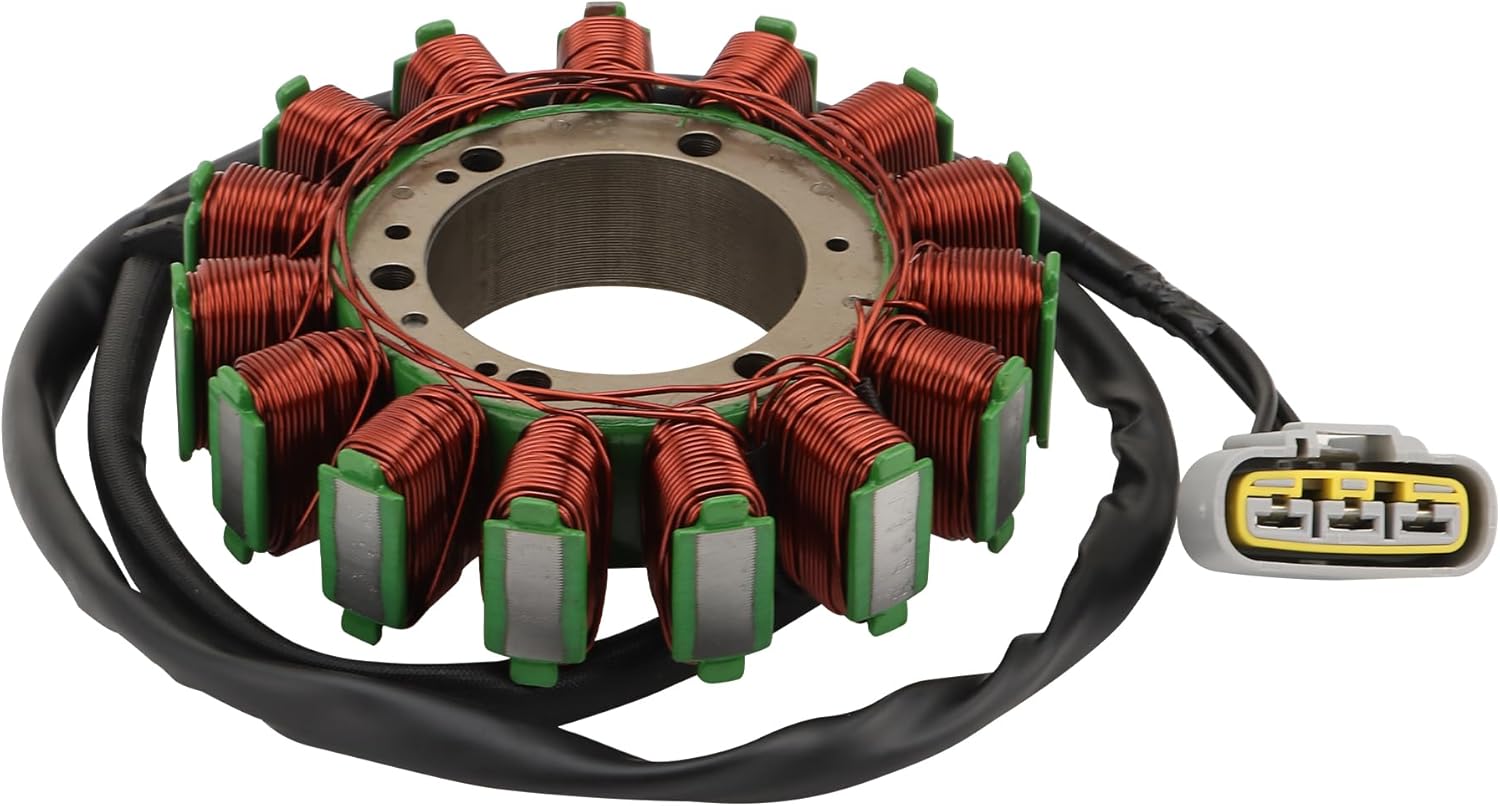

Restore reliable charging performance with this generator magneto stator coil, designed for selected Triumph Tiger 800, Tiger 800XC, Tiger 800XCA, and Tiger 800XRT motorcycle applications.
Built to replace OEM T1300043, this stator helps solve common charging-system issues such as battery not charging, weak charging output, unstable voltage, dim lights, and intermittent electrical failure.

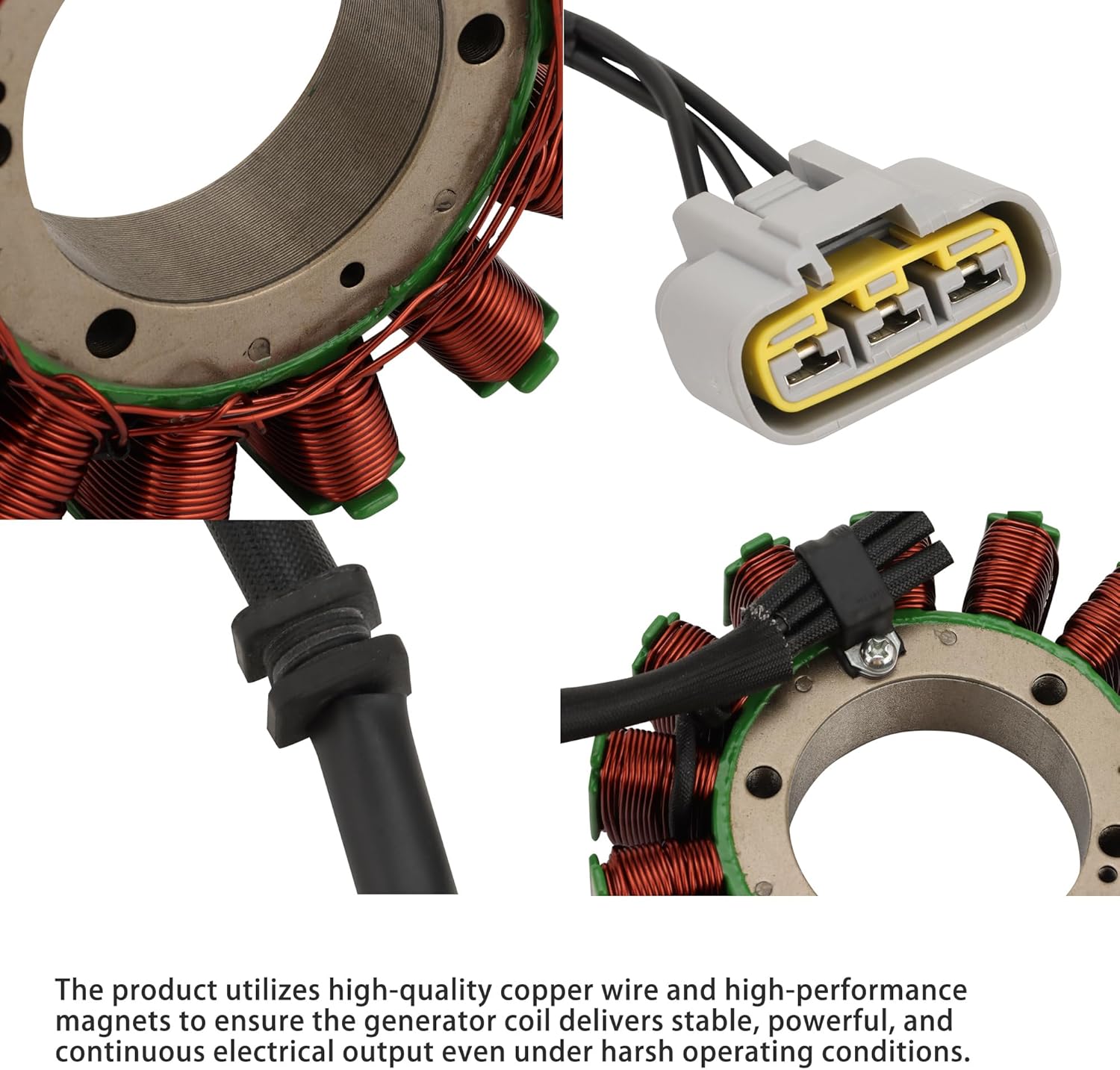

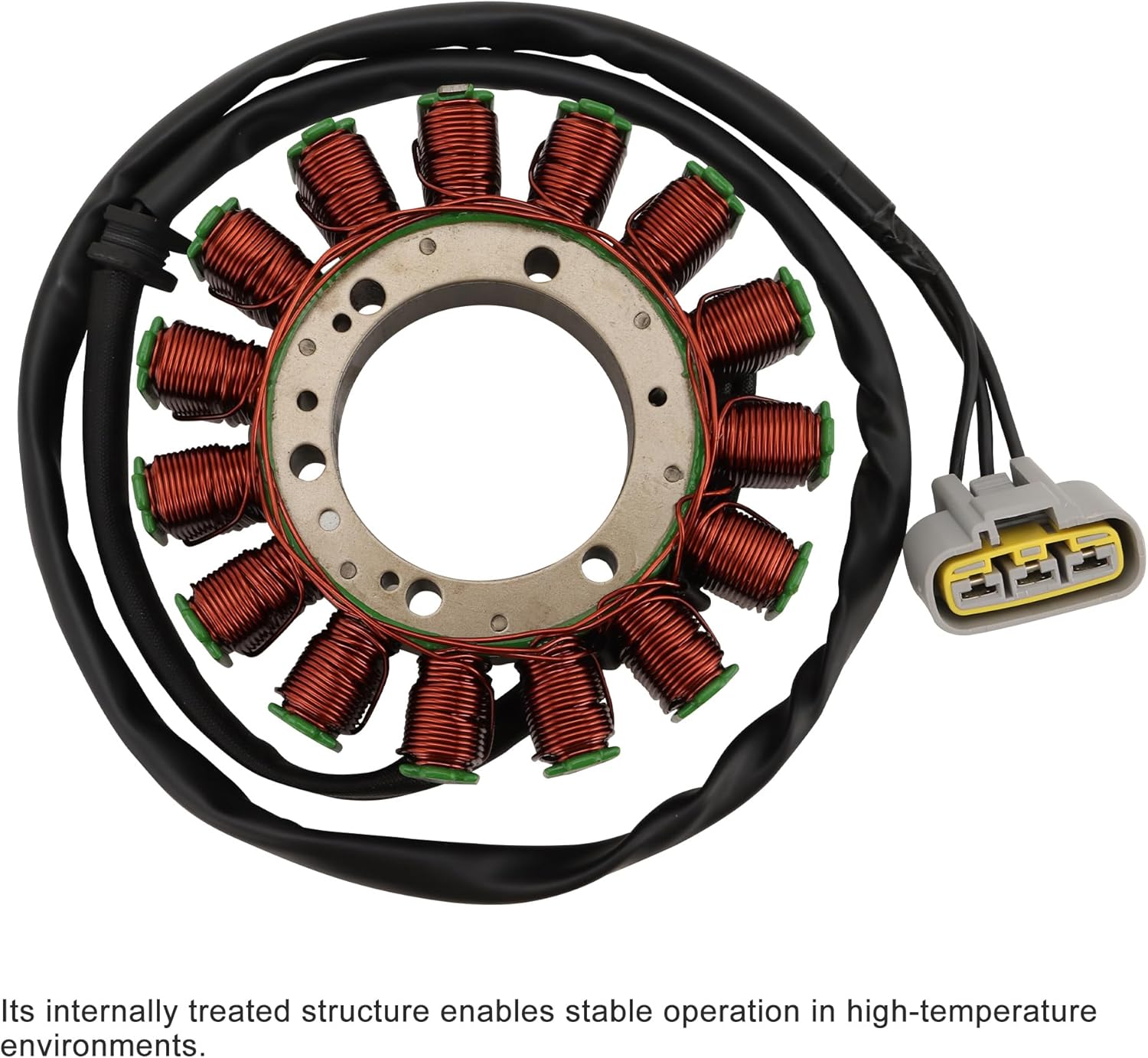

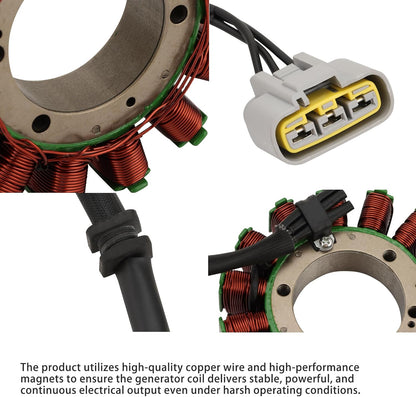

Made with high-quality copper wire and durable magnetic materials, this stator is designed to deliver stable, powerful, and continuous electrical output under adventure touring and off-road riding conditions. Its internally treated structure helps support stable operation in high-temperature environments.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Triumph | Tiger 800 | 800cc | 2011–2017 | 15-pole version; verify VIN, connector, and original stator before purchase |
| Triumph | Tiger 800XC | 800cc | 2011–2017 | 15-pole version; verify VIN, connector, and original stator before purchase |
| Triumph | Tiger 800XCA | 800cc | 2018–2020 | Verify pole count, connector style, and original stator appearance |
| Triumph | Tiger 800XRT | 800cc | 2018–2020 | Verify pole count, connector style, and original stator appearance |
OEM Cross Reference:
T1300043
Specifications
| Specification | Details |
|---|---|
| Part Type | Generator Magneto Stator Coil |
| Pole Count | 15 Pole |

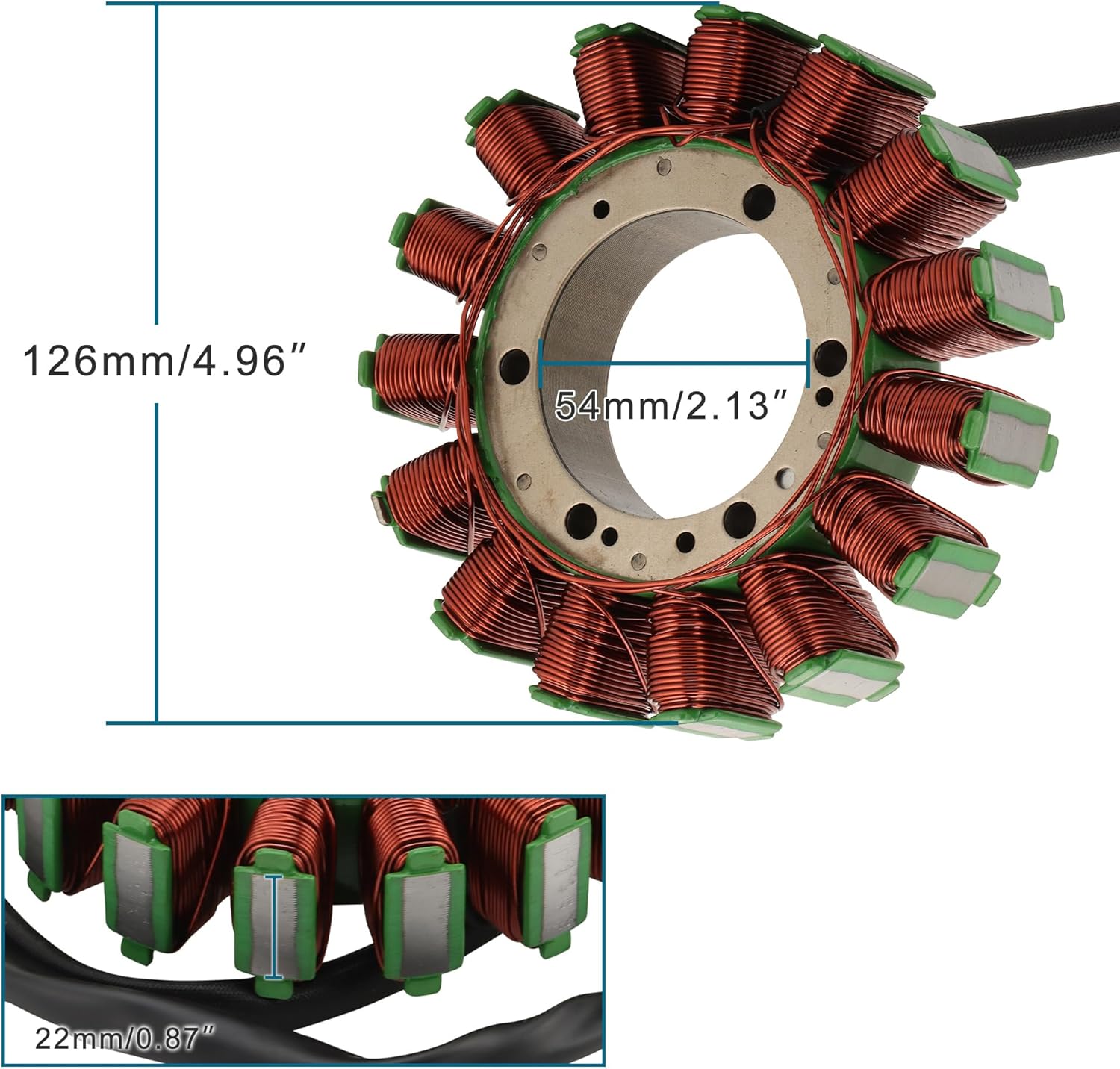

| Outer Diameter | 126 mm / 4.96" |
| Inner Diameter | 54 mm / 2.13" |
| Iron Core Height | 22 mm / 0.87" |
| Wire Count | 3 Wires |
| Plug Count | 1 Plug |
| Pin Count | 3 Pins |
| OEM Replacement | T1300043 |
| Material | Copper wire / Magnetic materials |
| Function | Charging system power generation |
| Installation | Direct replacement on correctly matched applications |
| Fitment Method | Match by OEM number, VIN range, pole count, connector style, stator size, and original part layout |
| Condition | 100% New Aftermarket |
Key Features
- Triumph Tiger 800 Fitment – Designed for selected Tiger 800, 800XC, 800XCA, and 800XRT models
- 15-Pole Stator Design – Built for applications requiring the 15-pole version, not the 18-pole version
- OEM-Style Replacement – Replaces Triumph stator reference T1300043
- Stable Charging Output – Helps support battery charging and electrical-system performance
- Copper Wire Construction – Designed for continuous power generation and long service life
- Heat-Resistant Internal Structure – Supports stable operation in high-temperature riding environments
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 2011–2017, 2018–2020, 2011, 2017, 2018. Key physical/spec details from the product data include Outer Diameter: 126 mm / 4.96", Inner Diameter: 54 mm / 2.13", Iron Core Height: 22 mm / 0.87". Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Triumph models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Model years outside 2011–2017, 2018–2020, 2011, 2017, 2018 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Outer Diameter: 126 mm / 4.96", Inner Diameter: 54 mm / 2.13", Iron Core Height: 22 mm / 0.87". If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
Superb, just right fit for 800XCA - It matched the size and specifications closely, so fitting was straightforward. The build looks solid, and the copper wiring feels well made. After installation, the bike's charging output became stable again during normal riding. Overall, it's a good replacement part that does the job, though I'll need more time to judge long-term reliability under heavy use.
Tiger runs well with good power. I appreciated how well this magneto stator held voltage during long rides. The fit was precise and installation easy. The appearance matched properly and the quality looked strong. Functionality stayed smooth under temperature changes with quiet operation and no noises. Very good value for money.
El precio me esta trabajando super bien y llego en tiempo record
