GOOFIT
Complete Engine Gasket Kit for Wuyang Honda WH150-3 WH150-3A
Complete Engine Gasket Kit for Wuyang Honda WH150-3 WH150-3A
Couldn't load pickup availability
Product Overview

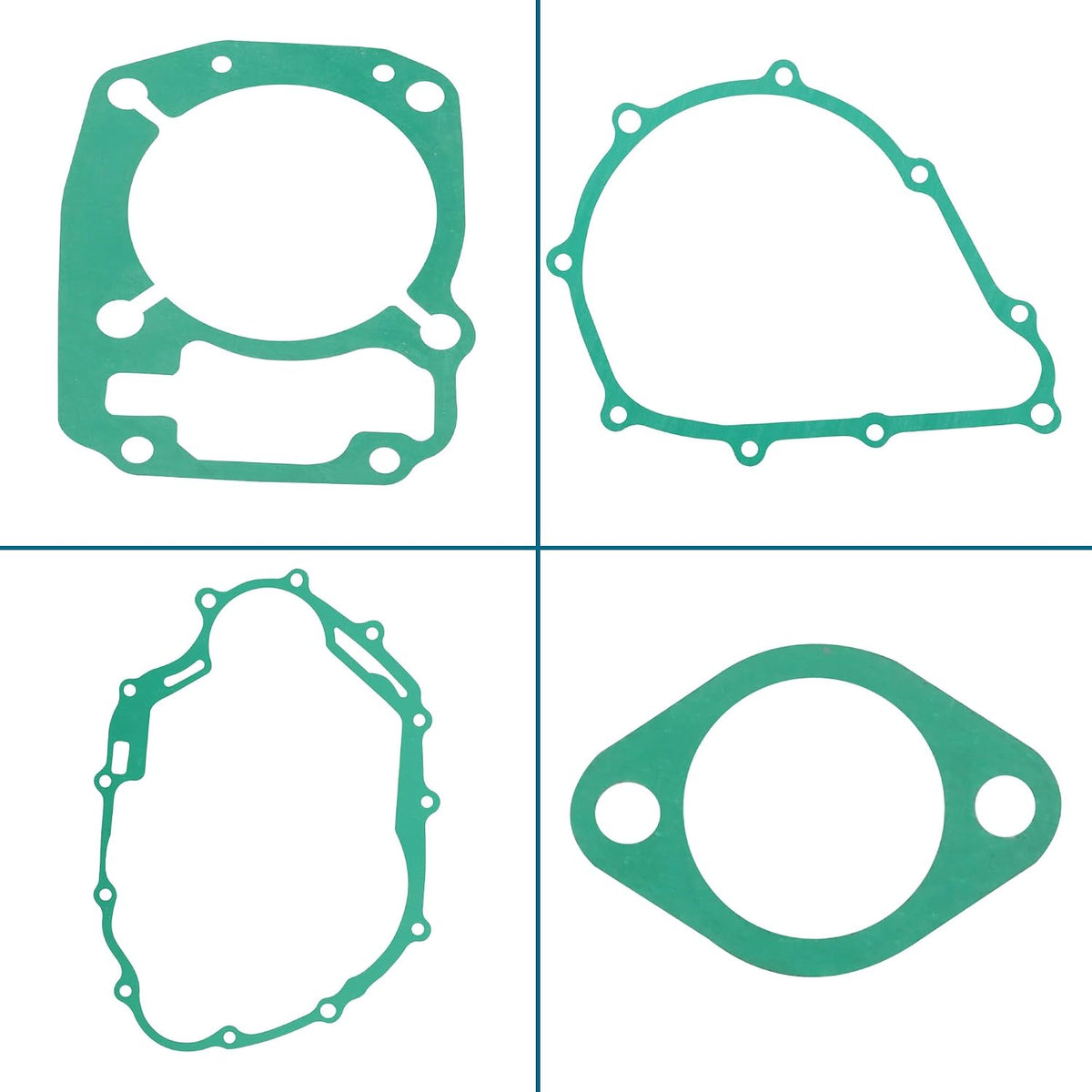

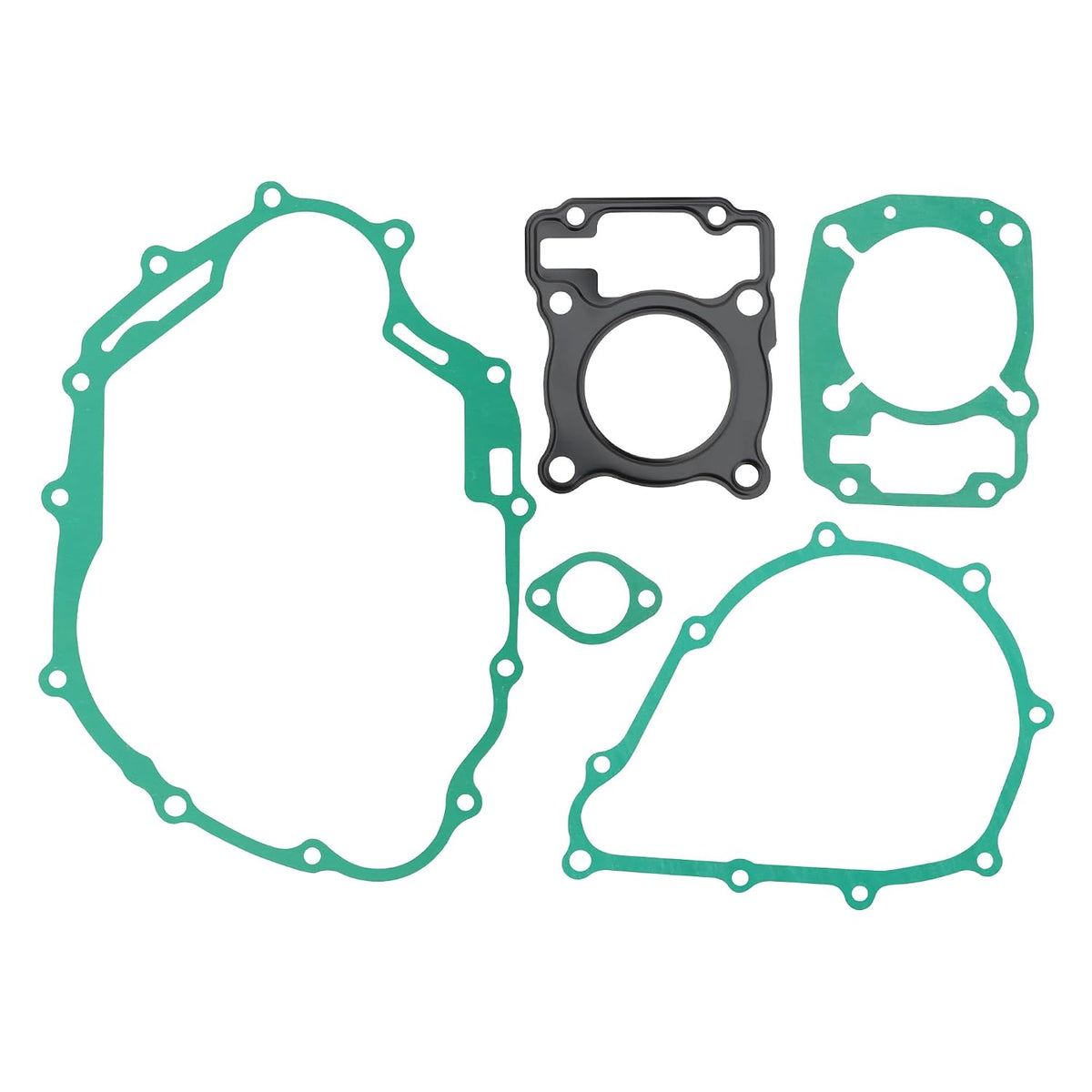

Replacement complete engine gasket kit for compatible Wuyang Honda Biaoying WH150-3 and WH150-3A 150cc motorcycles.
These models use the WH157FMJ-B 149cc 4-stroke engine, making the exact engine and motorcycle model important fitment references when selecting a complete gasket set.
This kit is intended for compatible engine repair and rebuild work where multiple sealing surfaces are disturbed, helping restore proper sealing between engine components.
Before ordering, compare the WH150-3 / WH150-3A model designation, engine code, complete gasket layout, bolt-hole patterns, and listed dimensional references with the original gaskets.
Product Compatibility
| Make | Model | Engine | Displacement |
|---|---|---|---|
| Wuyang Honda | WH150-3 Biaoying | WH157FMJ-B | 149cc |
| Wuyang Honda | WH150-3A Biaoying | WH157FMJ-B | 149cc |
Specifications
| Specification | Details |
|---|---|
| Product Type | Complete Engine Gasket Kit |
| Make | Wuyang Honda |
| Models | WH150-3 / WH150-3A |
| Model Name | Biaoying 150 |
| Engine Model | WH157FMJ-B |
| Engine Displacement | 149cc |
| Engine Type | 4-Stroke |
| Cooling | Air-Cooled |

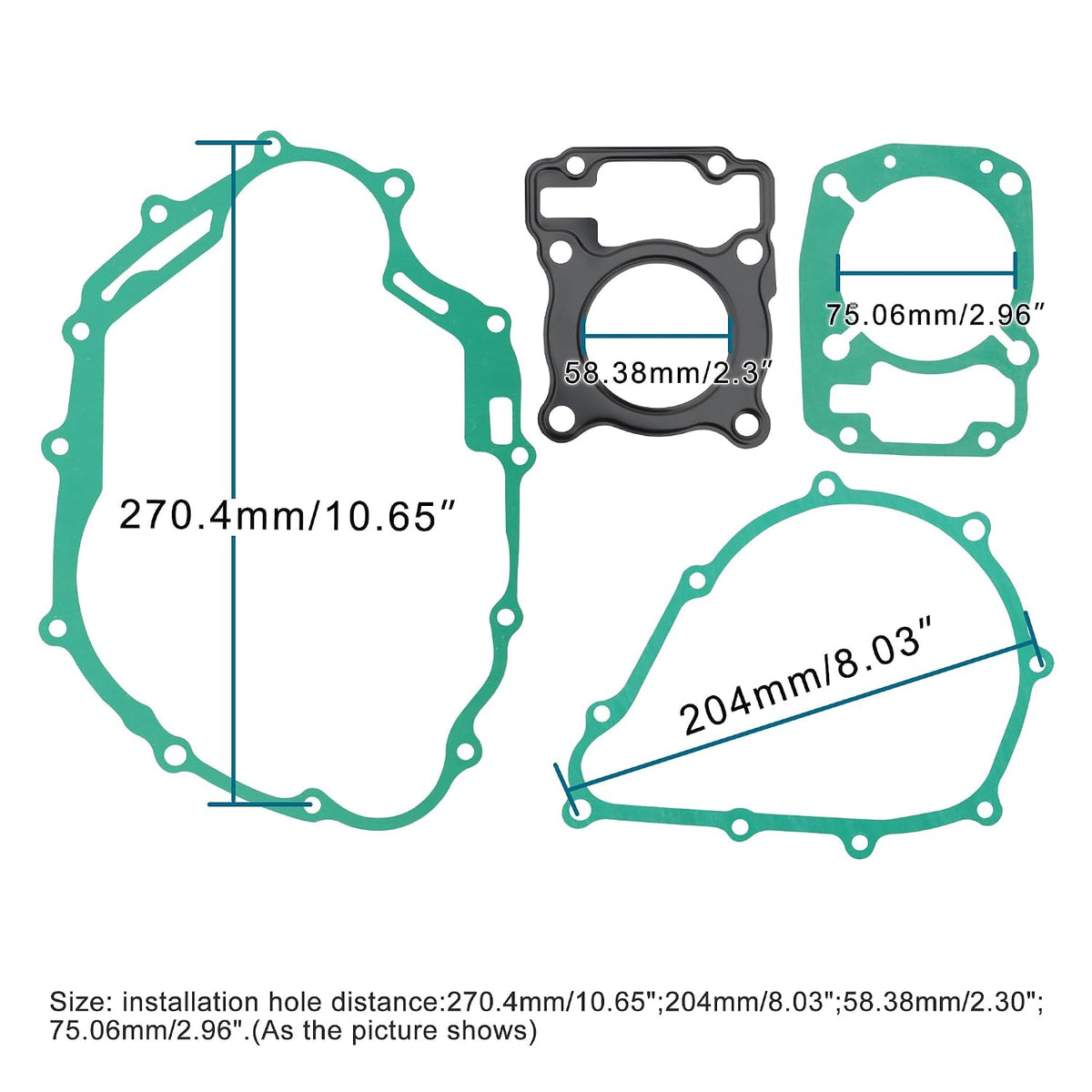

| Listed Dimension Reference 1 | Approx. 270.4 mm / 10.65 in |
| Listed Dimension Reference 2 | Approx. 204 mm / 8.03 in |
| Listed Dimension Reference 3 | Approx. 58.38 mm / 2.30 in |
| Listed Dimension Reference 4 | Approx. 75.06 mm / 2.96 in |
| Materials | Composite Fiber / Rubber-Coated Metal / Heat-Resistant Composite |
| Replacement Type | Aftermarket |
| Condition | New |
Key Features
- WH150-3 / WH150-3A Fitment: Designed for compatible Wuyang Honda Biaoying 150 applications.
- WH157FMJ-B Engine Reference: Provides a stronger fitment check than engine displacement alone.
- Complete Engine Gasket Set: Intended for compatible engine repair and rebuild work involving multiple sealing surfaces.
- Multiple Gasket Materials: Uses composite fiber, rubber-coated metal, and heat-resistant composite materials depending on gasket location.
- Dimension-Based Verification: Four listed size references help compare the kit with the original engine gasket layout.
Share
Fitment FAQ
Will this part fit my specific model and year?
This gasket kit is listed for Wuyang Honda WH150-3 and WH150-3A Biaoying 150 motorcycles.
Model year alone is less useful than confirming the WH150-3 / WH150-3A model code, WH157FMJ-B engine, and complete gasket layout.
Do I need to match the OEM part number?
No single verified OEM number is currently provided for the complete kit.
Instead, confirm:
WH150-3 or WH150-3A
WH157FMJ-B engine
Complete gasket layout
Bolt-hole locations
Oil and intake passage locations
Supplied dimensional references
What models or situations does this part not fit?
Do not assume this kit fits:
Every Chinese 150cc motorcycle
GY6 150cc scooter engines
Horizontal 150cc pit bike engines
Other 157FMJ-family engines with different crankcases or cylinder heads
Engines using different gasket shapes
Modified engines with non-standard cylinders or heads
A similar displacement or engine-code prefix does not guarantee compatibility.
What should I check before ordering?
Confirm:
Wuyang Honda WH150-3 / WH150-3A
WH157FMJ-B engine
Approx. 270.4mm
Approx. 204mm
Approx. 58.38mm
Approx. 75.06mm
Complete gasket shapes
Bolt-hole pattern
Oil-passage openings
Intake and exhaust gasket configuration
Original gasket layout
Compare the product image directly with the original gasket set before purchase.
