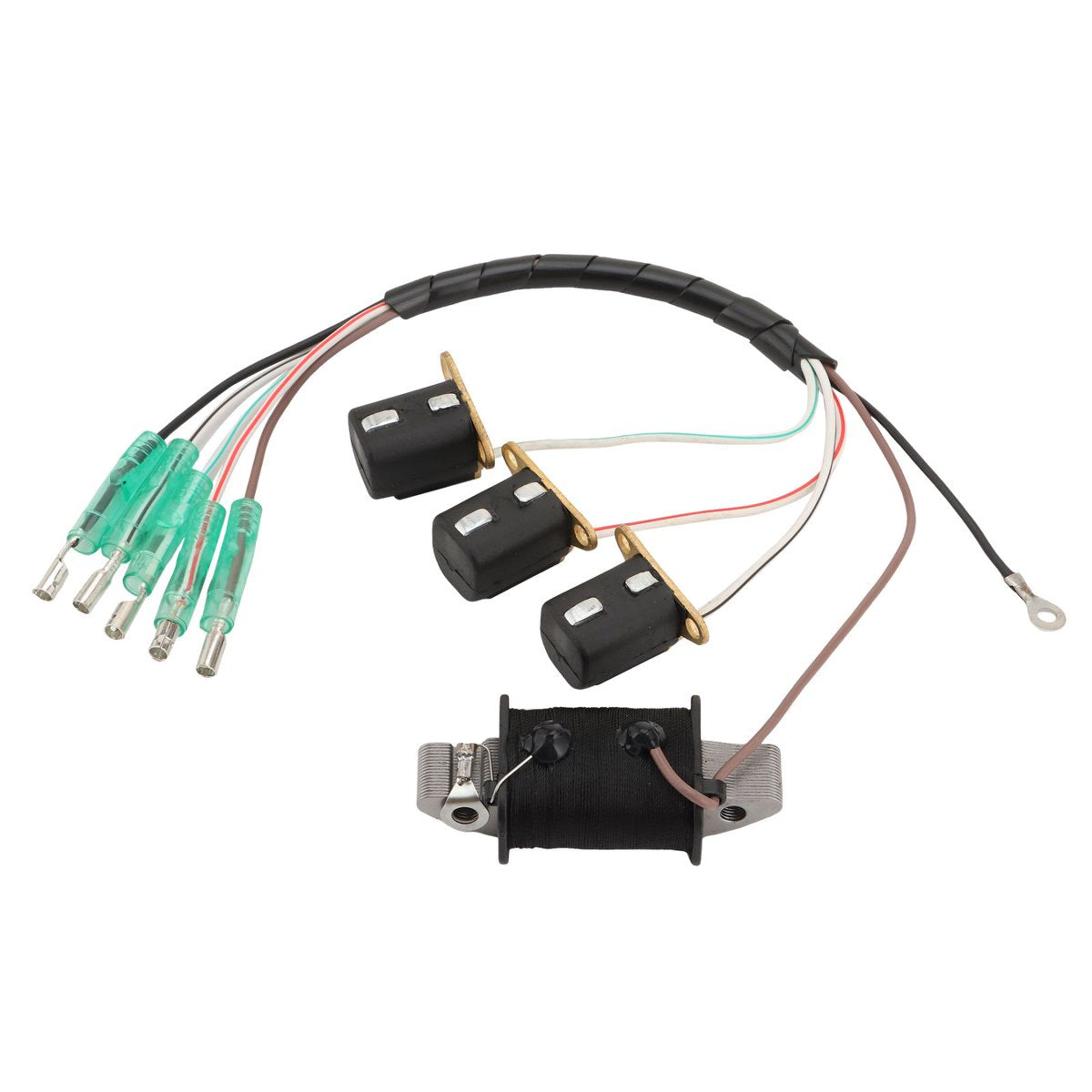

1993–2006 Yamaha 60HP 70HP 2-Stroke Outboard Charge Coil Kit 6H2-85520-10
1993–2006 Yamaha 60HP 70HP 2-Stroke Outboard Charge Coil Kit 6H2-85520-10
Couldn't load pickup availability
Product Overview
Replace weak, damaged, or failed ignition charging components with this charge coil kit, designed for select Yamaha 60HP and 70HP 2-stroke outboard engines using reference numbers 6H2-85520-10-00 and 6H2-85580.
The charge coil helps supply electrical energy for the outboard ignition system while the engine is running. If your Yamaha 60HP or 70HP 2-stroke outboard has no spark, weak spark, hard starting, intermittent ignition loss, poor running, or ignition-related failure, replacing the charge coil kit may help restore stable ignition performance.

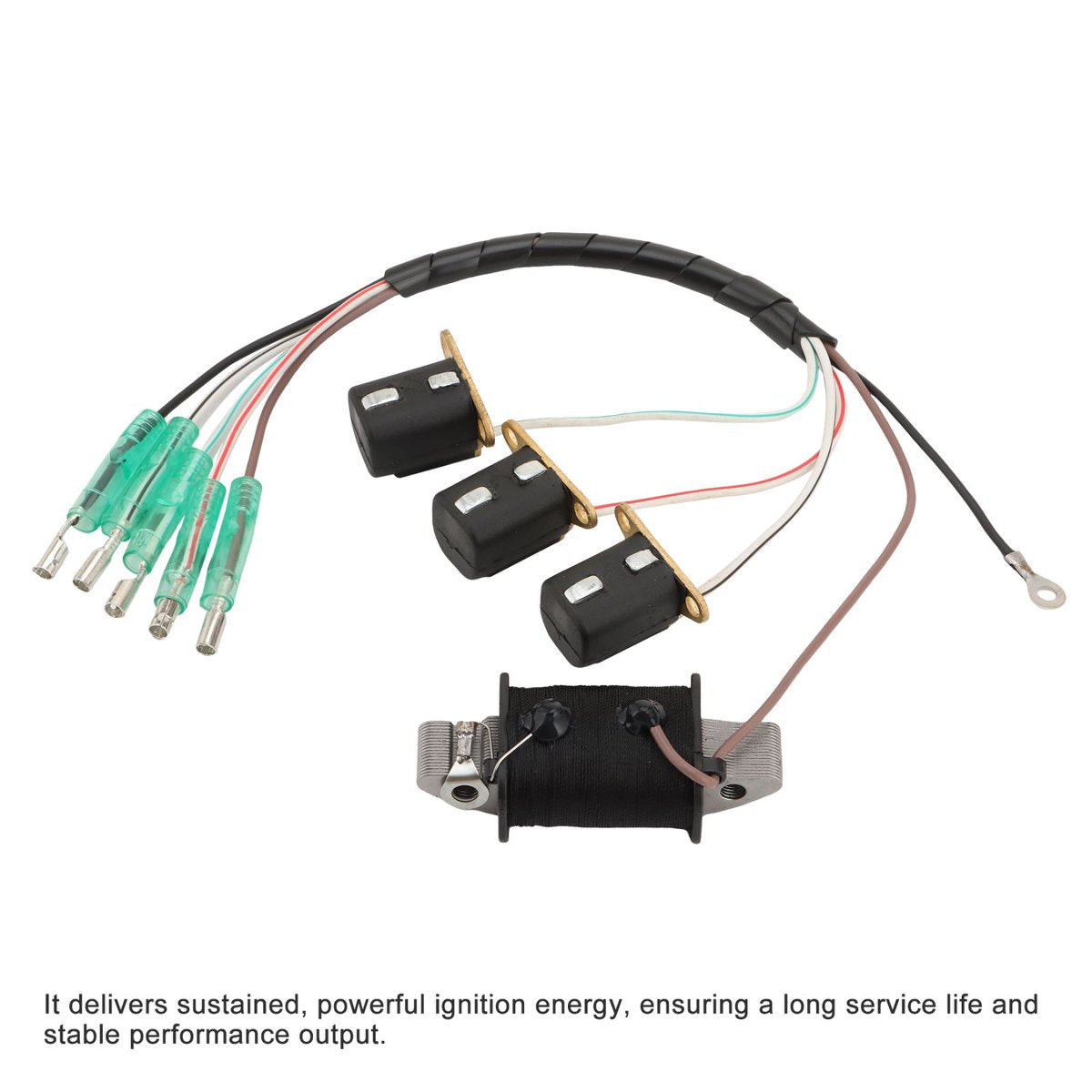

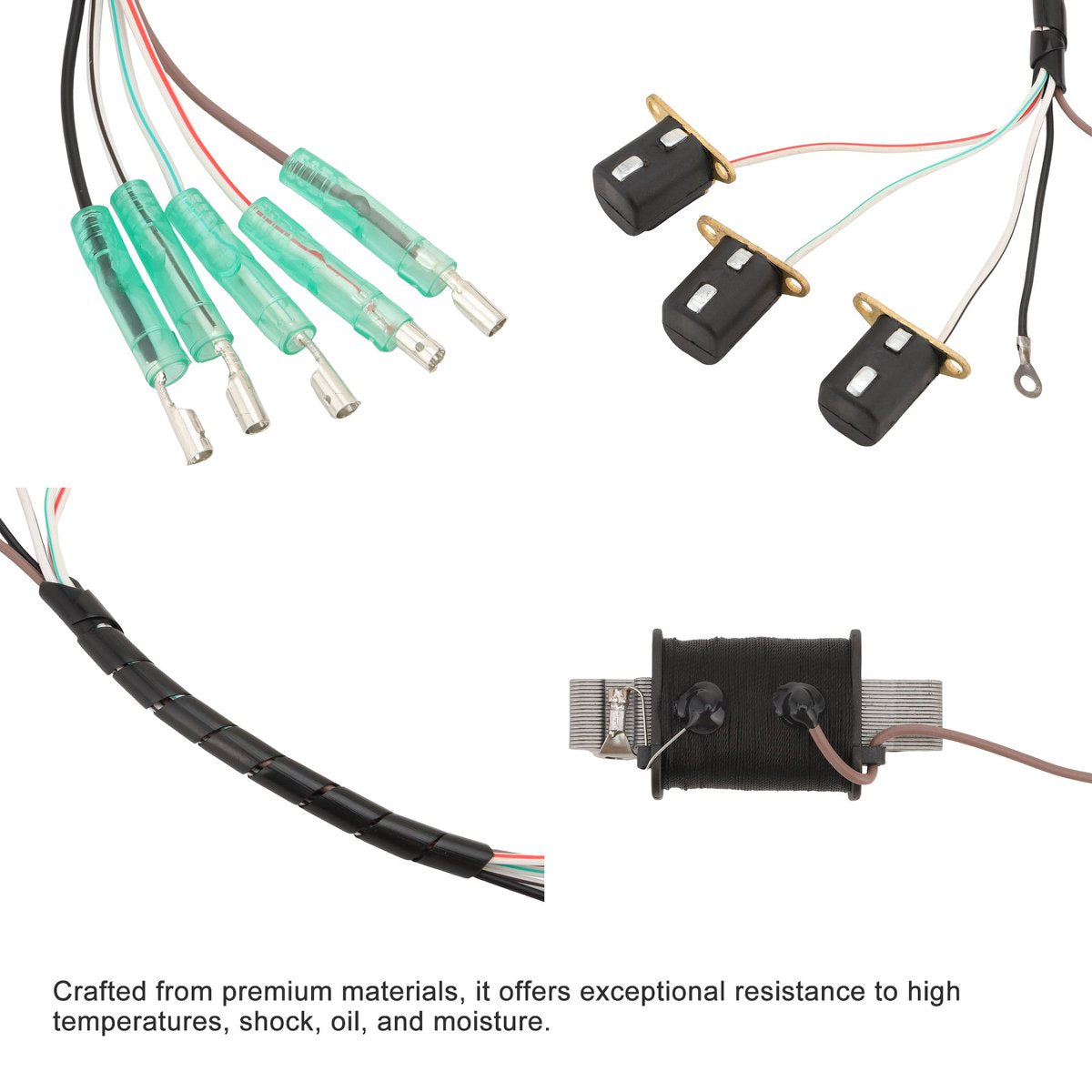

Built with premium materials for resistance to high temperature, shock, oil, and moisture, this replacement coil kit is designed for long service life and stable output in marine operating conditions. Please compare your original coil part number, mounting hole distance, connector layout, wire routing, and product photos before ordering.
Important: This product is a charge coil kit. It is not a complete stator assembly and does not include the aluminum housing base unless shown in the product photos.
Product Compatibility
| Make | Engine / Model | Engine Type | Year Range | OEM / Reference Number | Fitment Notes |
|---|---|---|---|---|---|
| Yamaha | 60HP Outboard | 2-Stroke / 2T | 1993–2006 | 6H2-85520-10-00 / 6H2-85580 | Main fitment; confirm original coil shape and connector layout |
| Yamaha | 70HP Outboard | 2-Stroke / 2T | 1993–2006 | 6H2-85520-10-00 / 6H2-85580 | Main fitment; verify mounting hole distance and wiring |
| Yamaha | 60HP / 70HP Boat Motor | 2-Stroke Outboard | Select applications | 6H2-85520-10-00 / 6H2-85580-10-00 | Match by original OEM number and product photos |
| Yamaha | C / P Series 60HP 70HP | 2-Stroke Outboard | Select applications | 6H2-85520-10-00 / 6H2-85580 | Possible listed application; verify exact engine model before ordering |
Important Fitment Note:
This part is not selected by horsepower alone. Yamaha 60HP and 70HP outboard engines may use different ignition coil components depending on year, market, ignition system, and engine code. Please confirm your original charge coil matches 6H2-85520-10-00 or 6H2-85580, and verify the mounting hole distance, connector style, wire routing, and overall shape before ordering.
Specifications
| Specification | Details |
| Product Type | Outboard Charge Coil Kit |
| Complete Stator Assembly | No |
| Aluminum Housing Base Included | No, unless shown in product photos |
| Compatible Brand | Yamaha |
| Engine Type | 2-Stroke / 2T Outboard Engine |
| Horsepower | 60HP / 70HP |
| Main Reference Number | 6H2-85520-10-00 |
| Additional Reference Number | 6H2-85580 / 6H2-85580-10-00 |

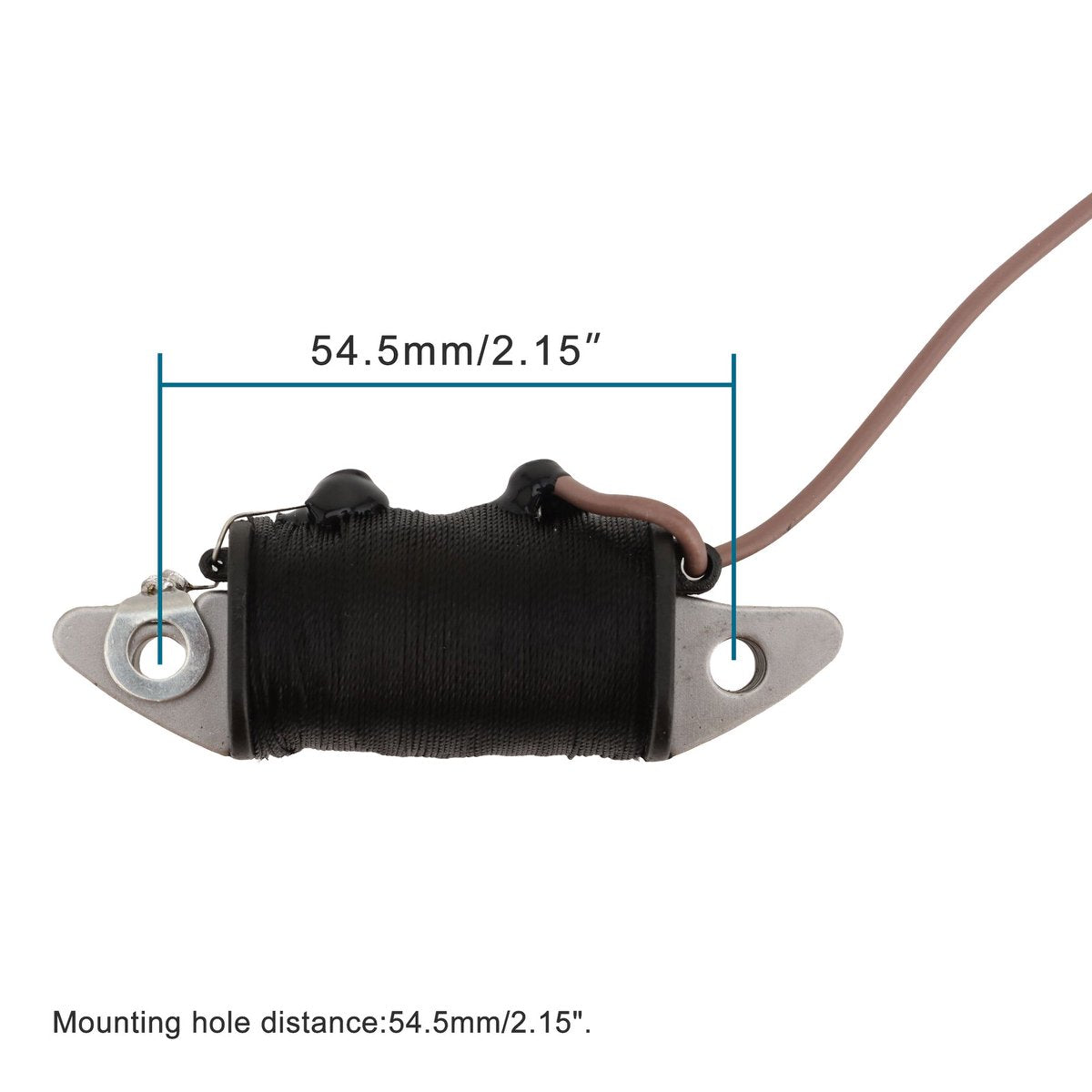

| Mounting Hole Distance | 54.5mm / 2.15" |
| Application | Marine Outboard Ignition System |
| Material Features | High-Temperature, Shock, Oil, and Moisture Resistance |
Key Features
- Designed for select Yamaha 60HP and 70HP 2-stroke outboard engines
- Replaces common references 6H2-85520-10-00 and 6H2-85580
- Helps support stable ignition energy output for smoother starting and running
- Helps address no spark, weak spark, hard starting, intermittent ignition loss, or ignition failure
- Built with materials resistant to high temperature, shock, oil, and moisture
- Designed for marine outboard operating conditions
- Direct replacement style, but original OEM number, mounting hole distance, connector layout, and product photos must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 6H2-85520-10-00 | Main Yamaha 60HP / 70HP 2-stroke outboard charge coil kit reference |
| 6H2-85520-10 | Short format of 6H2-85520-10-00 |
| 6H2855201000 | Compact format of 6H2-85520-10-00 |
| 6H2-85580 | Additional reference supplied for this kit |
| 6H2-85580-10-00 | Common full-format reference used on related charge coil set listings |
| 6H2855801000 | Compact format of 6H2-85580-10-00 |
Please use the OEM numbers together with physical dimensions and connector layout for fitment confirmation. If your original coil has a different mounting hole distance, connector style, wire routing, housing base, or overall shape, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This charge coil kit is designed for select Yamaha 60HP and 70HP 2-stroke outboard engines, commonly listed for 1993–2006 applications. Fitment may vary by year, market, and ignition system. Please compare your original coil reference number, mounting hole distance, connector layout, wire routing, and product photos before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM or reference number is strongly recommended. This kit is listed with 6H2-85520-10-00 and 6H2-85580. However, OEM number alone is not enough. Please also confirm the mounting hole distance, connector style, wire routing, and overall coil shape.
What models or situations does this part not fit?
This part does not fit Yamaha outboard engines that use a different charge coil, different connector layout, different mounting hole spacing, different aluminum housing base, or a different ignition system design. It is not a complete stator assembly and is not a replacement for the CDI, ignition coil, spark plug, regulator rectifier, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your outboard brand, horsepower, 2-stroke engine type, original coil reference number, mounting hole distance, connector shape, wire routing, housing/base style, and overall coil shape. For best fitment, compare the product photos and specifications with your original part before purchase.
