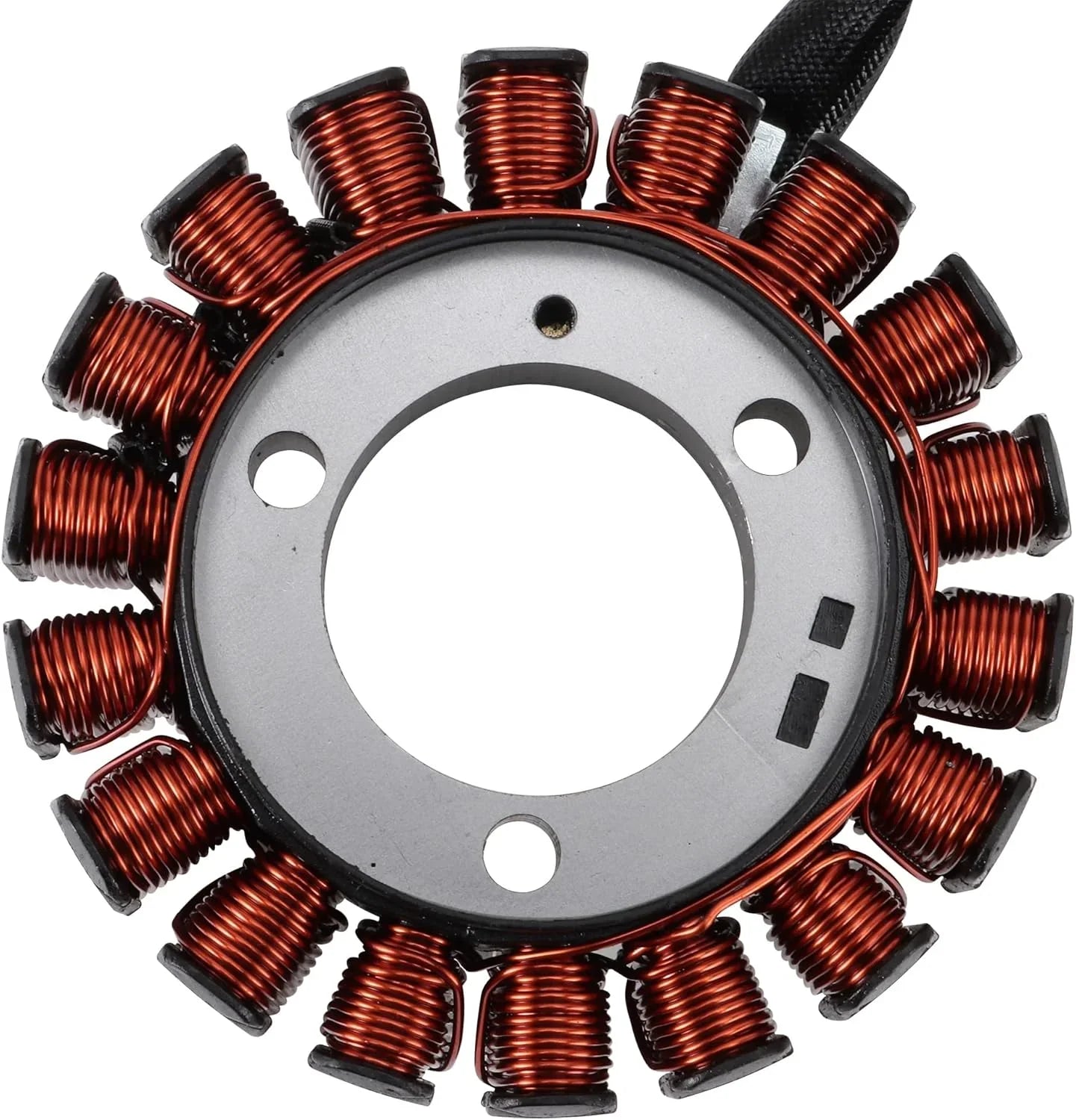

Yamaha FZ16 15 Coil Magneto Stator | Replaces 21C-H1410-00 / 54B-H1410-00
Yamaha FZ16 15 Coil Magneto Stator | Replaces 21C-H1410-00 / 54B-H1410-00
Couldn't load pickup availability
Product Overview
Restore reliable charging and ignition performance to your motorcycle with this 15 coil magneto stator, designed for selected Yamaha FZ16 applications.
Built to replace OEM 21C-H1410-00 / 54B-H1410-00, this unit helps solve common issues such as battery not charging, hard starting, weak spark, unstable voltage, and intermittent electrical failure.

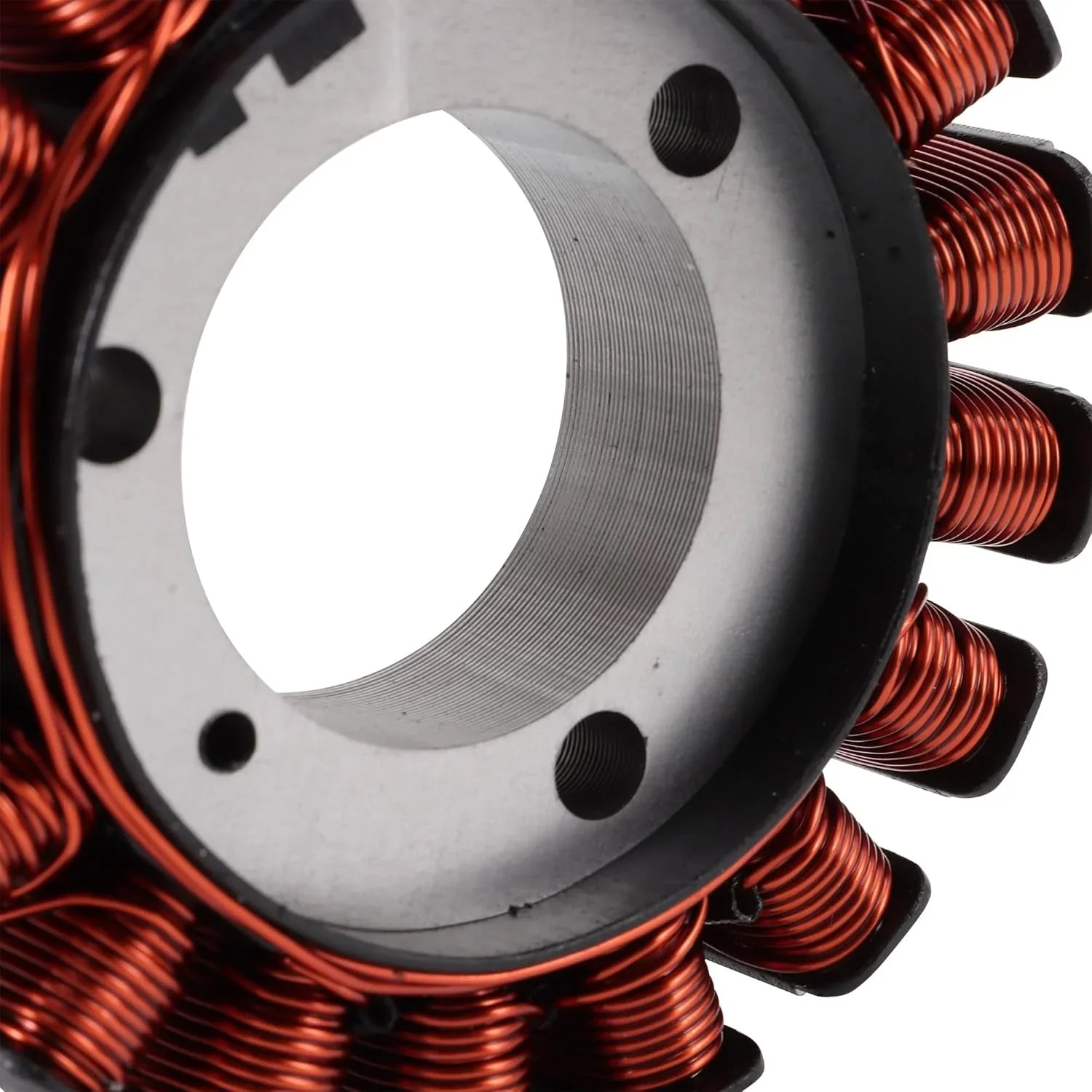

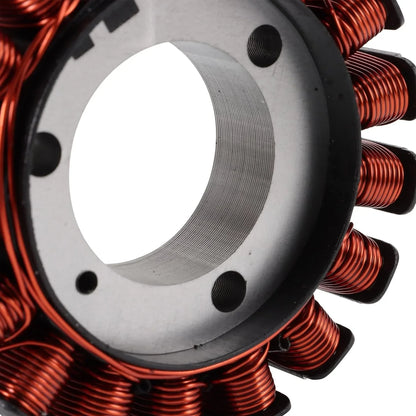

Manufactured with copper windings, full copper-clad steel wire, and an aluminum plate, it is designed to provide stable electrical output, reliable ignition performance, and long service life.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Yamaha | FZ16 150 (21C5) | 150cc | 2010 | OEM generator page shows 21C-H1410-00 |
| Yamaha | FZ16 / FZS variants | 150cc | Please verify | Parts-manual snippets show 54B-H1410-00 on later variants |
| Yamaha | FZ16 | 150cc | Please verify | Match by OEM number, connector style, and dimensions before purchase |
OEM Cross Reference:
21C-H1410-00, 54B-H1410-00

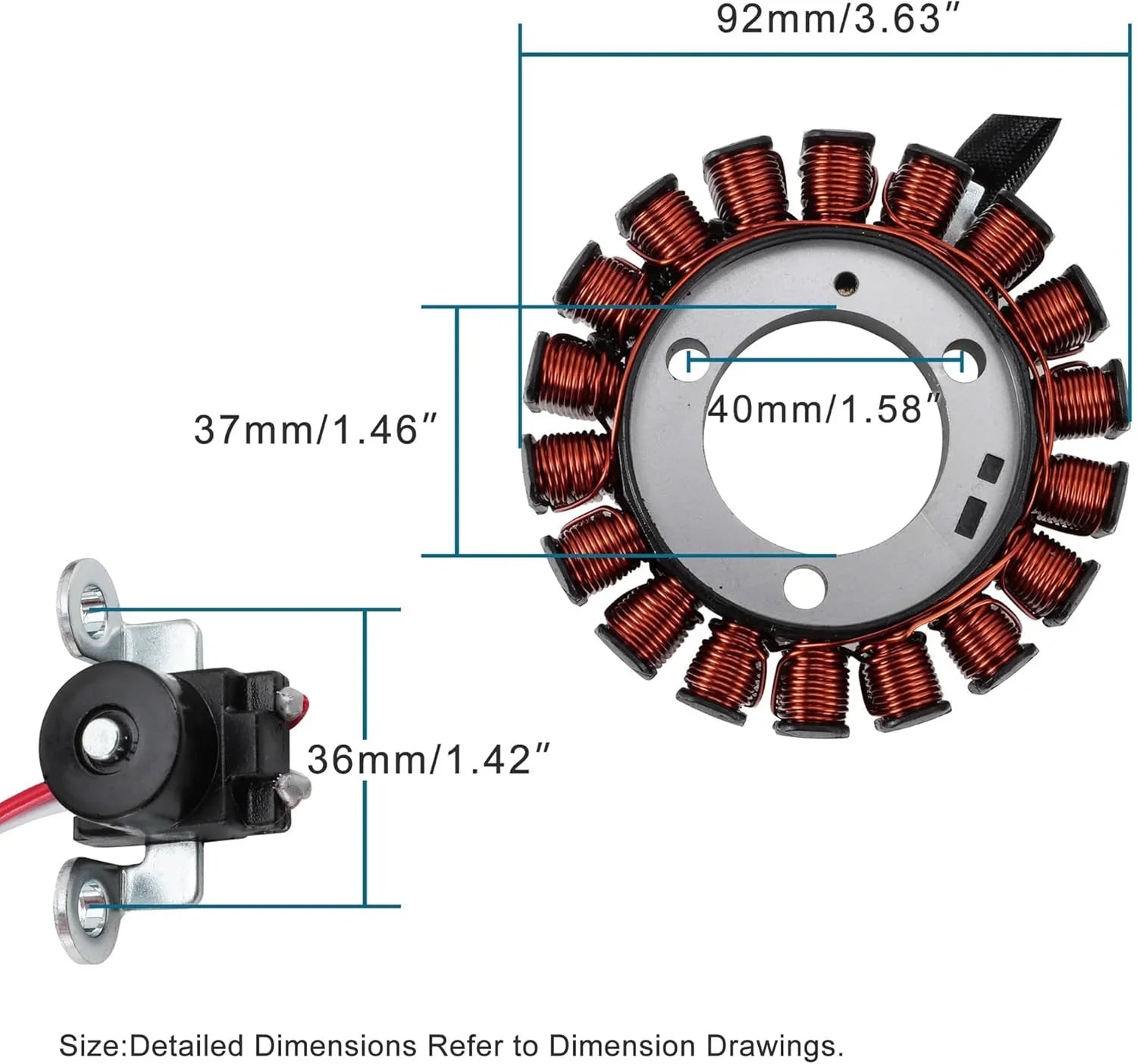

| Specification | Details |
|---|---|
| Part Type | Stator |
| Configuration | 15 Coil |
| Outer Diameter | 92 mm |
| Inner Diameter | 37 mm |
| Thickness | 17 mm |
| Connector Type | Please match with original part before ordering |
| Material | Copper winding / Copper-clad steel wire / Aluminum plate |
| Condition | 100% New Aftermarket |
Key Features
- Direct Replacement Design – Engineered to replace the original unit with matching fitment and function
- Reliable Electrical Performance – Helps restore stable charging and ignition output
- Durable Construction – Built for high heat resistance, flame retardancy, and long service life
- Plug-and-Play Installation – Designed for straightforward installation on compatible models
- Built for Daily Riding Use – Suitable for regular street and commuting motorcycle use
Common Problems This Part Can Help Solve
This product may help address issues such as:
- Battery not charging
- Weak or no spark
- Hard starting
- Intermittent electrical failure
- Overcharging or unstable voltage
- Poor ignition performance
Package Includes
1 × 15 Coil Magneto Stator
Fitment Note
Please confirm your OEM part number, connector style, stator dimensions, and vehicle model/year before ordering.
If you are unsure about compatibility, contact us with your model, year, OEM number, connector photos, and stator measurements before purchase.
Installation Note
Professional installation is recommended.
Before installation, inspect related components such as the battery, wiring harness, regulator/rectifier, flywheel, and charging system to avoid repeat failure caused by another faulty part.
Why Choose This Replacement
A failing stator can lead to charging issues, unstable voltage, weak ignition performance, and unreliable starting. Replacing it with a properly matched unit helps restore dependable electrical performance and keeps your Yamaha FZ16 ready for daily riding.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 2010. It is best matched to original part number(s) 21C-H1410-00, 54B-H1410-00. Key physical/spec details from the product data include Outer Diameter: 92 mm, Inner Diameter: 37 mm, Thickness: 17 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 21C-H1410-00, 54B-H1410-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha FZ16/H1410 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21C-H1410-00, 54B-H1410-00, treat the fitment as unconfirmed. Model years outside 2010 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21C-H1410-00, 54B-H1410-00. Recheck listed specs such as Outer Diameter: 92 mm, Inner Diameter: 37 mm, Thickness: 17 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
