Yamaha Grizzly 700 YFM700 Stator 2007–2015 | 28P-81410-01-00
Yamaha Grizzly 700 YFM700 Stator 2007–2015 | 28P-81410-01-00
Couldn't load pickup availability
Product Overview

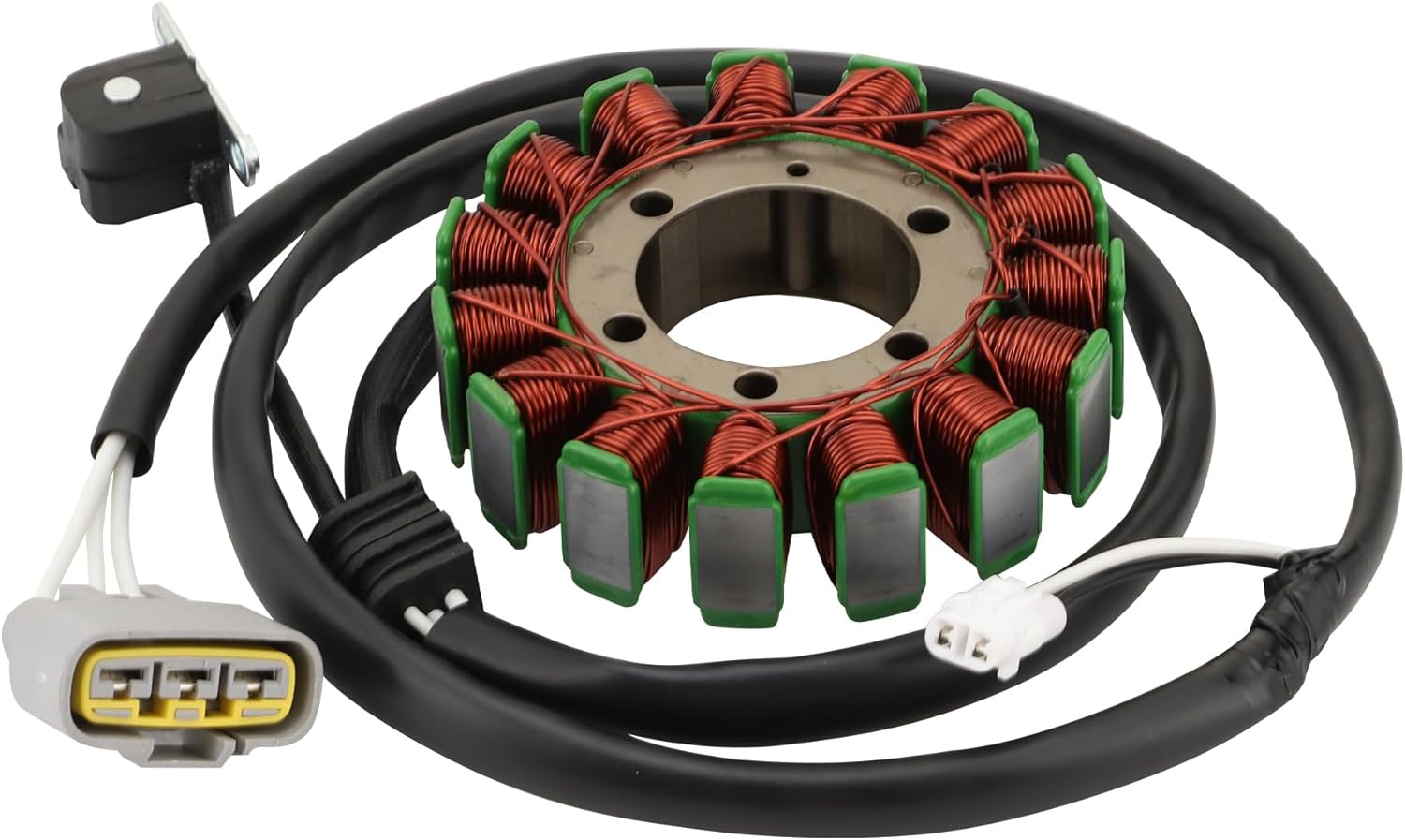

Restore reliable charging performance to your Yamaha Grizzly 700 ATV with this replacement generator magneto stator coil.
Designed to replace Yamaha OEM 28P-81410-01-00, 28P-81410-00-00, and 3B4-81410-00-00, this stator helps provide stable electrical output for the ATV charging system. It is a practical replacement for common stator-related issues such as weak battery charging, low voltage output, intermittent electrical failure, hard starting, or charging system instability.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range | OEM Reference |
|---|---|---|---|---|
| Yamaha | Grizzly 700 | YFM700FG 4WD FI | 2007–2015 | 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00 |
| Yamaha | Grizzly 700 EPS | YFM700FGP 4WD FI EPS / Power Steering | 2007–2015 | 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00 |
| Yamaha | Grizzly 700 Hunter Edition | YFM700FGH / YFM700FGPH | 2007–2015 | 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00 |
| Yamaha | Grizzly 700 Special Edition | YFM700FGPSE / SE listings | 2007–2015 | 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00 |
| Yamaha | Grizzly 700 Ducks Unlimited Edition | YFM700FGPDU | 2007–2008 | 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00 |
| Yamaha | Grizzly 700 Outdoorsman Edition | YFM700FGPOH | 2007 | 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00 |
| Yamaha | Grizzly 550 | YFM550FG 4WD FI | 2009–2014 | 28P-81410-01-00, 28P-81410-00-00 |
| Yamaha | Grizzly 550 EPS | YFM550FGP 4WD FI EPS | 2009–2014 | 28P-81410-01-00, 28P-81410-00-00 |
OEM Cross Reference
| OEM Part Number | Brand | Notes |
|---|---|---|
| 28P-81410-01-00 | Yamaha | Main replacement stator assembly number |
| 28P-81410-00-00 | Yamaha | Related / earlier stator reference |
| 3B4-81410-00-00 | Yamaha | Earlier stator number; superseded by 28P-81410-01-00 |
| 28P814100100 | Yamaha format | Same OEM number without dashes |
| 28P814100000 | Yamaha format | Same OEM number without dashes |
| 3B4814100000 | Yamaha format | Same OEM number without dashes |
Specifications
| Specification | Details |
|---|---|
| Product Type | Generator Magneto Stator Coil / Alternator Stator |
| Replacement OEM Numbers | 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00 |
| Outer Diameter | 105 mm / 4.13 in |
| Inner Diameter | 43 mm / 1.69 in |
| Iron Core Height | 22 mm / 0.86 in |
| Application | Yamaha Grizzly 700 / Grizzly 550 ATV charging system |

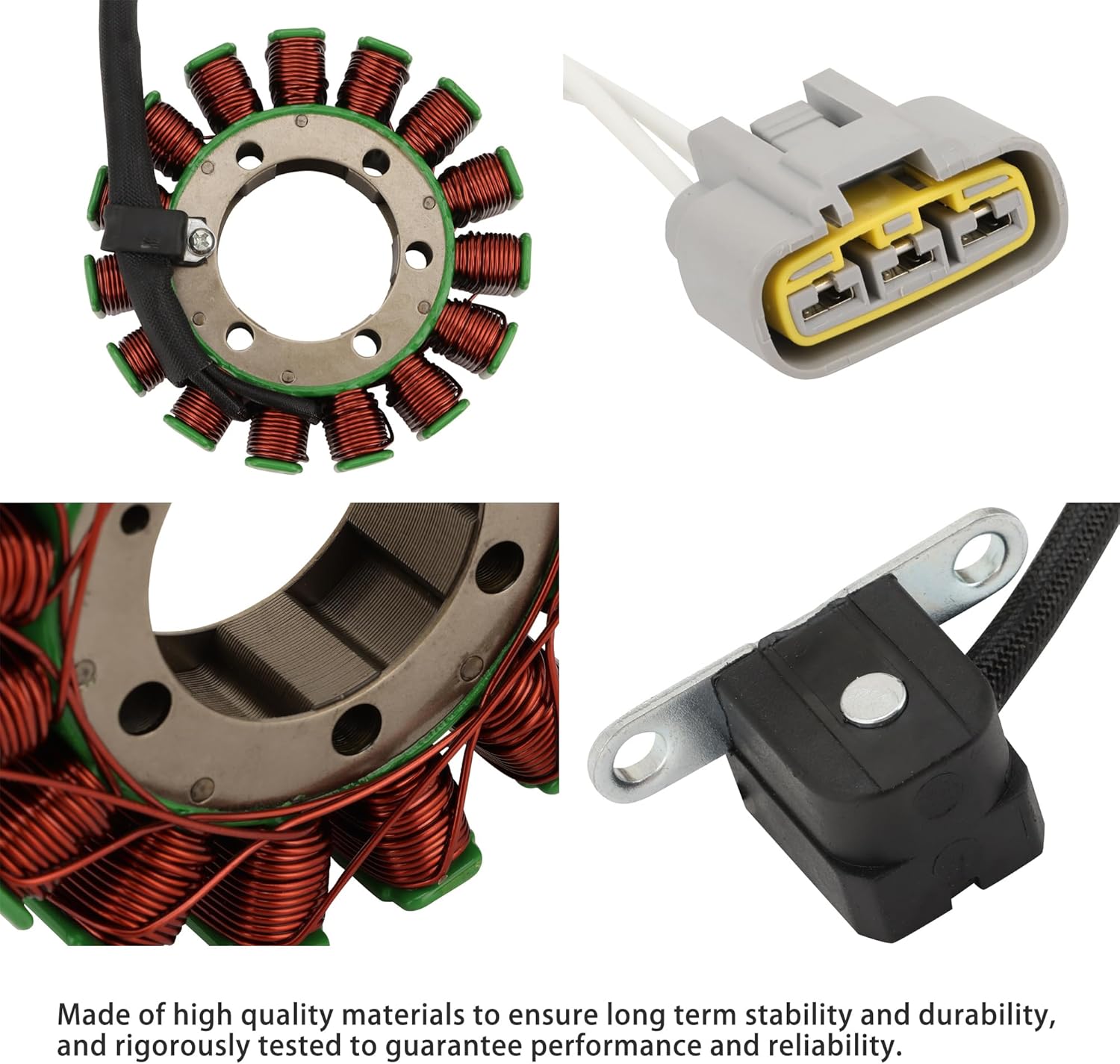

| Material | Copper windings with heat-resistant insulation |

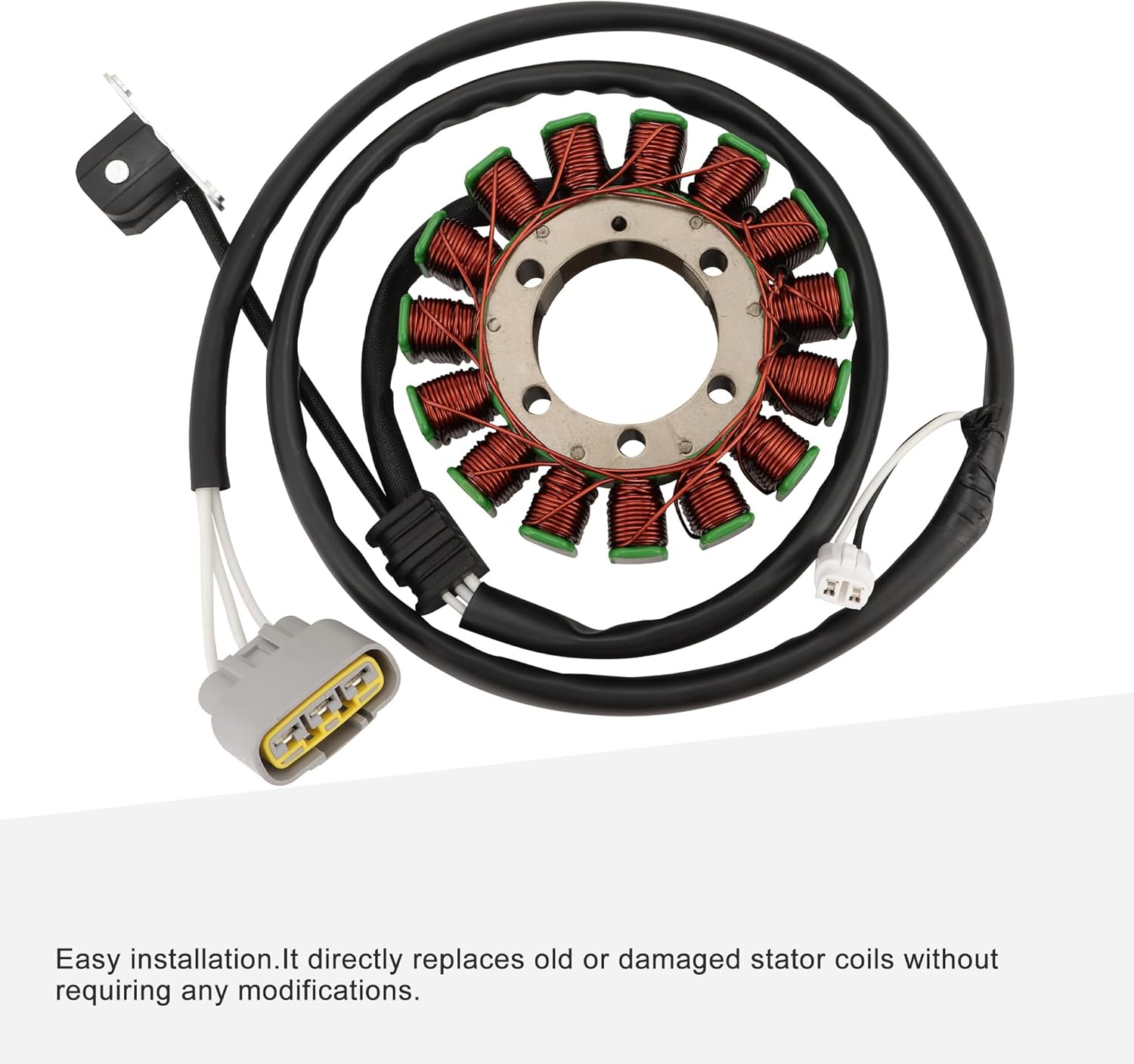

| Installation | Direct replacement; professional installation recommended |
Key Features
- Replaces Yamaha stator assembly 28P-81410-01-00, 28P-81410-00-00, and 3B4-81410-00-00
- Designed for Yamaha Grizzly 700 YFM700 4WD FI / EPS applications
- Also fits selected Yamaha Grizzly 550 YFM550 models when OEM number matches
- Helps restore stable battery charging and electrical system output
- Copper winding construction supports consistent generator performance
- Heat-resistant insulation helps improve durability under ATV operating temperatures
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for OEM Reference; Yamaha; Grizzly 700; YFM700FG 4WD FI; 2007–2015; 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00. It is best matched to original part number(s) 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00. Key physical/spec details from the product data include Outer Diameter: 105 mm / 4.13 in, Inner Diameter: 43 mm / 1.69 in, Iron Core Height: 22 mm / 0.86 in. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha Grizzly/YFM700 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00, treat the fitment as unconfirmed. Model years outside 2007–2015, 2007–2008, 2009–2014, 2007, 2015 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 28P-81410-01-00, 28P-81410-00-00, 3B4-81410-00-00. Recheck listed specs such as Outer Diameter: 105 mm / 4.13 in, Inner Diameter: 43 mm / 1.69 in, Iron Core Height: 22 mm / 0.86 in. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
