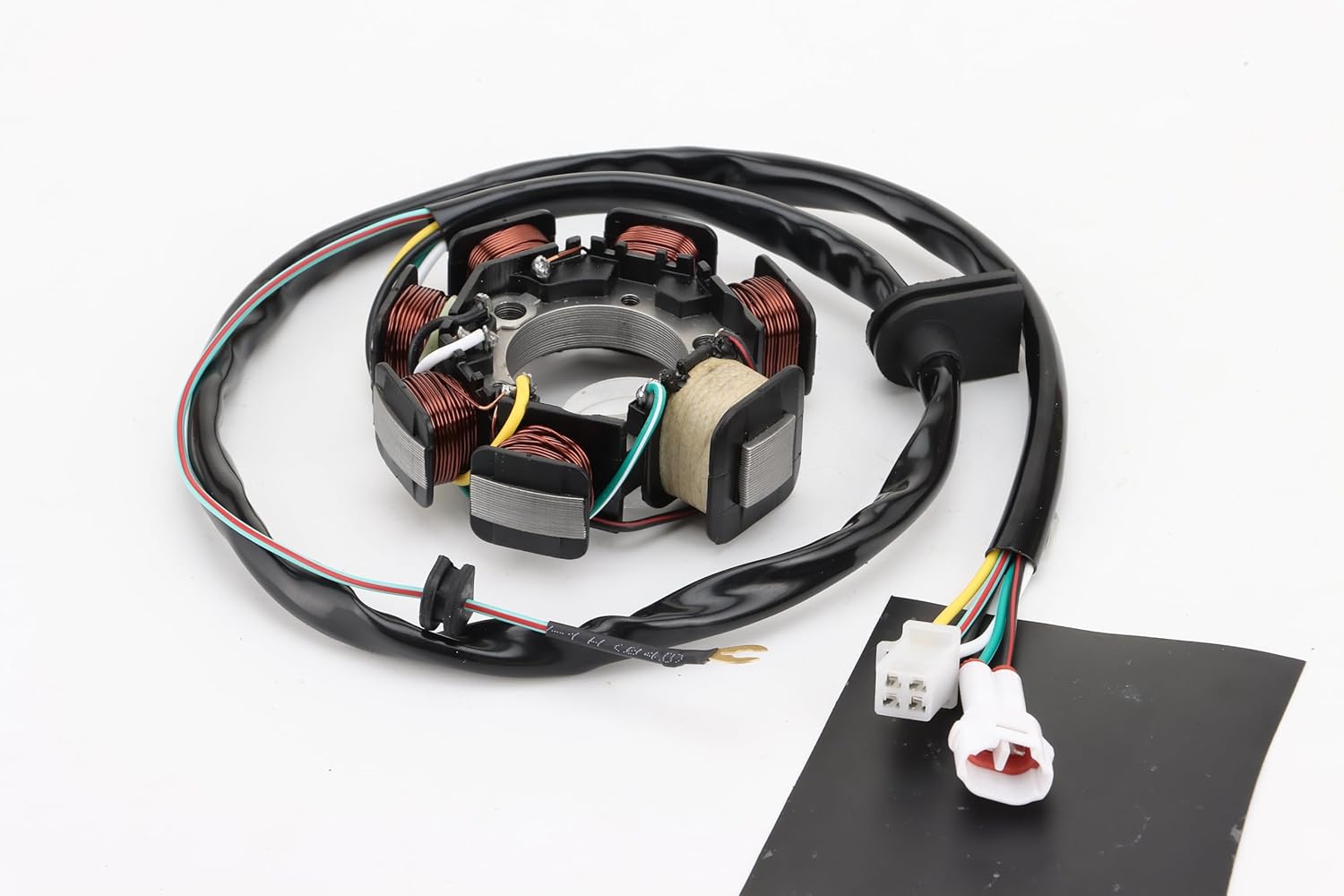

Yamaha DT125 DT125R 7 Coil Magneto Stator 1999–2003 | 3RM-85560-00
Yamaha DT125 DT125R 7 Coil Magneto Stator 1999–2003 | 3RM-85560-00
Couldn't load pickup availability
Product Overview
Restore reliable ignition and charging performance with this 7 coil magneto stator, designed for selected Yamaha DT125 and DT125R motorcycles from 1999 to 2003.
Built to replace 3RM-85560-00 / 3RM-85560-01, this stator helps solve common electrical issues such as weak or no spark, hard starting, unstable voltage, poor charging output, and intermittent ignition failure.
Made with high-quality copper wire and a durable iron core, this stator is designed to provide stable ignition energy, reliable power output, and long service life under regular motorcycle riding conditions.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Yamaha | DT125 | 125cc | 1999–2003 | Verify OEM number, connector style, and stator dimensions before purchase |
| Yamaha | DT125R | 125cc | 1999–2003 | Verify OEM number, connector style, and stator dimensions before purchase |
OEM Cross Reference:
3RM-85560-00, 3RM-85560-01
Specifications
| Specification | Details |
|---|---|
| Part Type | Magneto Stator Coil / Generator Stator Coil |
| Configuration | 7 Coil |
| Outer Diameter | 92 mm / 3.62" |
| Inner Diameter | 37 mm / 1.46" |
| Core Height | 10 mm / 0.39" |
| OEM Replacement | 3RM-85560-00 / 3RM-85560-01 |
| Material | Copper wire / Iron core |
| Function | Ignition and charging system support |
| Installation | Direct replacement on correctly matched applications |
| Fitment Method | Match by OEM number, stator size, connector style, and original part layout |
| Condition | 100% New Aftermarket |
Key Features
- 7 Coil Stator Design – Helps provide stable ignition energy and power output
- OEM-Style Replacement – Designed to replace Yamaha stator references 3RM-85560-00 / 3RM-85560-01
- Stable Ignition Support – Helps improve spark stability and starting reliability
- Durable Copper Wire Construction – Built for excellent conductivity and long service life
- Iron Core Design – Supports stable magnetism and consistent electrical performance
- Direct Replacement Style – Designed for straightforward installation when connector and dimensions match
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 1999–2003, 1999, 2003. It is best matched to original part number(s) 3RM-85560-00, 3RM-85560-01. Key physical/spec details from the product data include Outer Diameter: 92 mm / 3.62", Inner Diameter: 37 mm / 1.46", Core Height: 10 mm / 0.39". Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 3RM-85560-00, 3RM-85560-01 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha DT125/DT125R models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 3RM-85560-00, 3RM-85560-01, treat the fitment as unconfirmed. Model years outside 1999–2003, 1999, 2003 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 3RM-85560-00, 3RM-85560-01. Recheck listed specs such as Outer Diameter: 92 mm / 3.62", Inner Diameter: 37 mm / 1.46", Core Height: 10 mm / 0.39". If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
