Yamaha Outboard 115HP C115 Stator 6E5-85510-01-00
Yamaha Outboard 115HP C115 Stator 6E5-85510-01-00
Couldn't load pickup availability
Product Overview

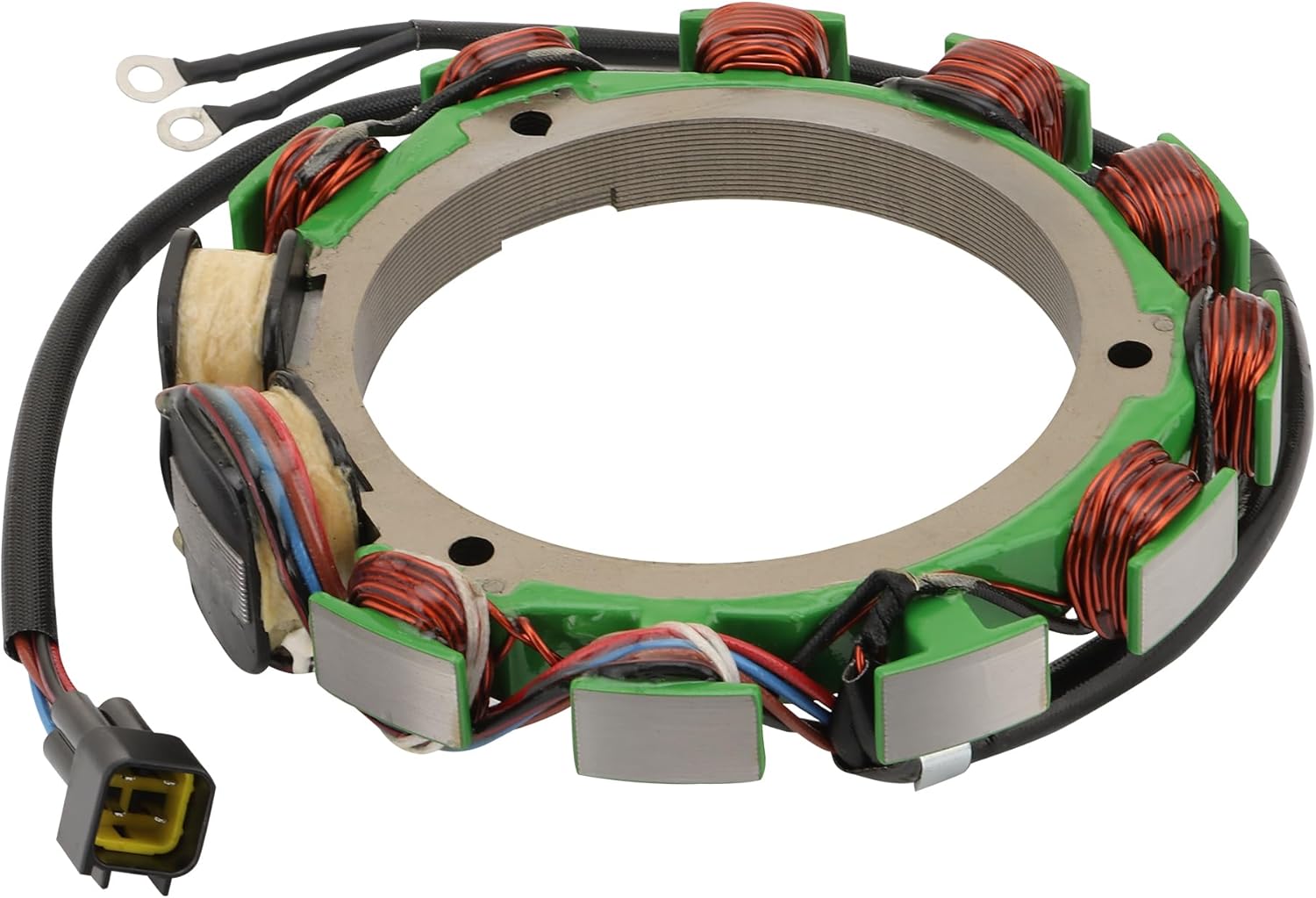

Restore reliable charging and ignition support to your Yamaha outboard motor with this replacement magneto stator coil.
Designed to replace Yamaha OEM 6E5-85510-01-00, this stator assembly helps provide stable electrical output for the outboard ignition and charging system. It is a practical replacement for common stator-related issues such as weak spark, hard starting, unstable electrical output, poor charging performance, or ignition system failure.

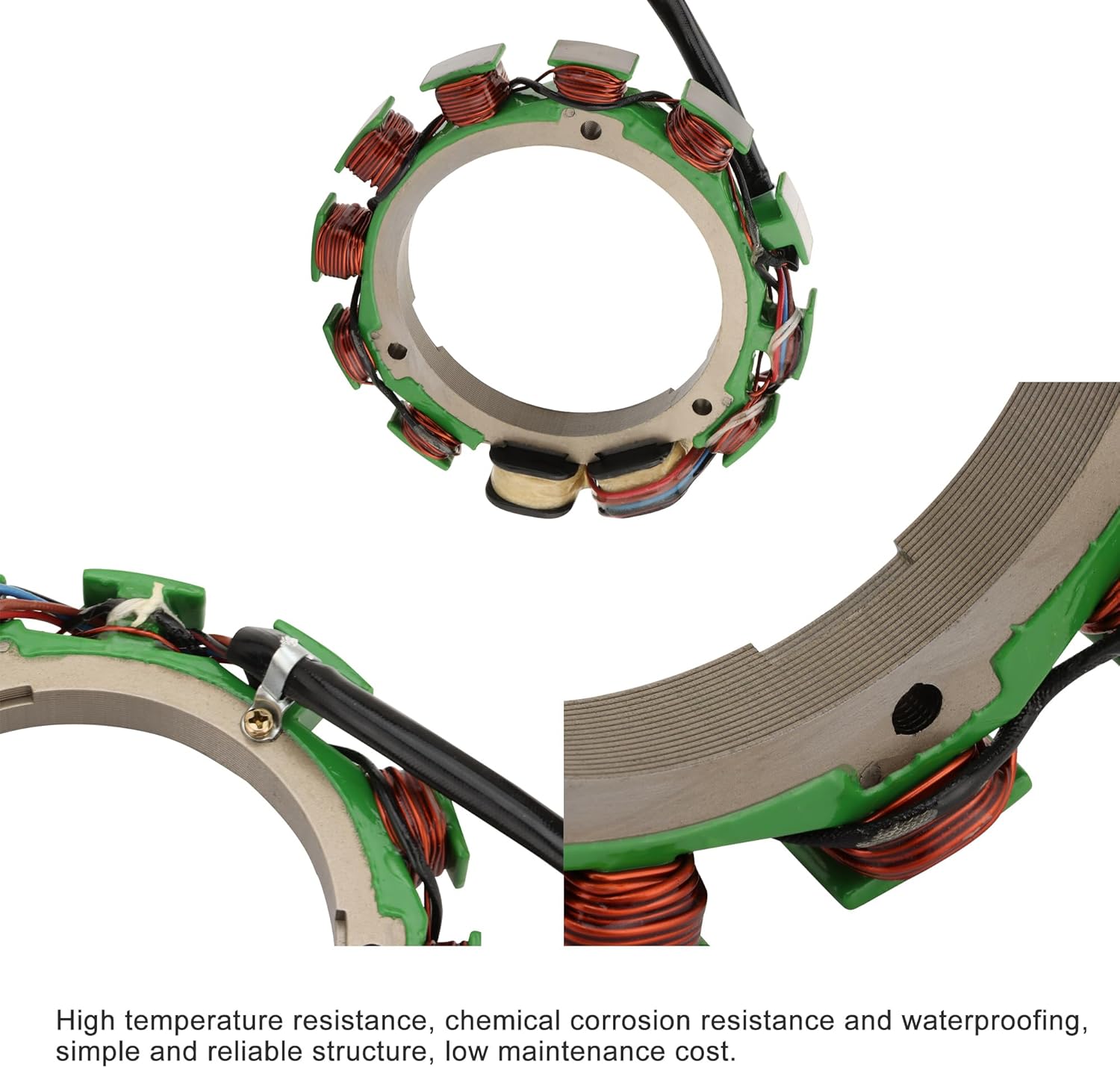

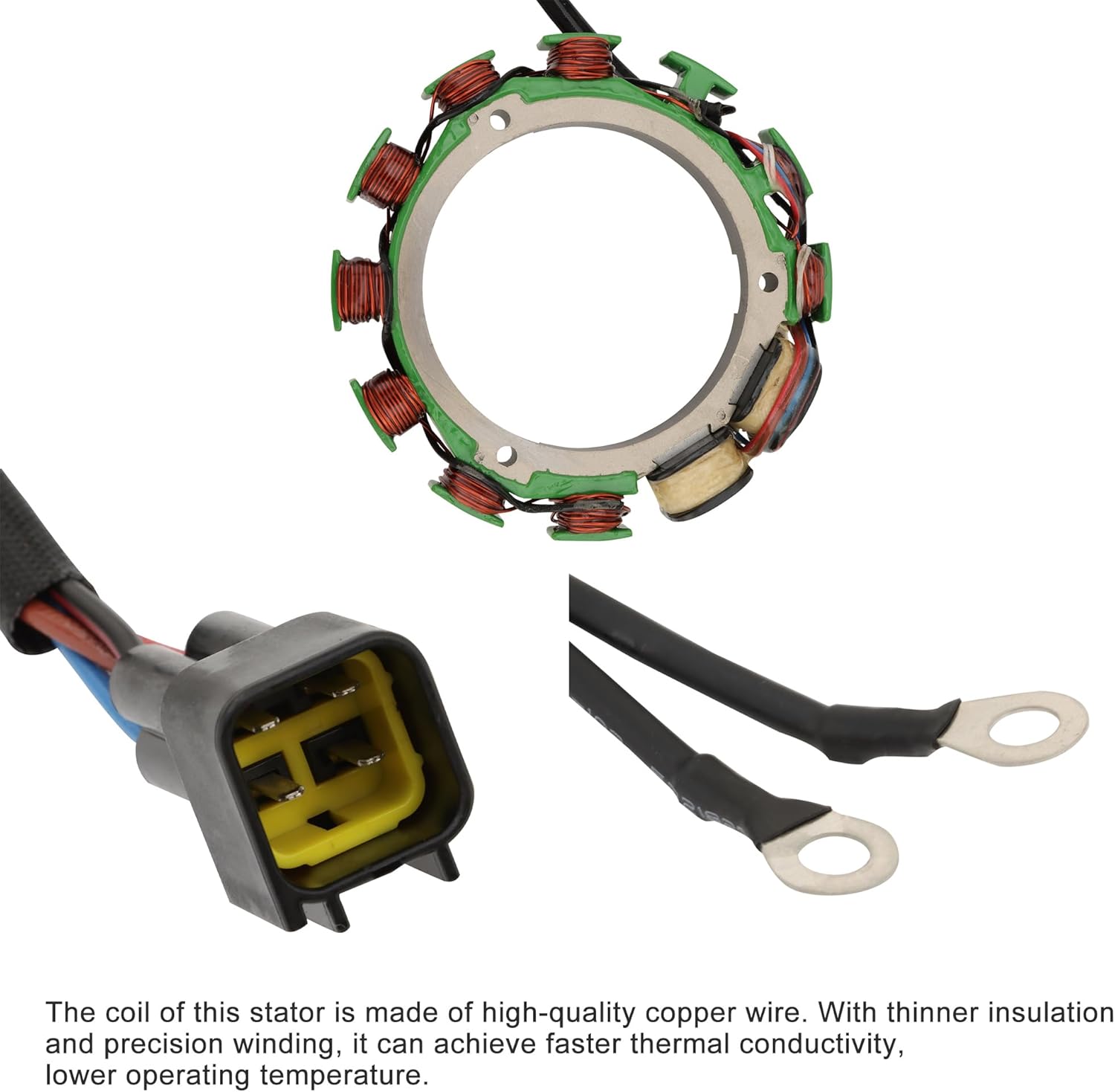

Built with quality copper windings and heat-resistant insulation, this stator is designed for marine operating conditions where heat, moisture, vibration, and corrosion resistance are important.
Product Compatibility
| Brand | Engine / Model | Sub-Model / Notes | Year Range | OEM Reference |
|---|---|---|---|---|
| Yamaha | 115HP Outboard | 2-stroke / 4-cylinder applications; verify by OEM number | 1997–1999 | 6E5-85510-01-00 |
| Yamaha | C115 | C115TLRW and related C115 applications; verify by parts diagram | 1997–1999 | 6E5-85510-01-00 |
| Yamaha | 115B | 6E5 series; verify before purchase | Please verify | 6E5-85510-01-00 |
| Yamaha | 115BET | 6E5 series; verify before purchase | Please verify | 6E5-85510-01-00 |
OEM Cross Reference
| OEM Part Number | Brand | Notes |
|---|---|---|
| 6E5-85510-01-00 | Yamaha | Stator assembly / magneto stator |
| 6E5-85510-00-00 | Yamaha | Earlier / superseded stator reference in some parts diagrams |
| 6E5855100000 | Yamaha | Superseded OEM format listed by Defender Marine |
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil / Outboard Stator Assembly |
| Replacement OEM Number | 6E5-85510-01-00 |
| Application | Yamaha outboard ignition / charging system |

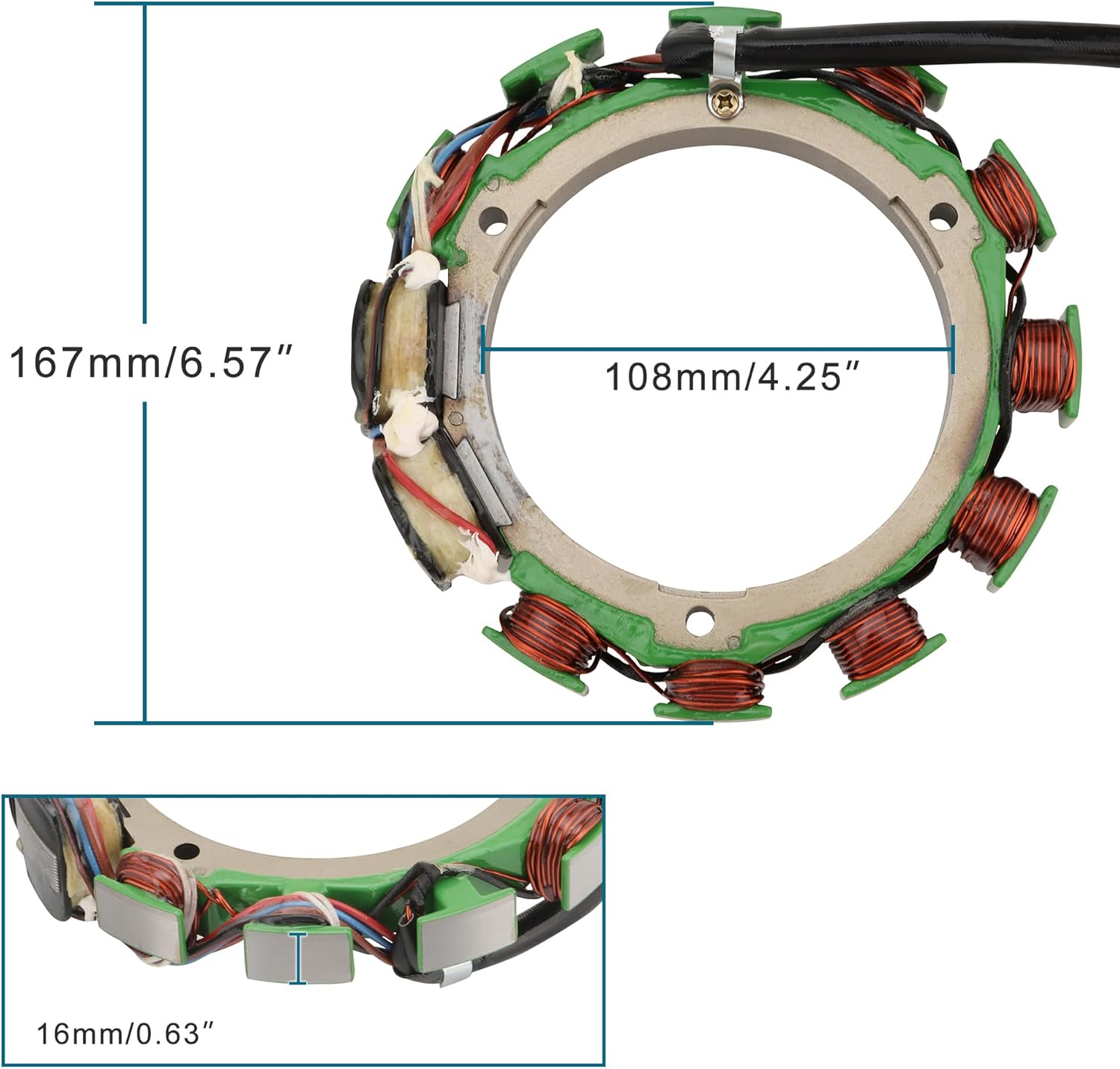

| Outer Diameter | 167 mm / 6.57 in |
| Inner Diameter | 108 mm / 4.25 in |
| Core Height | 16 mm / 0.63 in |
| Material | Copper windings with heat-resistant insulation |
| Operating Environment | Marine / outboard engine use |
| Installation | Professional installation recommended |
Key Features
- Replaces Yamaha OEM stator number 6E5-85510-01-00
- Designed for compatible Yamaha 115HP / C115 outboard applications
- Helps restore stable ignition and charging system output
- Built for marine use with heat-resistant and moisture-resistant construction
- Copper winding design supports consistent electrical generation
- Suitable for replacing a worn, shorted, or unstable original stator assembly
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha Outboard 115HP C115 Stator 6E5-85510-01-00. Listed year information includes 1997–1999, 1997, 1999. It is best matched to original part number(s) 6E5-85510-01-00, 6E5-85510-00-00. Key physical/spec details from the product data include Outer Diameter: 167 mm / 6.57 in, Inner Diameter: 108 mm / 4.25 in, Core Height: 16 mm / 0.63 in. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 6E5-85510-01-00, 6E5-85510-00-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha C115 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 6E5-85510-01-00, 6E5-85510-00-00, treat the fitment as unconfirmed. Model years outside 1997–1999, 1997, 1999 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 6E5-85510-01-00, 6E5-85510-00-00. Recheck listed specs such as Outer Diameter: 167 mm / 6.57 in, Inner Diameter: 108 mm / 4.25 in, Core Height: 16 mm / 0.63 in. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
