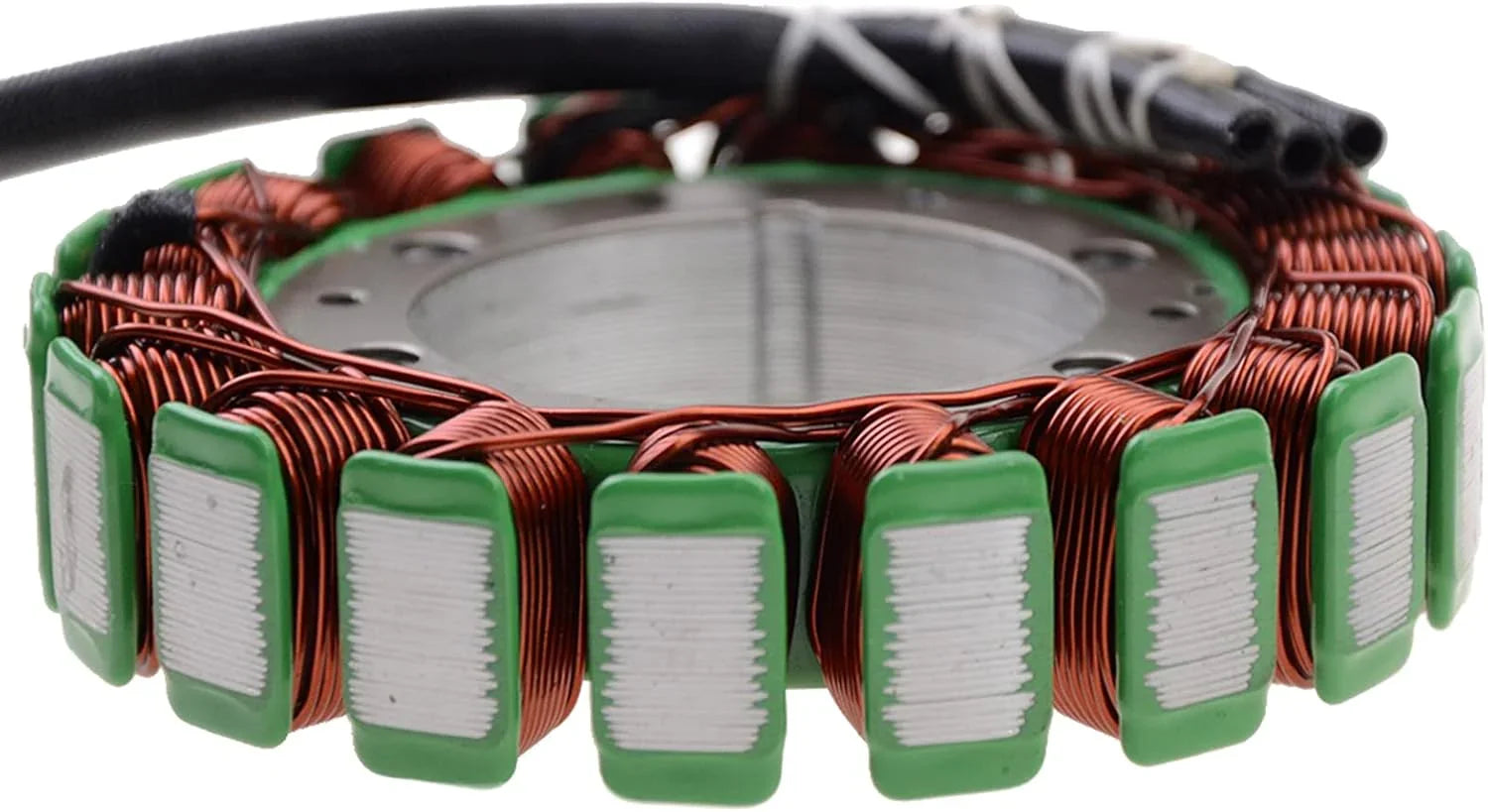

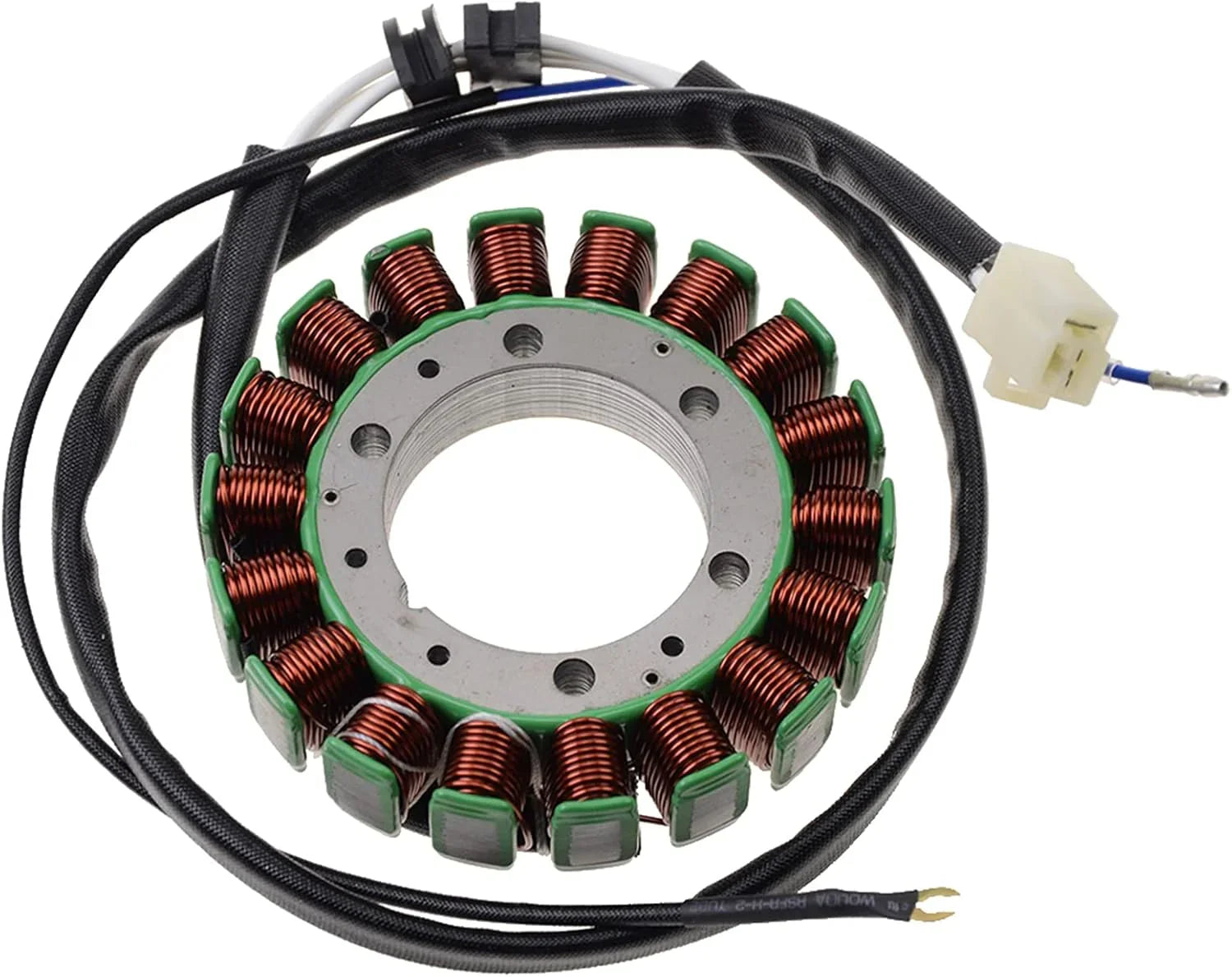

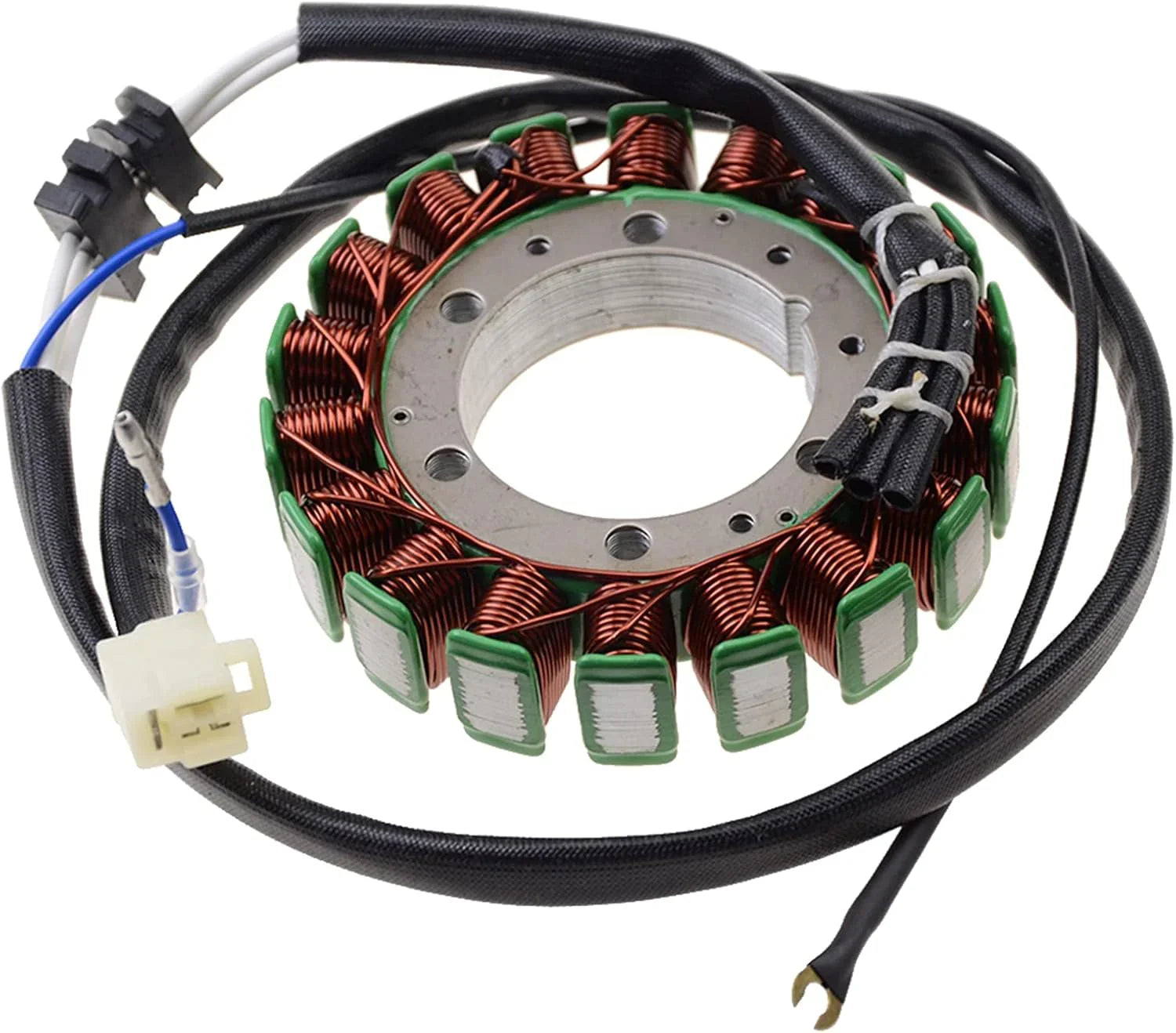

Yamaha XV700 XV750 XV1100 Virago 18 Coil 3-Wire Magneto Stator | Replaces 4PP-81410-00-00
Yamaha XV700 XV750 XV1100 Virago 18 Coil 3-Wire Magneto Stator | Replaces 4PP-81410-00-00
Couldn't load pickup availability
Product Overview
Restore reliable charging and ignition performance to your motorcycle with this 18 coil 3-wire magneto stator, designed for selected Yamaha Virago XV700, XV750, and XV1100 applications.
Built to replace OEM 4PP-81410-00-00, this unit helps solve common issues such as battery not charging, hard starting, weak spark, unstable voltage, and intermittent electrical failure.
Manufactured with premium replacement-grade materials, this stator is designed to provide stable electrical output, reliable ignition performance, and long service life.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Yamaha | Virago XV700 | 700cc | 1986–1987 | Includes XV700CS / CSC / SS / SSC / CT / CTC variants |
| Yamaha | Virago XV750 | 750cc | 1988–1997 | Includes XV750UC / WC / AC / B / D / DC / E / EC / F / G / H1 / HC1 / J1 / JC1 variants |
| Yamaha | Virago XV1100 | 1100cc | 1986–1999 | Includes XV1100S / SC / T / U / UC / W / WC / A / AC / BC / D / DC / E / EC / F / FC / G / GC / H / HC / J / JC / K / KC / L / LC and Special variants |
OEM Cross Reference:
4PP-81410-00-00, 1RM-81410-20-00, 1TA-81410-20-00
Specifications
| Specification | Details |
|---|---|
| Part Type | Magneto Stator |
| Configuration | 18 Coil |
| Number of Wires | 3 |

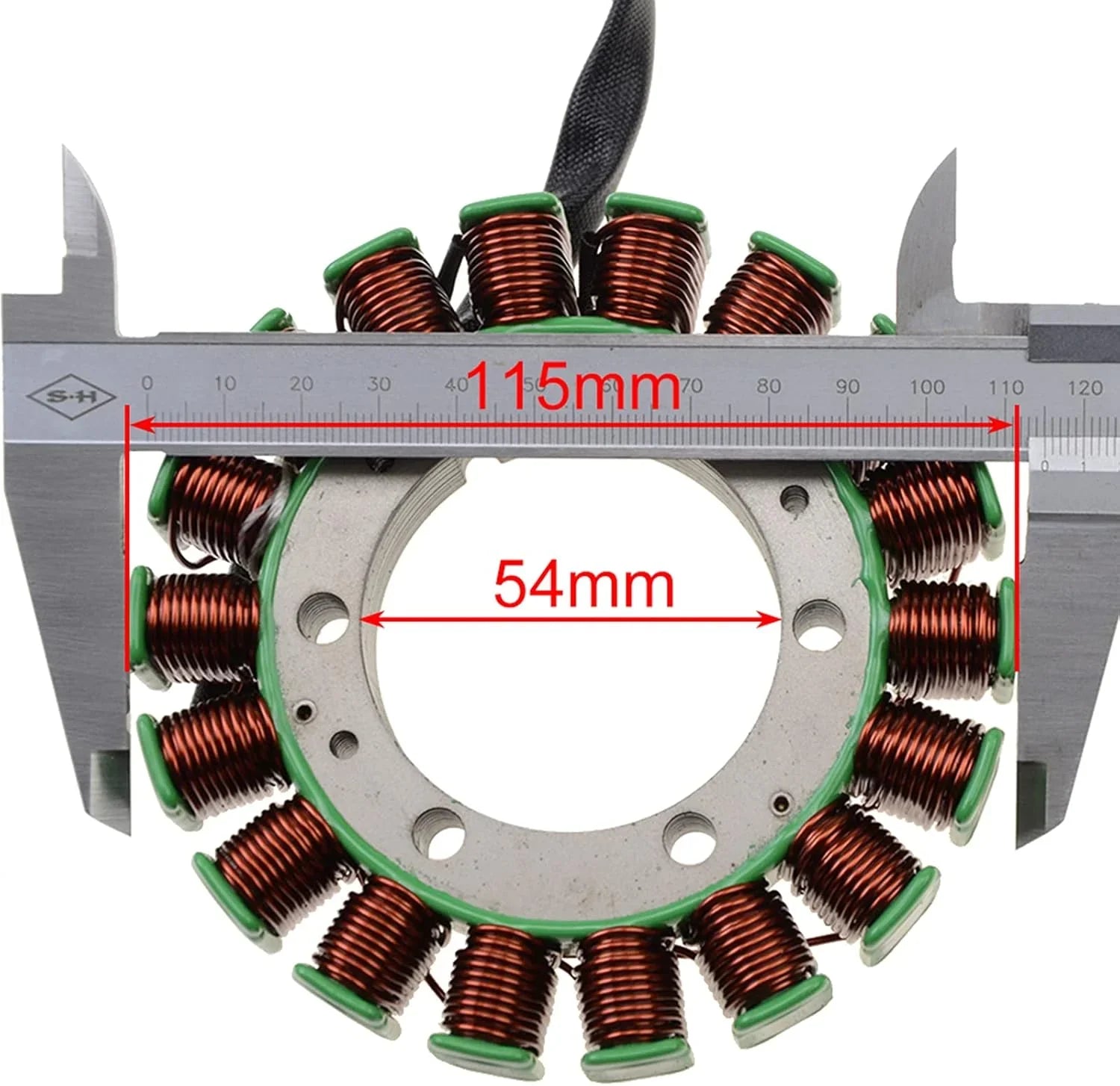

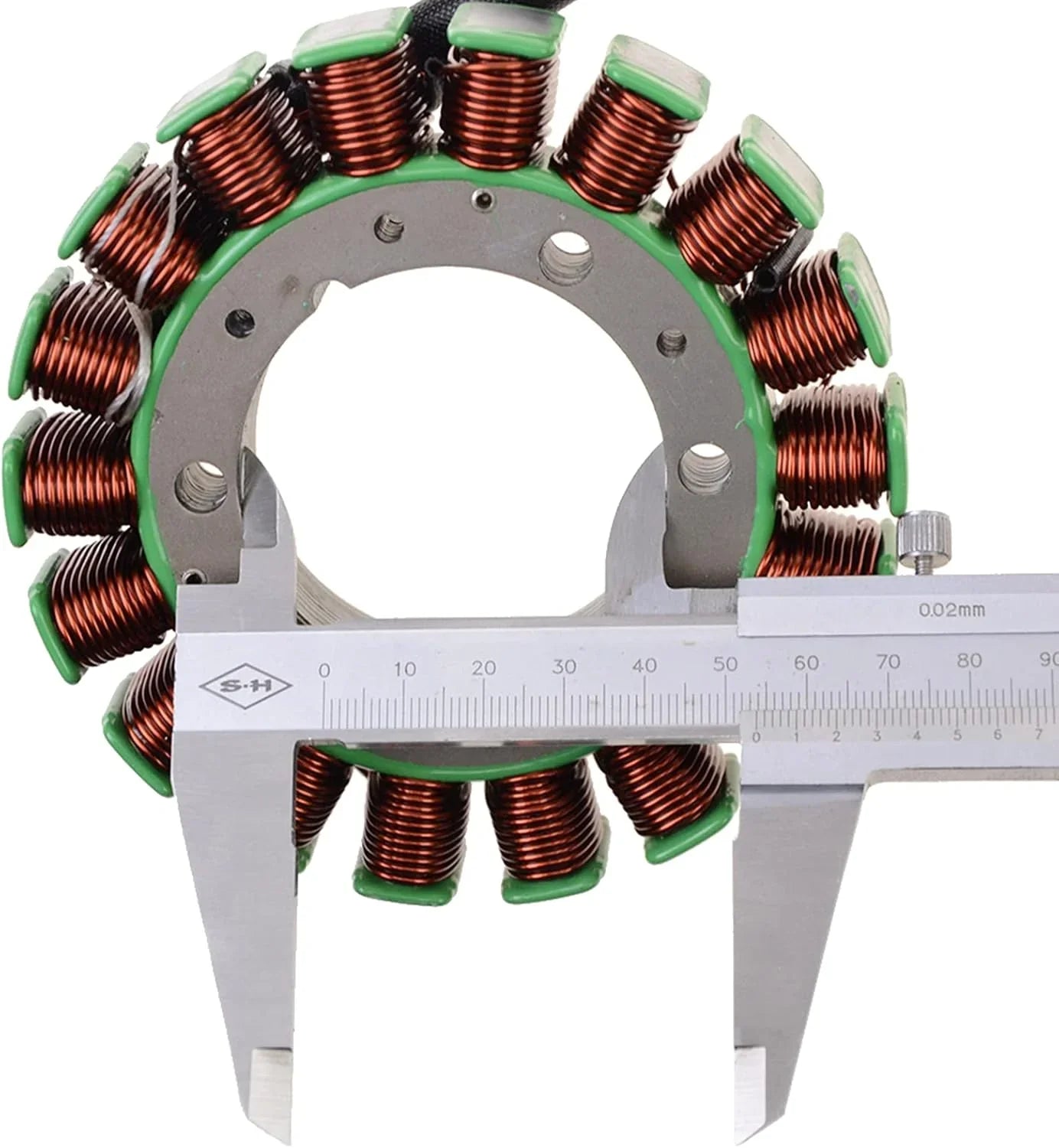

| Outer Diameter | 115 mm |
| Inner Diameter | 54 mm |

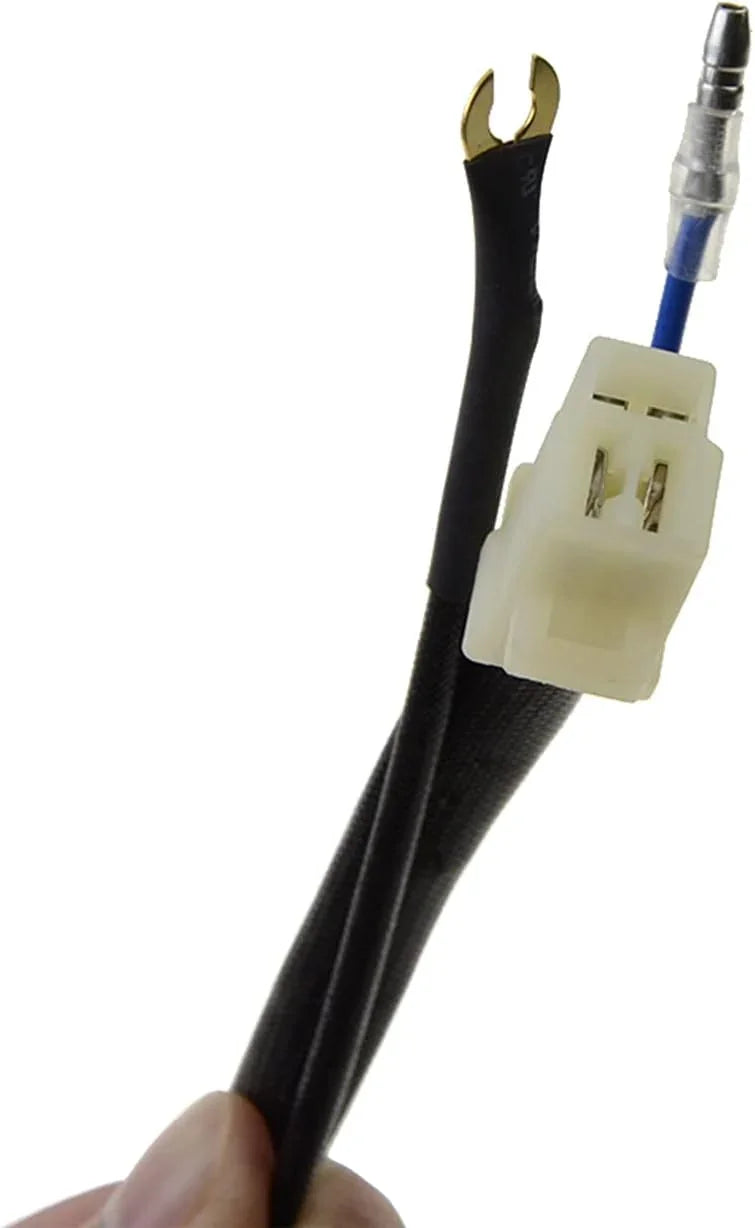

| Connector Type | Please match with original part before ordering |
| Material | High-grade aftermarket replacement construction |
| Condition | 100% New Aftermarket |
Key Features
- 18 Coil / 3-Wire Design – Helps provide stable electrical output for the charging and ignition system
- Direct OEM-Style Replacement – Designed to replace Yamaha stator family 4PP-81410-00-00
- Reliable Charging Performance – Helps restore dependable charging-system operation
- Durable Construction – Built for long-term service life in street-riding conditions
- Straightforward Installation – Practical replacement for correctly matched Virago applications
Common Problems This Part Can Help Solve
This product may help address issues such as:
- Battery not charging
- Weak or no spark
- Hard starting
- Intermittent electrical failure
- Unstable charging output
- Poor ignition performance
Package Includes
1 × Magneto Stator Coil
Fitment Note
Please confirm your OEM part number, connector style, stator dimensions, and vehicle model/year before ordering.
If you are unsure about compatibility, contact us with your model, year, OEM number, connector photos, and stator measurements before purchase.
Installation Note
Professional installation is recommended.
Before installation, inspect related components such as the battery, wiring harness, regulator/rectifier, flywheel, and charging system to avoid repeat failure caused by another faulty part.
Why Choose This Replacement
A failing stator can lead to charging issues, unstable voltage, weak ignition performance, and unreliable starting. Replacing it with a properly matched unit helps restore dependable electrical performance and keeps your Yamaha Virago ready for consistent riding.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 1986–1987, 1988–1997, 1986–1999, 1986, 1987. It is best matched to original part number(s) 4PP-81410-00-00, 1RM-81410-20-00, 1TA-81410-20-00. Key physical/spec details from the product data include Outer Diameter: 115 mm, Inner Diameter: 54 mm, 700cc. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 4PP-81410-00-00, 1RM-81410-20-00, 1TA-81410-20-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha XV700/XV750/XV1100 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 4PP-81410-00-00, 1RM-81410-20-00, 1TA-81410-20-00, treat the fitment as unconfirmed. Model years outside 1986–1987, 1988–1997, 1986–1999, 1986, 1987 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 4PP-81410-00-00, 1RM-81410-20-00, 1TA-81410-20-00. Recheck listed specs such as Outer Diameter: 115 mm, Inner Diameter: 54 mm, 700cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
