1997–2004 Yamaha XVS650 V-Star Drag Star Custom 18-Coil Stator 2GV-81410-20
1997–2004 Yamaha XVS650 V-Star Drag Star Custom 18-Coil Stator 2GV-81410-20
Couldn't load pickup availability
Product Overview

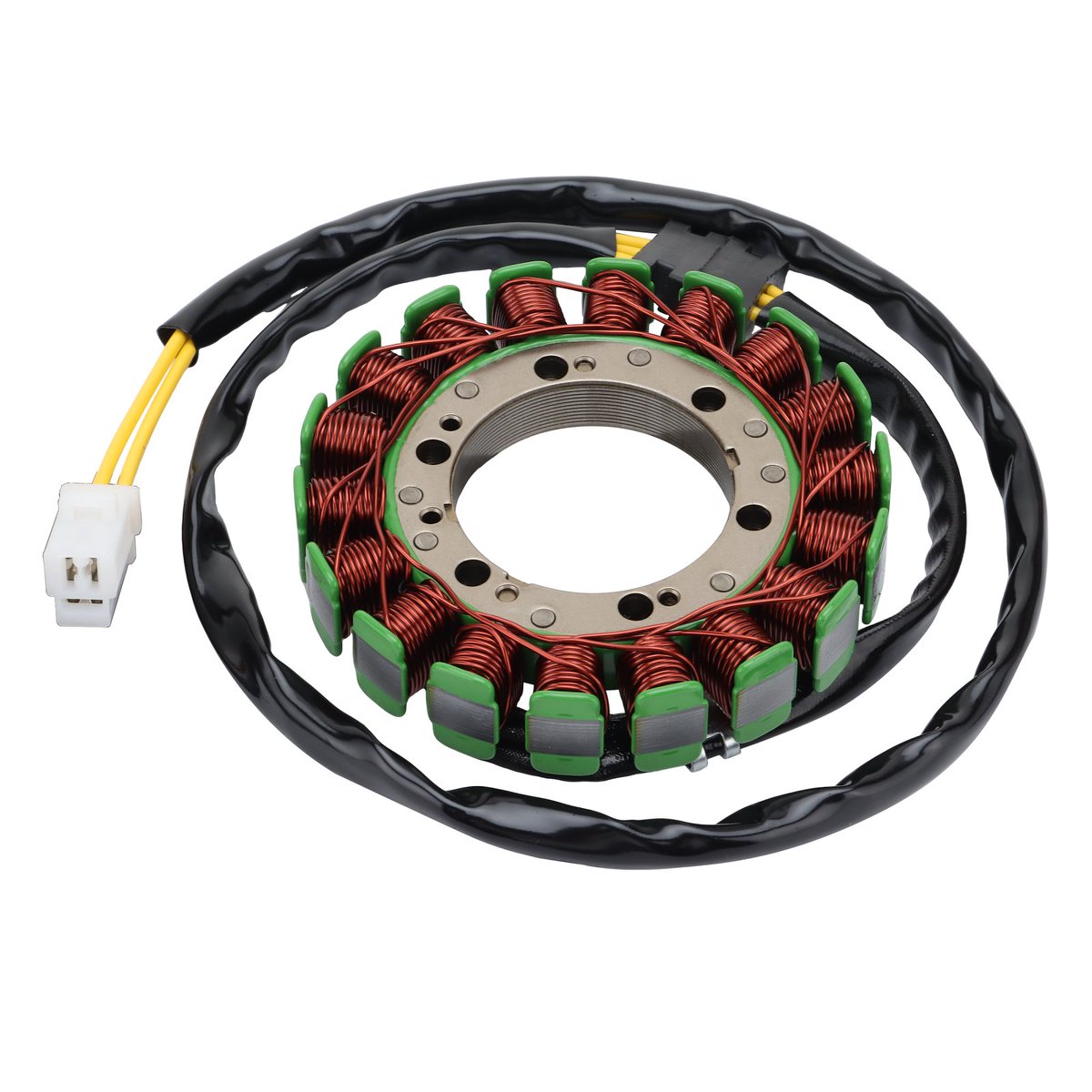

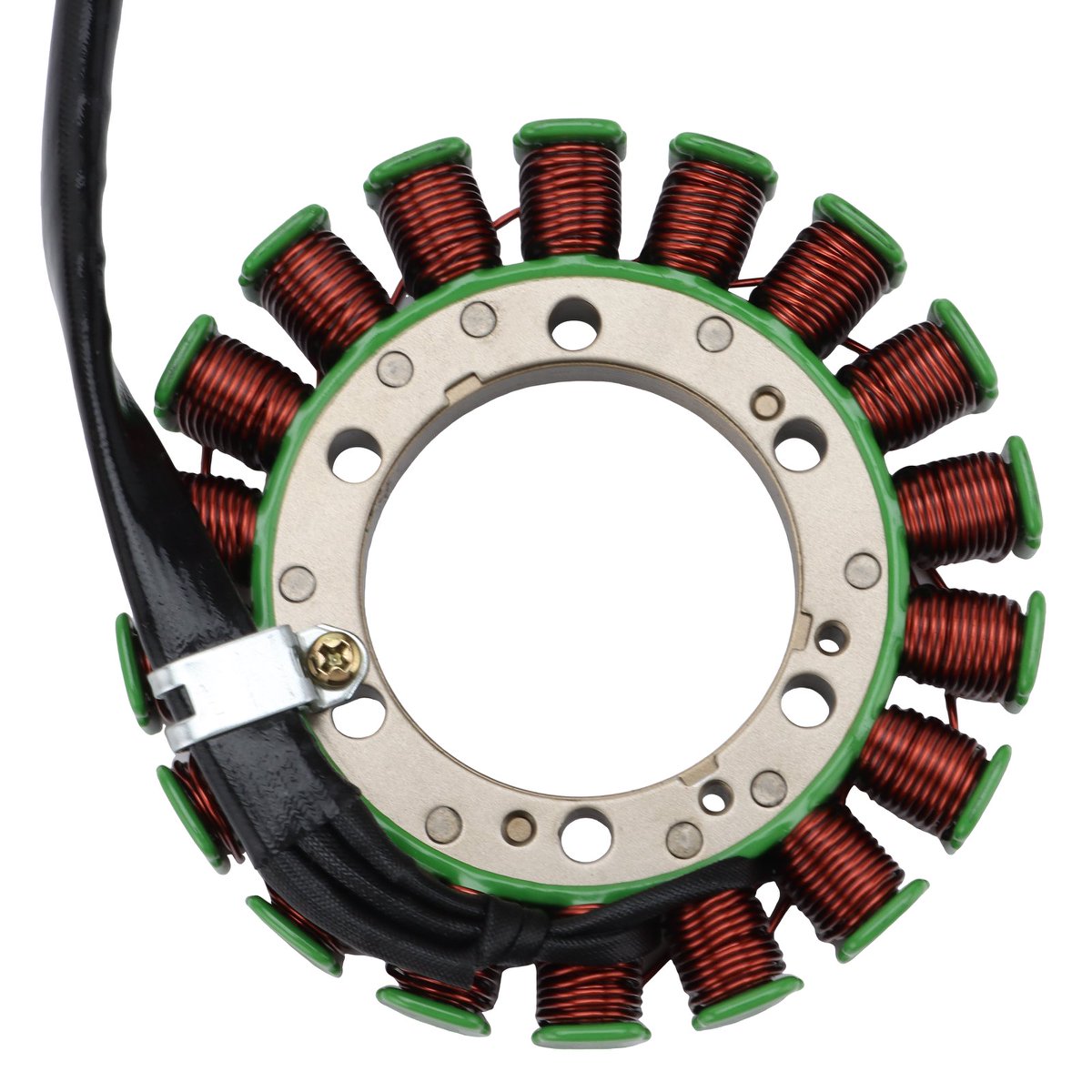

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select 1997–2004 Yamaha XVS650 V-Star 650 / Drag Star 650 Custom motorcycles using OEM reference number 2GV-81410-20.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Yamaha XVS650 has weak charging, low battery voltage, dim lights, repeated battery drain, unstable output, or stator-related charging failure, replacing the stator may help restore normal electrical performance.

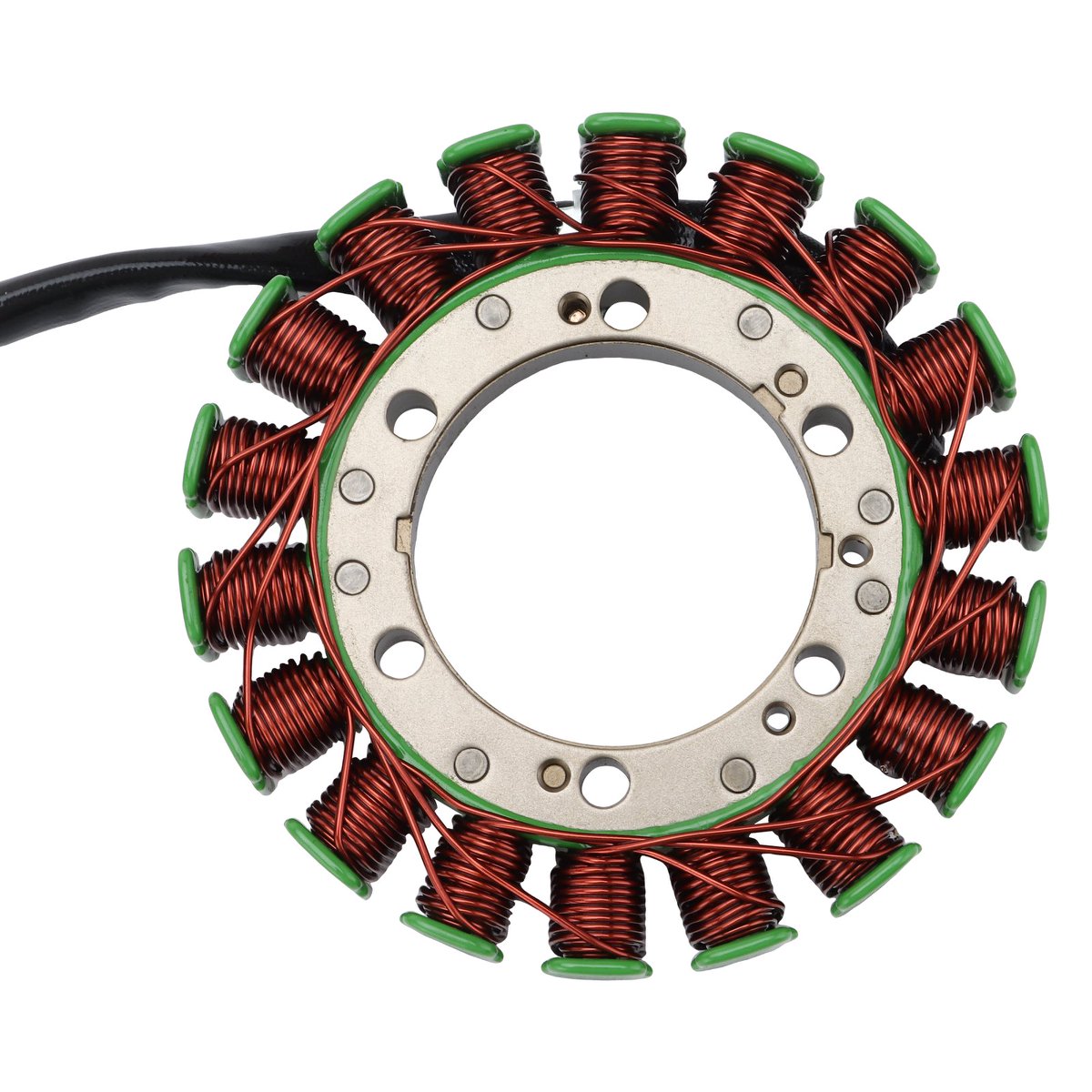

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, coil count, wire count, connector layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Yamaha | XVS650 V-Star 650 Custom | 1998–2004 | 2GV-81410-20 | Main V-Star fitment; confirm original stator and plug layout |
| Yamaha | XVS650 Drag Star 650 Custom | 1997–2004 | 2GV-81410-20 | Main Drag Star fitment; compare OEM number and dimensions |
| Yamaha | XVS650 / XVS 650 | 1997–2004 | 2GV-81410-20 | Model-name variation; verify original part before ordering |
| Yamaha | V-Star 650 / V Star 650 | Select 1998–2004 applications | 2GV-81410-20 | Market-name variation; match by original stator |
| Yamaha | Drag Star 650 / DragStar 650 | Select 1997–2004 applications | 2GV-81410-20 | Market-name variation; confirm connector and mounting holes |
| Yamaha | XVS650A V-Star Classic | Select related applications | 4VR-81410-00 / 2GV-81410-20 | Possible related fitment only if original stator matches |
Important Fitment Note:

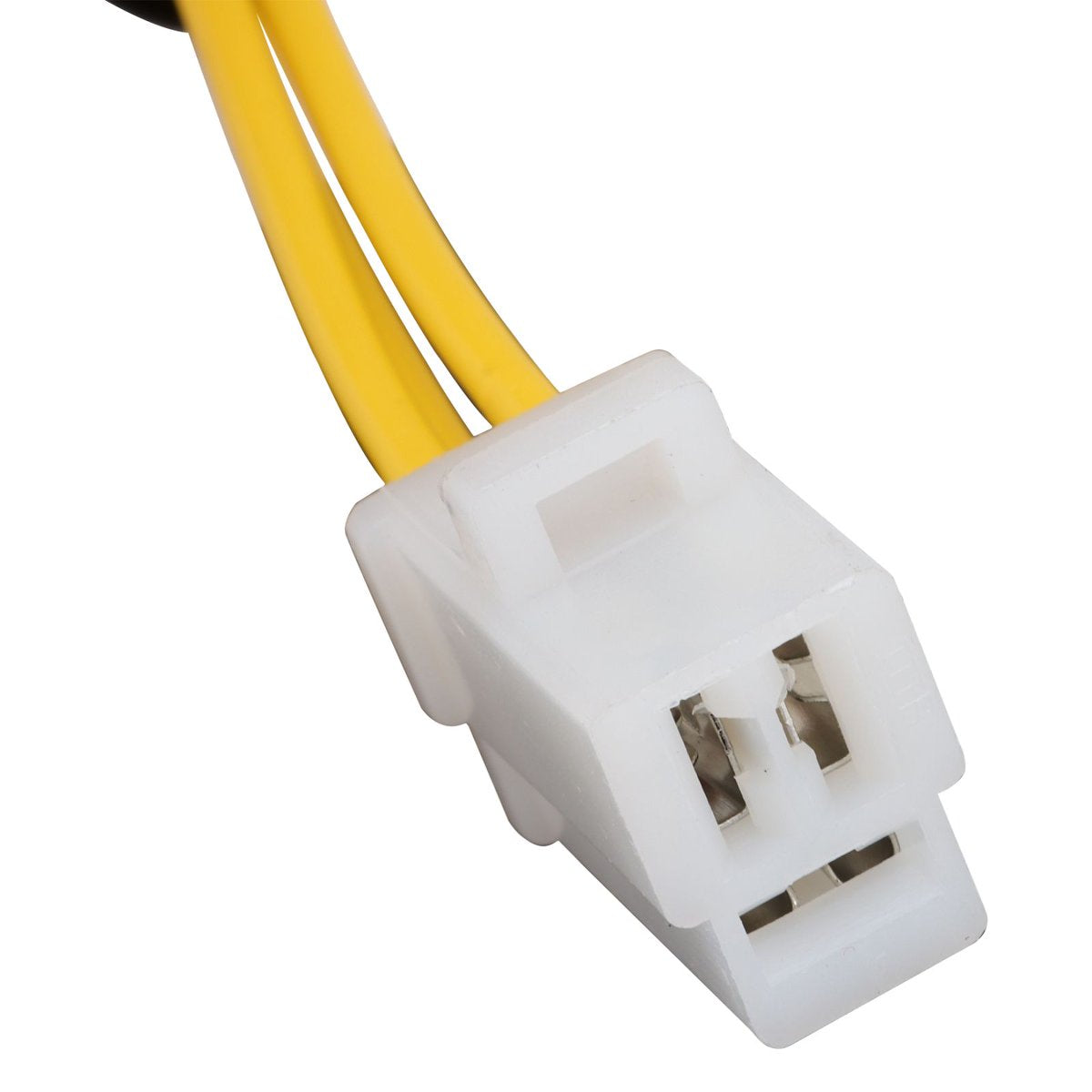

This part is not selected by model name alone. Yamaha XVS650 V-Star, Drag Star, Custom, and Classic models may use different stator references depending on market, trim, and year. Please confirm your original stator matches OEM 2GV-81410-20, the 18-coil / 3-wire layout, DC type, 54mm inner diameter, 116mm outer diameter, mounting hole layout, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |

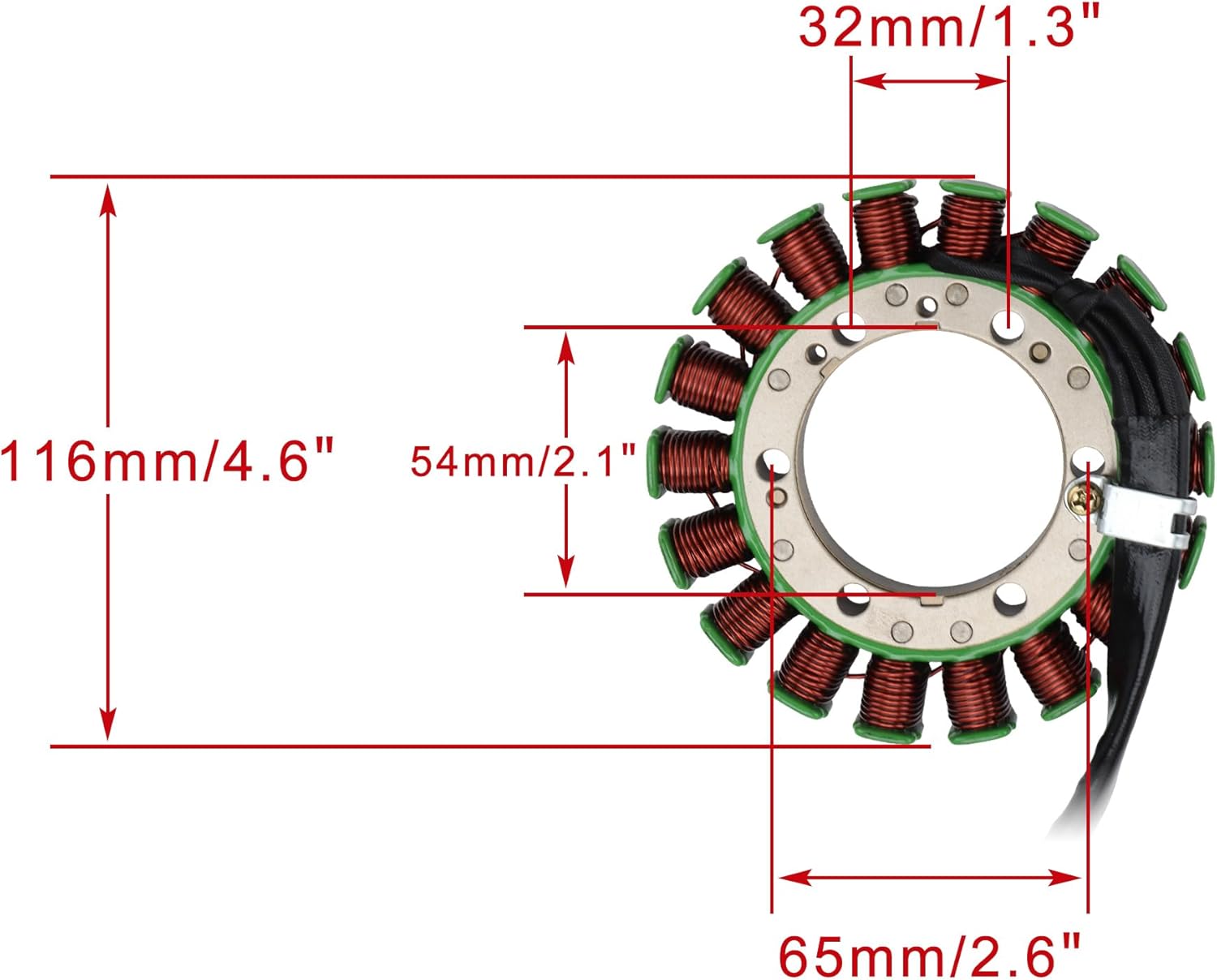

| Inner Diameter | 54mm / 2.1" |
| Outer Diameter | 116mm / 4.6" |

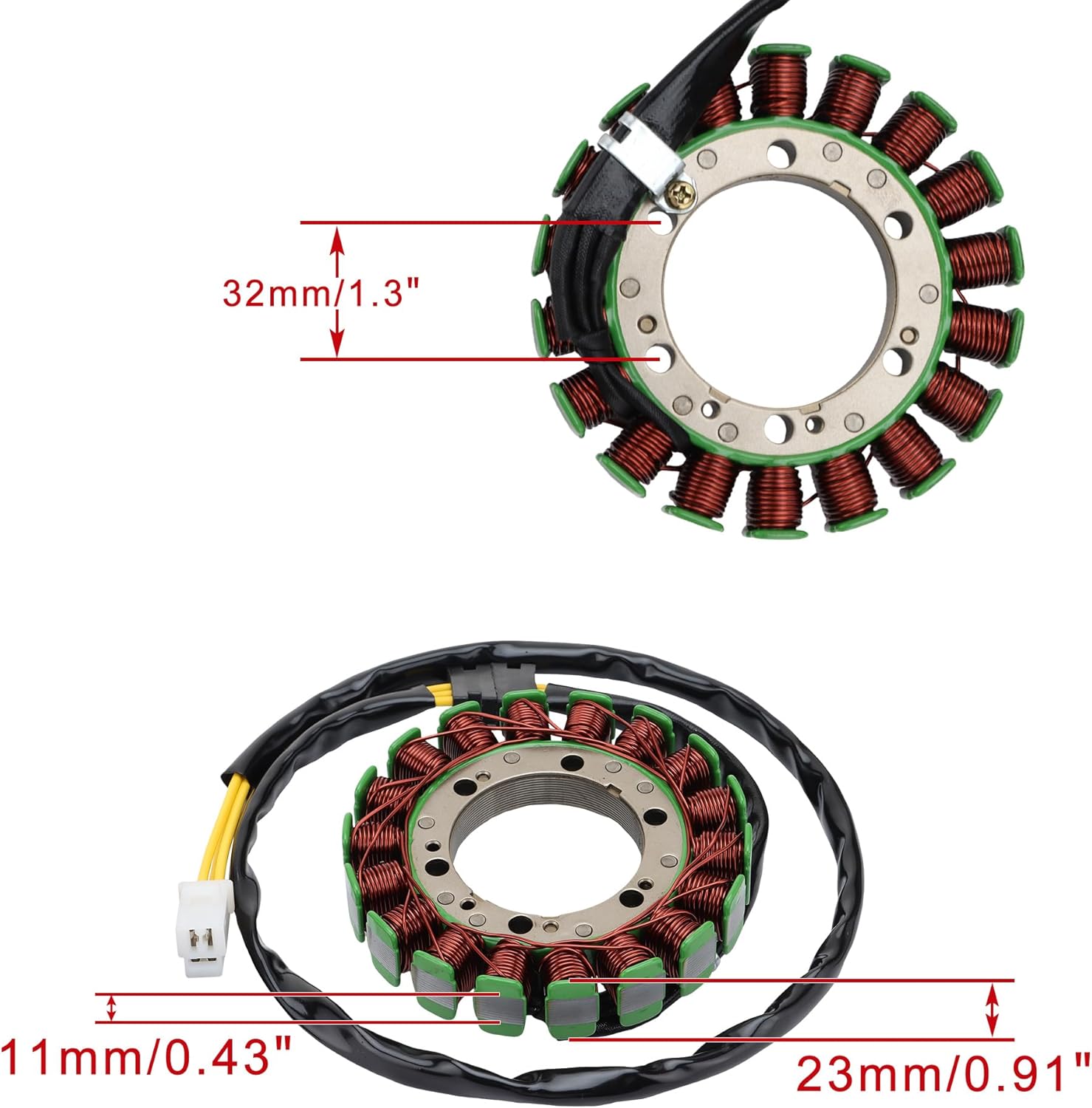

| Iron Core Height | 11mm / 0.43" |
| Mounting Hole Distance | 32mm / 1.3" and 65mm / 2.6" |
| Thickness | 23mm / 0.91" |
| OEM Reference | 2GV-81410-20 |
| Possible Cross Reference | 4VR-81410-00 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Yamaha |
Key Features
- Designed for select Yamaha XVS650 V-Star 650 and Drag Star 650 Custom motorcycles
- Replaces Yamaha OEM reference number 2GV-81410-20
- 18-coil 3-wire stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, repeated battery drain, or stator failure
- Suitable for matching V-Star / Drag Star 650 cruiser charging systems
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, connector layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 2GV-81410-20 | Main Yamaha XVS650 V-Star / Drag Star Custom stator reference |
| 2GV8141020 | Compact format of 2GV-81410-20 |
| 2GV-81410-20-00 | Full Yamaha-style reference format |
| 4VR-81410-00 | Possible related Yamaha XVS650 / V-Star 650 Classic stator reference on some listings; verify before purchase |
| 4VR8141000 | Compact format of 4VR-81410-00 |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or connector style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select 1997–2004 Yamaha XVS650 V-Star 650 / Drag Star 650 Custom motorcycles using OEM reference number 2GV-81410-20. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, thickness, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces Yamaha OEM 2GV-81410-20. Some related XVS650 listings may also reference 4VR-81410-00, but OEM number alone is not enough. Please also confirm the 18-coil 3-wire layout, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Yamaha XVS650, V-Star, Drag Star, Virago, Road Star, or other Yamaha cruiser models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different charging system design. It is also not a replacement for the regulator rectifier, battery, CDI, ignition coil, flywheel, starter motor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, trim version, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
