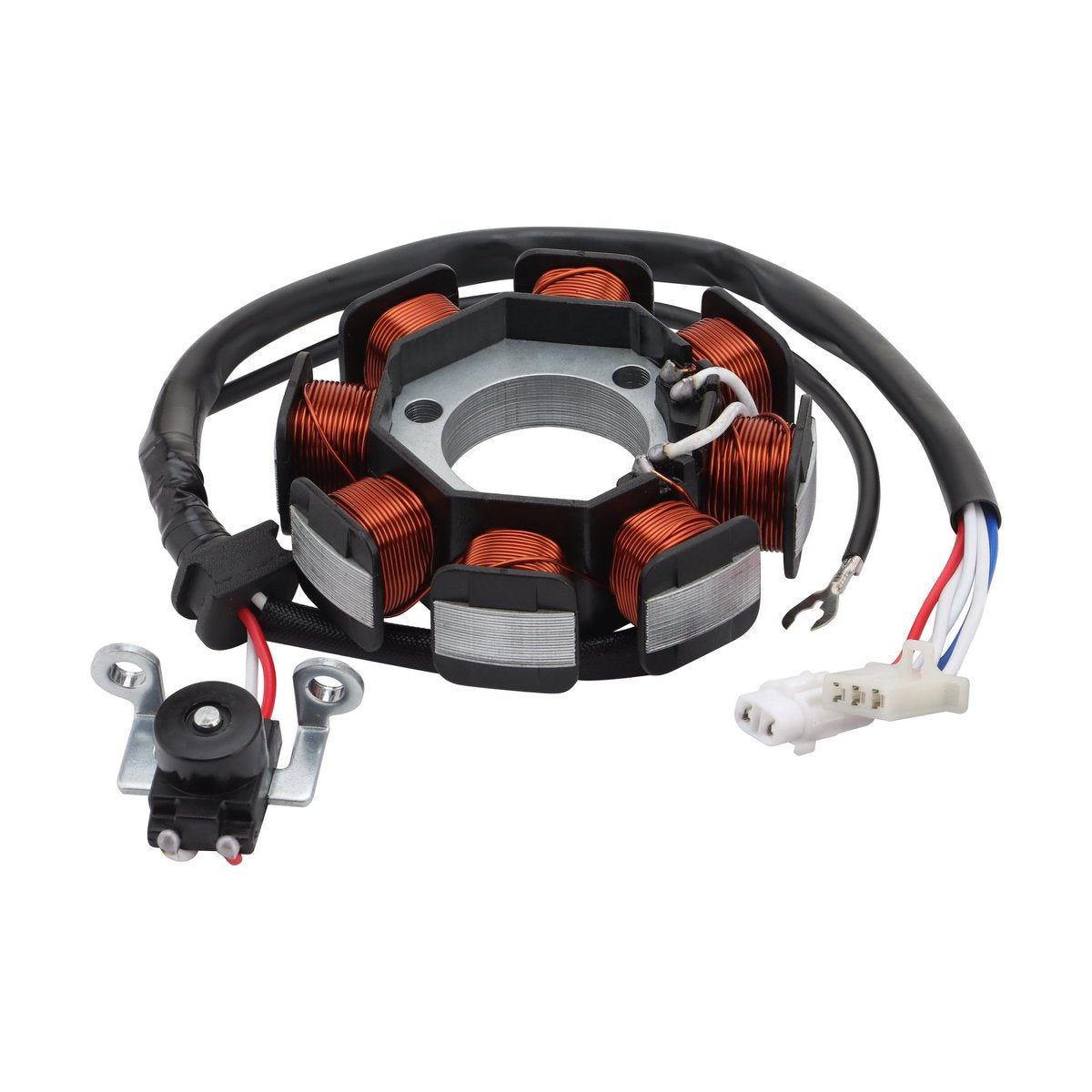

2005–2012 Yamaha YBR125 XT125R XT125X 8-Coil 8-Wire Magneto Stator
2005–2012 Yamaha YBR125 XT125R XT125X 8-Coil 8-Wire Magneto Stator
Couldn't load pickup availability
Product Overview

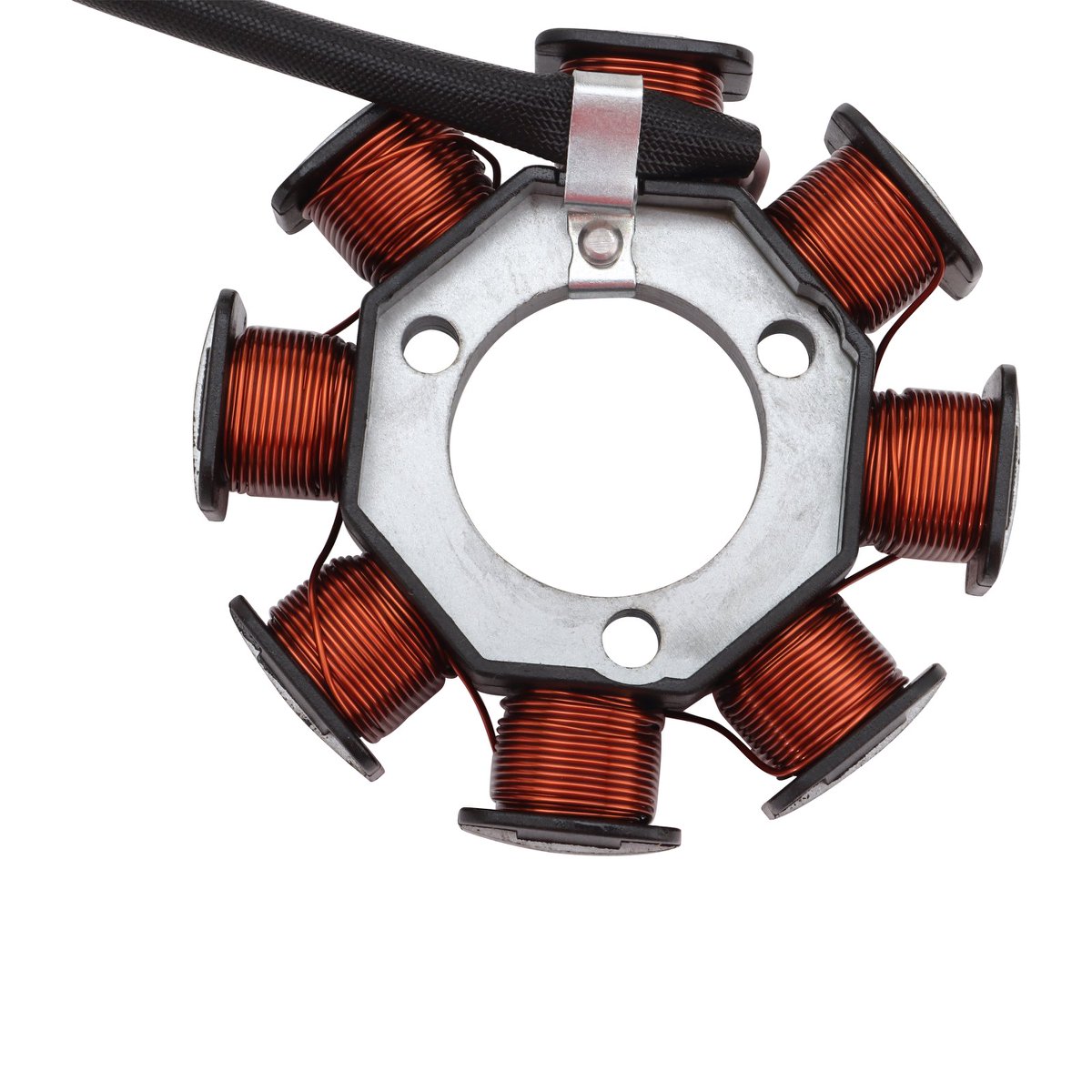

Replace a weak, burned, or damaged stator with this 8-coil 8-wire magneto stator, designed for select Yamaha 125cc motorcycles including YBR125 and XT125 models that use the same DC stator configuration.
The stator helps generate electrical power for the motorcycle’s charging and ignition system. If your Yamaha YBR125, XT125R, or XT125X has battery charging issues, dim lights, unstable electrical output, or weak power generation, replacing the stator may help restore normal electrical performance.

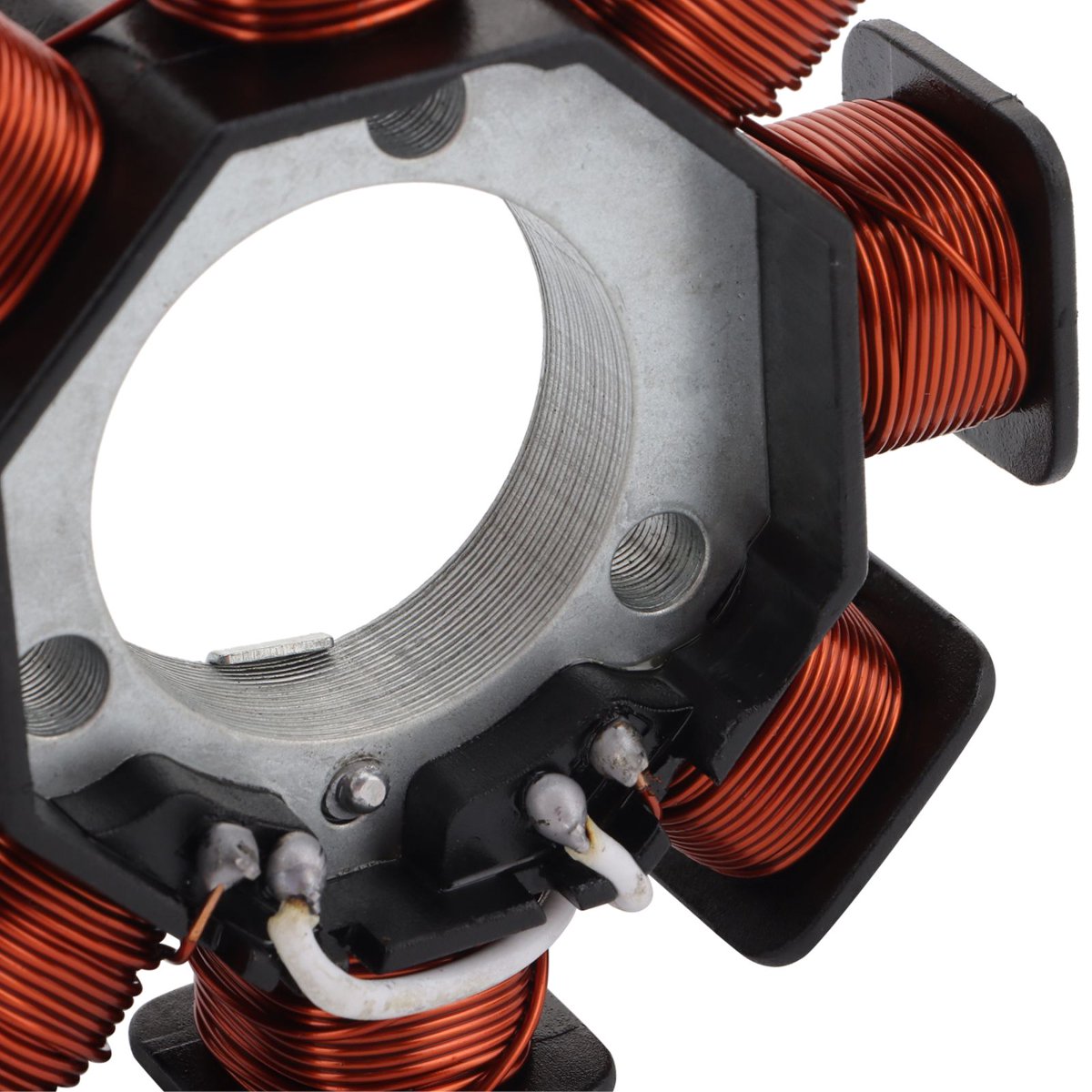

Made with a metal lamination core and copper windings, this replacement stator is built for stable conductivity, heat resistance, and long service life. Please compare your original stator’s wire count, connector layout, mounting hole distance, trigger coil position, and overall dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | Fitment Notes |
|---|---|---|---|
| Yamaha | YBR125ED | 2005–2006 | Fits models using the matching 97mm 8-coil stator design |
| Yamaha | YBR125ESD | 2008–2011 | Confirm original stator size, wire count, and connector layout |
| Yamaha | YBR125 | 2005–2012 | Fits select models only; compare original stator before purchase |
| Yamaha | XT125R | 2007–2008 | Must match the listed stator dimensions and mounting holes |
| Yamaha | XT125X | 2007–2008 | Confirm trigger coil mounting hole distance before ordering |
| Yamaha | XT125X | 2005–2012 | May fit select versions if the original stator matches this design |
Important Fitment Note:
This part is not selected by engine displacement alone. Yamaha YBR125 and XT125 motorcycles may use different stator designs depending on year, market, and wiring system. Please confirm your original stator matches the 8-coil stator layout, wire count, connector style, and dimensions listed below.

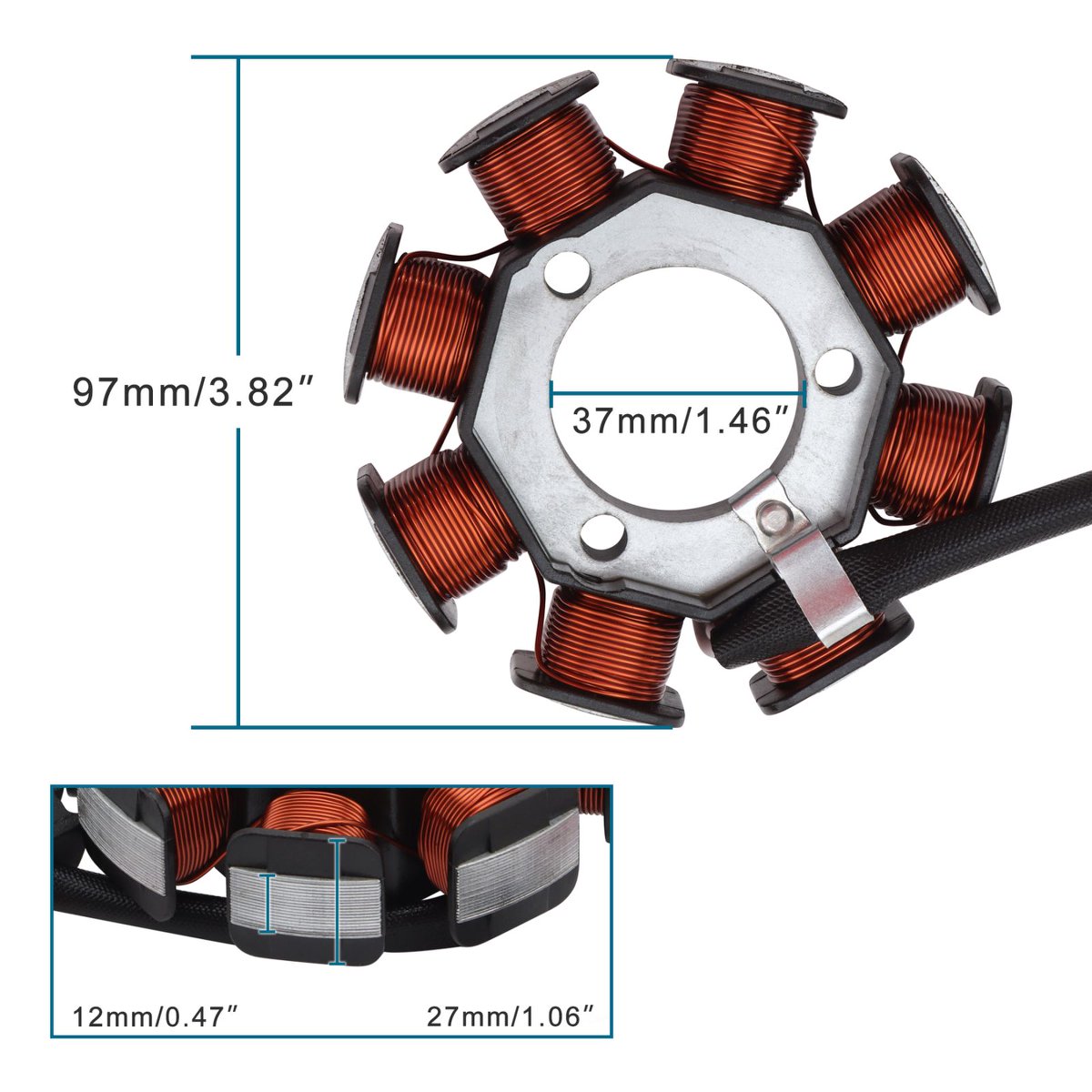

Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 8 Coils / 8 Poles |
| Wire Count | 8 Wire |
| Electrical Type | DC |
| Inner Diameter | 37mm / 1.5" |
| Outer Diameter | 97mm / 3.8" |
| Iron Core Height | 12mm / 0.47" |
| Mounting Hole Distance | 40mm / 1.6" and 43mm / 1.7" |
| Stator Trigger Mounting Hole Distance | 36mm / 1.4" |
| Installation Hole Diameter | 6mm / 0.24" |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Yamaha |
Key Features
- Designed for select Yamaha YBR125, YBR125ED, YBR125ESD, XT125R, and XT125X motorcycles
- 8-coil DC stator replacement for charging and ignition system support
- Helps address weak battery charging, dim lights, unstable voltage, or poor electrical output
- Copper winding supports stable conductivity and heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion

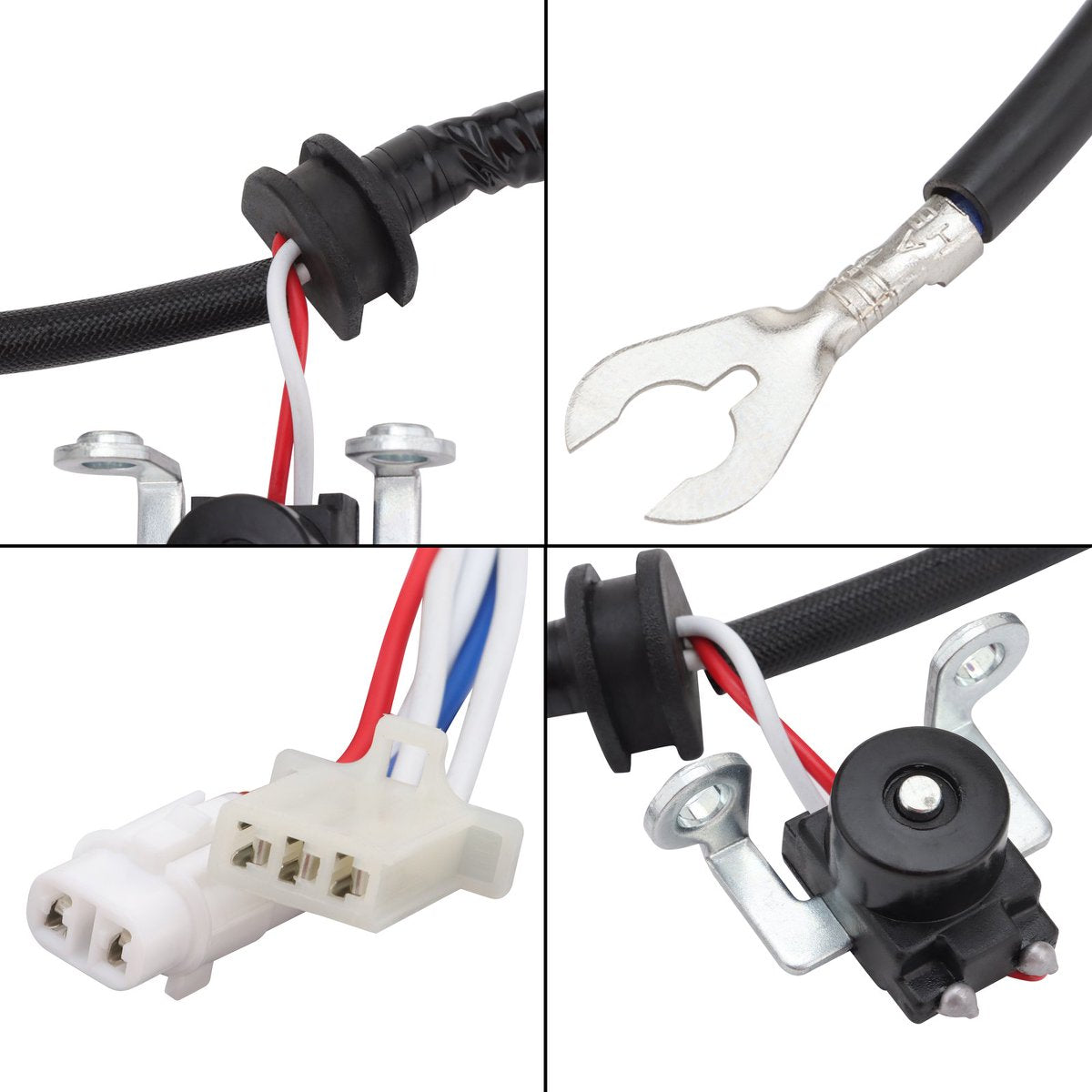

- Includes trigger coil mounting position; please compare with the original stator before installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Yamaha YBR125 and XT125 models, including YBR125ED 2005–2006, YBR125ESD 2008–2011, XT125R 2007–2008, and XT125X models that use the same 97mm 8-coil stator design. Fitment may vary by market and production year, so please compare your original stator’s size, wire count, plug layout, and mounting hole distance before ordering.
Do I need to match the OEM part number?
Matching the OEM part number is recommended. Common reference numbers for this stator type include 3D9-H1410-00 and 3D9-H1410-01. However, OEM number alone is not enough to confirm fitment. Please also check the inner diameter, outer diameter, mounting hole distance, trigger coil position, wire count, and connector style.
What models or situations does this part not fit?
This part does not fit Yamaha YBR125 or XT125 models that use a different outer diameter, different wire count, different connector layout, or different mounting hole spacing. It also does not fit models using a 92mm 18-pole stator design. Do not select this part based only on the 125cc engine size.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, original stator OEM number, coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger coil mounting distance, and installation hole diameter. If your original stator has different dimensions or plugs, this part may not fit.
