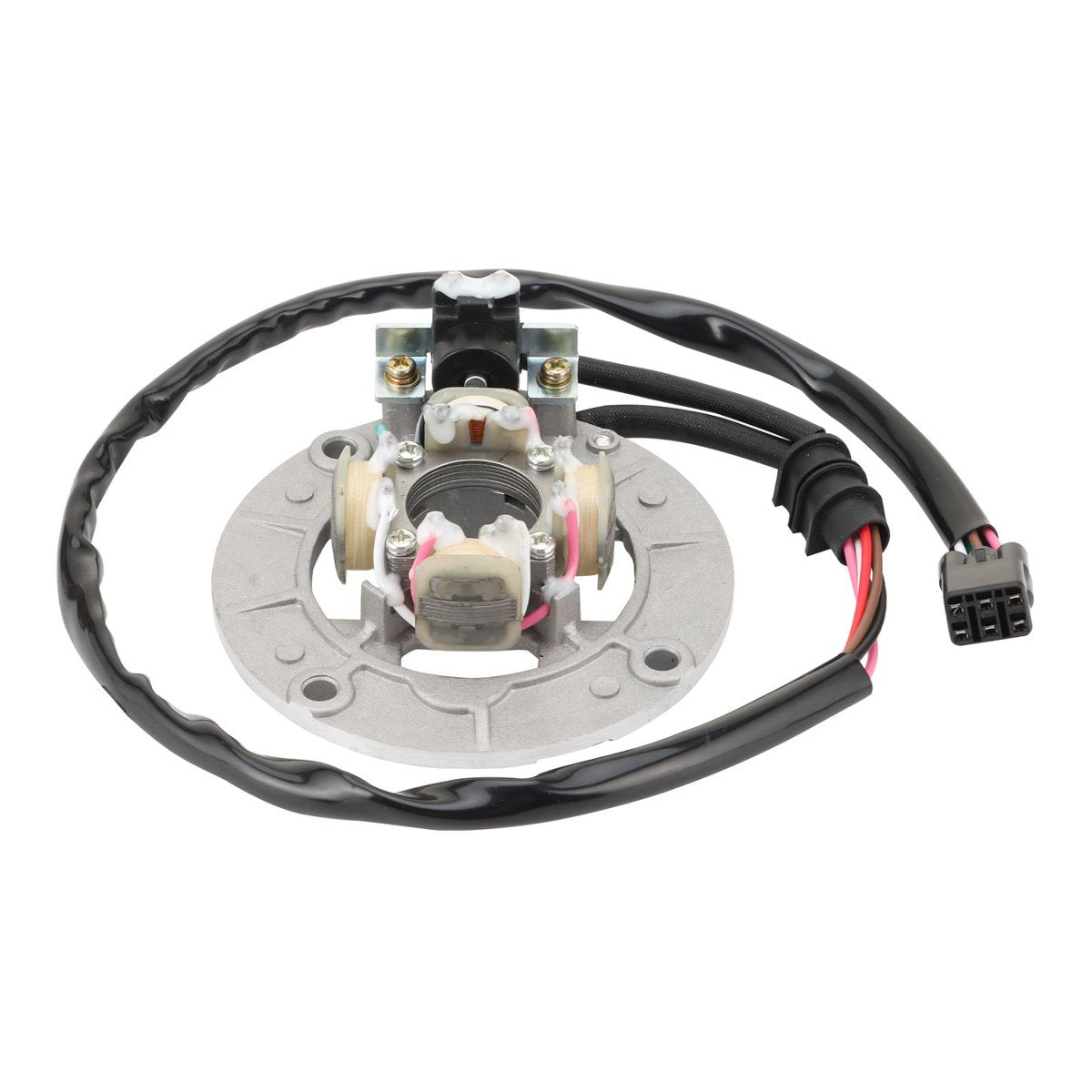

1998–2005 Yamaha YZ250F YZ400F YZ426F YZ450F 4-Coil 6-Wire Stator
1998–2005 Yamaha YZ250F YZ400F YZ426F YZ450F 4-Coil 6-Wire Stator
Couldn't load pickup availability
Product Overview
Replace a weak, damaged, or failed stator with this 4-coil 6-wire magneto stator, designed for select Yamaha YZ four-stroke dirt bikes including YZ400F, YZ426F, YZ250F, and YZ450F applications.
The stator is an important part of the motorcycle ignition and electrical system. It helps generate electrical output while the engine is running, supporting ignition performance and related electrical components. If your Yamaha YZ has no spark, weak spark, hard starting, intermittent ignition loss, poor running, or stator-related electrical failure, replacing the stator may help restore normal performance.
Built with high-quality copper wire and insulation, this replacement stator is designed to deliver stable electrical output, withstand off-road vibration, and handle high-temperature riding conditions. Please compare your original stator’s OEM number, wire count, connector layout, mounting style, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM / Reference Number | Fitment Notes |
|---|---|---|---|---|
| Yamaha | YZ400 / YZ400F | 1998–1999 | 5BE-85560-00 / 5BE-85560-19 / related references | Main early YZ four-stroke fitment; confirm original stator |
| Yamaha | YZ426F / YZ426 | 2000–2002 | 5BE-85560-00 / 5BE-85560-19 / 5SF-85560-00 | Fits matching 4-coil 6-wire stator version |
| Yamaha | YZ250F | 2001–2005 | 5SF-85560-00 / 5XD-85560-00 / 5XD-85560-09 | Do not list as 1998–2000; verify original part before purchase |
| Yamaha | YZ450F | 2003–2005 | 5SF-85560-00 / 5XD-85560-00 / 5XD-85560-09 | Compare OEM number, connector, and stator dimensions |
| Yamaha | YZ Four-Stroke Dirt Bike | Select 1998–2005 models | Listed references | Fitment must be confirmed by OEM number, plug layout, and size |
Important Fitment Note:

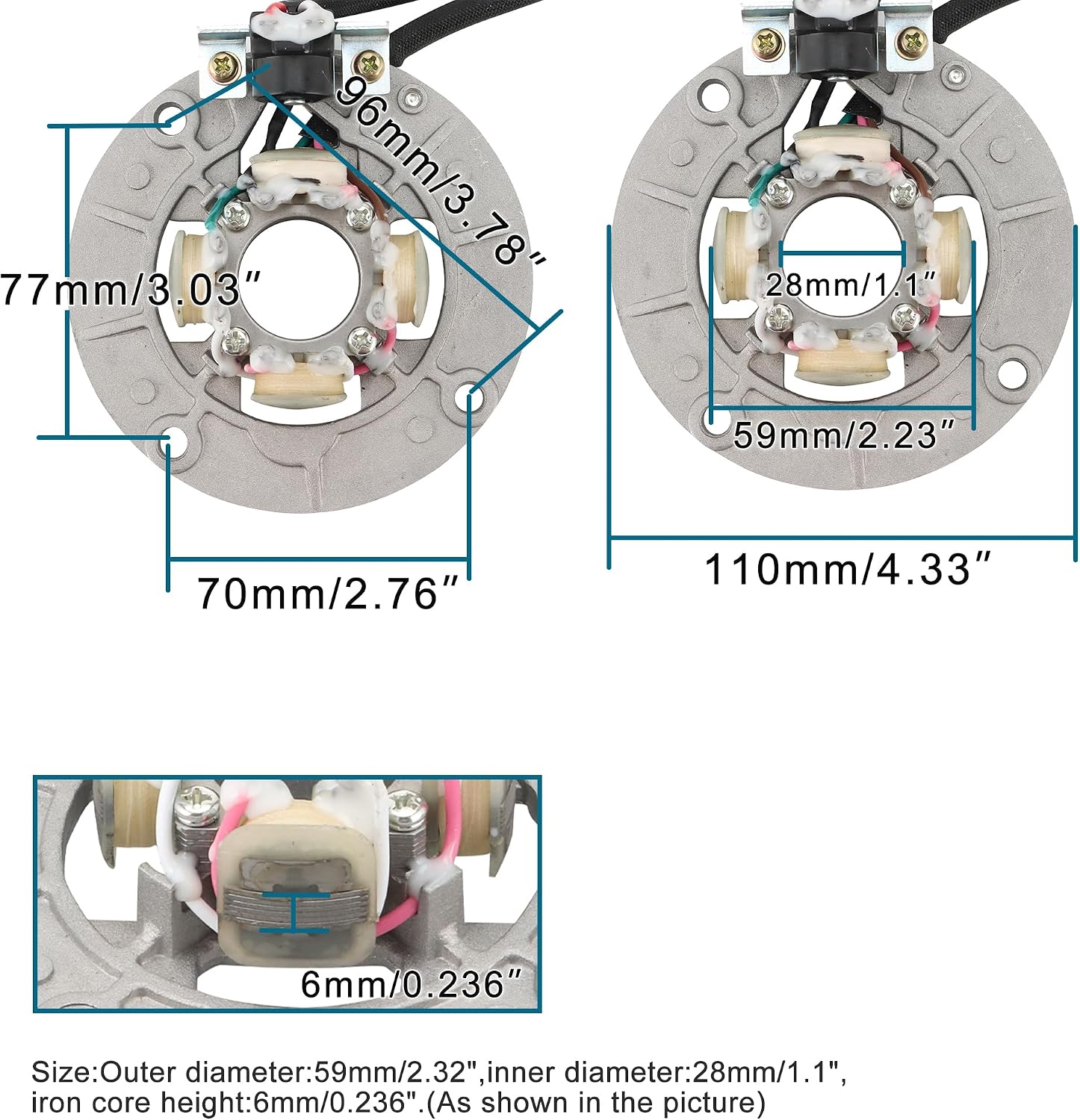

This part is not selected by “YZ” model name alone. Yamaha YZ250F, YZ400F, YZ426F, and YZ450F models use different parts depending on year and engine platform. Please confirm your original stator matches the 4-coil / 6-wire layout, compatible OEM reference number, 59mm outer diameter, 28mm inner diameter, 6mm iron core height, and overall connector layout before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 4 Coils |
| Wire Count | 6 Wires |
| Outer Diameter | 59mm / 2.32" |
| Inner Diameter | 28mm / 1.1" |
| Iron Core Height | 6mm / 0.236" |
| OEM / Reference Number | 5SF-85560-00 / 5XD-85560-00 / 5XD-85560-09 / 5BE-85560-00 |
| Additional Cross References | 5BE-85560-01 / 5BE-85560-02 / 5BE-85560-10 / 5BE-85560-11 / 5BE-85560-12 / 5BE-85560-19 |
| Material | Copper Wire + Insulated Stator Core |
| Application | Dirt Bike Ignition / Electrical System |
| Compatible Brand | Yamaha |
Key Features
- Designed for select Yamaha YZ250F, YZ400F, YZ426F, and YZ450F dirt bikes
- Fits key Yamaha YZ four-stroke applications from 1998–2005, depending on model
- Replaces common references including 5SF-85560-00, 5XD-85560-00, 5XD-85560-09, and 5BE-85560-00
- 4-coil 6-wire stator helps support ignition and electrical system output
- Helps address no spark, weak spark, hard starting, intermittent ignition loss, or stator failure
- Built with copper windings and insulation for stable electrical output
- Designed to withstand off-road vibration and high-temperature engine conditions
OEM Cross Reference
| OEM / Reference Number | Notes |
| 5SF-85560-00 | Common Yamaha YZ250F / YZ450F stator reference |
| 5SF-85560-00-00 | Full Yamaha-style format |
| 5XD-85560-00 | Common Yamaha YZ250F / YZ450F stator reference |
| 5XD-85560-00-00 | Full Yamaha-style format |
| 5XD-85560-09 | Common aftermarket and replacement reference |
| 5XD-85560-09-00 | Full Yamaha-style format |
| 5BE-85560-00 | Common Yamaha YZ400F / YZ426F stator reference |
| 5BE-85560-00-00 | Full Yamaha-style format |
| 5BE-85560-01 / 5BE-85560-02 | Related replacement references |
| 5BE-85560-10 / 5BE-85560-11 / 5BE-85560-12 / 5BE-85560-19 | Related replacement references used on compatible YZ stator listings |
Please use the OEM/reference number together with physical dimensions, wire count, and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, plug style, pickup coil layout, or mounting design, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Yamaha YZ four-stroke dirt bikes, including YZ400F 1998–1999, YZ426F 2000–2002, YZ250F 2001–2005, and YZ450F 2003–2005. Please compare your original stator’s OEM/reference number, wire count, connector layout, outer diameter, inner diameter, iron core height, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM or reference number is strongly recommended. This stator commonly replaces 5SF-85560-00, 5XD-85560-00, 5XD-85560-09, 5BE-85560-00, and related 5BE-85560 replacement numbers. However, OEM number alone is not enough. Please also confirm the 4-coil 6-wire layout, plug style, outer diameter, inner diameter, and original stator shape.
What models or situations does this part not fit?
This part does not fit Yamaha YZ models that use a different stator diameter, different wire count, different connector layout, different OEM number, or different ignition system design. Do not use it for YZ250F 1998–2000, because those years are not a valid YZ250F fitment range. It is also not a replacement for the CDI, ignition coil, spark plug, regulator rectifier, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your dirt bike’s make, model, year, OEM/reference number, original stator coil count, wire count, connector shape, outer diameter, inner diameter, iron core height, pickup coil layout if applicable, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
