2015–2021 Yamaha YZF-R15 YZF-R125 MT-125 XSR125 12-Coil 4-Wire Stator
2015–2021 Yamaha YZF-R15 YZF-R125 MT-125 XSR125 12-Coil 4-Wire Stator
Couldn't load pickup availability
Product Overview

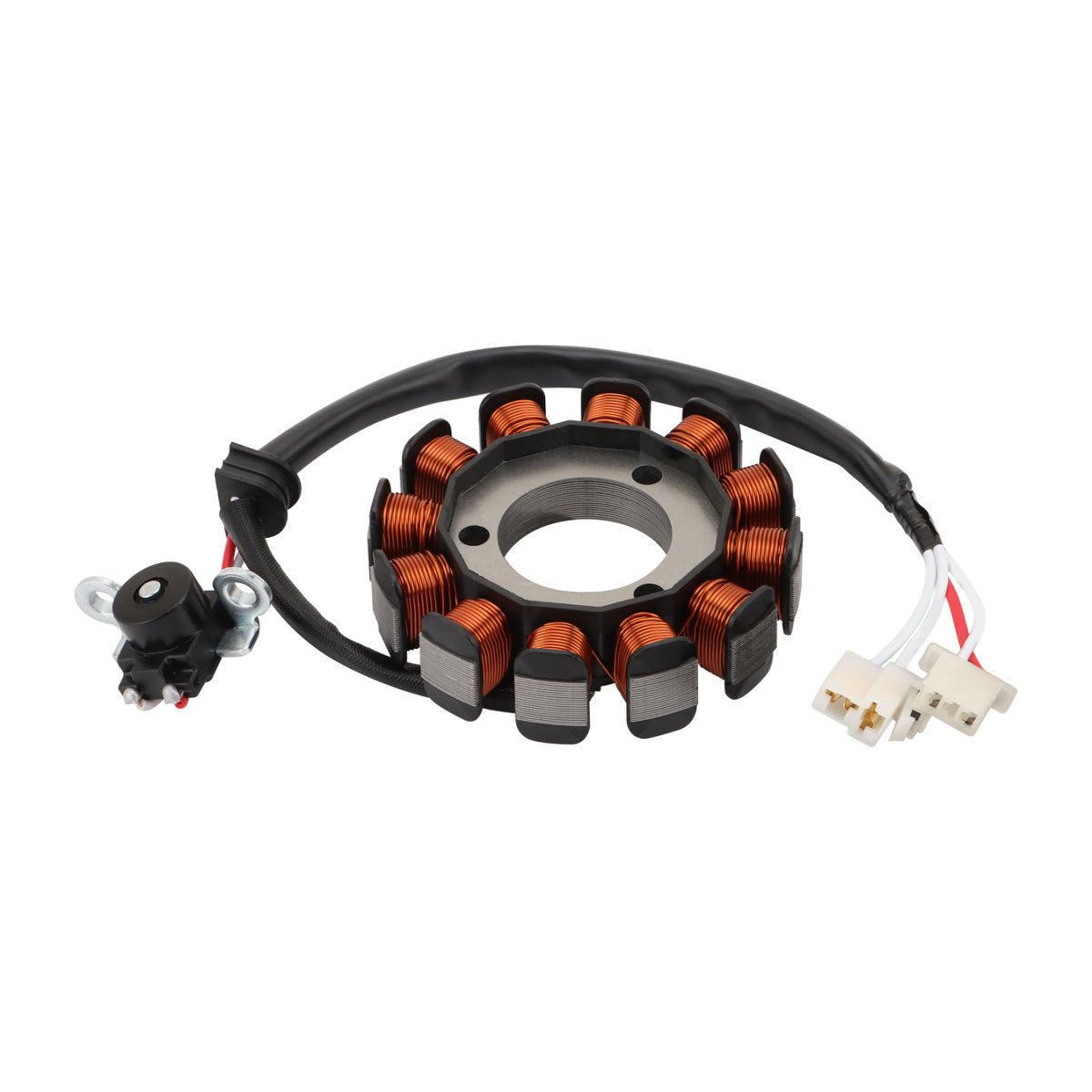

Replace a weak, burned, or failed stator with this 12-coil 4-wire magneto stator, designed for select Yamaha YZF-R15, YZF-R125, MT-125, and XSR125 motorcycles using OEM reference numbers 2FB-H1410-00, BK7-H1410-00, and BK6-H1410-02.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, sensors, and other electrical components. If your Yamaha 125cc or 155cc sport bike has weak charging, low battery voltage, dim lights, repeated battery drain, unstable voltage, or stator-related failure, replacing the stator may help restore normal charging performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, connector layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Yamaha | YZF-R15 / YZF R15 | 2015–2021 | 2FB-H1410-00 / BK7-H1410-00 / BK6-H1410-02 | Main fitment; confirm original stator size and plug layout |
| Yamaha | YZF155K YZF-R15 | 2019 | 2FB-H1410-00 / BK7-H1410-00 / BK6-H1410-02 | Fits matching 12-coil 4-wire stator version |
| Yamaha | YZF155L YZF-R15 | 2020 | 2FB-H1410-00 / BK7-H1410-00 / BK6-H1410-02 | Compare OEM number, connector, and dimensions |
| Yamaha | YZF-R125 / YZF R125 | 2019–2021 | BK7-H1410-00 / BK6-H1410-02 / related references | Confirm wire count, plug style, and trigger coil position |
| Yamaha | MT-125 / MT125 ABS | 2020–2021 | BK7-H1410-00 / BK6-H1410-02 / related references | Fits matching charging system only |
| Yamaha | MT-125 ABS Ice Fluo | 2020 | BK7-H1410-00 / BK6-H1410-02 / related references | Verify original stator before ordering |
| Yamaha | XSR125 | 2021 | BK6-H1410-02 / related references | Confirm original OEM number and connector layout |
Important Fitment Note:
This part is not selected by engine size alone. Yamaha 125cc and 155cc models may use different stator designs depending on year, market, ABS version, and wiring system. Please confirm your original stator matches OEM 2FB-H1410-00, BK7-H1410-00, or BK6-H1410-02, the 12-coil / 4-wire layout, DC type, connector style, trigger coil position, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 12 Coils / 12 Poles |
| Wire Count | 4 Wire |
| Electrical Type | DC |

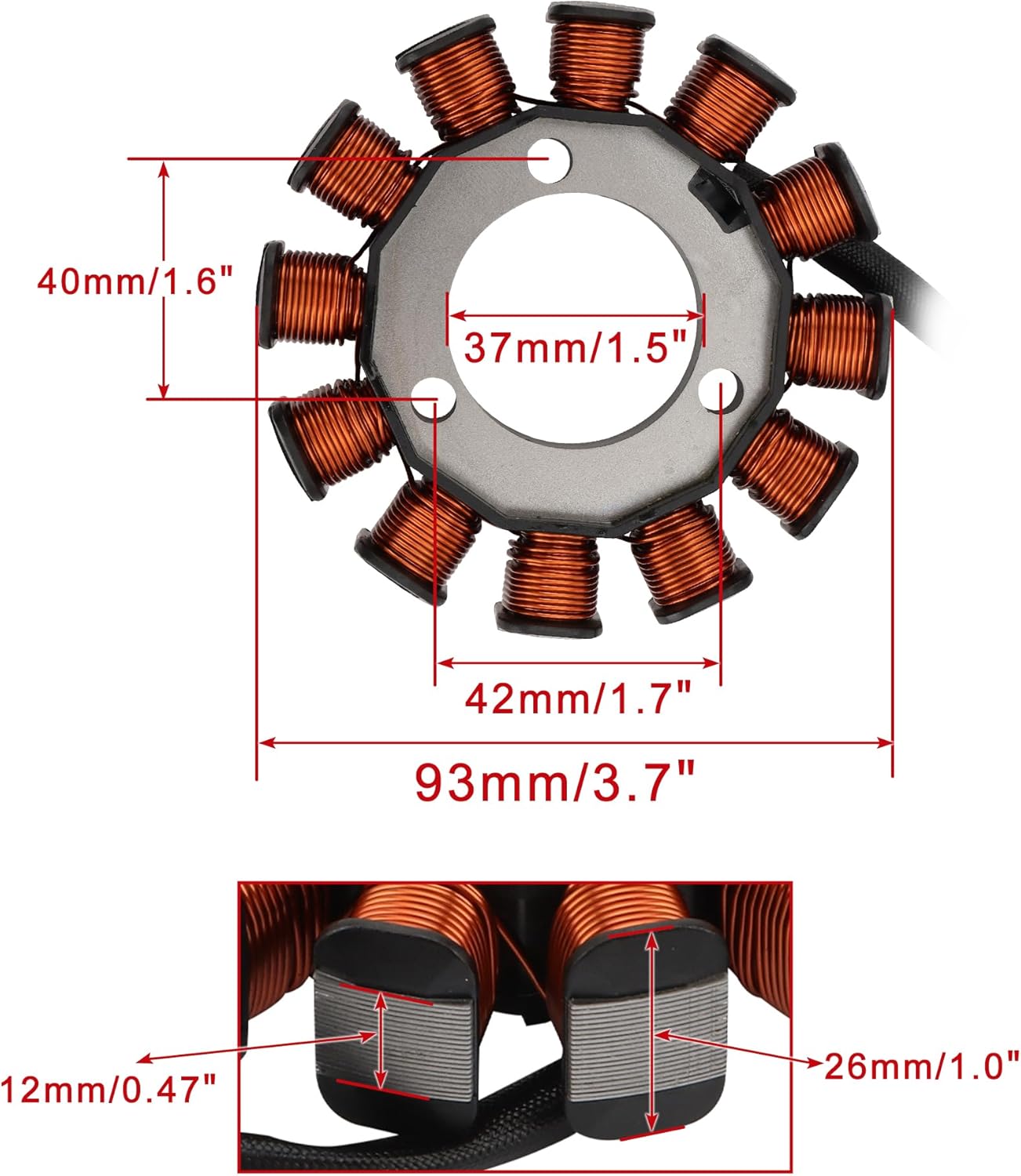

| Inner Diameter | 37mm / 1.5" |
| Outer Diameter | 93mm / 3.7" |
| Iron Core Height | 12mm / 0.47" |
| Mounting Hole Distance | 40mm / 1.6" and 42mm / 1.7" |
| Thickness | 26mm / 1.0" |

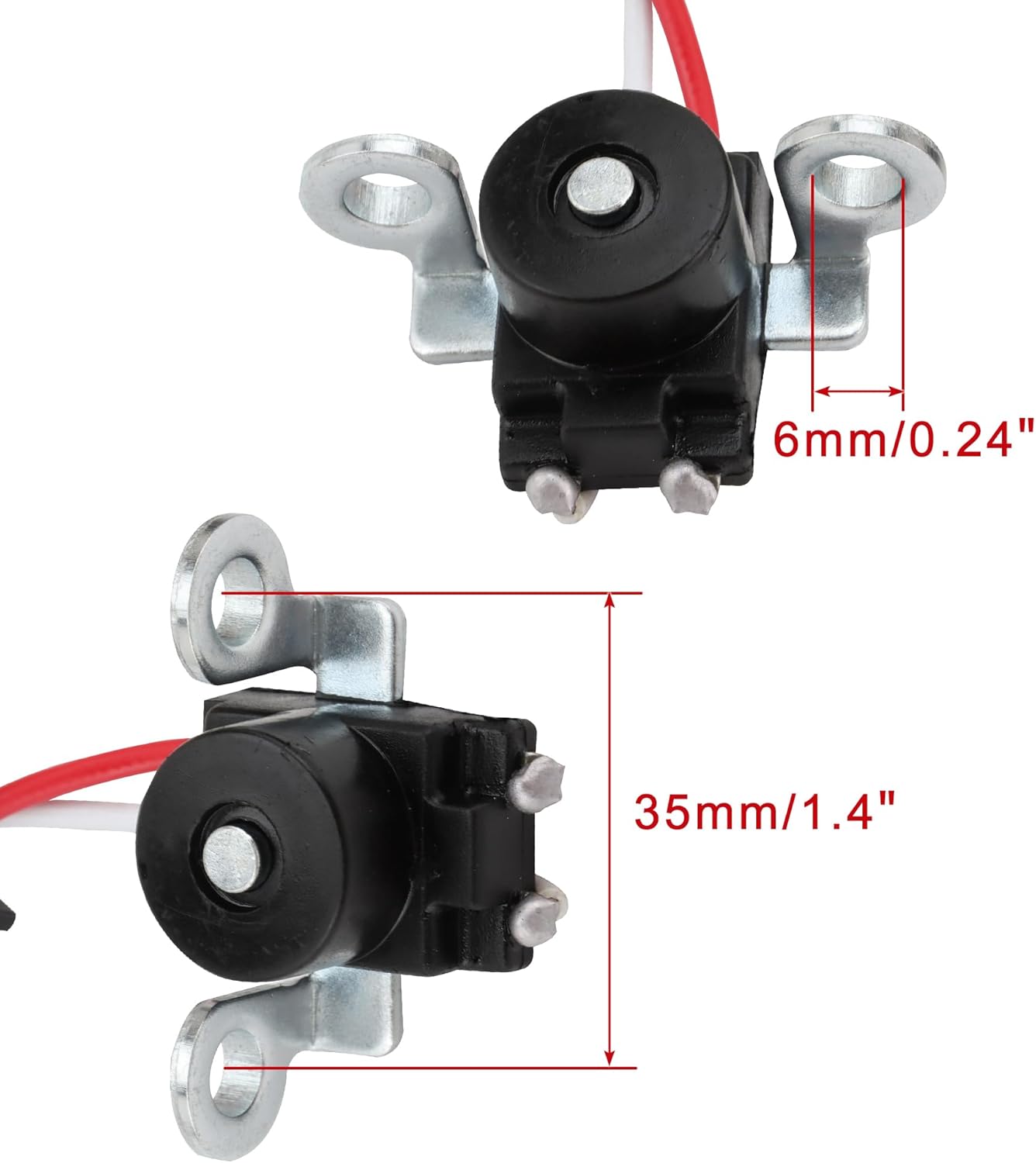

| Trigger Mounting Hole Distance | 35mm / 1.4" |
| Trigger Mounting Hole Diameter | 6mm / 0.24" |
| OEM Reference | 2FB-H1410-00 / BK7-H1410-00 / BK6-H1410-02 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Yamaha |
Key Features
- Designed for select Yamaha YZF-R15, YZF-R125, MT-125, and XSR125 motorcycles
- Replaces common OEM references 2FB-H1410-00, BK7-H1410-00, and BK6-H1410-02
- 12-coil 4-wire DC stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, battery drain, or stator failure
- Includes pickup / trigger coil position for matching applications
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 2FB-H1410-00 | Common Yamaha YZF-R15 stator assembly reference |
| 2FBH141000 | Compact format of 2FB-H1410-00 |
| BK7-H1410-00 | Common reference used on YZF-R125 / MT-125 / related Yamaha 125cc applications |
| BK7H141000 | Compact format of BK7-H1410-00 |
| BK6-H1410-02 | Common reference used on XSR125 / YZF-R125 / MT-125 related applications |
| BK6H141002 | Compact format of BK6-H1410-02 |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, trigger coil position, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Yamaha YZF-R15 models from 2015–2021, YZF-R125 models from 2019–2021, MT-125 models from 2020–2021, and XSR125 models from 2021 using OEM references 2FB-H1410-00, BK7-H1410-00, or BK6-H1410-02. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces 2FB-H1410-00, BK7-H1410-00, and BK6-H1410-02. However, OEM number alone is not enough. Please also confirm the 12-coil 4-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, and stator thickness.
What models or situations does this part not fit?
This part does not fit Yamaha YZF-R15, YZF-R125, MT-125, XSR125, or other Yamaha models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, or different OEM charging system design. It is also not a replacement for the regulator rectifier, battery, ignition coil, starter motor, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, ABS version if applicable, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
