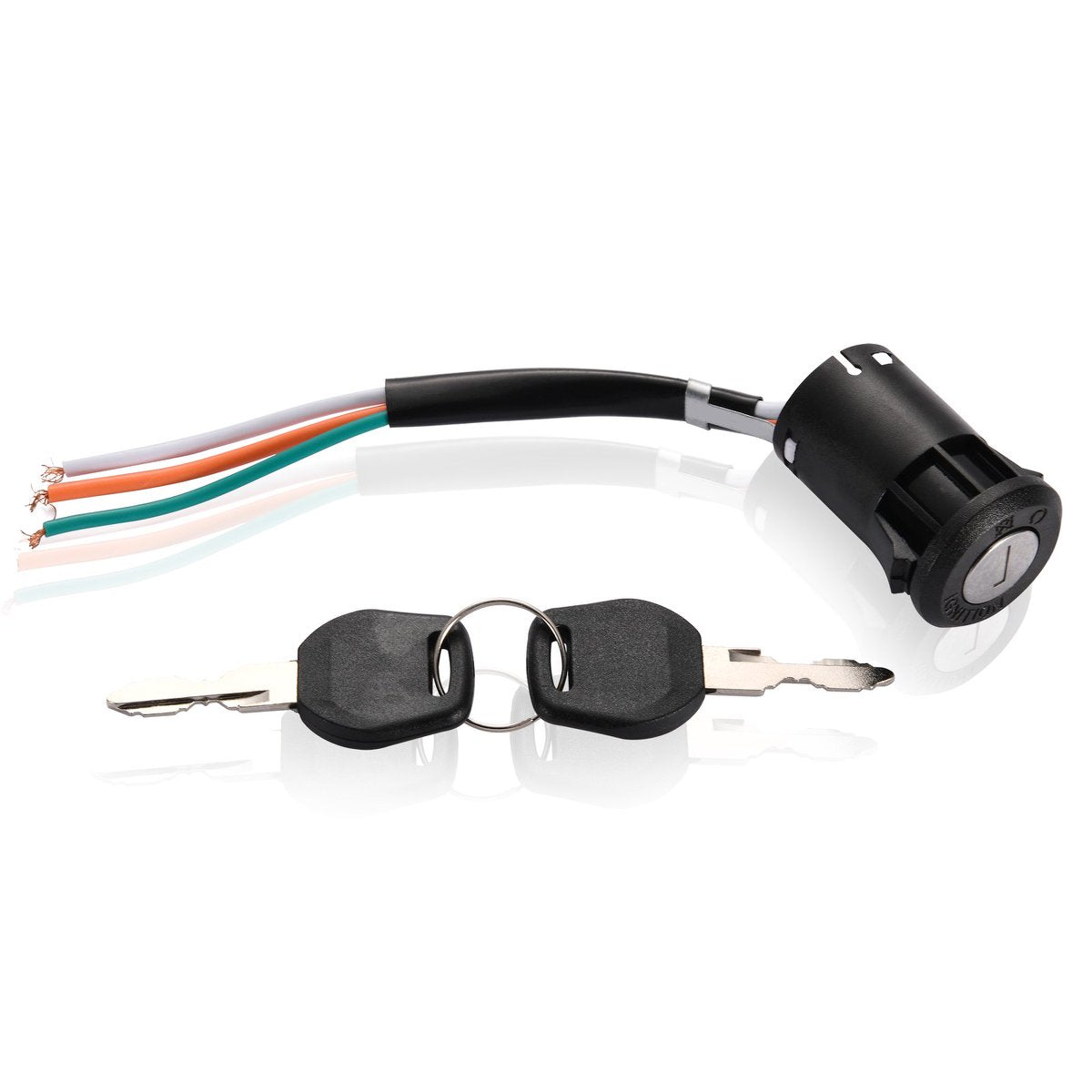

3-Wire Ignition Key Switch for 50cc–250cc ATV Go Kart Dirt Bike
3-Wire Ignition Key Switch for 50cc–250cc ATV Go Kart Dirt Bike
Impossible de charger la disponibilité du service de retrait
Product Overview
Replacement 3-wire key ignition switch for selected 50cc, 70cc, 90cc, 110cc, 150cc, 200cc, and 250cc ATVs, go karts, dune buggies, dirt bikes, and similar powersports applications.
Designed for vehicles using a compatible 3-wire ignition circuit, this key switch provides keyed ON/OFF control for the vehicle's electrical or ignition system.
Because wiring configurations can vary significantly between vehicles, fitment should be confirmed by the 3-wire circuit, terminal or connector configuration, switch dimensions, mounting design, and electrical function rather than engine displacement alone.
Product Compatibility
| Vehicle Type | Listed Engine Range | Fitment Notes |
|---|---|---|
| ATV / Quad | 50cc–250cc | Verify 3-wire circuit and mounting |
| Go Kart | 50cc–250cc | Compare terminals and switch function |
| Dune Buggy | 50cc–250cc | Selected compatible applications |
| Dirt Bike | 50cc–250cc | Verify ignition-system wiring |
Common listed engine sizes include:
50cc / 70cc / 90cc / 110cc / 150cc / 200cc / 250cc
Listed Exclusion
- Not listed for Atala Carosello 50
Fitment Note: Engine displacement alone does not determine ignition-switch compatibility. Different vehicles with the same engine size can use different switch circuits and wiring arrangements.
Specifications
| Specification | Details |
|---|---|
| Product Type | Key Ignition Switch |
| Wire Count | 3-Wire |
| Listed Applications | ATV / Go Kart / Dune Buggy / Dirt Bike |
| Listed Engine Range | 50cc–250cc |

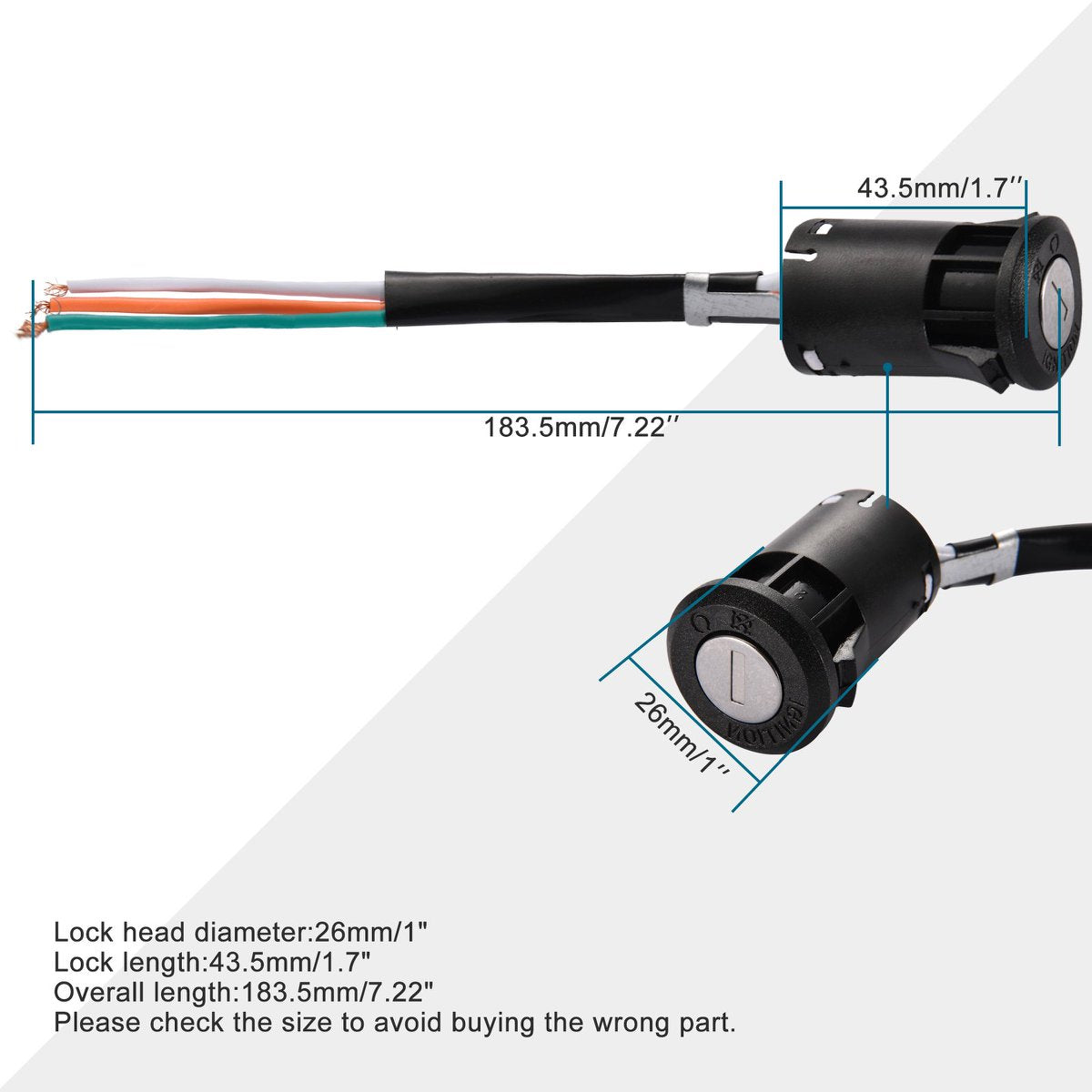

| Lock Head Diameter | Approx. 26 mm / 1.02 in |
| Listed Lock Length | Verify Before Ordering* |
| Overall Length | Approx. 183.5 mm / 7.22 in |

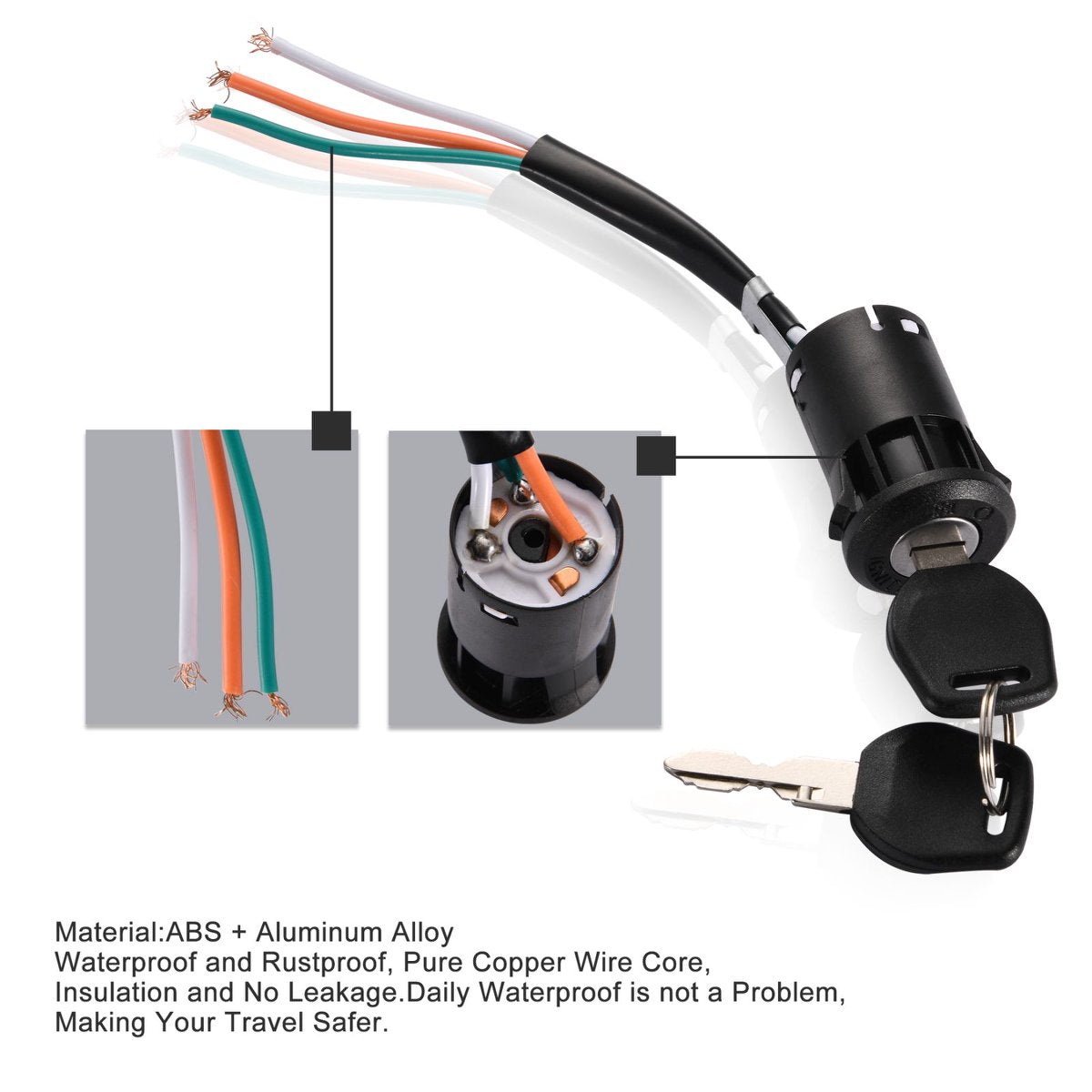

| Material | Plastic / Metal Components |
| Condition | New |
*The original product information lists the lock length as 435mm / 1.7 in, but these two measurements do not correspond. Verify the actual dimension from the product image or physical measurement before publishing this specification.
Listed Wiring Information
The original product information identifies the wires as:
- Red — Listed positive connection
- Green — Listed negative / ground connection
- Red/Yellow — Listed ignition-related connection
Important: Wire colors are provided only as a reference from the original product information. Do not connect the switch based on wire color alone. Verify each terminal's function against the vehicle wiring diagram and the original switch before installation.
Key Features
- 3-Wire Configuration: Designed for compatible powersports ignition circuits using three electrical connections.
- Keyed ON/OFF Control: Provides key-operated control for a compatible vehicle ignition/electrical system.
- Wide Application Range: Listed for selected ATVs, go karts, dune buggies, and dirt bikes.
- 26mm Lock Head: Provides a useful physical measurement for installation comparison.
- Dimension-Based Fitment: Wiring, mounting design, dimensions, and electrical function can be compared with the original switch before ordering.
Partager
FAQ sur l'ajustement
Cette pièce conviendra-t-elle à mon modèle et à mon année spécifiques ?
This switch is listed for selected 50cc–250cc ATVs, go karts, dune buggies, and dirt bikes.
However, engine size does not guarantee compatibility. Your original switch should use a compatible 3-wire electrical configuration, mounting design, and switch function.
Dois-je correspondre au numéro de pièce OEM ?
No OEM part number is provided for this generic ignition switch.
Instead, compare:
3-wire configuration
Electrical circuit/function
Terminal or connector design
Approx. 26mm lock-head diameter
Switch body dimensions
Mounting arrangement
Key positions
Original switch appearance
À quels modèles ou situations cette pièce ne convient-elle pas ?
Do not assume compatibility with:
Every 50cc–250cc ATV or dirt bike
Every Chinese ATV or go kart
2-wire or 4-wire ignition switches
Switches using a different circuit logic
Applications with incompatible terminals or connectors
Vehicles requiring different key-switch functions
Atala Carosello 50
Similar-looking ignition switches may use different internal electrical connections.
Que dois-je vérifier avant de commander ?
Confirm:
3-wire ignition-switch configuration
Original switch circuit/function
Terminal or connector type
Wire count
Key positions
Approx. 26mm lock-head diameter
Overall switch dimensions
Mounting arrangement
Original switch appearance
Vehicle wiring diagram where available
Do not use engine displacement or wire color alone to determine compatibility.
