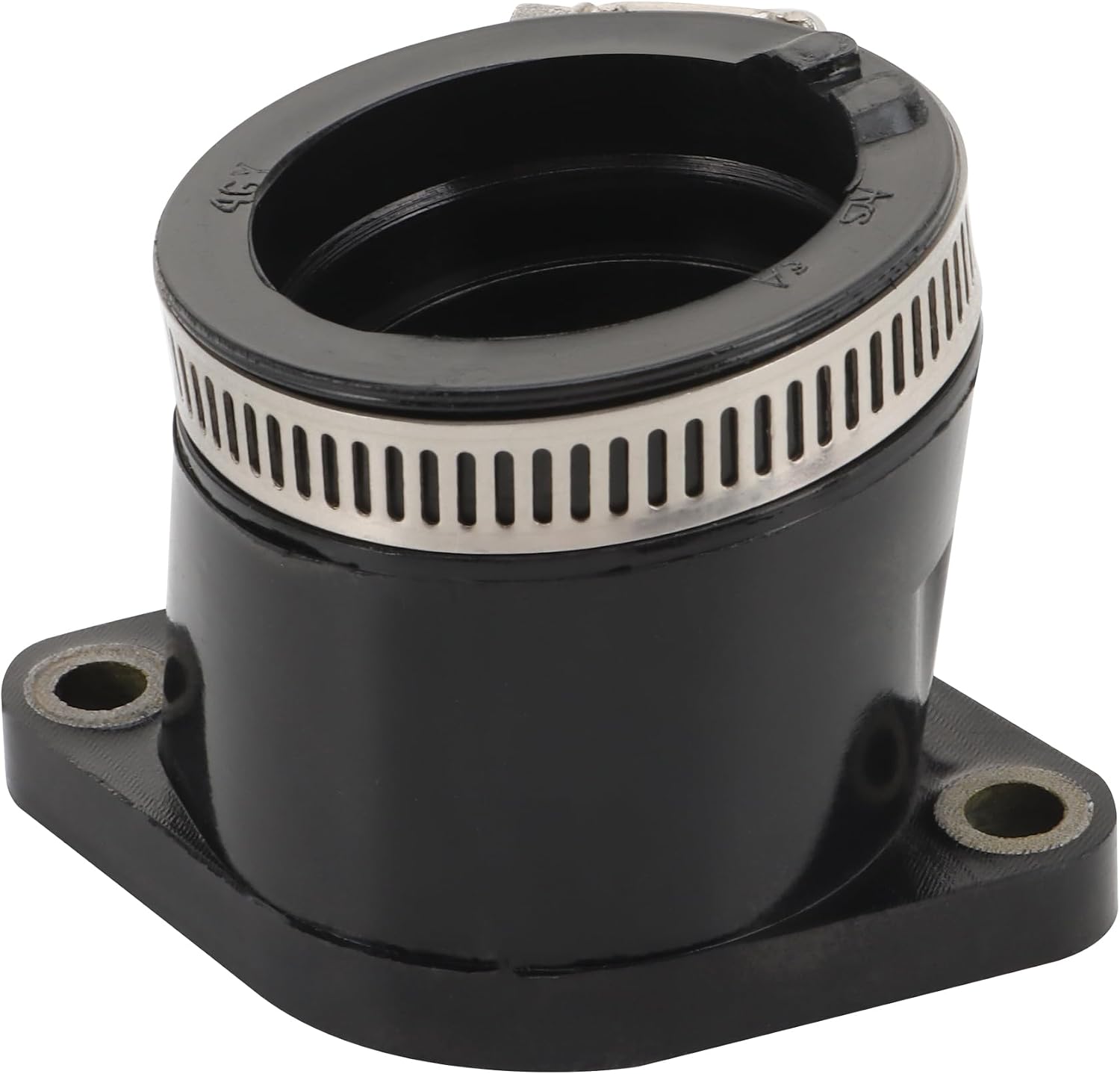

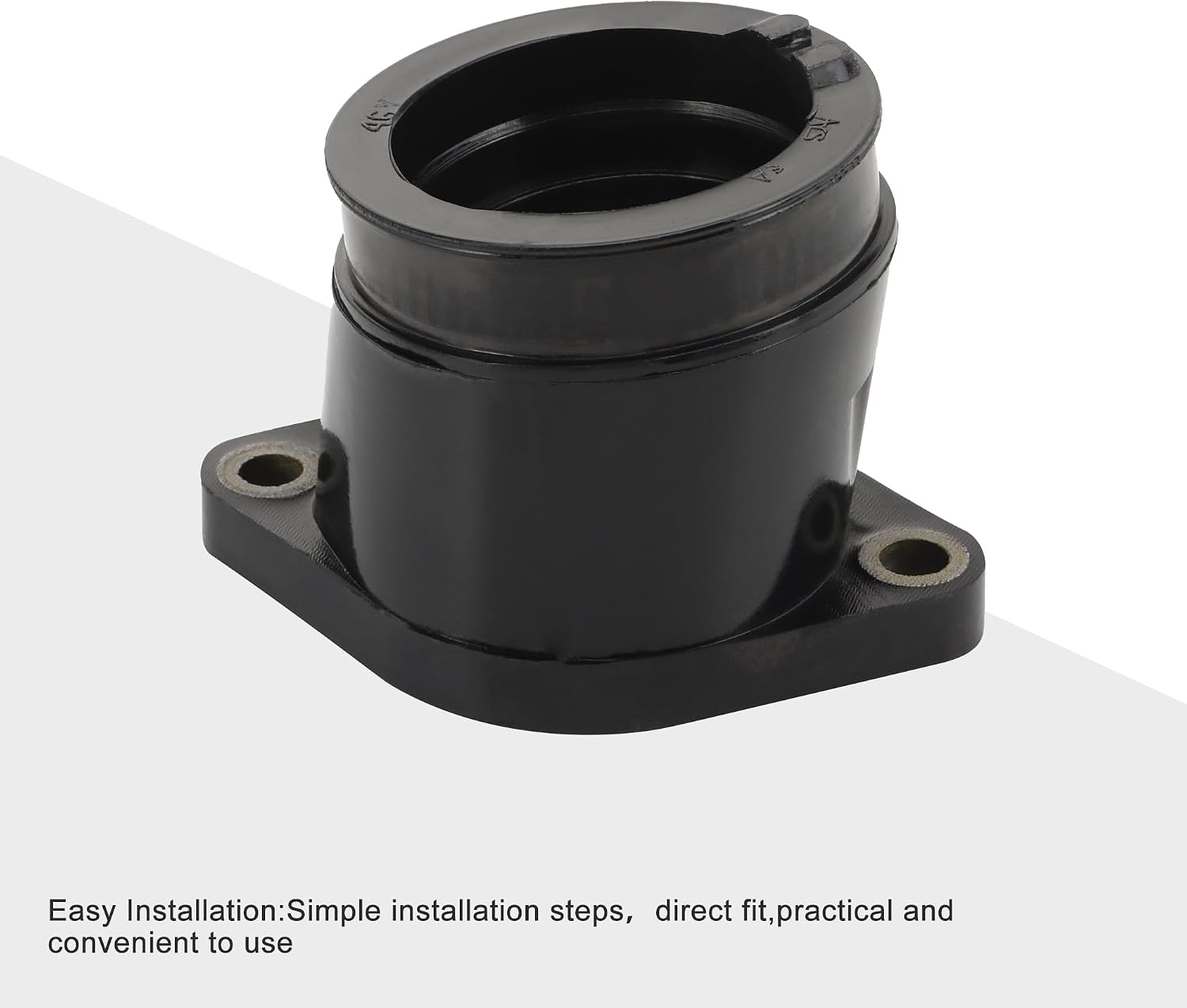

Carburetor Intake Manifold for Yamaha TTR250 TT250R RAID | 4GY-13586-00
Carburetor Intake Manifold for Yamaha TTR250 TT250R RAID | 4GY-13586-00
Impossible de charger la disponibilité du service de retrait
Product Overview
Restore a secure and properly sealed connection between the carburetor and engine with this replacement intake manifold, designed for compatible Yamaha TT250R, TTR250, and TT250R RAID motorcycles.

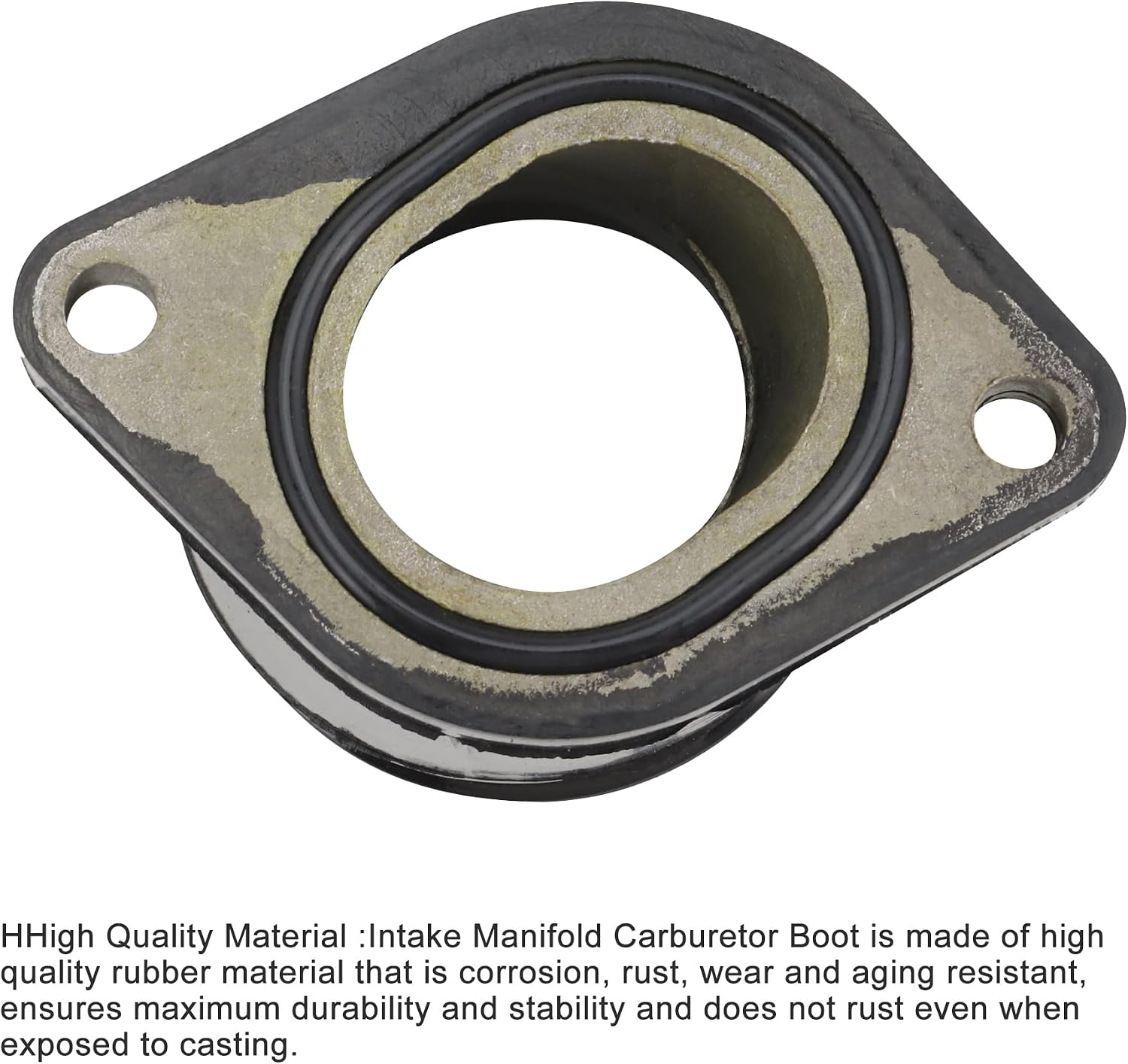

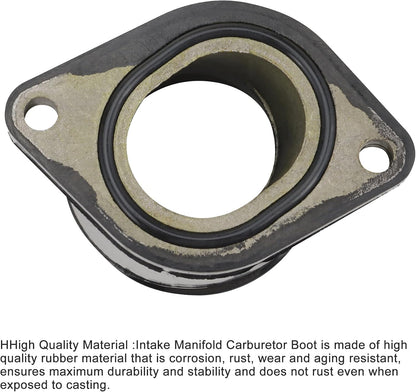

Made from durable rubber, this carburetor intake joint replaces an original manifold that has become cracked, hardened, loose, or damaged from years of engine heat, vibration, and fuel vapor exposure.
A worn intake manifold can allow unmetered air to enter the engine, potentially causing unstable idle, hesitation, difficult starting, inconsistent throttle response, or a lean-running condition.
Designed as a direct replacement for Yamaha OEM 4GY-13586-00, this intake manifold helps restore the proper carburetor-to-engine connection without unnecessary modification.
Product Compatibility
| Brand | Model | Year Range | Fitment Notes |
|---|---|---|---|
| Yamaha | TT250R / TT-R 250 | 1993–2004 | Verify OEM number and original manifold shape |
| Yamaha | TT250R RAID | 1994–1996 | Direct replacement for compatible 4GY applications |
| Yamaha | TTR250 / TT-R250 | 1999–2006 | Includes applicable regional model codes |
Yamaha parts listings confirm 4GY-13586-00 as the carburetor joint on TT250R/TTR250 applications, including a 2005 TT250R. Model naming and production ranges vary by market, so the OEM number and original part configuration should be used as the final fitment references.
OEM Cross-Reference Numbers
Yamaha
- 4GY-13586-00
- 4GY1358600
- 4GY-13586-00-00
- 4GY135860000
Yamaha identifies this component as JOINT, CARBURETOR 1.
Your original part or motorcycle parts catalog should match one of the corresponding number formats before ordering.
Specifications
| Specification | Details |
| Product Type | Carburetor Intake Manifold / Intake Boot |
| OEM Reference | 4GY-13586-00 |
| Material | Rubber |
| Color | Black |
| Application | Carburetor-to-Engine Intake Connection |
| Vehicle Type | Motorcycle / Dirt Bike |
| Engine Platform | Yamaha TT250R / TTR250 |
| Fitment Type | Direct Replacement |
| Condition | New |
| Package Quantity | 1 Intake Manifold |
Key Features
- TT250R / TTR250 Fitment: Designed for compatible Yamaha TT250R, TT250R RAID, and TTR250 motorcycles using OEM 4GY-13586-00.
- Helps Prevent Vacuum Leaks: Provides a sealed connection between the carburetor and engine intake to reduce unwanted air entering the engine.
- Durable Rubber Construction: Designed to withstand normal engine heat, vibration, and intake-system movement.
- Restores Intake Sealing: Ideal for replacing an original manifold that has become cracked, brittle, distorted, or difficult to seal.
- Direct-Replacement Design: Matches the original-style configuration when the OEM number, dimensions, and physical shape are correct.
Partager
FAQ sur l'ajustement
Cette pièce conviendra-t-elle à mon modèle et à mon année spécifiques ?
This intake manifold is designed for compatible:
1993–2004 Yamaha TT250R / TT-R 250
1994–1996 Yamaha TT250R RAID
1999–2006 Yamaha TTR250 / TT-R250
Yamaha parts references also confirm 4GY-13586-00 on later TT250R applications such as the 2005 model. Because model names and year ranges vary between sales markets, your original intake manifold should match OEM 4GY-13586-00 and the physical shape shown in the product images.
Dois-je correspondre au numéro de pièce OEM ?
Yes. Matching the OEM number is one of the most reliable ways to confirm compatibility.
This intake manifold replaces:
4GY-13586-00
4GY1358600
4GY-13586-00-00
4GY135860000
These are different formatting variations of the same Yamaha reference.
If your original manifold or Yamaha parts catalog shows another number, compare all dimensions and mounting details before ordering.
À quels modèles ou situations cette pièce ne convient-elle pas ?
This intake manifold is not intended for:
Yamaha motorcycles using a different intake-manifold OEM number
TTR125, TTR230, WR250, YZ250, or other unrelated Yamaha model families
Motorcycles with modified or aftermarket carburetors requiring a different intake diameter
Engine-swapped motorcycles
Applications with different mounting-hole positions
Manifolds with different carburetor-side or engine-side opening diameters
Fuel-injected motorcycles without this carburetor intake configuration
Do not assume that all Yamaha 250cc motorcycles use the same intake manifold.
Que dois-je vérifier avant de commander ?
Before ordering, confirm:
Motorcycle make and complete model
Exact production year
TT250R, TT250R RAID, or TTR250 configuration
OEM number 4GY-13586-00

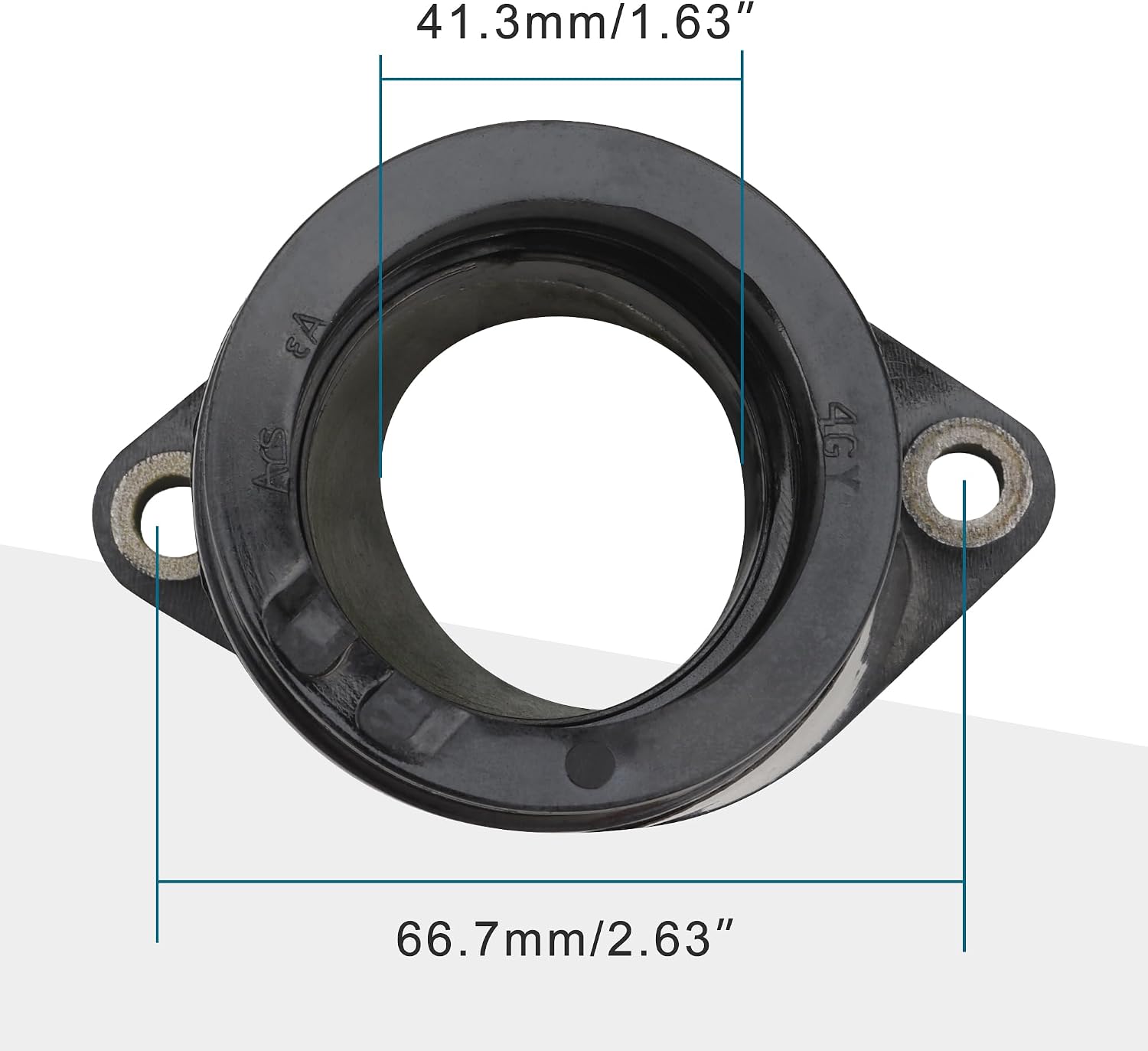

Carburetor-side opening diameter
Engine-side opening diameter
Mounting-hole spacing
Overall manifold dimensions
Intake angle and orientation
Clamp-groove position
Mounting-flange shape
Product photos compared with your original part
If the original manifold is cracked or hardened, also inspect the carburetor clamp, vacuum hoses, vacuum caps, carburetor seals, and surrounding intake components for additional air leaks.
