Electronic Control Unit for Kawasaki Brute Force 650 750 & Prairie 360 650 700 | 21175-0935

Electronic Control Unit for Kawasaki Brute Force 650 750 & Prairie 360 650 700 | 21175-0935

$49.99
$49.99
In offerta Esaurito
Spese di spedizione calcolate al check-out.

Product Overview

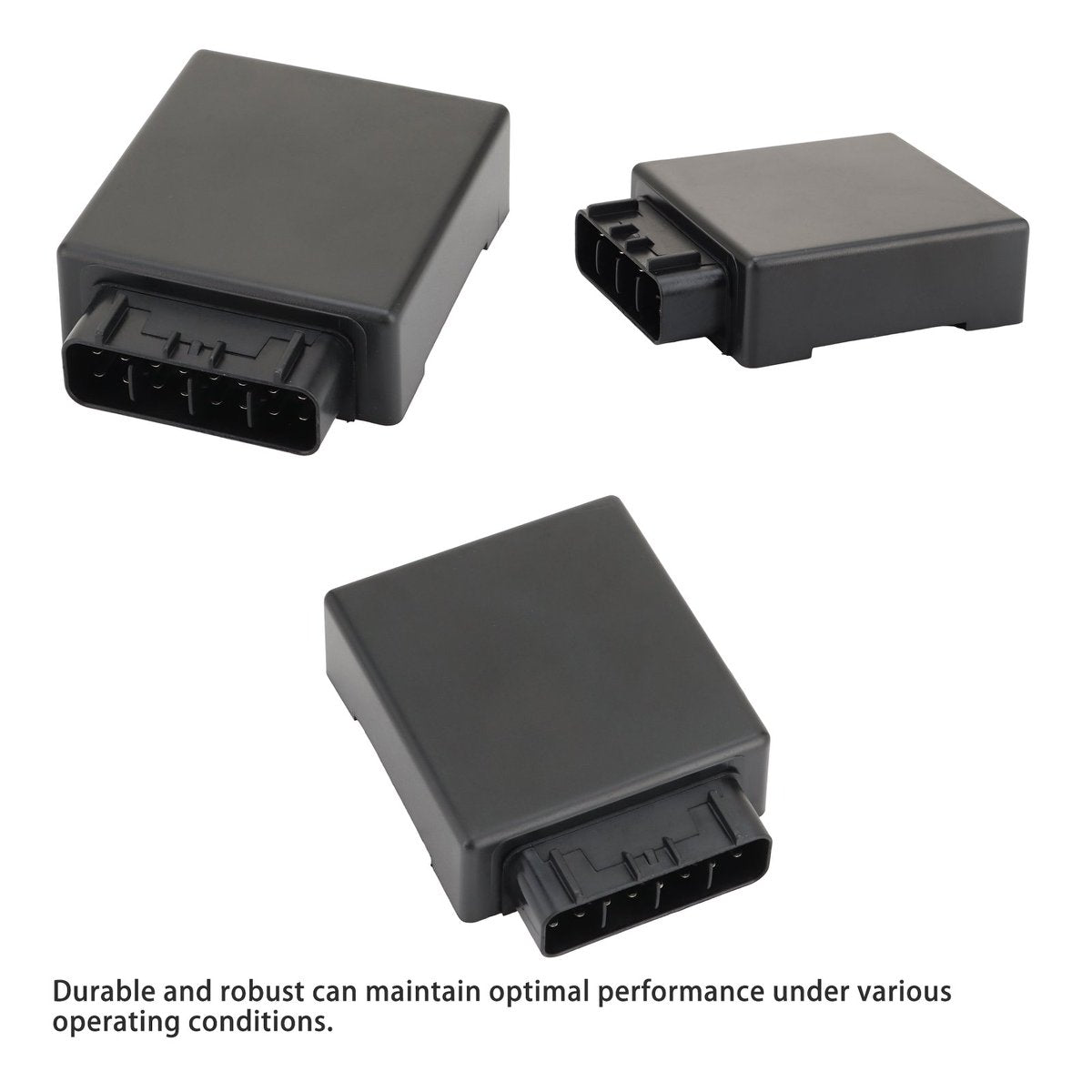

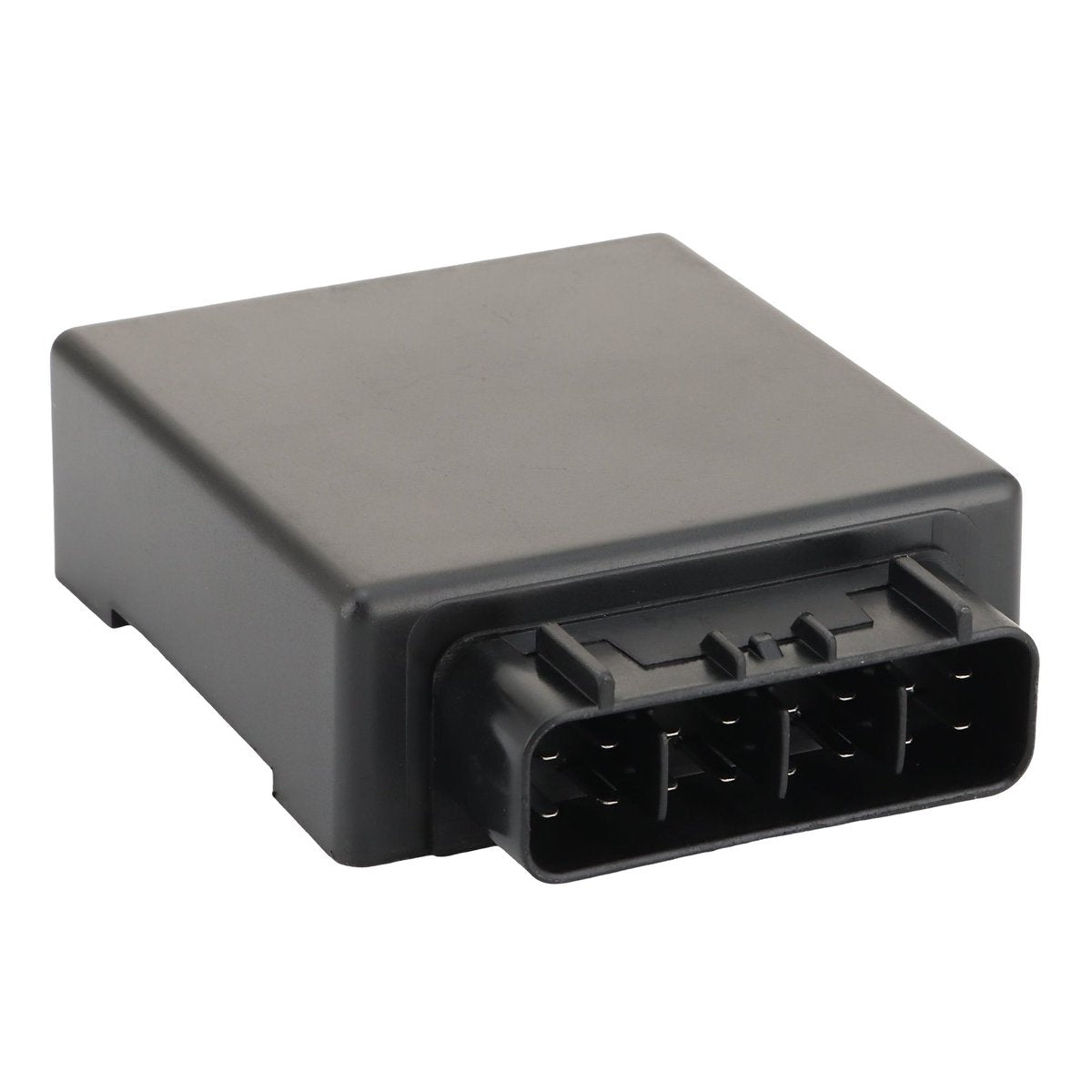

Replacement Electronic Control Unit (ECU / Ignition Control Module) for selected Kawasaki Brute Force 650, Brute Force 750, Prairie 360, Prairie 650, and Prairie 700 ATVs.

Designed as an aftermarket replacement for compatible Kawasaki electronic control units, this module uses a 14-pin connection and replaces multiple Kawasaki OEM references, including 21175-0935, 21175-0086, 21175-0216, and related superseded part numbers.

For the most reliable fitment confirmation, match the OEM number, ATV model/year, 14-pin connector, and original module configuration before ordering.

Product Compatibility

Make Model Year Range Notes
Kawasaki Brute Force 650 2005–2013 Selected KVF650 applications
Kawasaki Brute Force 750 2008–2014 Selected KVF750 applications
Kawasaki Prairie 360 2003–2013 Selected KVF360 applications
Kawasaki Prairie 650 2002–2003 Selected KVF650 applications
Kawasaki Prairie 700 2004–2006 Selected KVF700 applications

Model Family References

  • KVF360 — Prairie 360
  • KVF650 — Prairie 650 / Brute Force 650
  • KVF700 — Prairie 700
  • KVF750 — Brute Force 750

OEM Cross-Reference Numbers

This replacement module is listed for the following Kawasaki control-unit references:

  • 21175-0058
  • 21175-0086
  • 21175-0216
  • 21175-0935
  • 21175-1084
  • 21175-1095
  • 21175-1098

Primary OEM Reference

Kawasaki 21175-0935 — Control Unit-Electronic

Kawasaki parts references identify 21175-0935 as a control unit and show supersession relationships with several earlier control-unit numbers.

Always compare the OEM number on the original module before ordering.

Specifications

Specification Details
Product Type Electronic Control Unit / Ignition Control Module
Application Kawasaki ATV

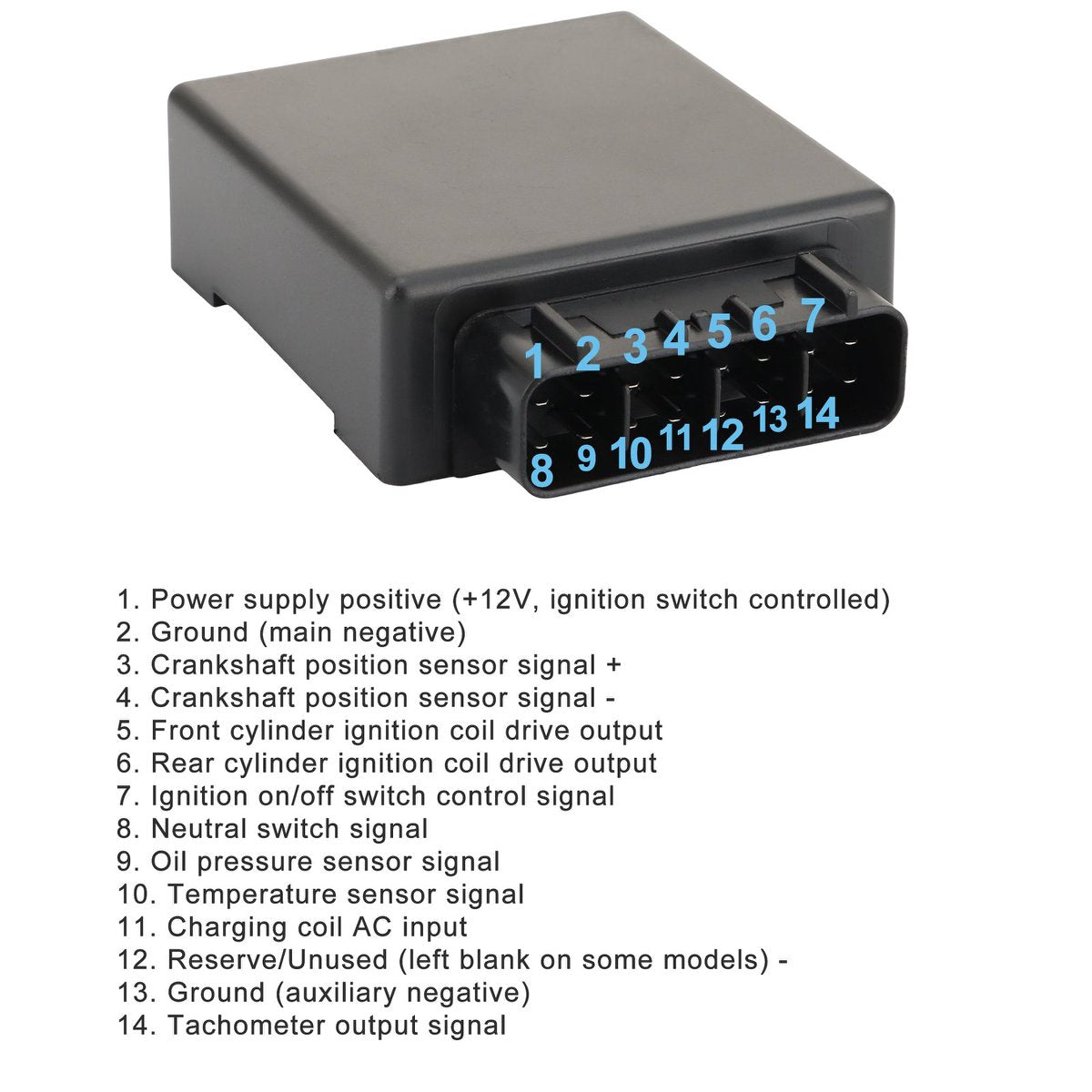

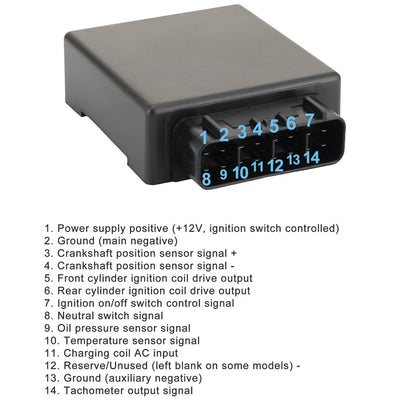

Connector 14-Pin

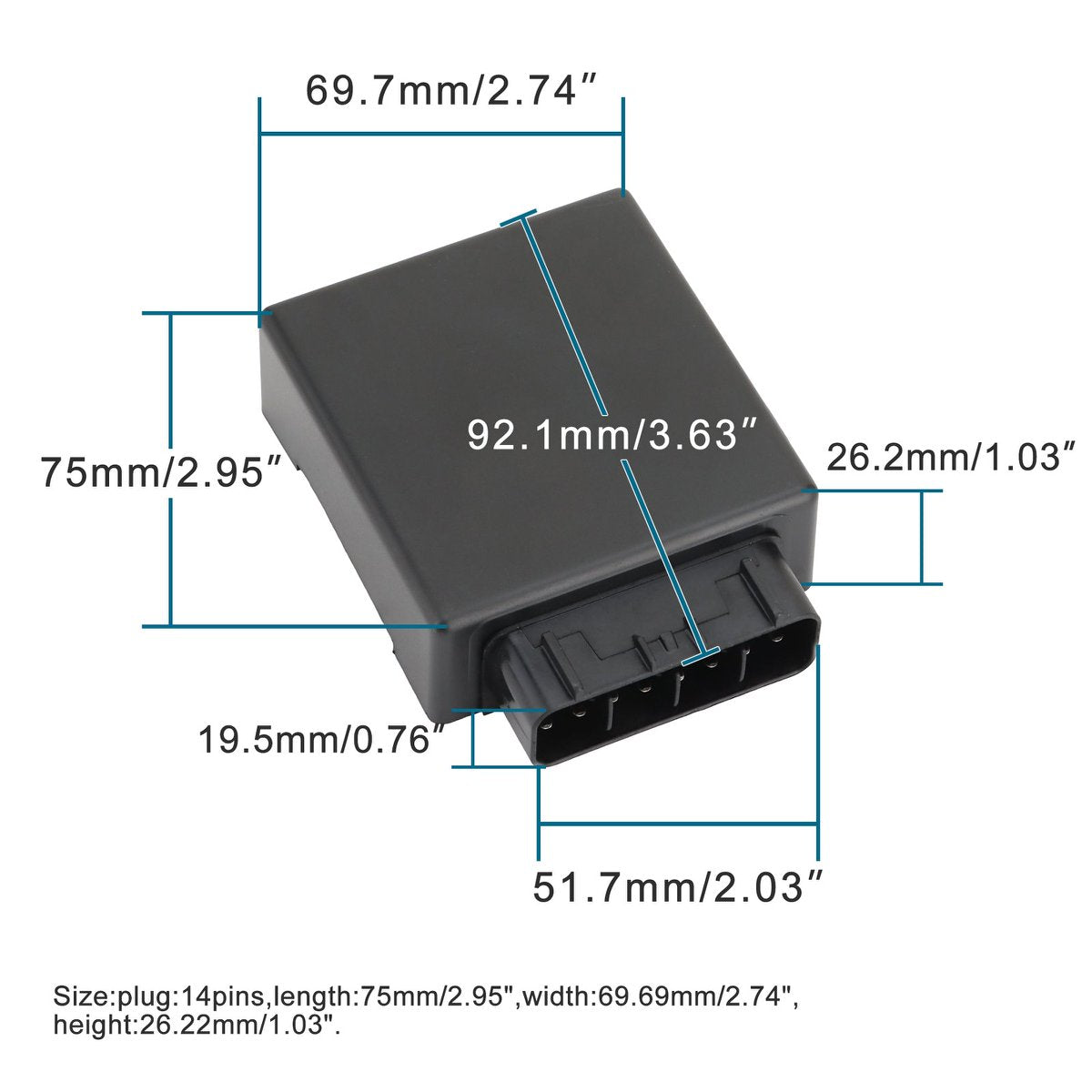

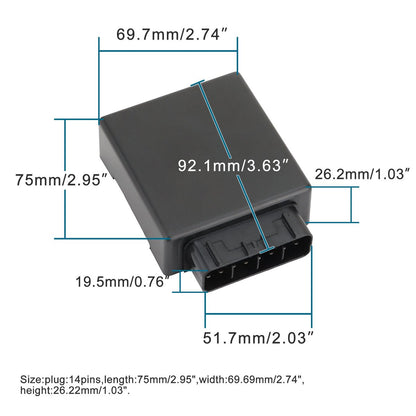

Length Approx. 75 mm / 2.95 in
Width Approx. 69.69 mm / 2.74 in
Height Approx. 26.22 mm / 1.03 in
Primary OEM Reference 21175-0935
Replacement Type Aftermarket
Condition New

Key Features

  • 14-Pin Configuration: Designed for compatible Kawasaki ATV electrical systems using the matching connector.
  • Multiple OEM References: Cross-references several Kawasaki control-unit part numbers, including 21175-0935, 21175-0086, and 21175-0216.
  • Brute Force & Prairie Applications: Covers selected KVF360, KVF650, KVF700, and KVF750 ATV configurations.
  • Defined Module Dimensions: 75 × 69.69 × 26.22mm dimensions provide an additional physical fitment reference.
  • Aftermarket Replacement: Intended to replace a compatible failed or damaged original electronic control unit.
Visualizza dettagli completi

Domande frequenti sulla compatibilità

Questa parte è compatibile con il mio modello e anno specifici?

This control unit is listed for selected:

Brute Force 650: 2005–2013
Brute Force 750: 2008–2014
Prairie 360: 2003–2013
Prairie 650: 2002–2003
Prairie 700: 2004–2006

For the strongest fitment confirmation, match the OEM number on your original control unit rather than relying only on model and year.

Devo corrispondere al numero di parte OEM?

Yes. Matching the control-unit OEM number is strongly recommended.

Listed references include:

21175-0058 / 21175-0086 / 21175-0216 / 21175-0935 / 21175-1084 / 21175-1095 / 21175-1098

Also confirm the 14-pin connector and module dimensions before ordering.

A quali modelli o situazioni non si adatta questa parte?

Do not assume this module fits:

Every Kawasaki Brute Force ATV
Every Kawasaki Prairie ATV
Model years outside the listed range
Vehicles using a different connector or pin configuration
Applications with an OEM control-unit number outside the listed replacement family
Vehicles where the actual fault is caused by another ignition or electrical component

A matching ATV model name alone does not guarantee compatibility.

Cosa dovrei controllare prima di ordinare?

Confirm:

Exact Kawasaki model
Model year
KVF model code where available
OEM number on the original control unit
14-pin connector
Connector shape and pin layout
Approx. 75 × 69.69 × 26.22mm module dimensions
Original module appearance

For this type of electrical component, matching the OEM number is the preferred fitment method.
