Intake Manifold Carb Holders for Kawasaki Z1 KZ900 KZ1000 | 16065-028 16065-029

Intake Manifold Carb Holders for Kawasaki Z1 KZ900 KZ1000 | 16065-028 16065-029

$17.99
$17.99
In offerta Esaurito
Spese di spedizione calcolate al check-out.

Product Overview

Restore a secure and properly sealed connection between the carburetors and cylinder head with this replacement intake manifold carburetor holder, designed for compatible vintage Kawasaki Z1, KZ900, KZ1000, KZ1000 LTD, Z1-R, Police 1000, and KZ1000 Shaft motorcycles.

Years of engine heat, vibration, fuel vapor, and age can cause the original carburetor holders to harden, crack, shrink, or lose their ability to seal properly. A damaged intake holder may allow unmetered air to enter the engine, potentially causing difficult starting, unstable idle, hanging RPM, hesitation, inconsistent carburetor synchronization, or a lean-running condition.

This replacement is designed around Kawasaki OEM references 16065-028 and 16065-029.

Kawasaki uses two different carburetor-holder positions:

  • 16065-028 — Right-Hand Carburetor Holder
  • 16065-029 — Left-Hand Carburetor Holder

A complete four-cylinder installation normally uses two right-hand and two left-hand holders.

Product Compatibility

Brand Model Model Code / Version Year Fitment Notes
Kawasaki Z1 900 Z1 1973 Verify OEM numbers and dimensions
Kawasaki Z1-A 900 Z1-A 1974 Uses LH/RH carburetor holders
Kawasaki Z1-B 900 Z1-B 1975 Confirm original holder configuration
Kawasaki KZ900 KZ900-A4 1976 OEM 16065-028 / 16065-029
Kawasaki KZ900 LTD KZ900-B1 1976 Confirm LH/RH position
Kawasaki KZ900 KZ900-A5 1977 Selected market application
Kawasaki KZ1000 KZ1000-A1 1977 Standard model
Kawasaki KZ1000 KZ1000-A2 / A2A 1978 Standard model
Kawasaki KZ1000 MKII KZ1000-A3 / A3A 1979 Confirm OEM references
Kawasaki KZ1000 MKII KZ1000-A4 1980 Confirm original intake configuration
Kawasaki KZ1000 LTD KZ1000-B1 1977 LTD model
Kawasaki KZ1000 LTD KZ1000-B2 1978 LTD model
Kawasaki KZ1000 LTD KZ1000-B3 1979 LTD model
Kawasaki KZ1000 LTD KZ1000-B4 1980 LTD model
Kawasaki Police 1000 KZ1000-C1 / C1A 1978 Police model
Kawasaki Police 1000 KZ1000-C2 1979 Police model
Kawasaki Police 1000 KZ1000-C3 1980 Police model
Kawasaki Police 1000 KZ1000-C4 1981 Police model
Kawasaki Z1-R KZ1000-D1 1978 Z1-R
Kawasaki Z1-R KZ1000-D3 1980 Z1-R
Kawasaki KZ1000 Shaft / ST KZ1000-E1 1979 Shaft-drive version
Kawasaki KZ1000 Shaft KZ1000-E2 1980 Shaft-drive version

Dedicated vintage Kawasaki replacement catalogs list these 16065-028/029 holders across the Z1, KZ900 and early KZ1000 families above.

Exact market specifications can vary, particularly on late-production or regional KZ900/KZ1000 models. Confirm the OEM number and physical dimensions before ordering.

OEM Cross-Reference Numbers

Right-Hand Carburetor Holder

  • 16065-028
  • 16065028

Left-Hand Carburetor Holder

  • 16065-029
  • 16065029

Kawasaki factory diagrams identify the two components separately as:

  • Holder, Carburetor, R.H.
  • Holder, Carburetor, L.H.

For example, Kawasaki specifies two 16065-028 right-hand holders and two 16065-029 left-hand holders on the 1976 KZ900-A4.

The same LH/RH arrangement appears in KZ1000 applications such as the 1979 KZ1000 LTD.

Specifications

Specification Details
Product Type Carburetor Intake Manifold / Carburetor Holder
OEM References 16065-028 / 16065-029
Listed Inner Diameter Approx. 29.32 mm / 1.15 in
Listed Mounting-Hole Spacing Approx. 56.78 mm / 2.24 in
Typical OEM-Style Reference Bore Approx. 32 mm
Typical OEM-Style Bolt Centers Approx. 58 mm
Application Carburetor-to-Cylinder-Head Connection
Engine Configuration Inline Four-Cylinder
Fuel System Carburetor
Construction Rubber/Composite Body with Metal Mounting Inserts
Vehicle Type Motorcycle
Condition New
Package Quantity Verify Actual SKU Before Publishing

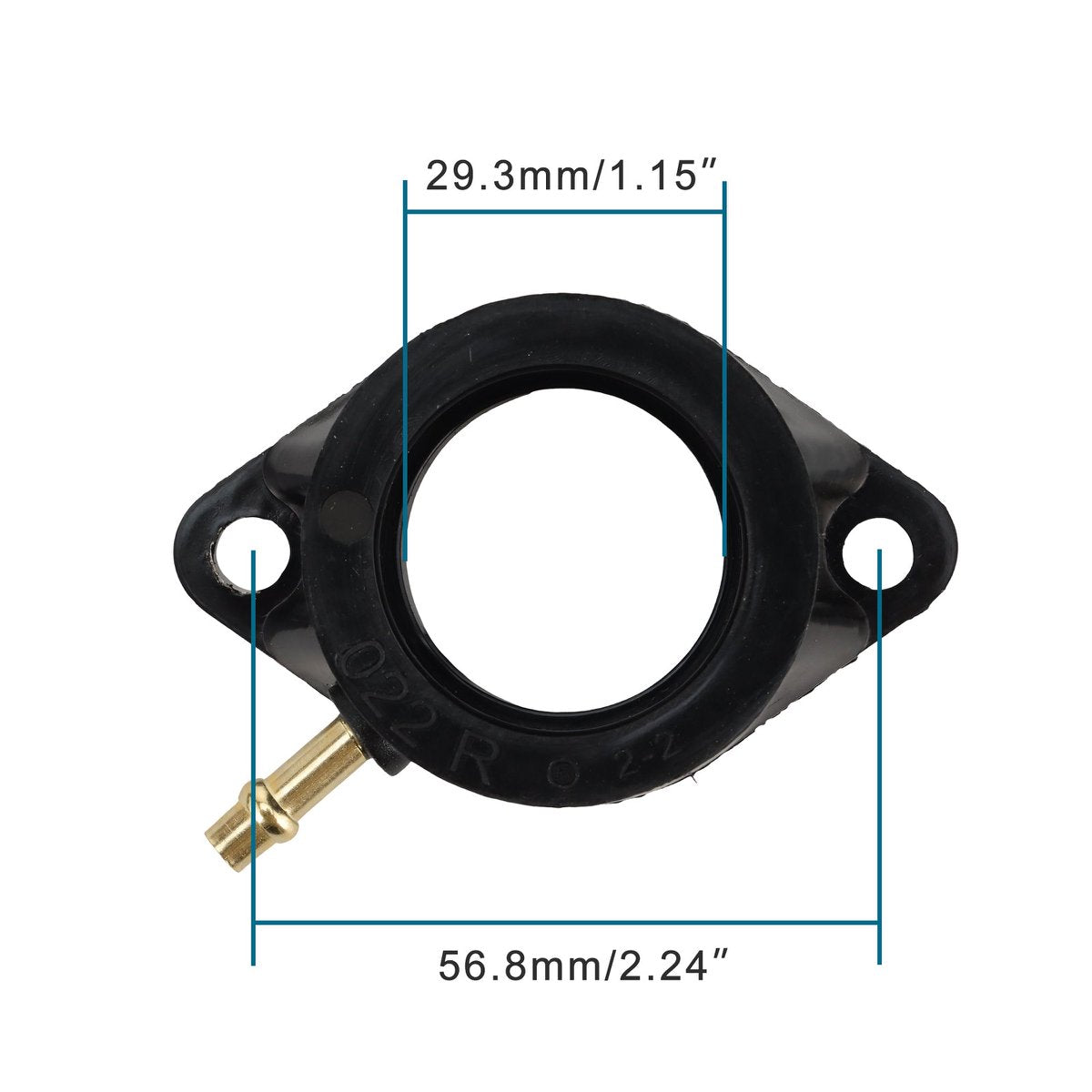

Measurement Note

The supplied product measurements are:

  • 29.32 mm / 1.15 in inner diameter
  • 56.78 mm / 2.24 in mounting-hole spacing

Professional replacement catalogs commonly specify approximately 32 mm internal diameter and 58 mm bolt centers for OEM-style 16065-028/029 holders.

This difference may result from:

  • Different measuring locations
  • Inner lip versus main bore measurement
  • Center-to-center versus edge-to-edge bolt measurement
  • Aftermarket manufacturing tolerances

Use the dimensions shown in your actual product photos as the final reference.

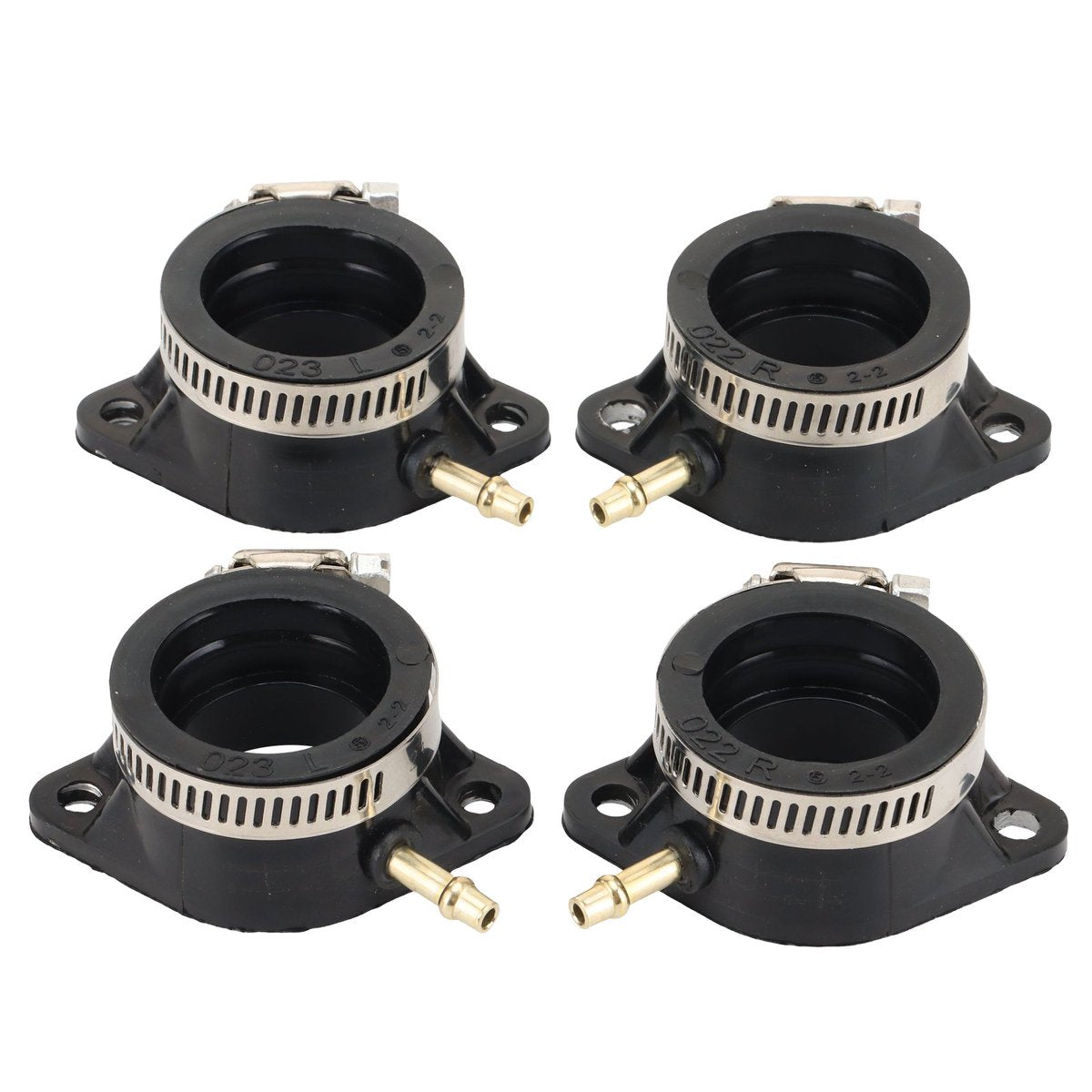

Important Package Quantity Note

The original Kawasaki four-cylinder installation normally requires:

  • 2 × Right-Hand Holder — 16065-028
  • 2 × Left-Hand Holder — 16065-029

A complete replacement kit therefore normally contains 4 carburetor holders. Vintage Kawasaki replacement kits are commonly sold in this 2 RH + 2 LH configuration.

If your SKU contains only one manifold, clearly identify whether it replaces:

  • 16065-028 RH, or
  • 16065-029 LH

Do not advertise a single physical holder as replacing both positions unless the aftermarket design has been specifically manufactured and verified to do so.

Key Features

  • Vintage Kawasaki Fitment: Designed for compatible Z1, KZ900, and early KZ1000 four-cylinder motorcycles.
  • OEM-Style LH/RH Configuration: Cross-references Kawasaki 16065-028 right-hand and 16065-029 left-hand intake holders.
  • Helps Prevent Vacuum Leaks: Restores the sealed connection between the carburetors and cylinder head.
  • Durable Intake Construction: Designed to withstand normal engine heat, vibration, fuel vapor, and long-term motorcycle use.
  • Direct-Replacement Design: Installs in the original position when the OEM number, bore size, mounting pattern, and holder orientation match.
Visualizza dettagli completi

Domande frequenti sulla compatibilità

Questa parte è compatibile con il mio modello e anno specifici?

This intake-holder design is commonly used on compatible:

1973–1975 Kawasaki Z1 / Z1-A / Z1-B
1976 Kawasaki KZ900-A4
1976 KZ900-B1 LTD
Selected 1977 KZ900-A5
1977–1980 KZ1000 A-Series
1977–1980 KZ1000 LTD B-Series
1978–1981 Police 1000 C-Series
1978 and 1980 KZ1000 Z1-R
1979–1980 KZ1000 Shaft / ST

Your motorcycle should use 16065-028 and/or 16065-029, and the original holders must match the mounting pattern, intake opening, vacuum-port arrangement, and physical shape.

Devo corrispondere al numero di parte OEM?

Yes.

Kawasaki uses two separate numbers:

16065-028 — Right-Hand
16065-029 — Left-Hand

A complete four-cylinder installation normally uses two of each.

The OEM numbers should therefore be matched together with the position of the original holder. Do not assume the left and right parts are identical.

What models or situations does this part not fit?

This intake manifold is not confirmed as a direct replacement for:

Later KZ1000/KZ1100 models using different 16065-series holders
Fuel-injected KZ1000G Z1 Classic without modification
Kawasaki GPZ1100 models using different intake holders
Modern Kawasaki Z1000 motorcycles
Kawasaki ATVs
Kawasaki dirt bikes
Go-karts
Scooters
Engines using a different mounting-hole pattern
Motorcycles with aftermarket carburetors requiring significantly different intake dimensions
Modified cylinder heads with different intake-port spacing

Do not assume that every Kawasaki 900cc or 1000cc motorcycle uses these holders.

A quali modelli o situazioni non si adatta questa parte?

This intake manifold is not confirmed as a direct replacement for:

Later KZ1000/KZ1100 models using different 16065-series holders
Fuel-injected KZ1000G Z1 Classic without modification
Kawasaki GPZ1100 models using different intake holders
Modern Kawasaki Z1000 motorcycles
Kawasaki ATVs
Kawasaki dirt bikes
Go-karts
Scooters
Engines using a different mounting-hole pattern
Motorcycles with aftermarket carburetors requiring significantly different intake dimensions
Modified cylinder heads with different intake-port spacing

Do not assume that every Kawasaki 900cc or 1000cc motorcycle uses these holders.

Cosa dovrei controllare prima di ordinare?

Before ordering, confirm:

Kawasaki Z1, KZ900, or KZ1000 model
Exact production year
Complete model code
OEM 16065-028 or 16065-029
Left-hand or right-hand position
Listed approximately 29.32 mm / 1.15 in inner diameter
Listed approximately 56.78 mm / 2.24 in mounting-hole spacing
Exact measurement points shown in the product images
Carburetor outlet diameter
Cylinder-head bolt pattern
Vacuum-port location
Holder angle and orientation
Clamp position
Quantity required

Also inspect the carburetor clamps, vacuum caps, fuel hoses, carburetor synchronization, airbox boots, and surrounding intake components before reassembly.
