Starter Motor for KTM 200/250/300 EXC XC-W Freeride 2008–2017 | 55140001100
Starter Motor for KTM 200/250/300 EXC XC-W Freeride 2008–2017 | 55140001100
Impossibile caricare la disponibilità di ritiro
Product Overview

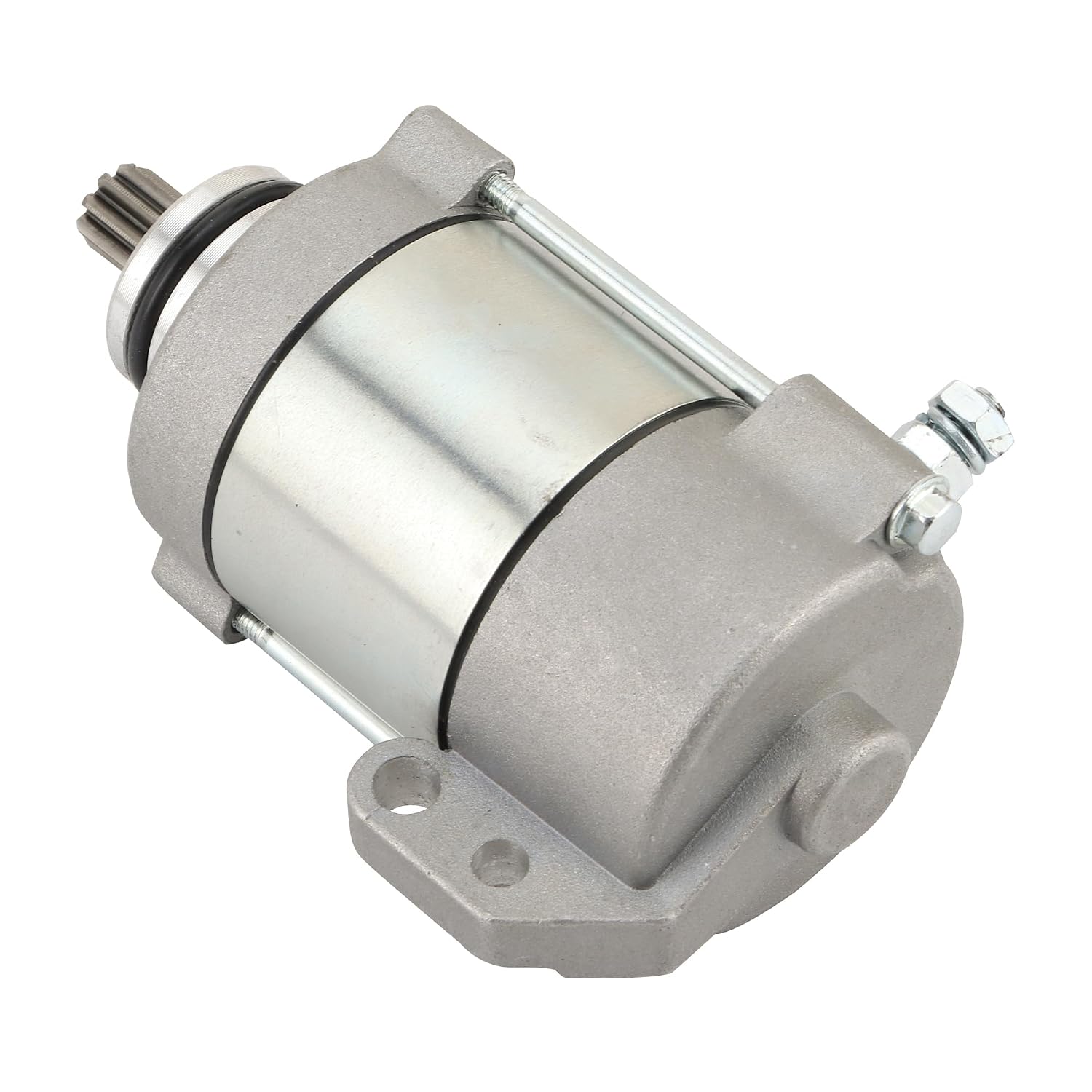

Restore dependable electric-starting performance with this 12V starter motor, designed for compatible KTM 200cc, 250cc, and 300cc two-stroke off-road motorcycles.
Featuring a 9-tooth drive gear, compact metal housing, and direct-replacement configuration, this starter motor helps provide consistent engine cranking when the original starter becomes weak, slow, intermittent, or unable to turn the engine.
Its wear-resistant construction is designed to withstand repeated starts, engine vibration, heat, dust, mud, and demanding enduro or trail-riding conditions.
This replacement is intended for applications using KTM starter number 55140001000 or 55140001100. Because KTM used different starter-drive components across model years, compare the original starter number, gear teeth, mounting measurements, electrical terminal position, and housing design before ordering.
Product Compatibility
| Brand | Model | Year Range | Engine / Notes |
|---|---|---|---|
| KTM | 250 XC-W | 2008–2016 | Two-stroke; verify OEM number |
| KTM | 300 EXC Six Days | 2009–2016 | Two-stroke; regional enduro model |
| KTM | Freeride 250 R | 2014–2017 | Two-stroke |
| KTM | 200 XC-W | 2013–2016 | Two-stroke; North American designation |
| KTM | 200 EXC | 2013–2016 | Regional equivalent; verify exact year |
| KTM | 250 EXC / EXC Six Days | Selected years | Match OEM number and dimensions |
| KTM | 300 XC-W / EXC | Selected years | Match OEM number and starter configuration |
The main year ranges above follow the supplied application information. KTM’s original parts finder confirms 55140001000 on representative earlier applications, including the 2009 300 EXC Six Days and 2012 250 XC-W. It confirms 55140001100 on later examples such as the 2014 250 EXC, 2015 200 EXC, and 2017 Freeride 250 R.
Model names can vary by sales region. For example, an application sold as an XC-W in North America may have a related EXC designation in another market. Use the complete model code and OEM starter number as the primary fitment references.
OEM Cross-Reference Numbers
KTM OEM Numbers
- 55140001000
- 55140001100
Aftermarket and Interchange Numbers
- 94078610
- J & N Electrical: 410-54153
- J & N Electrical: 41054153
- Lester/WAI: 19091N
- Arrowhead: SMU0505
- Mitsuba: SM16
Only 55140001000 and 55140001100 should be placed under the KTM OEM heading. The remaining numbers should be presented as aftermarket or interchange references.
Your original starter does not need to display every number listed above. At least one compatible OEM or confirmed interchange number should match the original unit or the parts catalog for your motorcycle.
Specifications
| Specification | Details |
|---|---|
| Product Type | Electric Starter Motor |
| Voltage | 12V |
| Drive Gear | 9 Teeth |

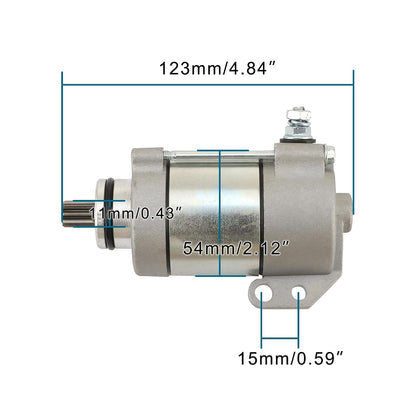

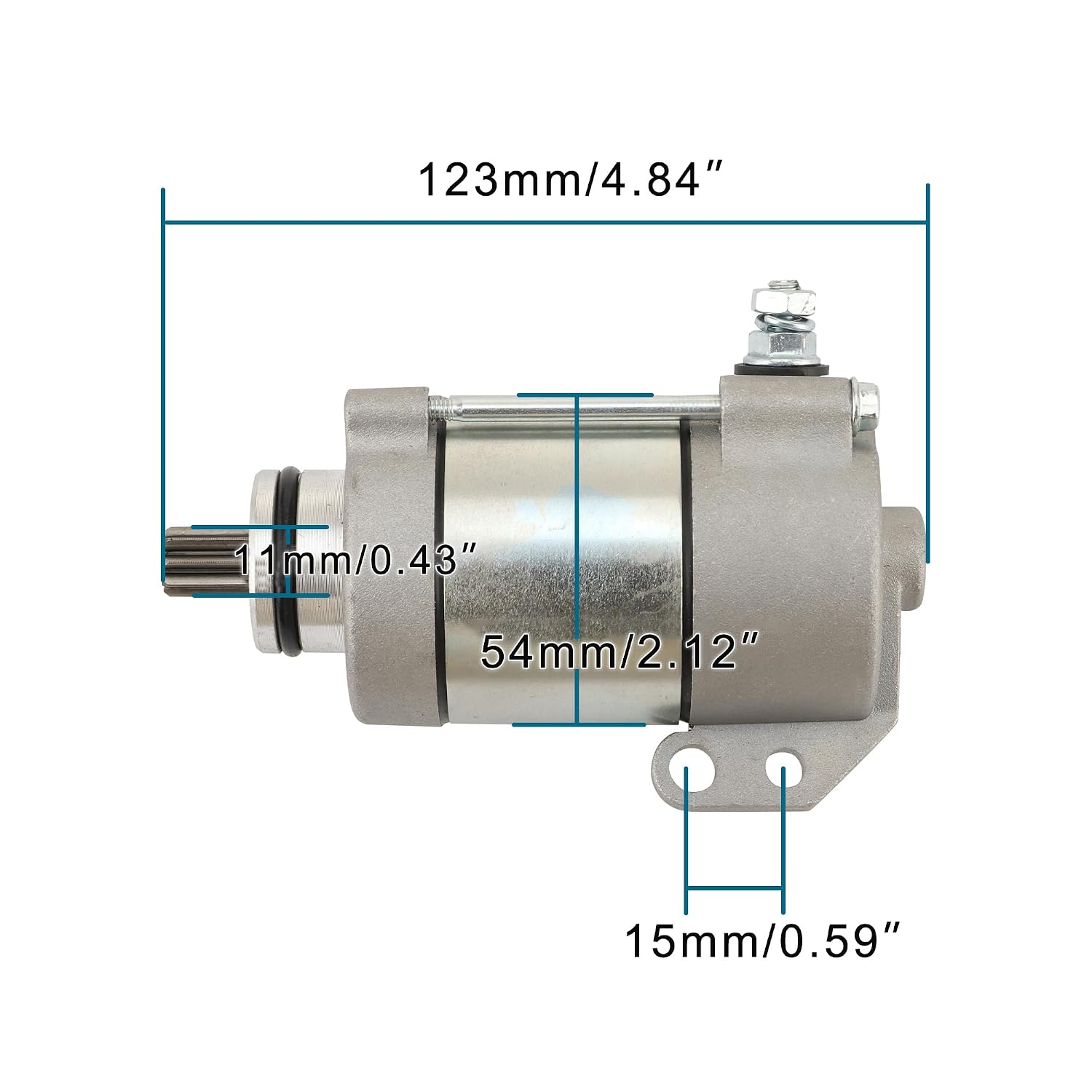

| Listed Mounting-Hole Measurement | 15 mm / 0.59 in |
| Drive Gear Diameter | 11 mm / 0.43 in |
| Overall Length | 123 mm / 4.84 in |
| Overall Width | 54 mm / 2.13 in |
| Fitment Type | Direct Replacement |
| Vehicle Type | Off-Road Motorcycle / Dirt Bike |
| Compatible Engine Type | Two-Stroke |
| Housing Material | Metal |
| Condition | New |
| Package Quantity | 1 Starter Motor |
The supplied width conversion has been adjusted from 2.12 inches to approximately 2.13 inches.
The listed 15 mm mounting measurement may refer to a mounting-hole diameter, mounting-ear measurement, or another reference point rather than the distance between both mounting-hole centers. Compare the exact measurement points shown in the product images.
Key Features
- KTM Two-Stroke Fitment: Designed for compatible KTM 200, 250, and 300 EXC, XC-W, Six Days, and Freeride applications.
- 12V 9-Tooth Configuration: Features a nine-tooth drive gear for compatible OEM electric-start systems.
- Reliable Engine Cranking: Helps restore consistent startup when the original starter becomes weak, slow, or intermittent.

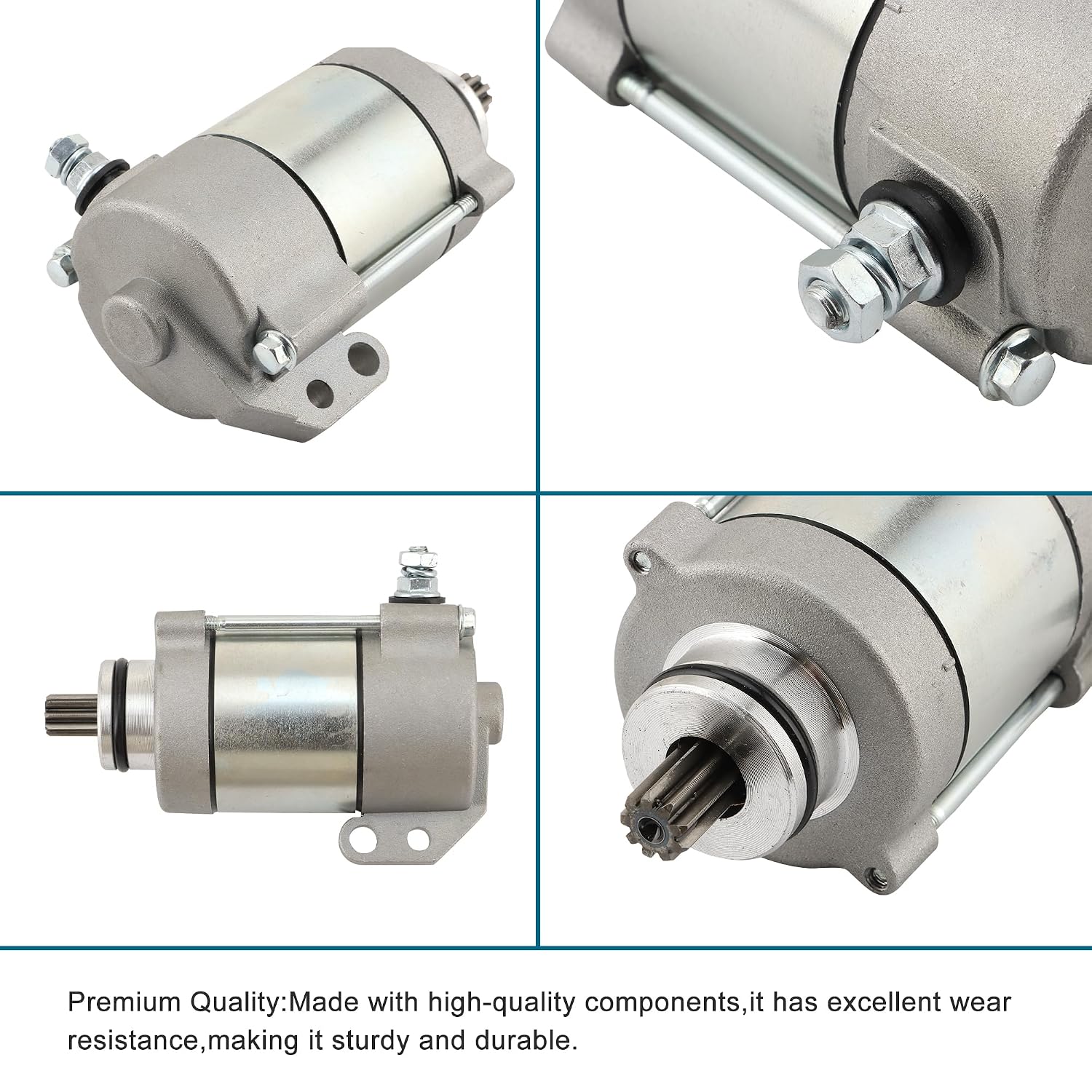

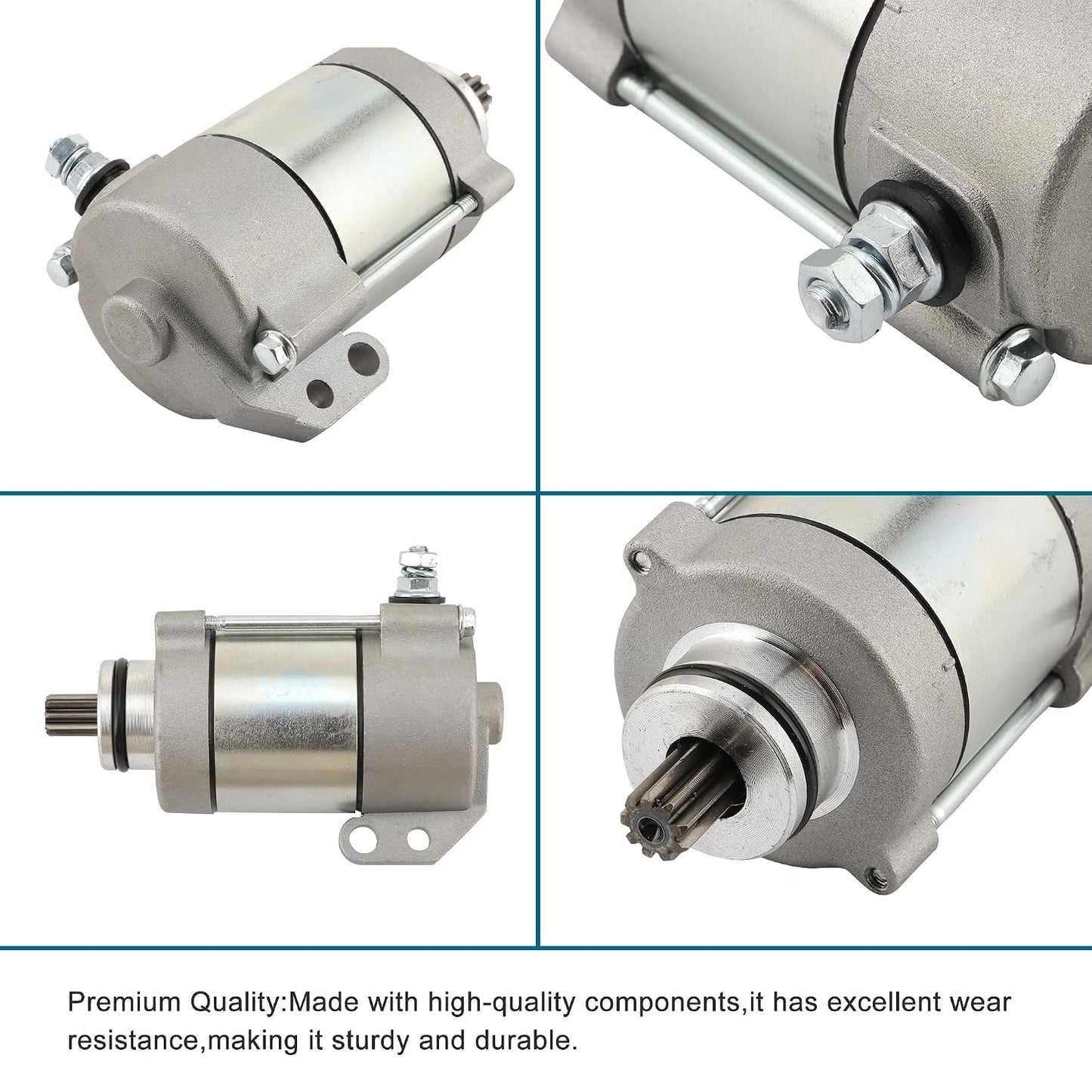

- Wear-Resistant Construction: Durable metal components support dependable operation under heat, vibration, dust, mud, and trail-riding conditions.
- Direct-Replacement Design: Matches the original-style installation when the OEM number, dimensions, and terminal position are correct.
Condividi
Domande frequenti sulla compatibilità
Questa parte è compatibile con il mio modello e anno specifici?
This starter motor is intended for compatible models including:
2008–2016 KTM 250 XC-W
2009–2016 KTM 300 EXC Six Days
2014–2017 KTM Freeride 250 R
2013–2016 KTM 200 XC-W
Selected KTM 200 EXC, 250 EXC, and 300 EXC applications using the same starter configuration
Your original starter should use 55140001000, 55140001100, or a confirmed interchange number and match the listed nine-tooth gear, dimensions, mounting design, and terminal position.
Do not rely only on engine displacement or the model year. KTM used different starter and starter-drive components across its 200cc, 250cc, and 300cc two-stroke platforms.
Devo corrispondere al numero di parte OEM?
Yes. Matching the complete KTM part number is one of the most reliable ways to confirm fitment.
This starter is intended to replace:
KTM 55140001000
KTM 55140001100
94078610
J & N 410-54153
J & N 41054153
Lester/WAI 19091N
Arrowhead SMU0505
Mitsuba SM16
Your original starter does not need to show every number listed above. At least one compatible KTM OEM or confirmed interchange number should match.
KTM’s official parts diagrams show 55140001000 on earlier representative applications and 55140001100 on later representative applications.
A quali modelli o situazioni non si adatta questa parte?
This starter motor is not intended for:
KTM motorcycles using a different OEM starter number
Four-stroke EXC-F, XC-F, SX-F, or XCF-W models
KTM 250 SX or 300 SX models without the matching electric-start configuration
Later TPI or TBI models using a different starter system
KTM 125cc or 150cc motorcycles
Applications requiring a different number of drive teeth
Starters with a different gear diameter or housing length
Models with a different electrical terminal position
Motorcycles with engine swaps or modified starting systems
Applications where the original starter or mounting design looks different
Do not assume that every KTM 200, 250, or 300 two-stroke motorcycle uses this starter.
Cosa dovrei controllare prima di ordinare?
Before ordering, confirm:
Motorcycle brand and complete model
Exact production year
Model suffix, such as XC-W, EXC, EXC Six Days, or Freeride R
Two-stroke engine configuration
KTM OEM or confirmed interchange number
12V electrical system
Nine-tooth drive gear
11 mm / 0.43 in drive-gear diameter
123 mm / 4.84 in overall length
54 mm / 2.13 in overall width
Listed 15 mm / 0.59 in mounting measurement

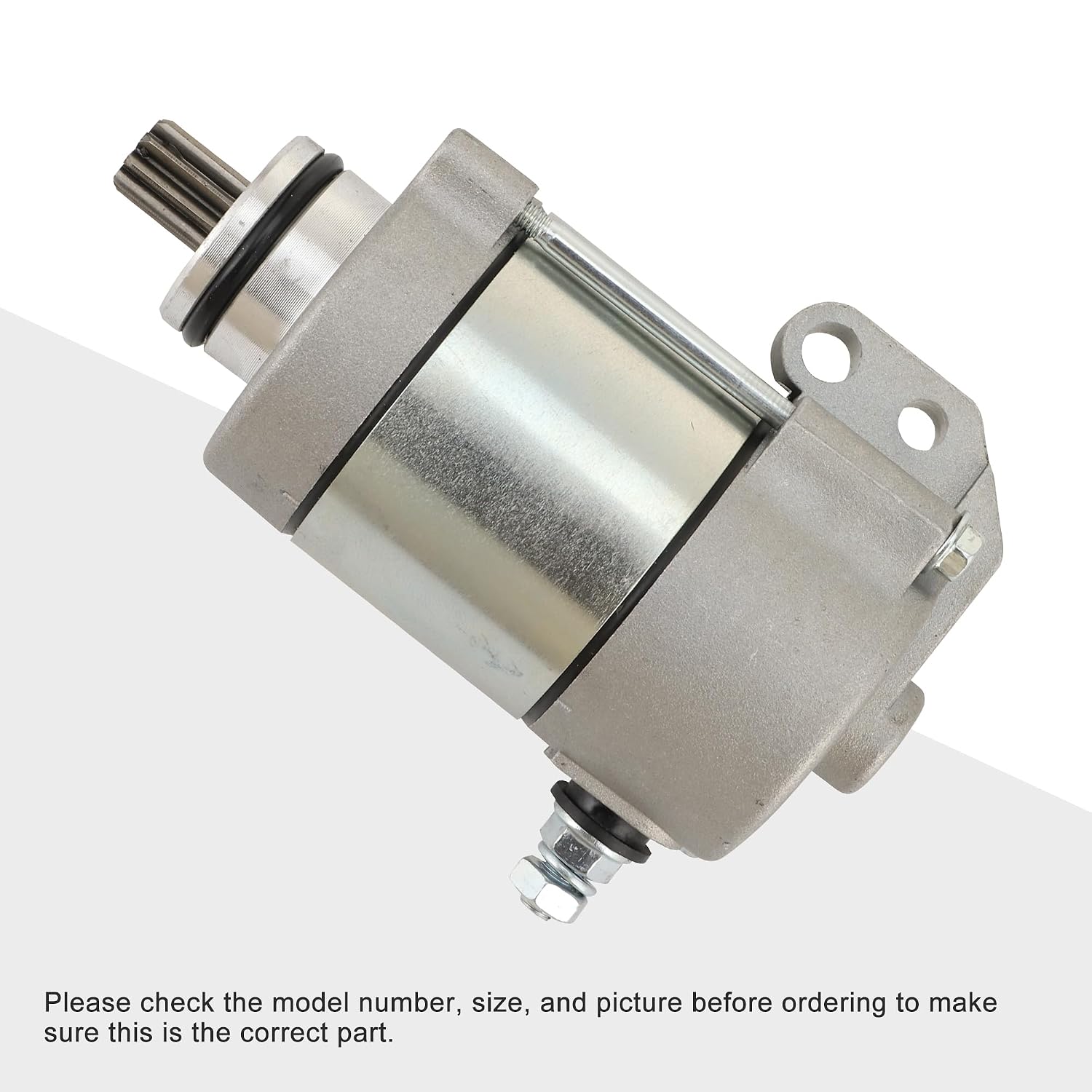

Exact measurement points shown in the product images
Electrical terminal position
Mounting-ear and housing shape
Starter-drive and Bendix condition
O-ring and sealing-surface condition
Also inspect the battery, starter relay, fuse, cables, wiring, ground connections, Bendix gear, crown wheel, and starter-drive cover. A fault elsewhere in the electric-start system can cause symptoms similar to a failed starter motor.
